High pressure 2800 psi PTFE core tubing Swagelok TH type 1/4' 3/8' 1/2' NPT OD VCR customized length PTFE Lined hose
- Category: >>>
- Supplier: Sailuoke Fluid Equipment Inc.Sailuoke Inc.
Share on (60823178154):
Product Overview
Description
Product Description

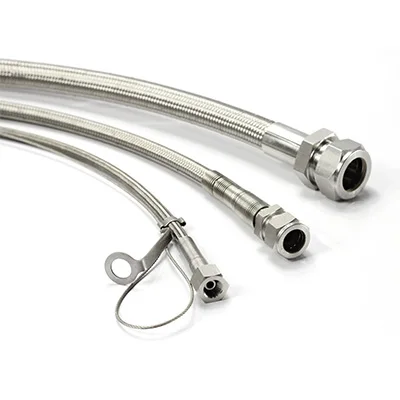

PTFE- Lined Hose
Features:
* Maximum working pressure up to 3000 psig (206 bar)
* Working temperature from -65℉ to 400℉ (-54℃ to 204℃)

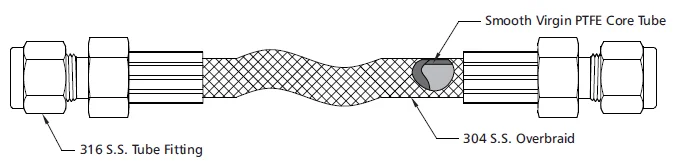

* PTFE core tube and woven 304 stainless steel wire mesh
* Hose sizes from 3/16 to 7/8 in.

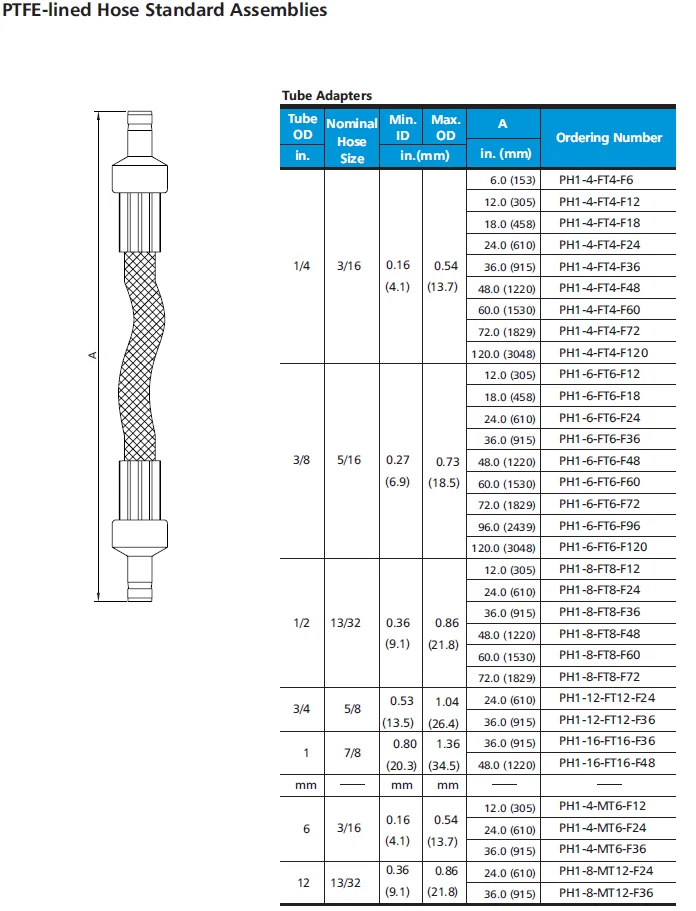

* Standard and custom- length assemblies

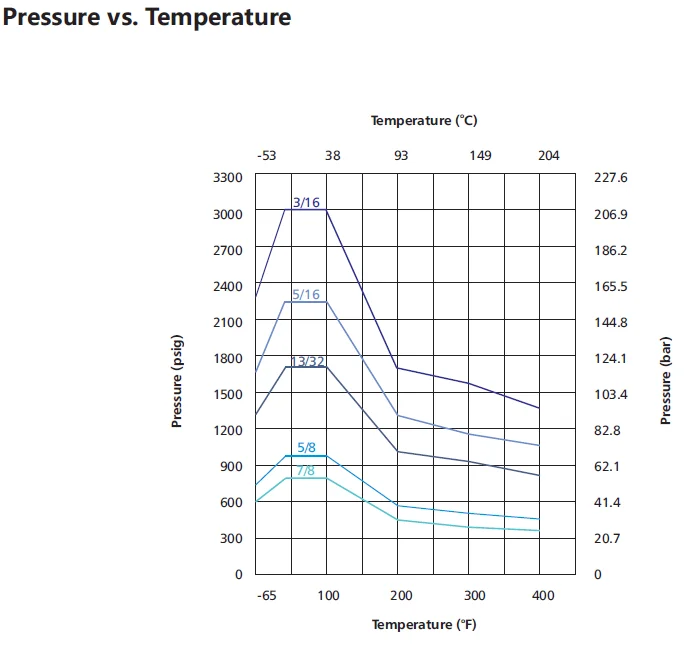

Hose Technical Data
| Hose Size | Min. Bend Radius | Temperature Range ℉ (℃) | Working Pressure at 70 ℉(20℃) | Min. Burst Pressure at 70 ℉(20℃) | |
| Static | Dynamic | ||||
| in. (mm) | in. (mm) | in. (mm) | Psig ( Bar) | Psig ( Bar) | |
| 3/16 (4.8) | 2.0 (50.8) | 2.5 (63.5) | -65 to 400 (-53 to 204) | 3000(207) | 12000(828) |
| 5/16 (7.8) | 4.0 (102.0) | 5.5 (140.0) | 2250(155) | 9000(620) | |
| 13/32 (10.3) | 5.0 (127.0) | 6.5(165.0) | 1750(121) | 7000(484) | |
| 5/8 (15.9) | 6.5 (165.0) | 8.0(203.0) | 1000(69) | 4000(276) | |
| 7/8 (22.2) | 9.5(241.0) | 12.0(305.0) | 800(55) | 3200(220) | |
Company Information
- Established in 2011
- Passed ISO9001-2015
- Supply OEM/ODM Manufacturing.
- Designed and manufactured to intermix and interchange Swagelok ® and major global brands.
- 0.5 Hour's Drive from Chengdu Shuangliu Airport.
Main product:
--- Twin Ferrules Series Tube Fittings
--- Ball Valves
--- Check Valves
--- Needle Valves
--- Instrument Manifolds
--- Bellows-Sealed Valves
--- Relief Valve
Our Services
You should make a safe product selection. When selecting products, the total system design must be considered to ensure safe, trouble-free performance, function, material compatibility, adequate ratings,
proper installation, operation and maintenance are the responsibilities of the system designer and user.
From quote to delivery, we can provide the detailed support you need.
1.CAD drawing
2.P&ID
3.Component selection
4.Bill of material
5.Professional services such as bending and welding
6.Testing to guarantee the system
7.Professional packaging and delivery
Packaging & Delivery
Packaging Details
Products are packed in carton box, wooden case or according to your requirement
Delivery Time
In stock for sample order; in 15 days for bulk order
