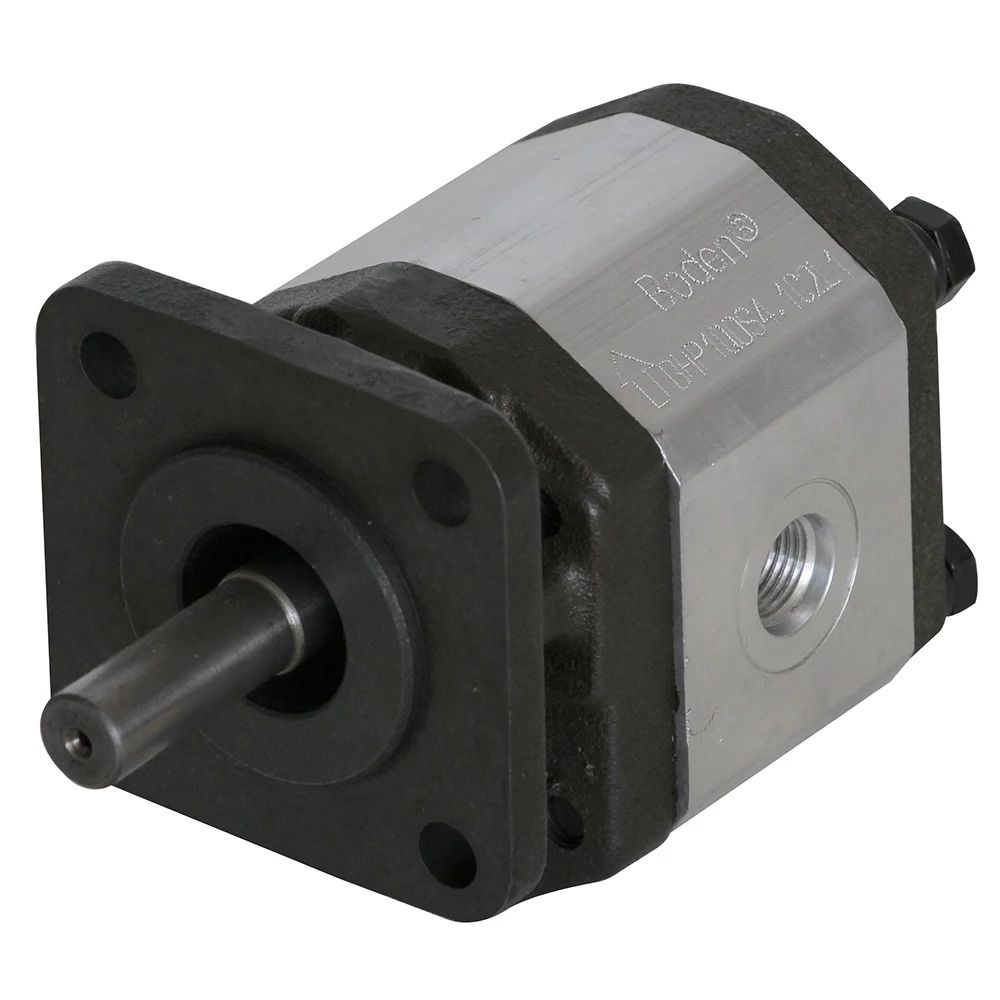

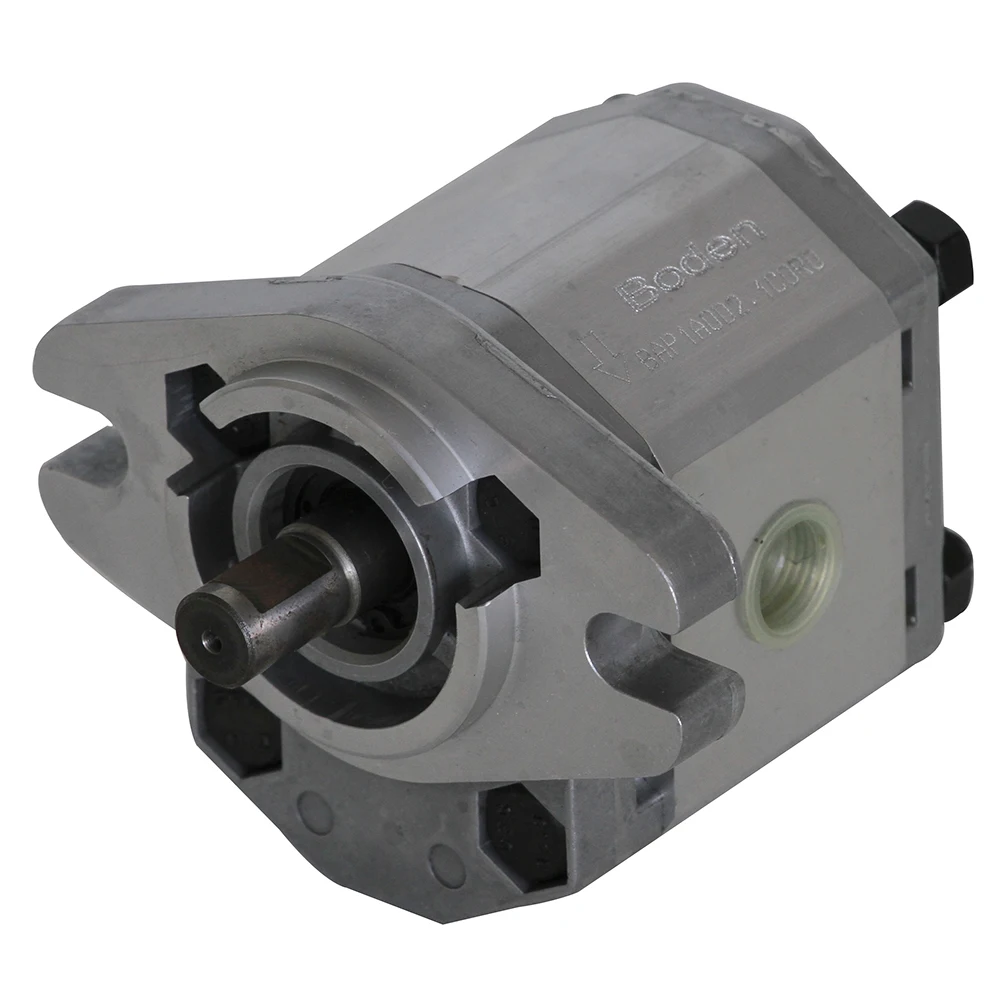

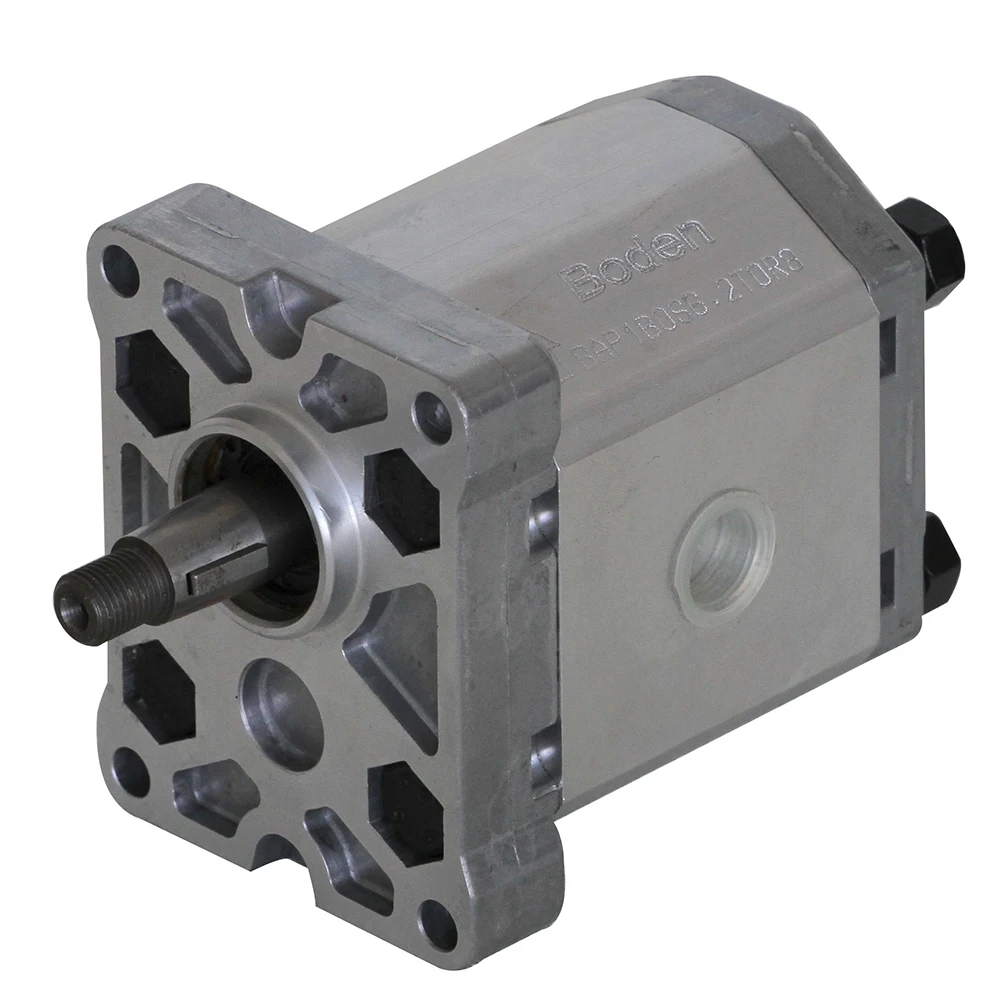

hydraulic gear pump for hydraulic system,hydraulic gear pump
- Category: >>>
- Supplier: Boden Hydraulics Co. Ltd.
Share on (60823200002):
Product Overview
Description
Product Description
Fine finished steel gears,Hi-resistant Extruded alluminum body, Hi-resistant Die cast alluminum cover, Low-friction Die casting alluminum bushes,and DU slide bearing,all these keep low pulsation,low noise and long life.
Technical information For BHM2B0 hydraulic gear pump
| Type | Displacement | Max.pressure | Max.speed | Min.speed | ||
| P1 | P2 | P3 | ||||
| cm3/rev | bar | bar | bar | r/min | r/min | |
| BHM2B0-R-3-Q1 | 3 | 280 | 270 | 295 | 4000 | 800 |
| BHM2B0-R-4-Q1 | 4 | 280 | 270 | 295 | 4000 | 600 |
| BHM2B0-R-6-Q1 | 6 | 280 | 270 | 295 | 4000 | 600 |
| BHM2B0-R-8-Q1 | 8 | 280 | 270 | 295 | 3500 | 500 |
| BHM2B0-R-10-Q1 | 10 | 280 | 270 | 295 | 3000 | 500 |
| BHM2B0-R-12-Q1 | 12 | 280 | 270 | 295 | 3000 | 500 |
| BHM2B0-R-14-Q1 | 14 | 260 | 250 | 275 | 4000 | 500 |
| BHM2B0-R-16-Q1 | 16 | 260 | 250 | 275 | 4000 | 500 |
| BHM2B0-R-18-Q1 | 18 | 260 | 250 | 275 | 3600 | 400 |
| BHM2B0-R-20-Q1 | 20 | 230 | 220 | 245 | 3200 | 400 |
| BHM2B0-R-22-Q1 | 22 | 230 | 220 | 245 | 3000 | 400 |
| BHM2B0-R-25-Q1 | 25 | 210 | 215 | 225 | 3000 | 400 |
| BHM2B0-R-28-Q1 | 28 | 200 | 190 | 215 | 2500 | 400 |
| BHM2B0-R-30-Q1 | 30 | 180 | 170 | 195 | 2500 | 400 |
How to order to order Boden hydraulic gear motor
