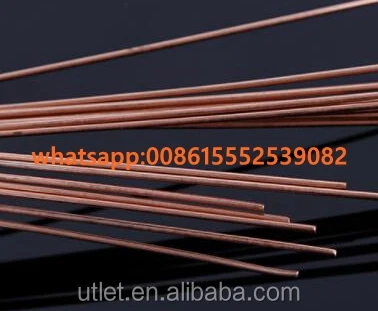

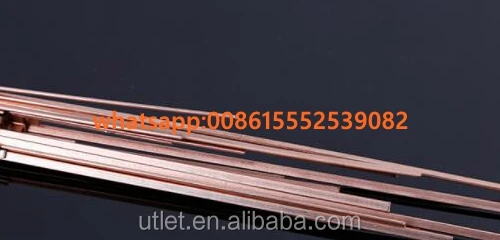

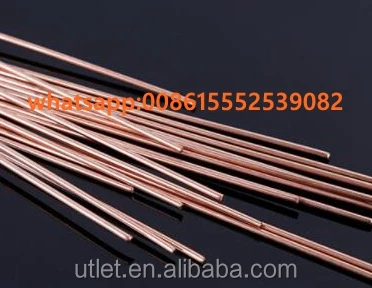

China CuSi3 TIG welding rod best price 2.4mm 3.0mm 3.2mm 10lb /pk
- Category: >>>
- Supplier: Jinan Utlet New Materials Co. Ltd.
Share on (60823241009):
Product Overview
Description

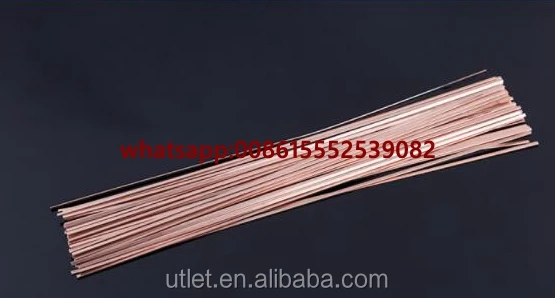

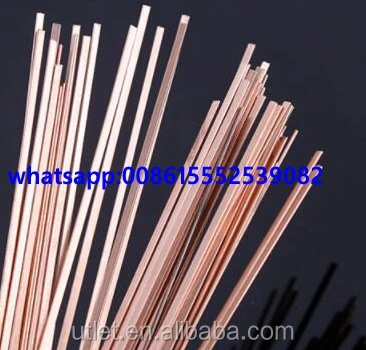

China CuSi3 TIG welding rod best price 2.4mm 3.0mm 3.2mm 10lb /pk
AWS A5.27 Class RBCuZn-C
AWS A5.8 Class RBCuZn-C
BCuZn-C - Bronze Brazing Rod are general purpose oxyacetylene rods for braze welding steel, cast iron,
malleable iron and some nickel alloys. Commonly used for fusion welding of brass, bronze and copper alloys
as well as for building up wearing surfaces. BCuZn-C - Bronze Brazing Rod are excellent choices for rush jobs
or temporary applications involving dissimilar metals or where rust is present. Galvanized parts can be brazed
without causing damage to the zinc coating. A precisely formulated chemical balance of copper and zinc as well
as alloying elements of tin, iron and manganese produce high strength, ductile and sound weld deposits that can
be easily machined and work harden once put into service. The high silicon content keeps fumes to a minimum
and allows for good tinning action. Preheating is recommended for some applications and bronze brazing flux is
required for the bare rods. Use a slightly oxidizing flame for braze-welding and build up applications and a neutral
flame for fusion welding. Excellent color matches on yellow brass and bronze castings.
China CuSi3 TIG welding rod best price 2.4mm 3.0mm 3.2mm 10lb /pk
Categories: | Welding wire |
Name: | AWS A5.8 RBCuZn-C brass welding wire Welding wire |
Number: | RBCuZn-B,RBCuZn-C,RBCuZn-D ,BCu60ZnSn-R,ERCu,SG-CuSi3,ERCuAl-A1 |
Feature: | welding high strength; mobility and good air tightness; solder joint without pores; Wear-resistant, good corrosion resistance; welding surface |
China CuSi3 TIG welding rod best price 2.4mm 3.0mm 3.2mm 10lb /pk
TECHNICAL PARAMETERS
Article | Physical Characteristics | |||||||
Name | standard | Solidus curve°C | Tensile strength MPa | Liquid curve°C | Elongation% | Melting point °C | Performance characteristics | |
Manganese Brass | GB | CuZn40 Ni | 866 | 380-480 | 882 | 28 | 890-910 | Wearing-resistance, gas welding and carbon arc welding of brass |
DIN | RBCuZn-B | |||||||
Iron Brass | GB | CuZn40 Fe1Sn1 MnSi | 866 | 380-480 | 888 | 28 | 890 | Gas welding and carbon arc welding of brass, alsobraze welding of copper, steel and cast iron, good fluidity, exhalation-resistance of zinc |
DIN | RBCuZn-C | |||||||
China CuSi3 TIG welding rod best price 2.4mm 3.0mm 3.2mm 10lb /pk

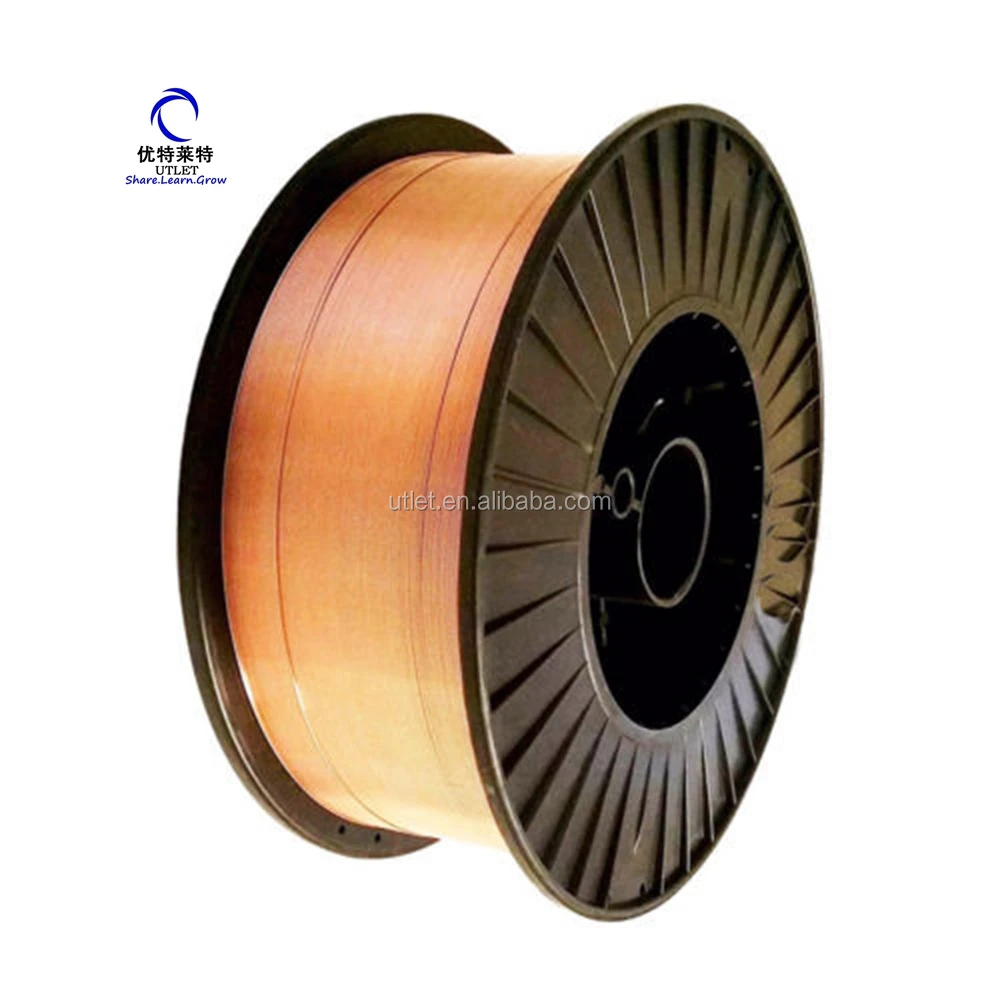

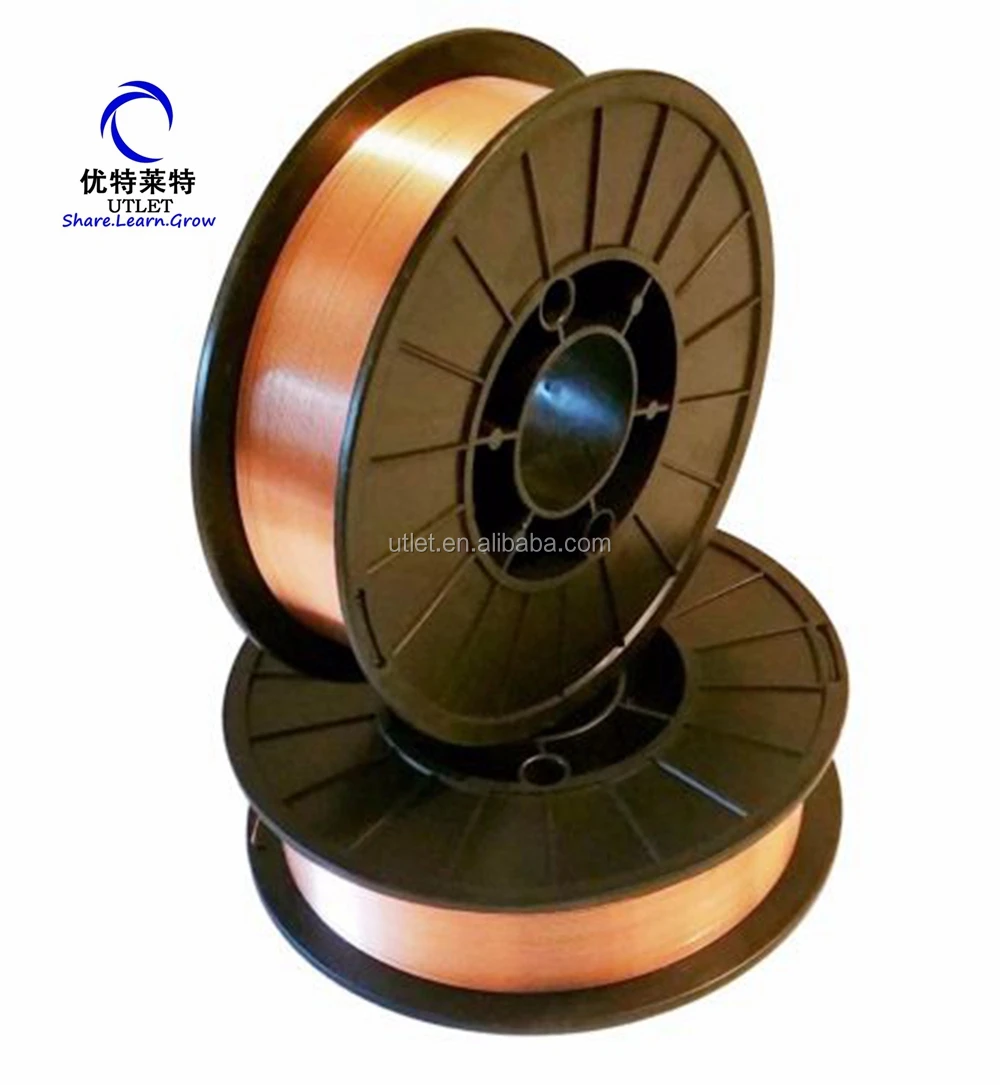

Gas welding diameter: 0.8 1.01.2 1.6mm package: 12.5kg/spool
Argon arc welding diameter: 1.6 2.0 2.4 3.0mm TIG rod length: 1 m
Product Name: S201 copper welding wire
Composition: Cu is greater than or equal to 98.0%; Sn 1.0% or less; Si 0.5% or less; Mn 0.5% or less; P 0.15%
or less; Pb 0.02% or less; Al 0.01% or less;
Purpose: S201 contains a small amount of tin, silicon, manganese, phosphorus of deoxidizing elements, such
as special copper wire, melting point is 1020-1050 ℃, silicon, manganese, phosphorus mainly as deoxidizer,
while tin join improved the liquidity of copper. It has the characteristics of excellent welding process performance,
beautiful weld formation, high mechanical performance and good crack resistance.
Application: used in argon arc welding of copper, such as billet mold, electrode fixture, conductive roller,
conductive plate, heating element, copper container, copper sculpture, etc.
Conforming: GB/ t9460-2008 model: SCu1898

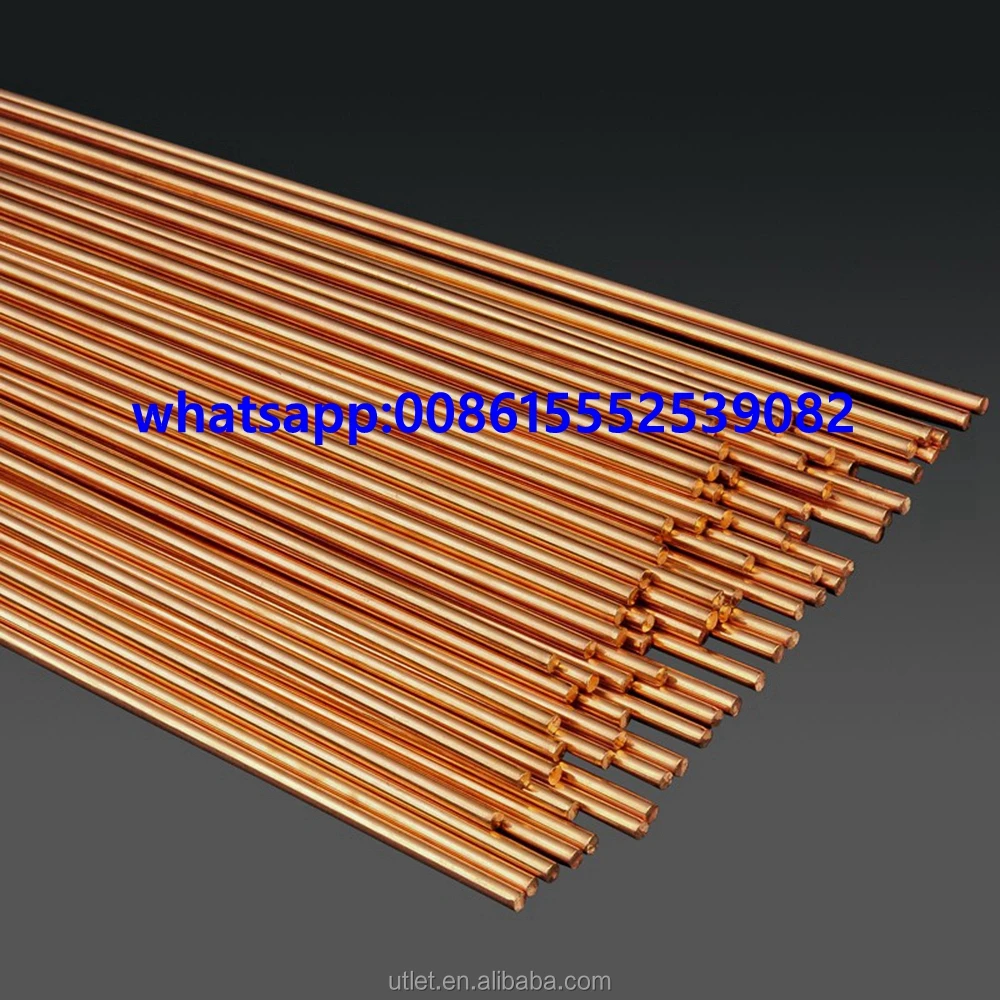

Equivalent: AWS a5.7-84 model: ERCu
China CuSi3 TIG welding rod best price 2.4mm 3.0mm 3.2mm 10lb /pk
S211 silicon bronze welding wire
Description: contains 3% silicon and small amounts of manganese bronze wire, melting point is 965-1035 ℃,
good welding performance, high weld mechanical properties.
Application: used for brazing silicon bronze, brass and steel, galvanized steel sheet.
Conforming: GB/ t9460-2008 model: HSCuSi
Quite: AWS a5.7-84 model: ercusi-a
China CuSi3 TIG welding rod best price 2.4mm 3.0mm 3.2mm 10lb /pk
Name: S214 aluminum bronze welding wire
Ingredients: Al=7.0-8.5%; Fe 0.5% or less. Cu allowance.
S214 is a kind of non-iron aluminium bronze wire, melting point is 1030-1040 ℃, can light load of wear
resistance, corrosion of seawater and common acids.
Application: suitable for welding of aluminum plated steel plate, Marine propeller, slide rail, slide and
load bearing surface, joint welding and surfacing of grey cast iron in mechanical manufacturing, chemical
industry and shipbuilding industry, corrosion resistant aluminum bronze or brass welding.
Conforming: GB/ t9460-2008 model: SCu6100A
Equivalent: AWS a5.7-84 model: ercual-al
China CuSi3 TIG welding rod best price 2.4mm 3.0mm 3.2mm 10lb /pk
Name: S221 tin brass welding wire
Packing: 10kg / 20kg; Length: 1000mm; Diameter: 1.6-4.0mm.
Composition: CU=59-61%; Sn = 0.5 1.0%; Si = 0.15 0.35%; With recent allowance.
Description: S221 about 890-905 ℃, melting point is special brass wire containing a small amount of tin
and silicon. Tin can improve fluidity of welding wire, while silicon can effectively control evaporation of
zinc and eliminate porosity, so as to get a good weld.
Application: used as filler in brass and copper gas welding, also widely used in brazing steel, cast iron
and inlaid carbide cutting tools. Can also be used as the sealing surface of low pressure valve, light
load wear-resistant surface of the surfacing material.
Conforming: GB/ t9460-2008 model: SCu6810A
China CuSi3 TIG welding rod best price 2.4mm 3.0mm 3.2mm 10lb /pk
B30 ERCuNi YCuNi-3 SG-CuNi30Fe 7158 7030 HS231 Copper brazing wire copper nickel wire
Standard: AWS A5.7: ERCuNi
DIN 1733 : SG-CuNi30Fe
Application description: joint and layer welding of copper-nickel alloys with less than 30% nickel content.
Applications: shipbuilding, chemical industry (e.g. vessel, condenser duct, cooler, heat exchanger).
Pulse arc welding is recommended. Good corrosion resistance.
