Sinomach brand imported components 34ton ZG3365LC 9C crawler excavator with 1.6m3 excavator
- Category: >>>
- Supplier: Luoyang Zhaoyuxuan Import And Export Trading Co. Ltd.
Share on (60823271502):
Product Overview
Description
Sinomach brand imported components 34ton ZG3365LC-9C crawler excavator with 1.6m3 excavator

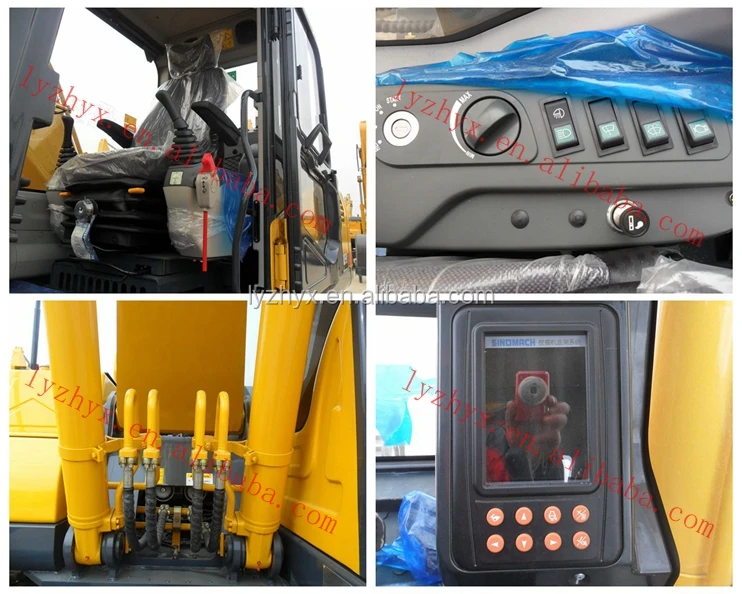

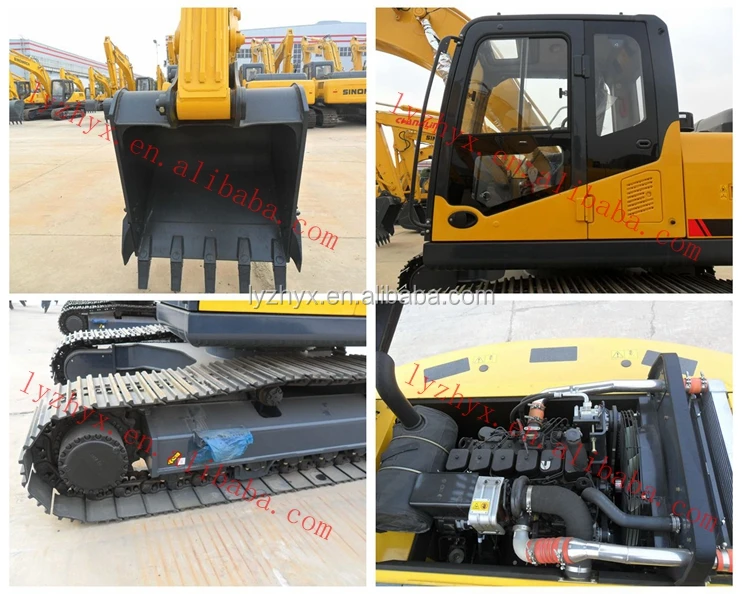

Detailed Images
Detailed Images:

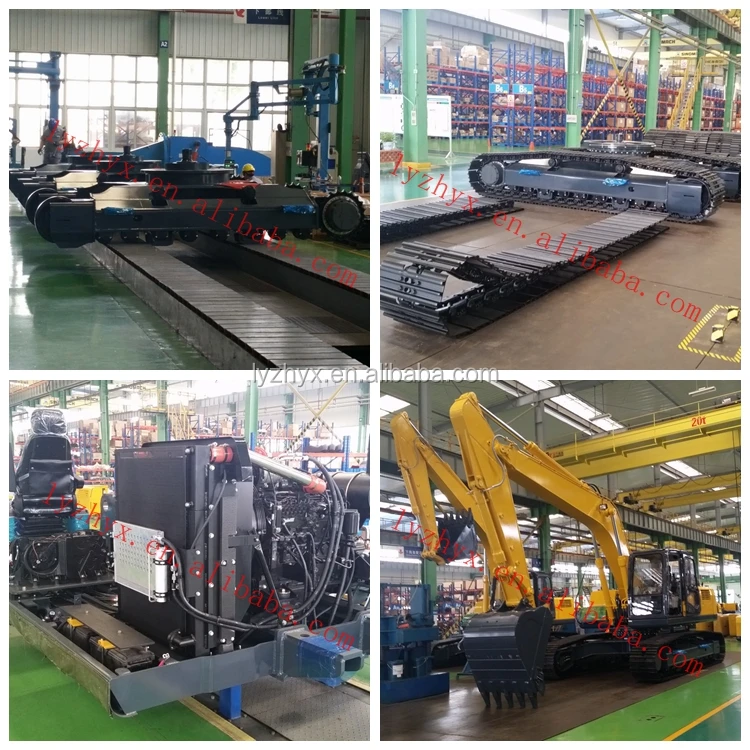

Assembling pictures
Assembling pictures:
Product Description
Main Features:
1. Our hydraulic excavator is equipped with reliable original Cummins engine.
2. The excavator comes with a reliable hydraulic system, with export pumps, motor and valves.
3. The hydraulic excavator is designed with electric monitoring and control system which has ultifunctional LCD display showing information.
4. With a stepped-up device, the hydraulic excavator suits use in mines.
5. Strengthened X-shape box structure.
Main parameters:
| Model | ZG3365LC-9C | |
| Rated standard bucket capacity | m3 | 1.6 |
| Operating weight | kg | 34000 |
| Length (at transportation) | mm | 11140 |
| Width (at transportation)(600mm) | mm | 3280 |
| Height (at transportaton) | mm | 3280 |
| Heigh(to the top of the cab) | mm | 3130 |
| Ground clearance of counterweight | mm | 1220 |
| Min. ground clearance | mm | 500 |
| Length of platform | mm | 3405 |
| Swing radius of the rear | mm | 3450 |
| Track wheel base distance | mm | 4050 |
| Chassis length | mm | 4940 |
| Chassis width | mm | 3280 |
| Track gauge | mm | 2680 |
| Standard width of track shoe | mm | 600 |
| Max. digging depth | mm | 7380 |
| Max. vertical digging depth | mm | 6480 |
| Max. digging reach | mm | 11110 |
| Max. digging height | mm | 10210 |
| Max. dump clearance | mm | 7110 |
| Max. digging force of bucket | KN | 210 |
| Max. digging force of rod | KN | 161 |
| Max. drawing force | KN | 204 |
| Swing speed | rpm | 9.7 |
| Travel speed | km/h | 3.2/5.4 |
| Ground pressure | kgf/cm2 | 0.53 |
| Diesel engine | Cummins 6CTAA8.3-C250 | |
| Engine type | 6 cylinders, 4 strokes,turbocharged with inter-cooled | |
| Rated output | HP(KW)/rpm | 250(186)/2200 |
| Rated speed | rpm | 2200 |
| Main pump | Kawasaki axial variable piston pump | |
| Displacement | cc/rev | 2x140 |
| Rated flow | L/min | 2x280 |
| Pilot pump | single stage ,displacement gear pump | |
| Displacement | cc/rev | 15 |
| Rated flow | L/min | 30 |
| Control valve | Kawasaki hydraulic pilot control | |
| Pressure of main relief valve | Mpa | 35 |
| Swing motor | Kawasaki axial displacement piston motor | |
| Operating pressure | Mpa | 28 |
| Brake system | Auto release, hydraulic control, spring action | |
| Propeller motor | Kawasaki axial displacement piston motor | |
| Operating pressure | Mpa | 28 |
| Brake system | Wet and multi-plate type brake | |
| Oil capacity | ||
| Fuel(diesel) | L | 600 |
| Hydraulic oil | L | 310 |
Packaging & Shipping

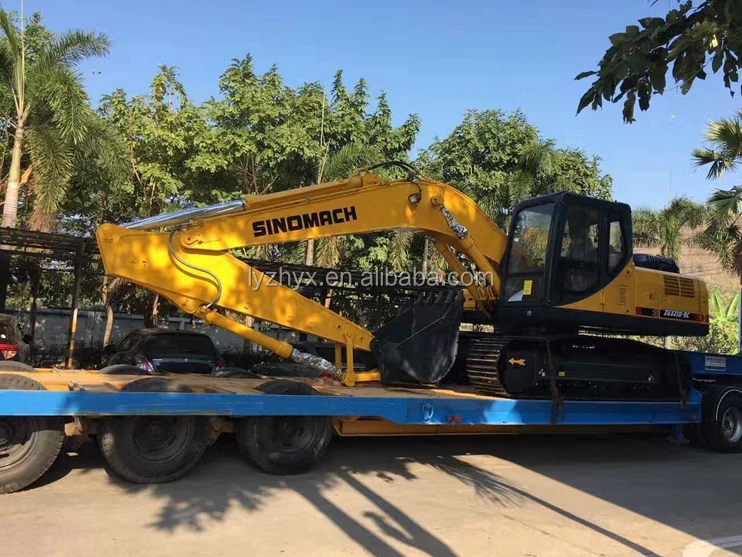

Packing & transportation pictures:
