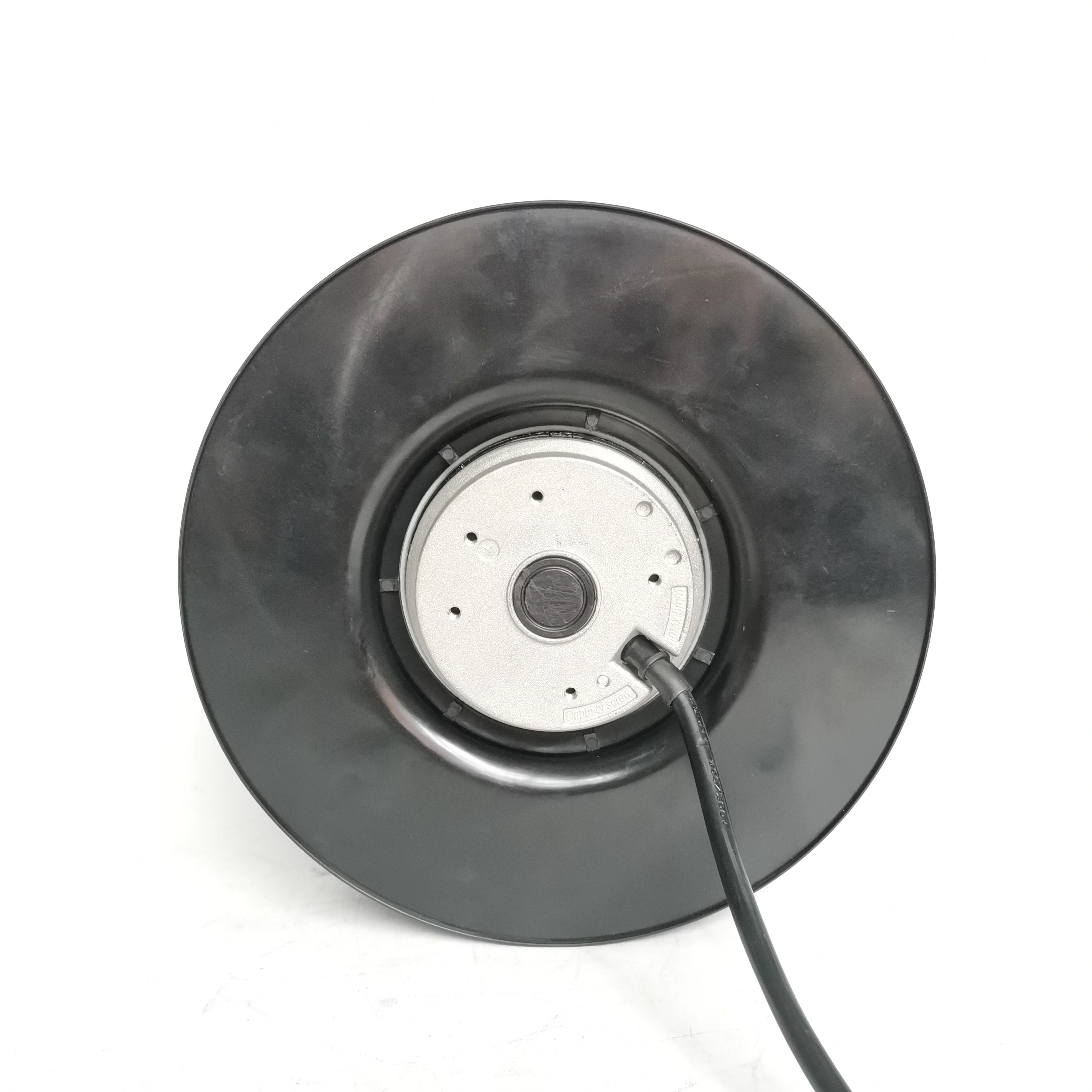

110v 230v 220mm cabinet cooling ventilation radial centrifugal fan air purifier 3 speeds radial fan motorized fan
- Category: >>>
- Supplier: Shanghai Anneng Fan Co. Ltd.
Share on (60823308134):
Product Overview
Description
Type: R2E220-H044-01B

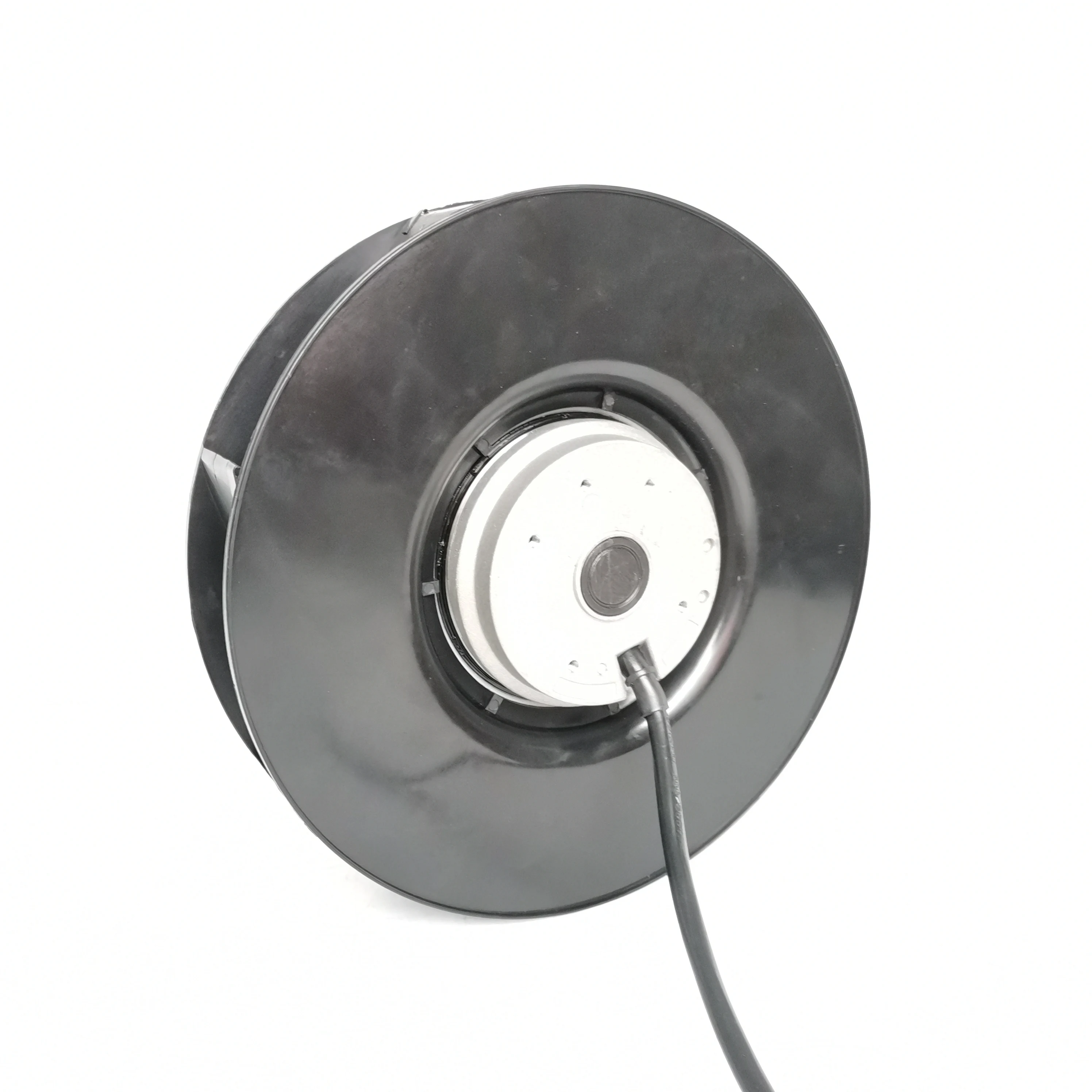

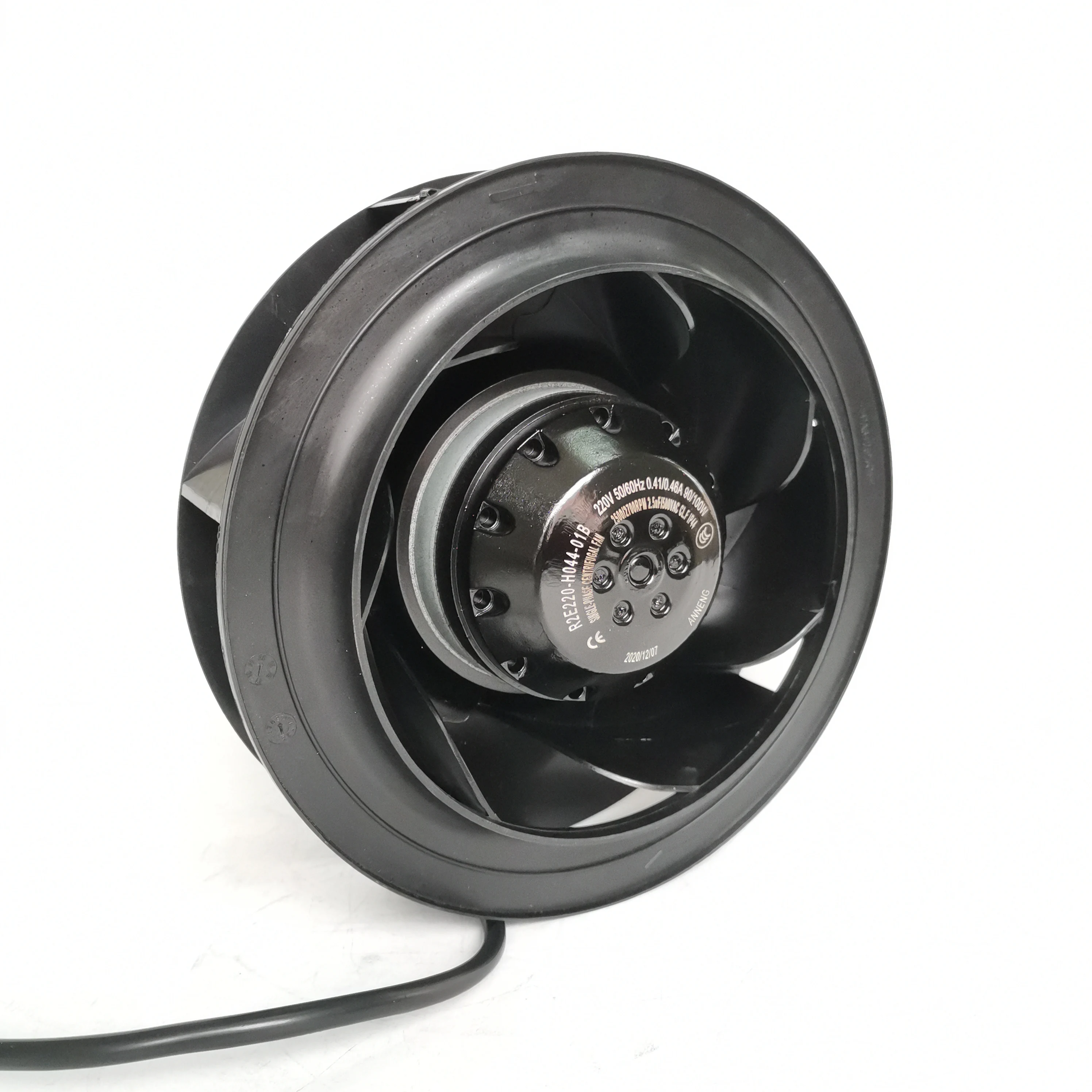

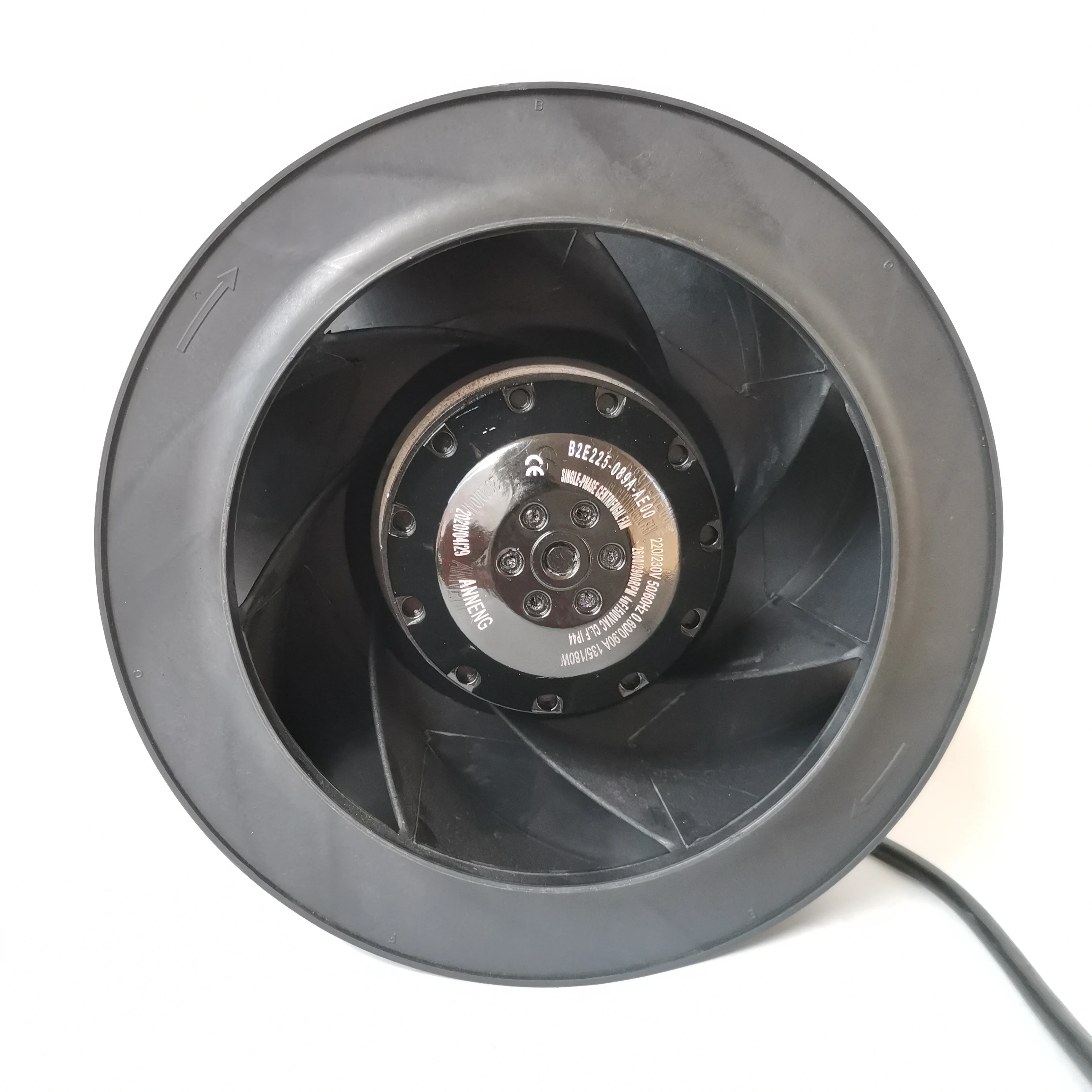

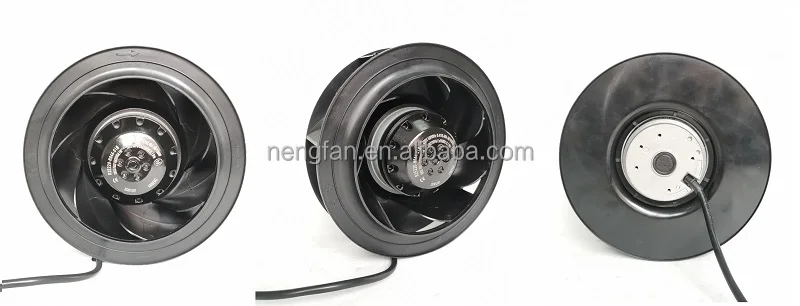

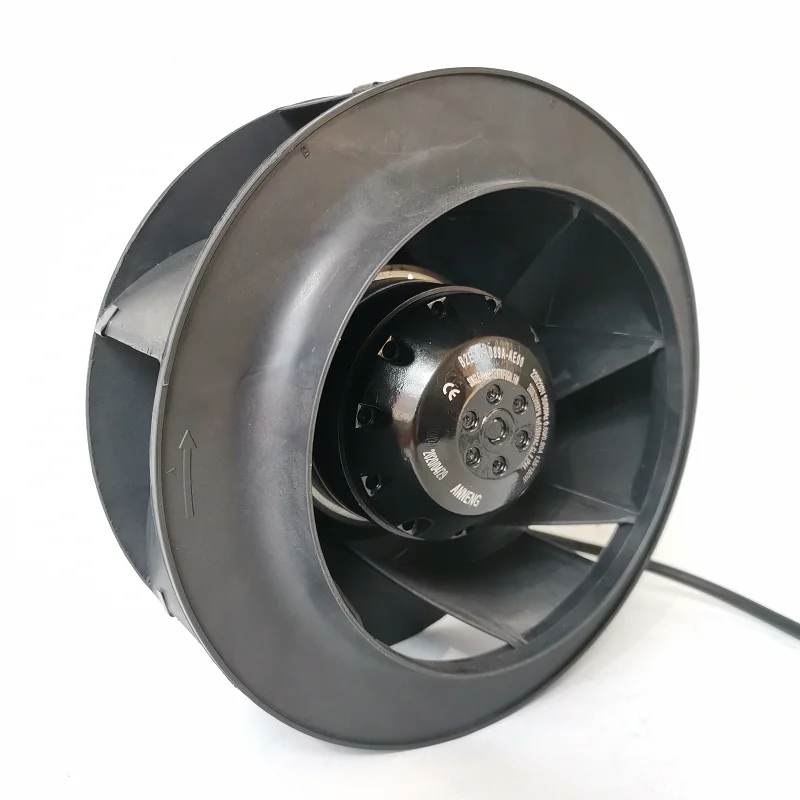

Product Pictures
(PS: ANNENG Reserved, Pirates Must Investigate.)

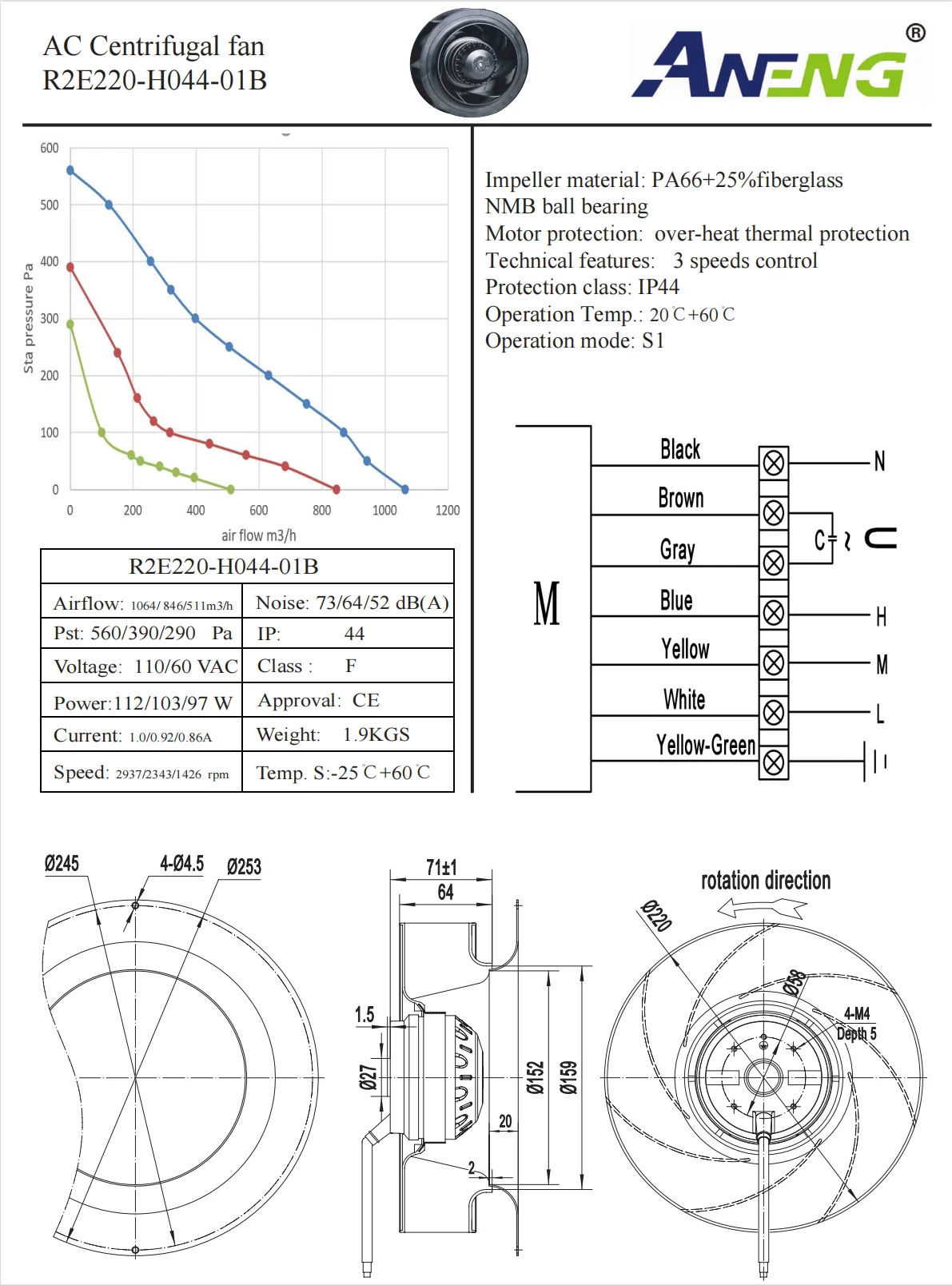

Product Datasheet
| Specification | |||||||
| Model Type: R2E220-H044-01B / Motor Type: 92mm | |||||||
| Rated Voltage | Frequency | Rated Current | Input Power | Speed | Air Flow | Air Flow | Static Pressure |
| (VAC) | (Hz) | (A) | (W) | (RPM) | (CFM) | (m3/h) | (Pa) |
| 120 | 60 | 1.0 | 112 | 2937 | 625 | 1064 | 560 |
| Details Description | |||||||
| Current Leakage | <=0.25mA | ||||||
| Operation Mode | continuous operation S1 | ||||||
| Direction of Rotation | clockwise, seen on rotor | ||||||
| Mounting Position | at will | ||||||
| Insulation Class | "F" | ||||||
| Cable Length | 450mm | ||||||
| Bearing | ball bearing (NSK) | ||||||
| Net weight | 2.0kg | ||||||
| Surface of Rotor | electrophoresis | ||||||
| Number of Blades | "7" | ||||||
| Type of Protection | IP44 | ||||||
| Speed control | 3 Speed control | ||||||
| Approval | CE | ||||||
| Operate Life | >=40,000hours | ||||||
| *Motor Protection Function | |||||||
| 1. Thermal protection | |||||||
| Characteristic Curves | |||||||
 | |||||||
Factory Display
Production Line
Packaging
Certifications
Our Guarantees
Quality Guarantee We are professional manufacturer in ac,dc,ec centrifugal fans with brushless external rotor motor. All the fans are produced by ourselves independently, including the motor. So we have more confidence on the products' qulaity and performance. Price Guarantee The products are sold by our own factory directly. So the reason for low price is simple: no middlemen. Delivery Time Guarantee We will make production on time as order and send the goods according to mutual confirmed delivery time. We will try our best to avoid risk of any delay. Service Guarantee We adopt the mode of combining the sales team and engineers team. So we can provide the responsible suggestion and recommendation when we contact at first time.We will check all details before accepting the order, and keep quality before delivery.
Our Friends, Let's creat a beautiful future! |
