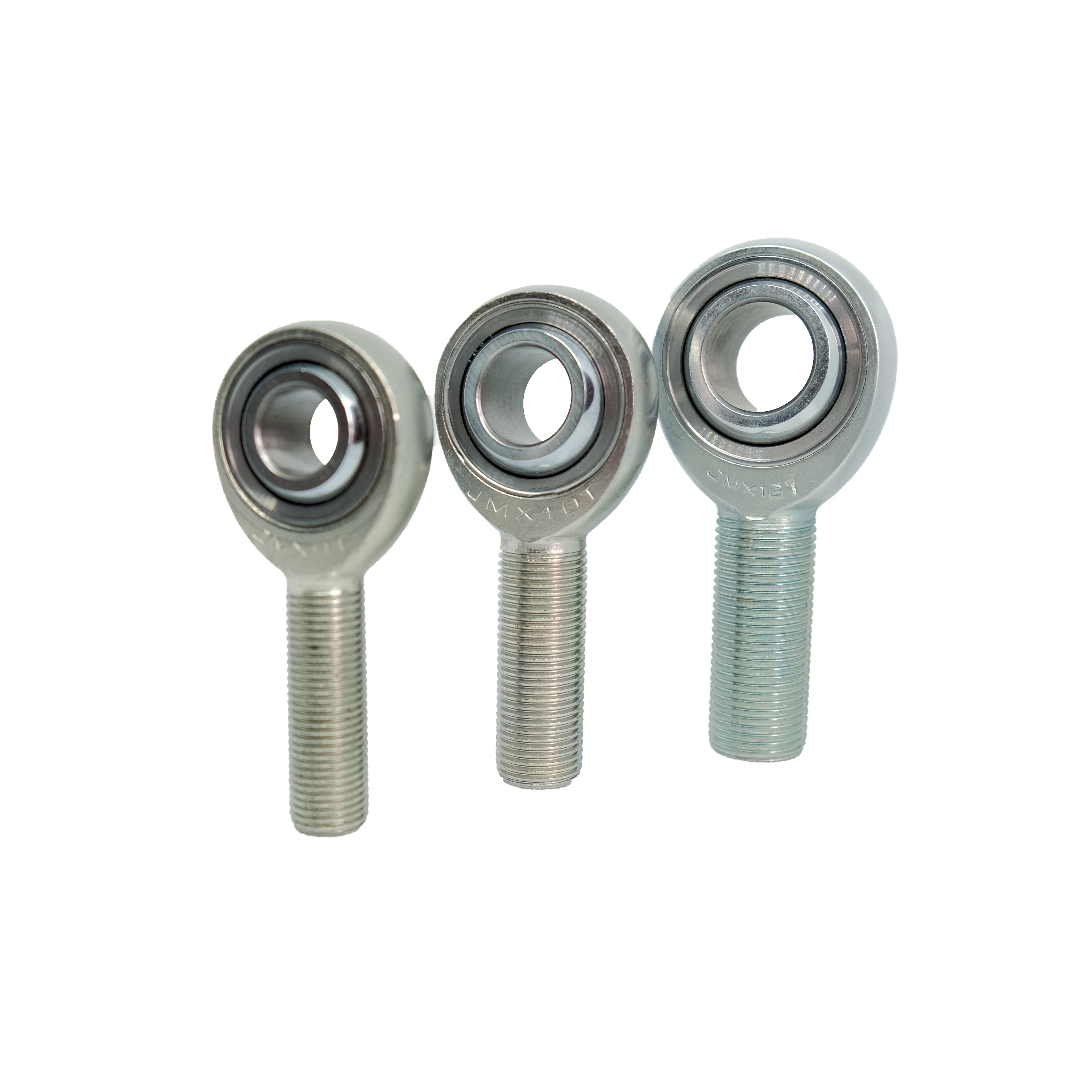

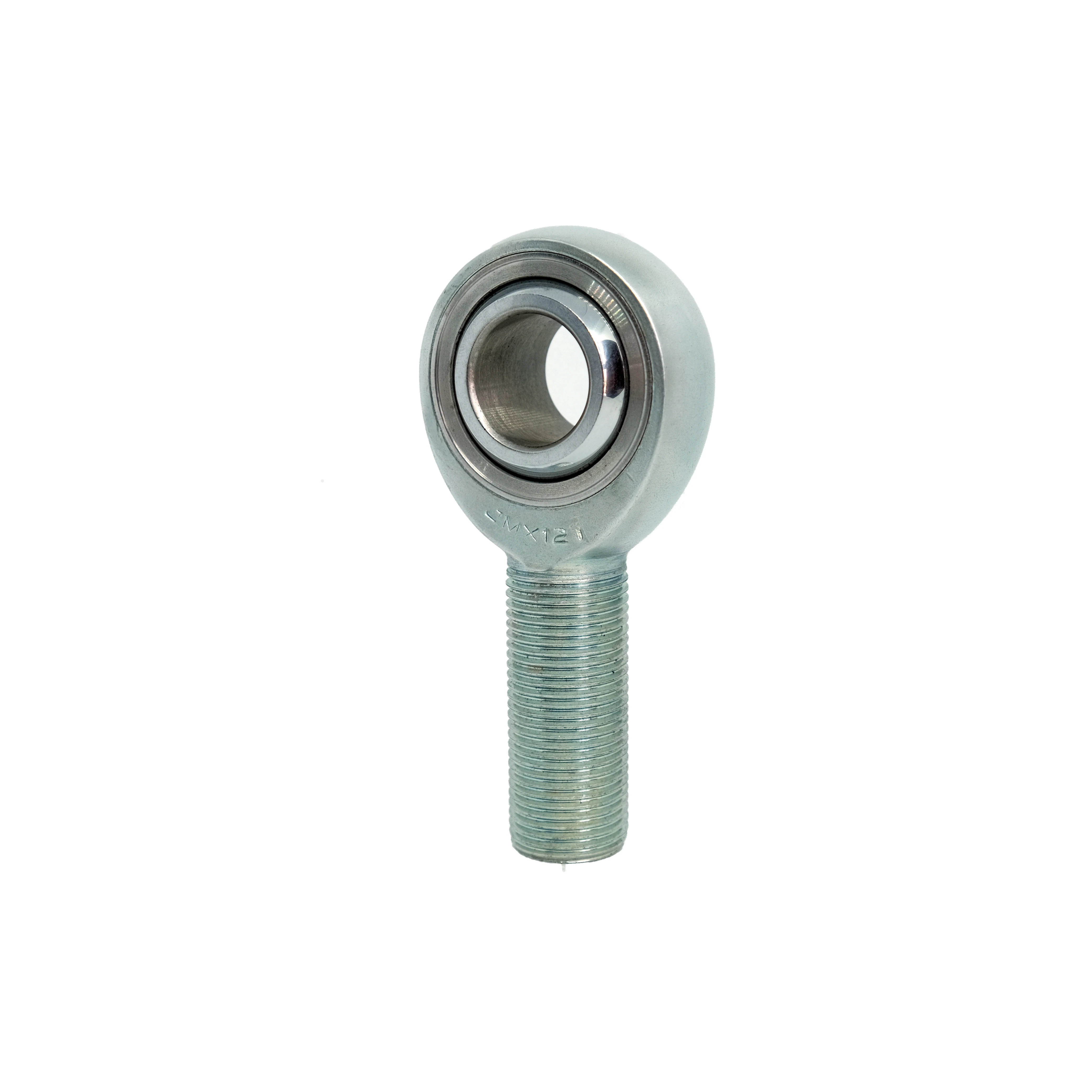

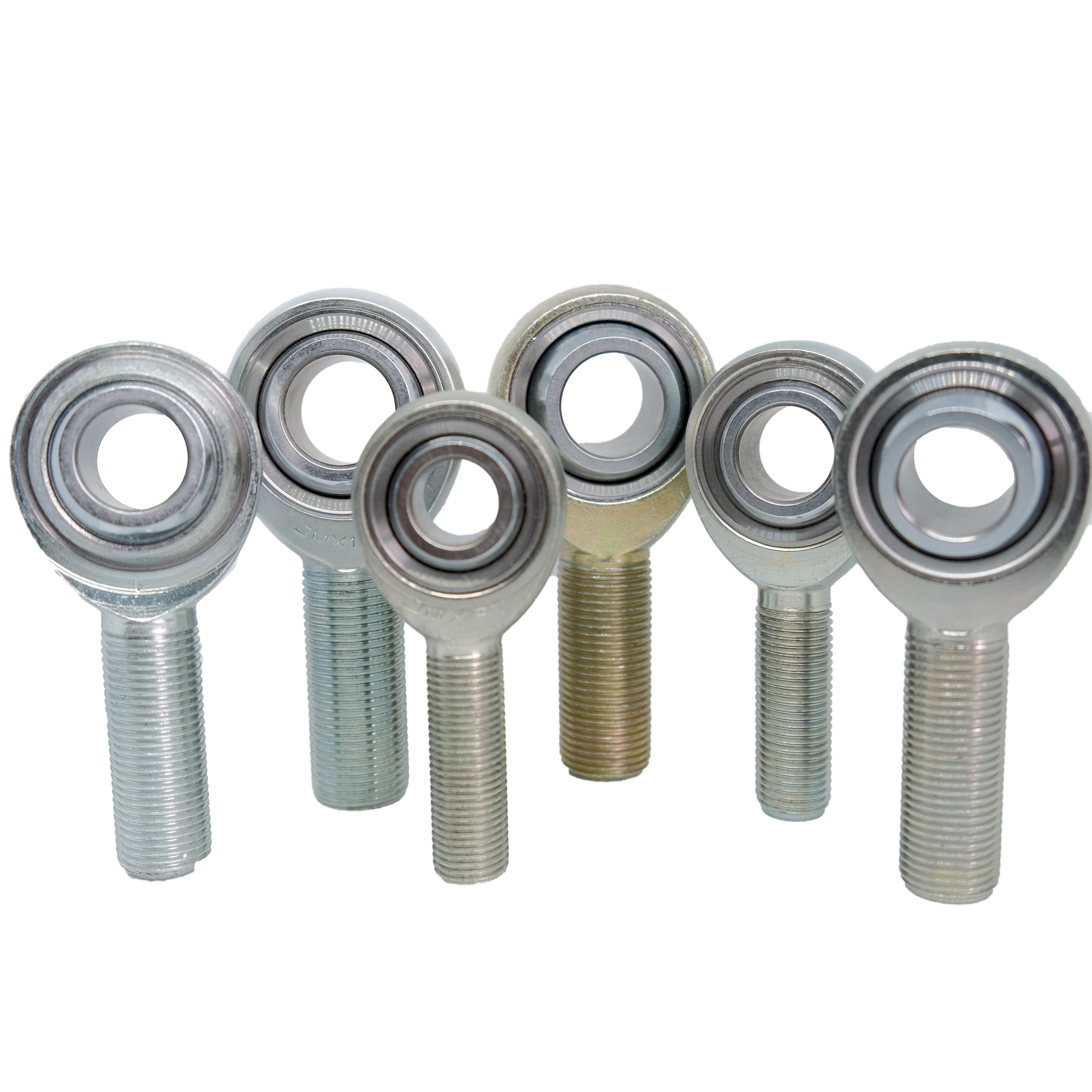

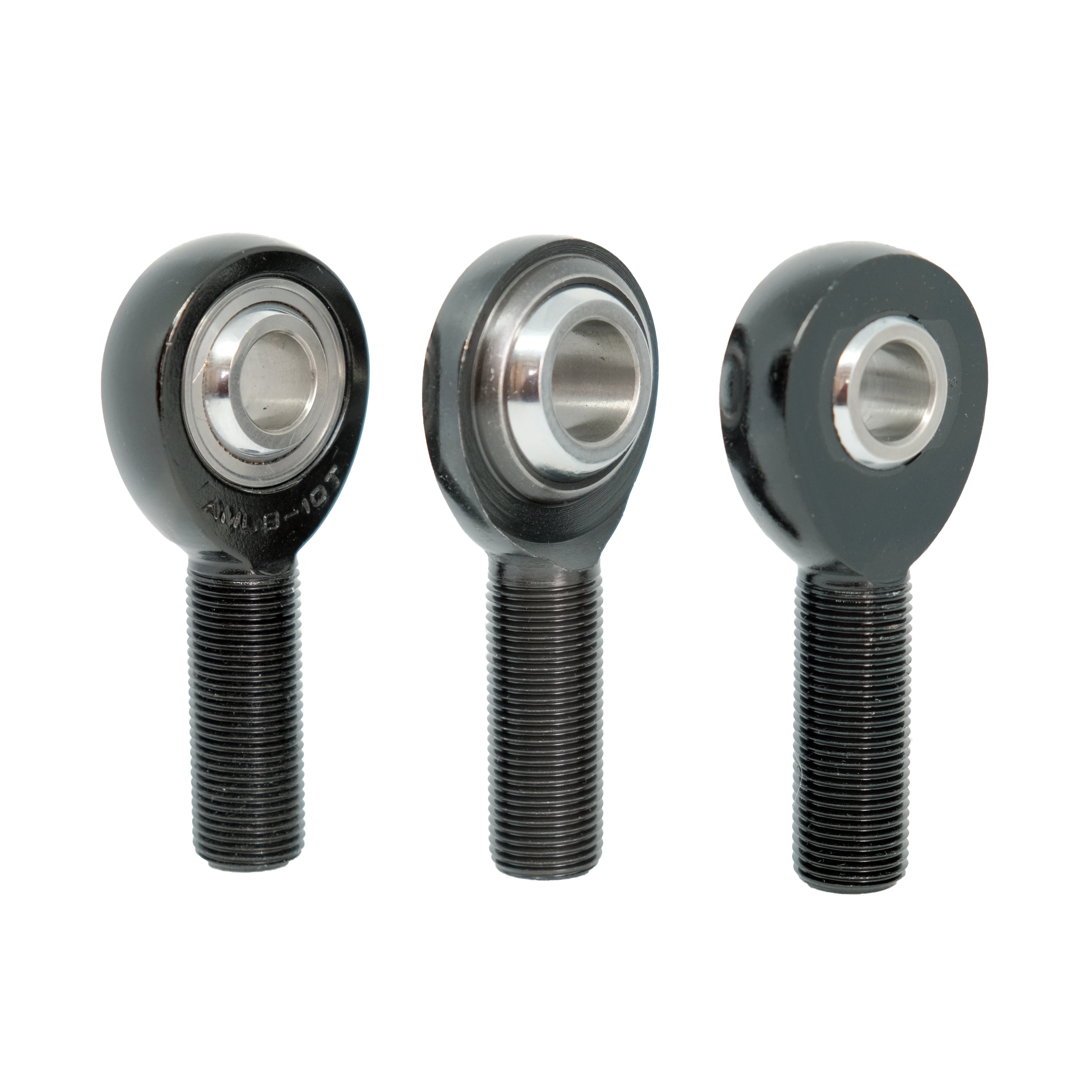

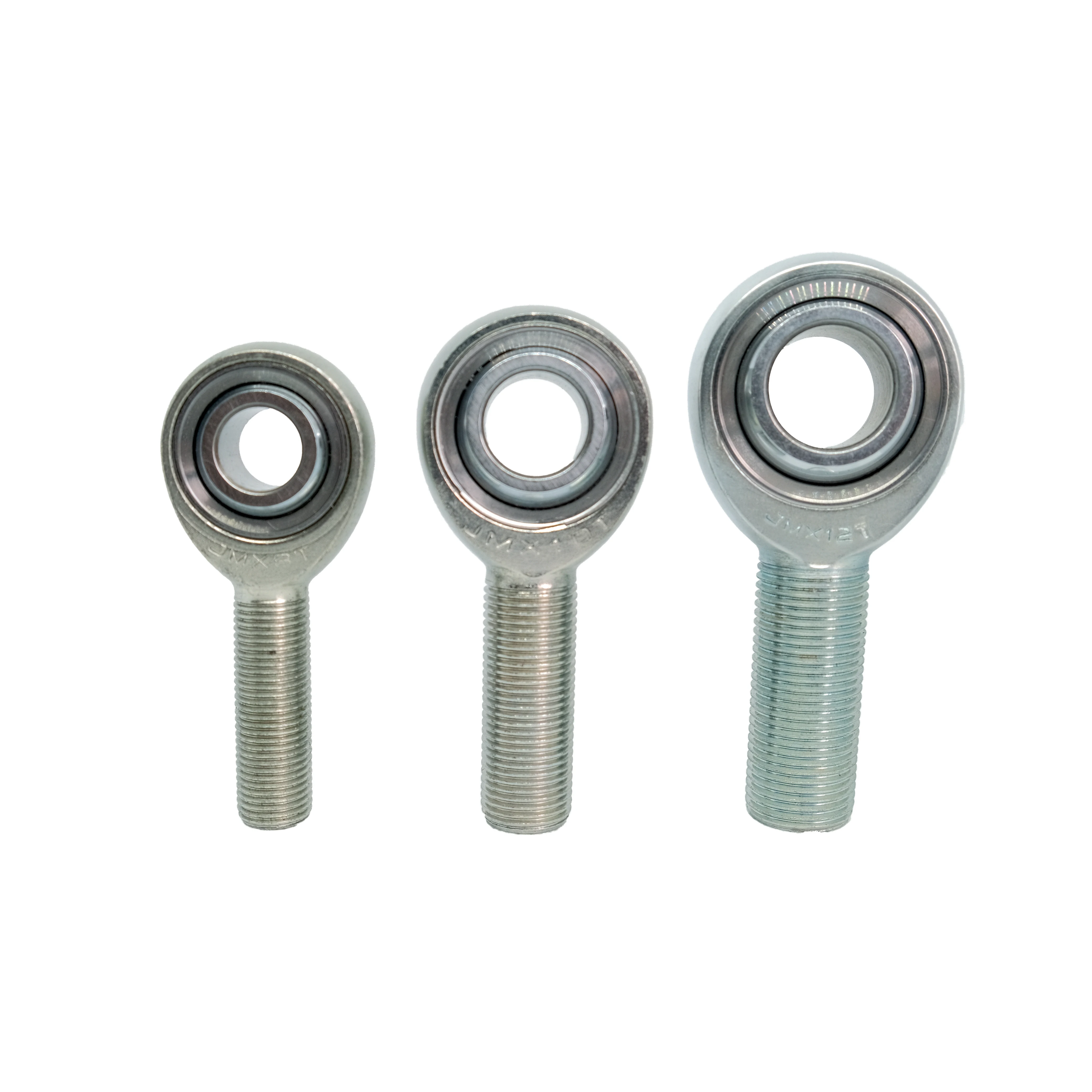

China Brand High Precision Self Lubricating Self Lubricating Bearings JMX8T

Product Overview

Description

Self Lubricating Self-Lubricating Bearings JMX8T



	MATERIALS
	BALL	BODY	RACE
	52100 STEEL	STEEL ALLOY,HEAT THEAED	STEEL ALLOY,HEAT TREATED
	Rc 56 MIN.HARD	ZINC PLATED	ZINC PLATED
	HARD CHROME PLATED	CHROMATE TREATED	CHROMATE THEATED





MALE ROD ENDS		B DIA.	D DIA.	W WIDTH	T WIDTH	BALL DIA.	A LGTH	N THD.	C LGTH	a°MIS ANGLE	ULT. STATIC RADIAL LOAD (lbs.)	APPROX. WEIGHT (lbs.)
Right Hand Part NO.	Left Hand Part NO.	+.0025 -.0005	+.010 -.010	+.000 -.005	+.005 -.005	REF.	+.015 -.015	UNF 3A	+.062 -.031	REF.
JMX3	JMXL3	.1900	.625	.312	.250	.437	1.250	10-32	.750	13	2,855	.03
JMX4	JMXL4	.2500	.750	.375	.281	.500	1.562	1/4-28	1.000	16	5,262	.04
JMX5	JMX5	.3125	.875	.437	.344	.625	1.875	5/16-24	1.250	14	7,640	.07
JMX6	JMX6	.3750	1.000	.500	.406	.719	1.938	3/8-24	1.250	12	9,550	.11
JMX7	JMX7	.4375	1.125	.562	.437	.812	2.125	7/16-20	1.375	14	10,290	.16
JMX8	JMX8	.5000	1.312	.625	.500	.937	2.438	1/2-20	1.500	12	16,242	.25
JMX10	JMX10	.6250	1.500	.750	.562	1.125	2.625	5/8-18	1.625	16	17,959	.38
JMX12	JMX12	.7500	1.750	.875	.687	1.312	2.875	3/4-16	1.750	14	28,090	.60
JMX14	JMX14	.8750	2.000	.875	.687	1.312	3.375	7/8-14	1.875	12	55,690	.91

 Shanghai Yueshang Machine Components Co., Ltd was established in Shanghai on 2012, based on a factory which has manufactured bearings for more than 25 years. The colleagues of R&D department have very long time experience, more than 35 years. Our customers, including domestic and global, all have good and stable cooperative relationships with us because we all focus on one thing, high quality. We are looking forward to have your contact and give you back the best products and services. It’s a win-win situation.1.What's your MOQ?

Re:The MOQ of most of our products is 12 pc.

2.What are your payment terms?

Re:We accept T/T,Western Union,Paypal,Alipay and bank transfer.There are different payment methods in different countries and regions.

3.What's your packing way?

Re:Neutral packing and accept customer's special packaging demand.
