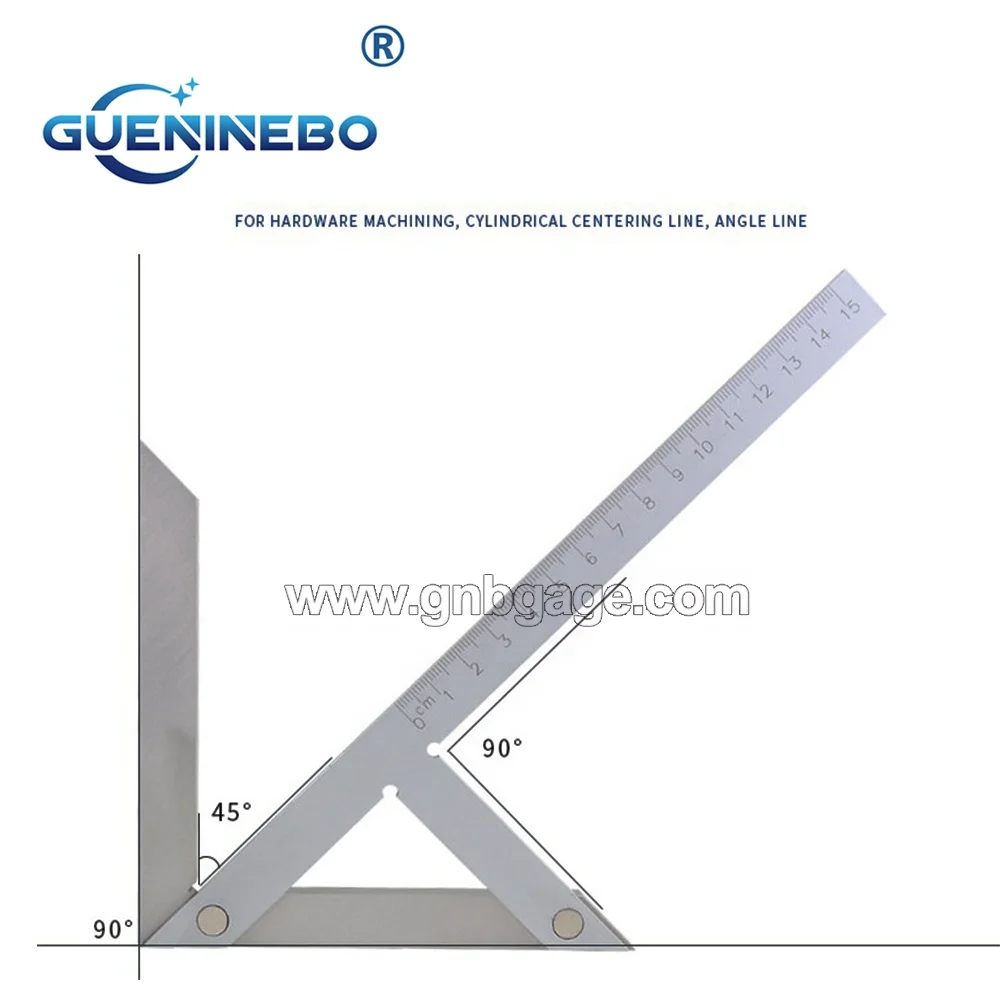

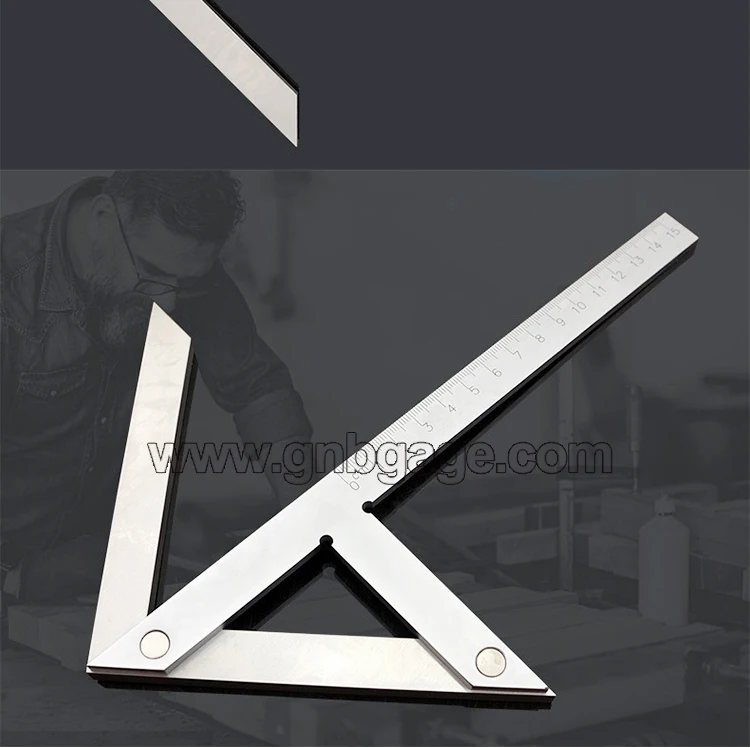

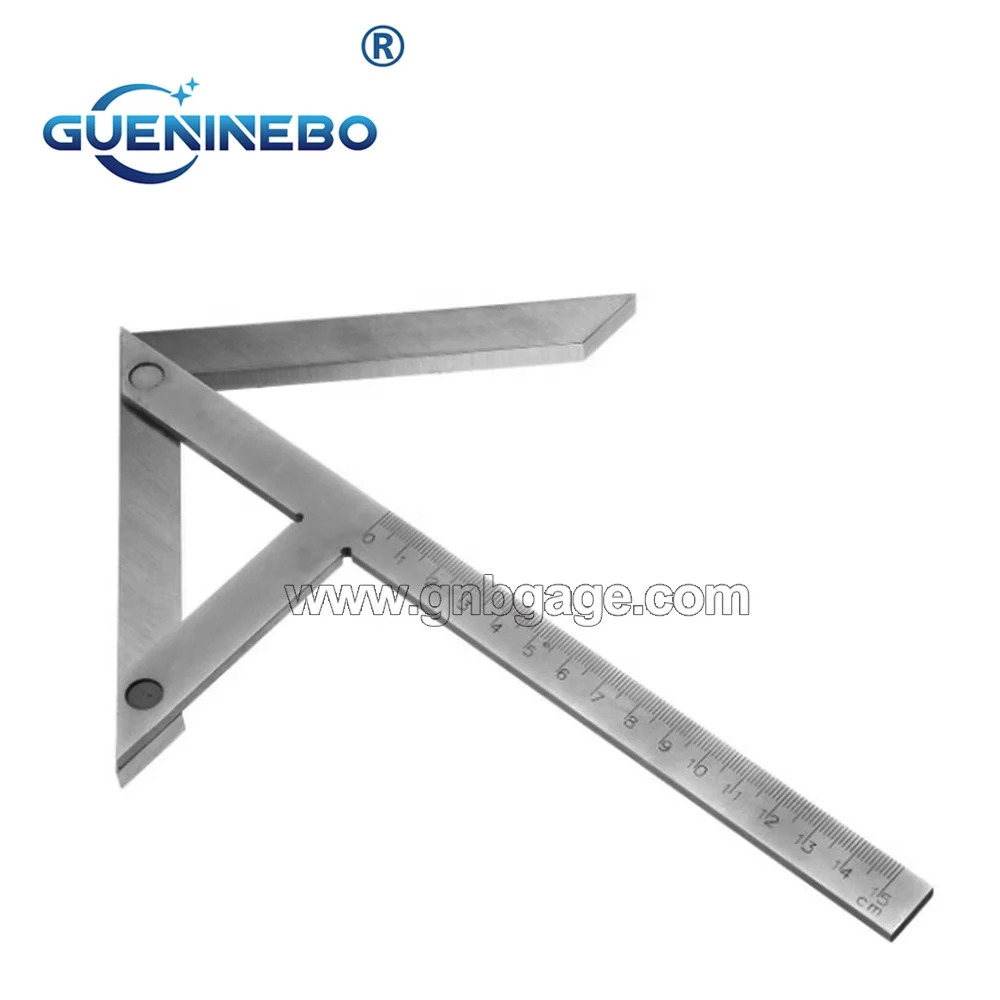

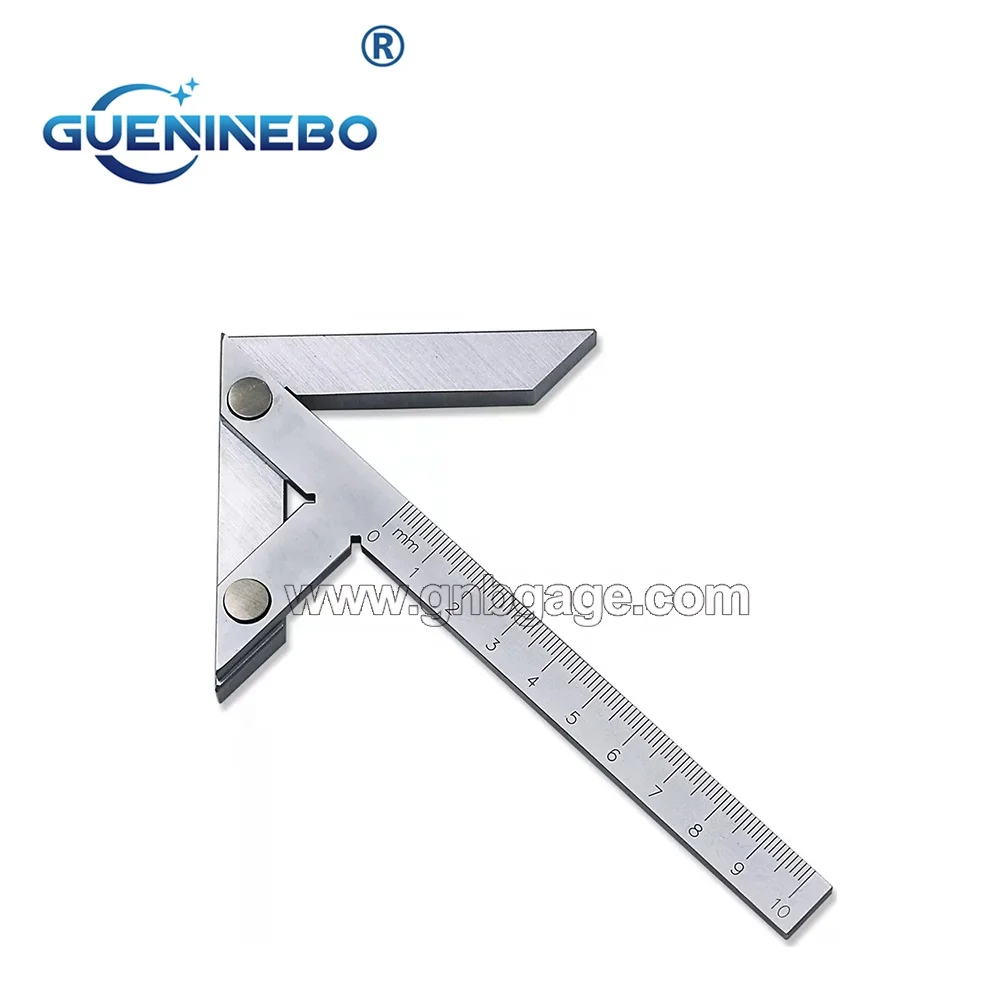

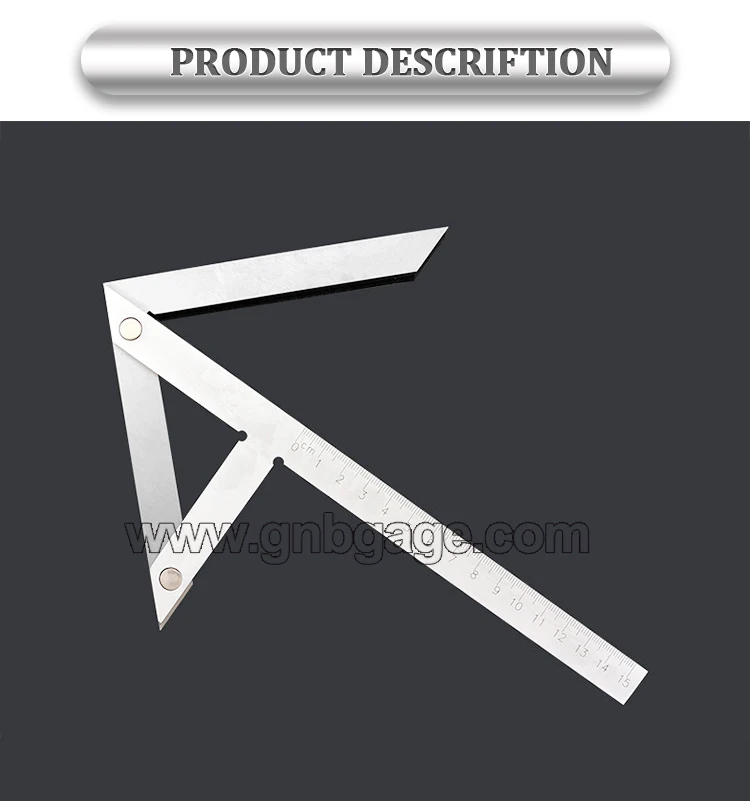

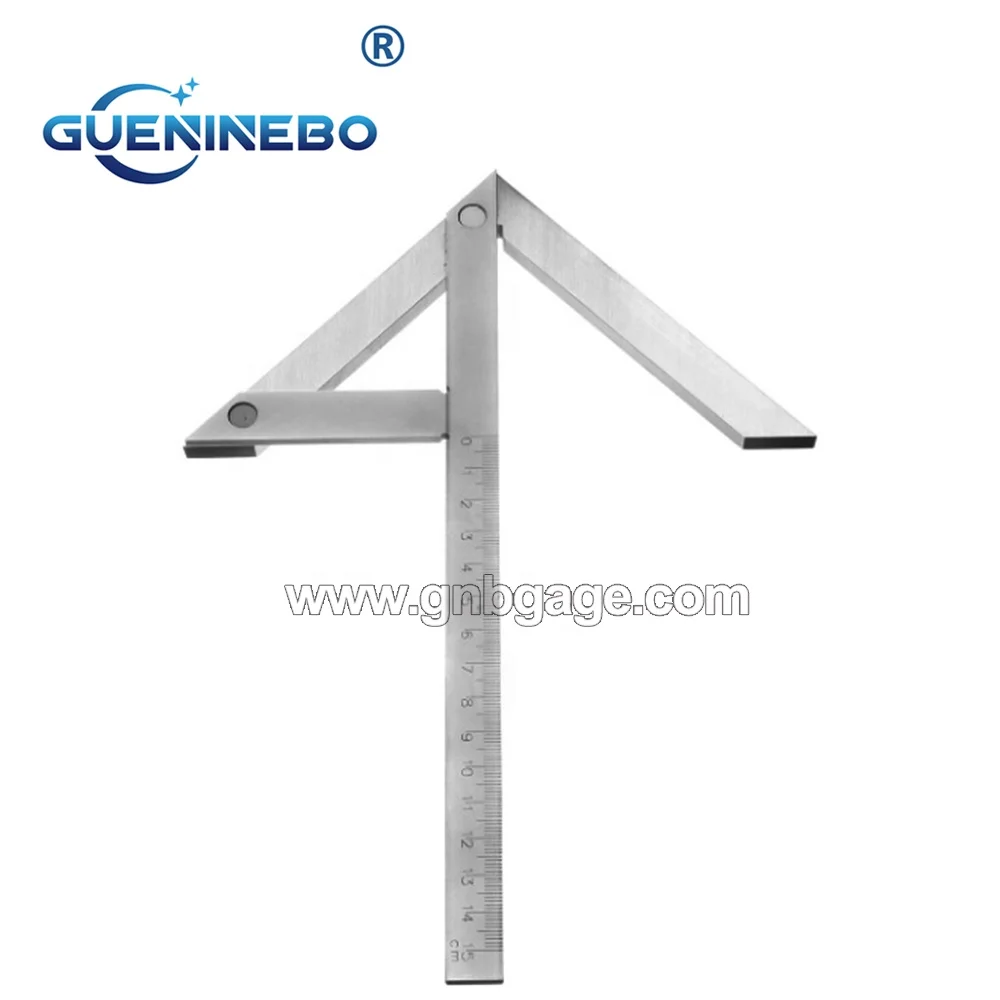

GNB-50 GNB-50 Center Marking Finding Square Gauge





Specifications.



  • Material: Carbon Steel

  • Finish: Satin Chrome Finish

  • Range: 8"

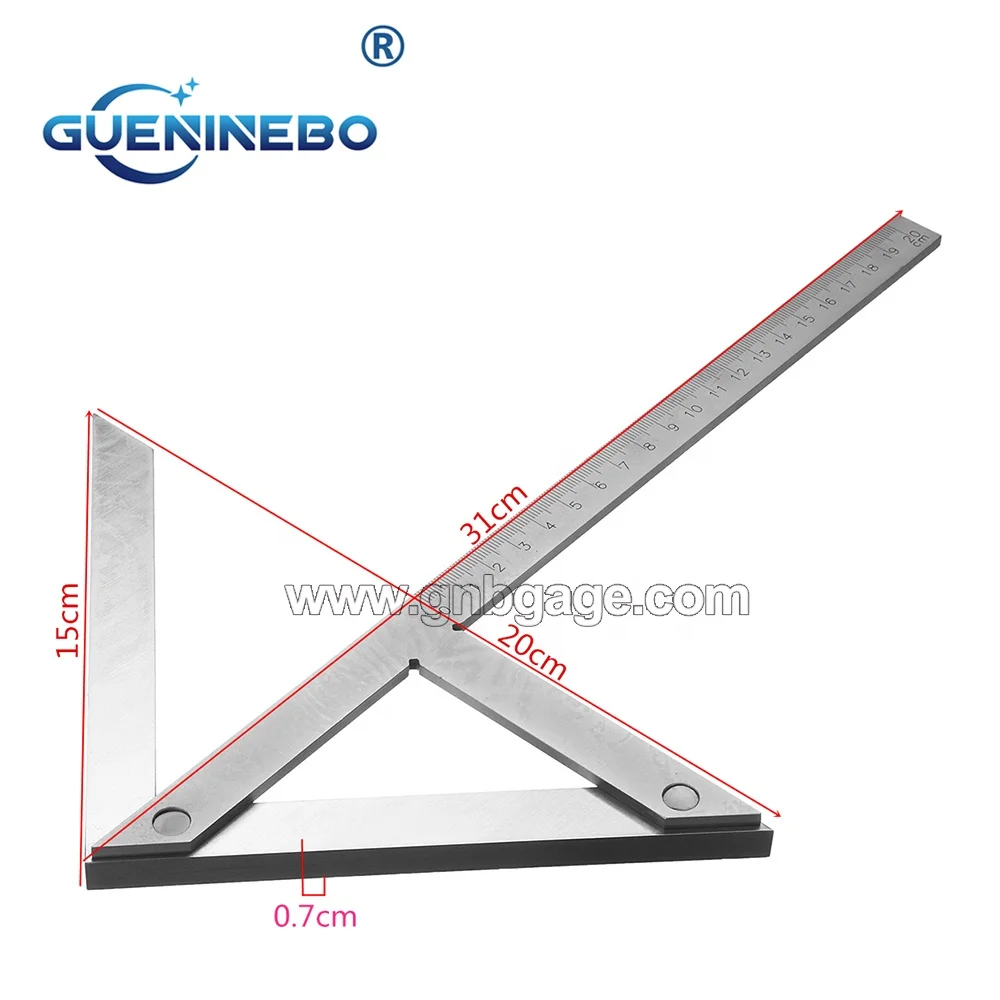

  • Overall Length: Approx.31cm/ 12.20"

  • Centering Square Head Leg Length: Approx. 15cm/ 5.91"

  • Centering Square Head Thickness: Approx. 0.7cm/ 0.28"

  • Centering Head Internal Width: Approx. 20cm/7.87"

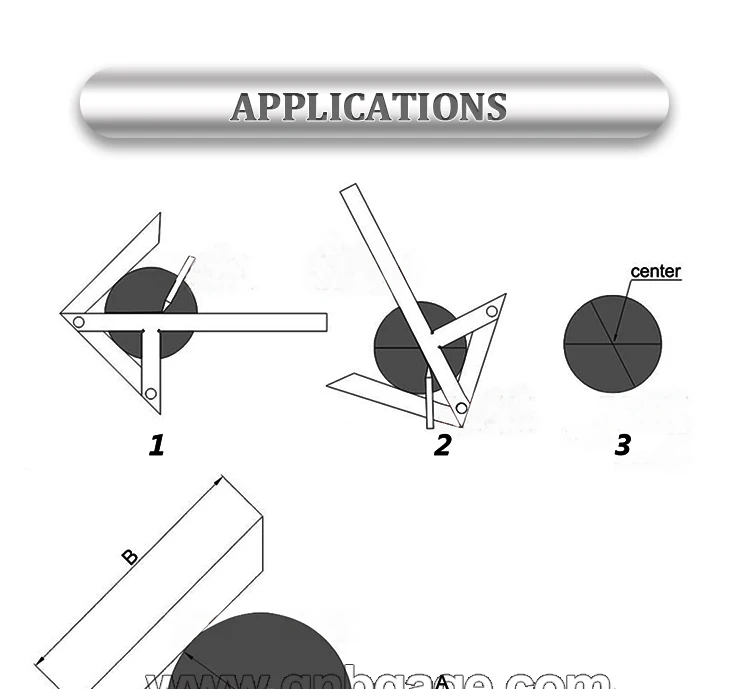

  • For marking centers on round discs and shafts.





Details.

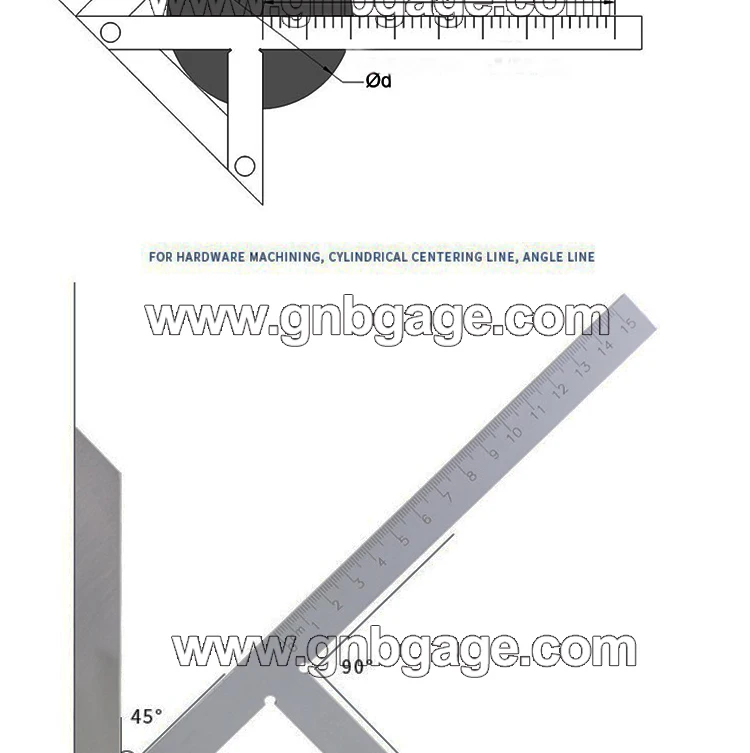

Items(AxB) mm(d) mm
GNB-50A 100x704-90
GNB-50B150x1304-190
GNB-50C200x1506-220
GNB-50D250x160230
GNB-50E300x180280




Features.



  • The body is made of high carbon steel, chrome plated, Laser engraving.

  • All measuring surfaces are ground.

  • Accurately measure angles, easy to use and carry.

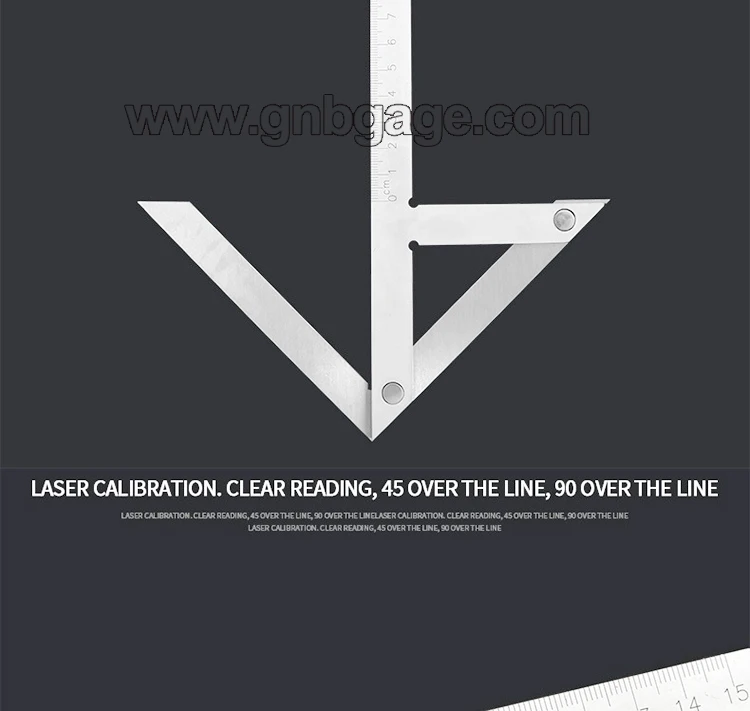

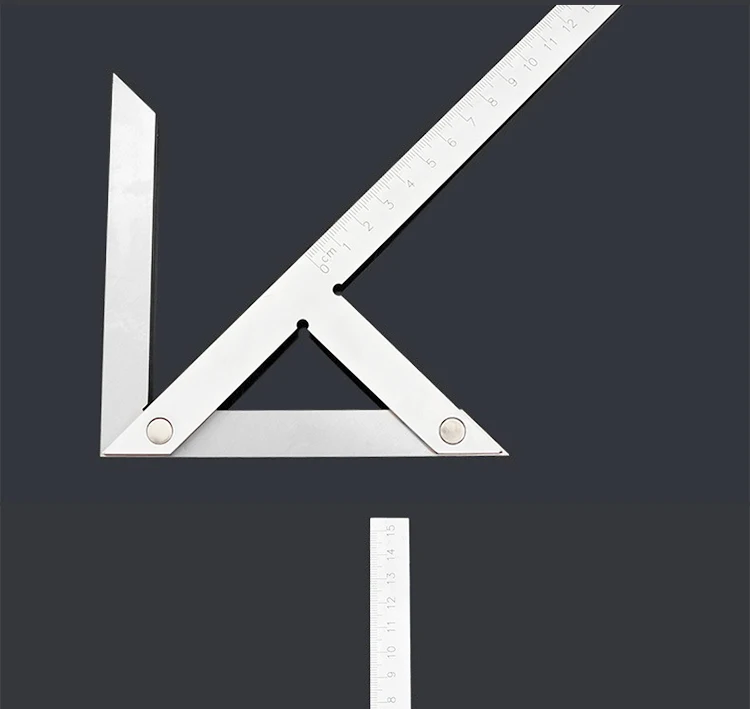

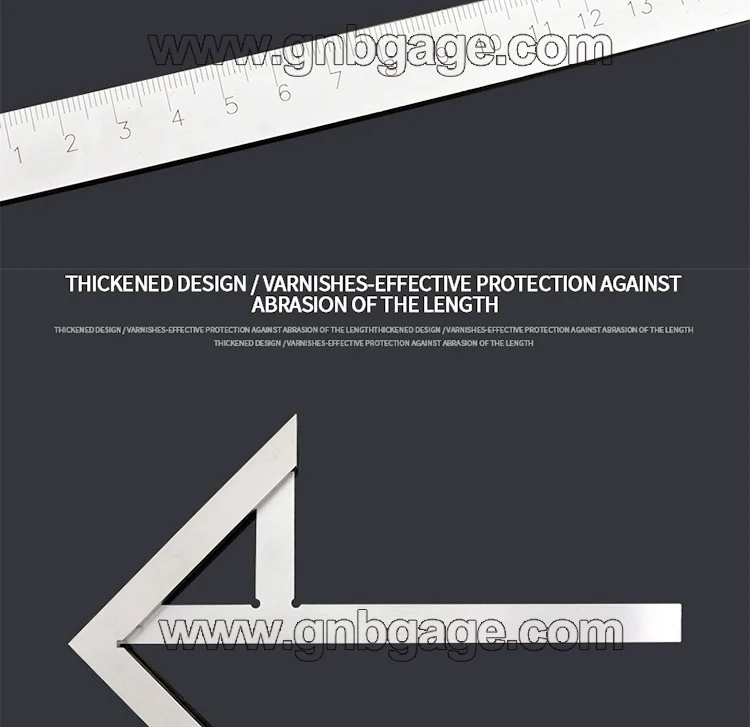

GNB-50_01.jpgGNB-50_02.jpgGNB-50_03.jpgGNB-50_04.jpgGNB-50_05.jpgGNB-50_06.jpgGNB-50_07.jpgGNB-50_08.jpg























Packaging & Shipping

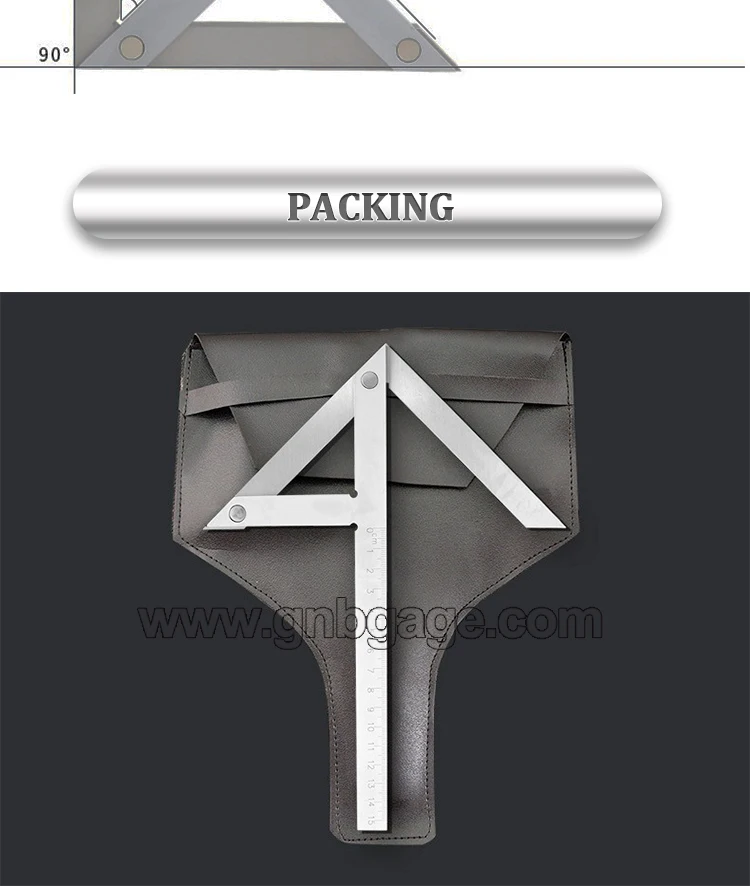

PackingBe packed in Black Leather Bags or Plastic Box, Then put into cartons, pallets
 OEM packing
