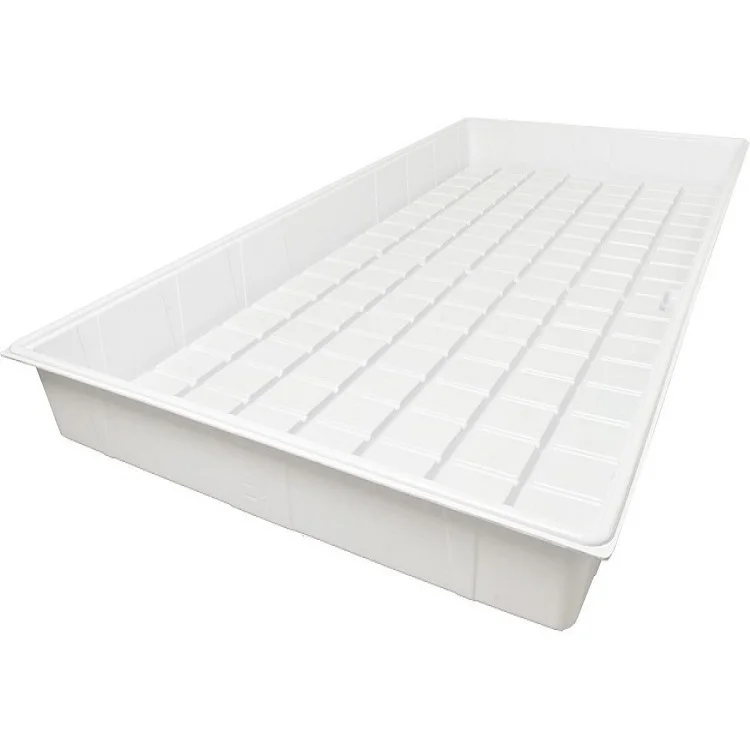

Skyplant Hydroponic Flood Tables And Trays Ebb And Flow Rolling Bench

 It is likely that you are interested in saving water and reducing your labor costs while maintaining or improving your crop quality. Flood benching may be the right system for you! If you have an acre of greenhouse or less, this cost effective approach to sub-irrigation is something to consider. Flood benches have been around for some time. However if you have never grown using sub-irrigation, we tell all our customers the first year might be a bit of a learning curve but the following year you will wonder why you did not do it sooner. The labor savings alone will justify the investment, the other benefits are extras.

Detailed Structure and Parameters

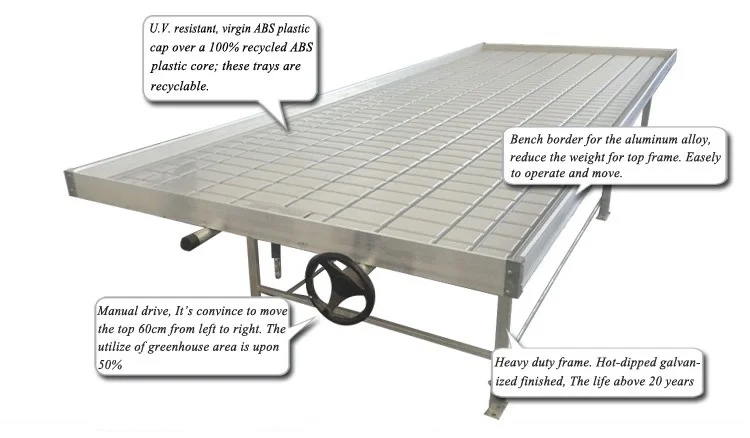

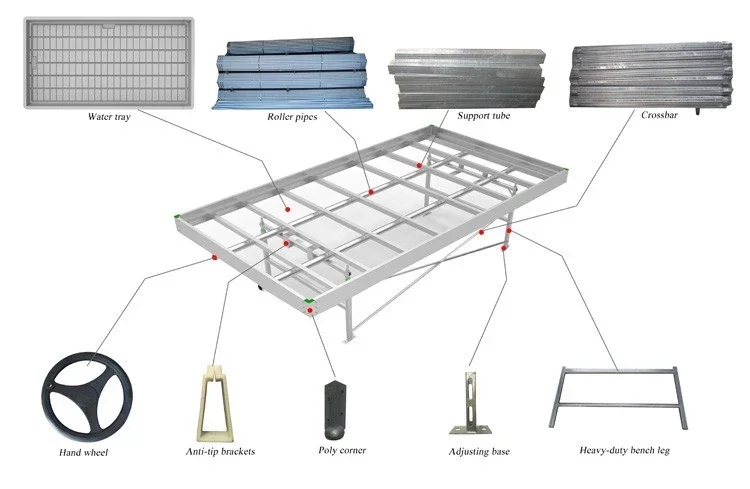

The main structure of greenhouse seedling bed is made of hot-dip galvanized mesh and hot dip galvanized steel and the material of supporting structure is hot-dip galvanized pipe.The frame adopts aluminum alloy profile, height of which can be fine-tuned. With anti-roll limit device, unilateral translation up to 300 mm, about 0.6 m channel space can be created between two seedbeds. Adopt of low carbon steel wire for seedling bed nets, produced by the latest model of large machine assembly line, the net surface is one by one single point welded by the welding head at the longitude direction, Although labor-hour is longer, but the quality is good. Specifications of movable seedbed can be decided according to the width of the greenhouse while the length can be customized according to user requirements. Recommanded General width is around 1.7 meters with lengthno more than 25 meters.

Place a cultivation container with a net-shaped basin bottom on a rolling bench.

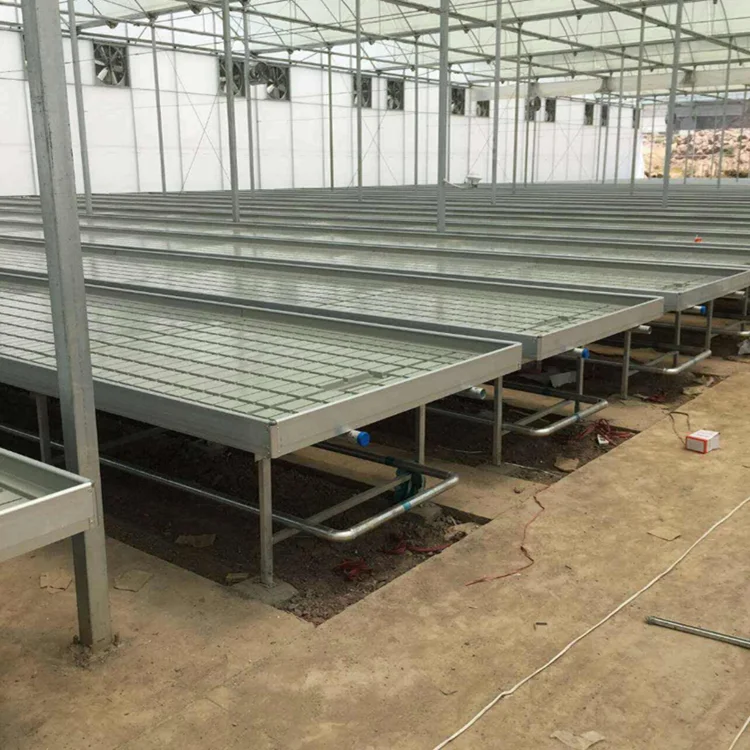

The nutrient solution is pumped from the nutrient solution pool to the seedbed by a special circulating water pump, and the seedbed is submerged to a depth of about 20~30mm.

After about 10~15 minutes, the nutrient solution will become capillary. The effect will rise to the surface of the substrate in the cultivation container.

At this time, the nutrient solution will be discharged, and it will flow back into the nutrient solution pool again. The nutrient solution can also be drawn out when other seedbeds need water.

The benches are designed to accept flood tables, expanded metal, or wire mesh bench tops and come with angled anchors to secure the table to the floor.

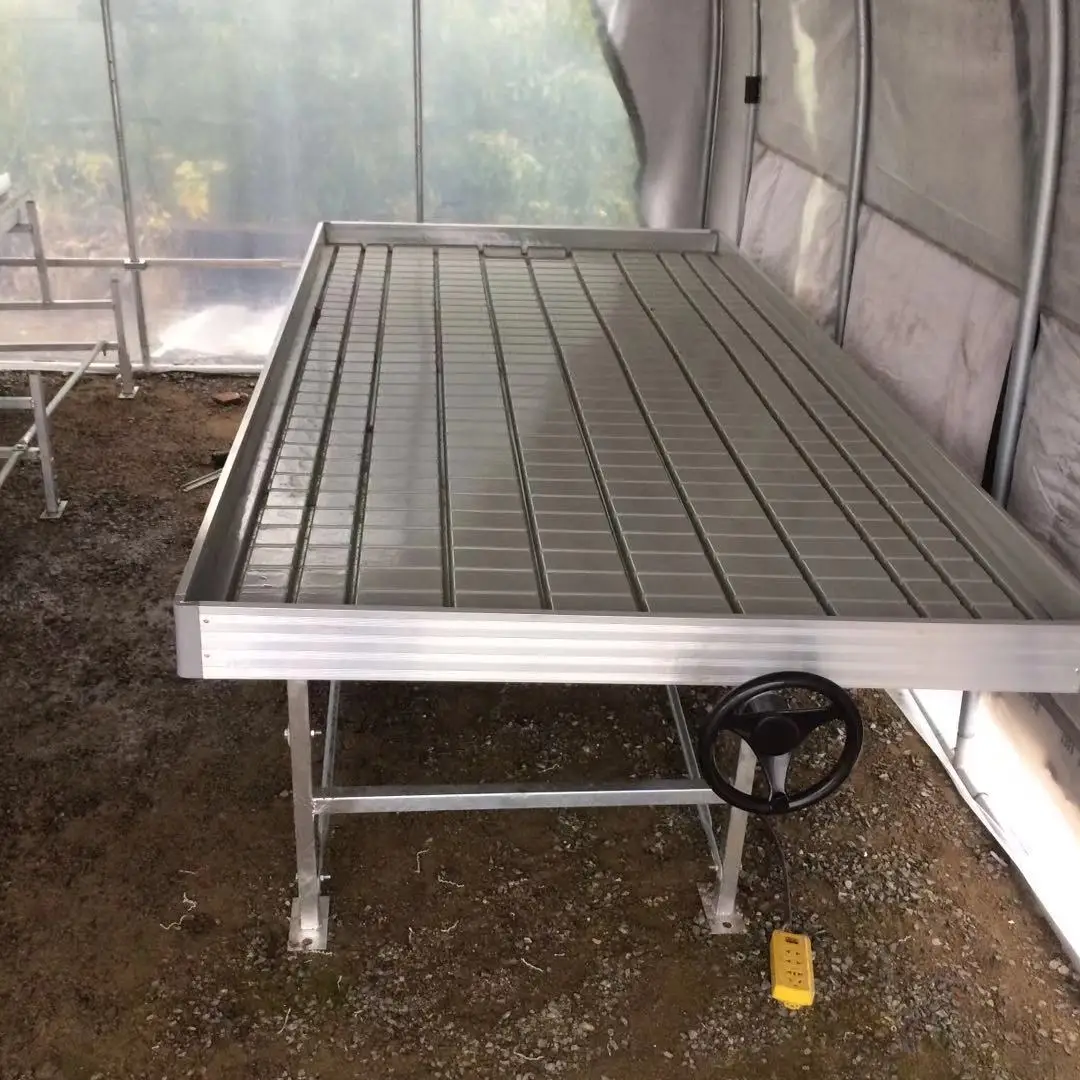

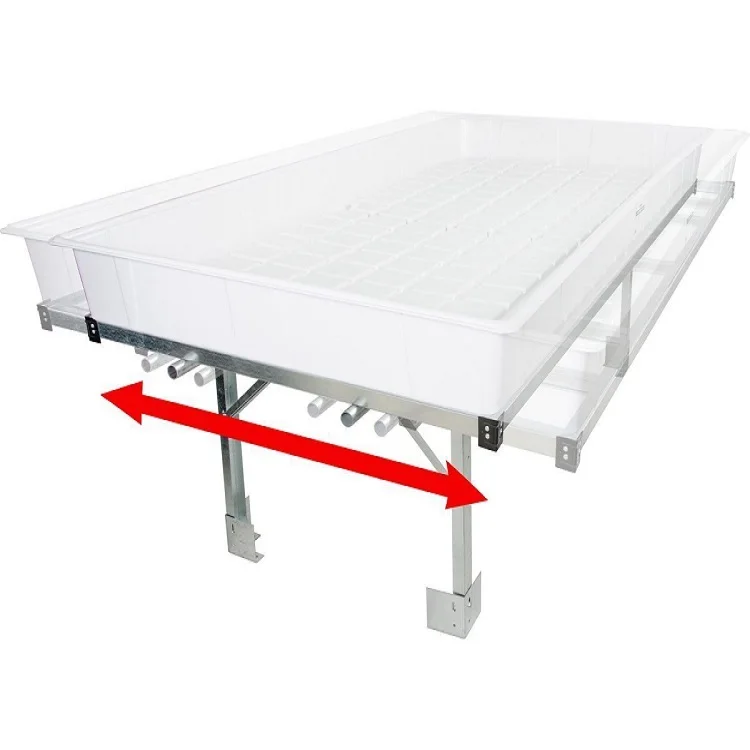

The rolling bench has a unique design: connect the benches at the end to customize the length of the bench in 8 foot increments while maintaining smooth and easy rolling. The peaked roll bars allow for easier and smoother rolling while preventing soil, chemical and water buildup that can otherwise interfere with or corrode flat roll bars.

Each Skyplant’s Rolling Bench System is constructed to prevent tipping while maintaining structural integrity that can hold a 200 pound concentrated load.
