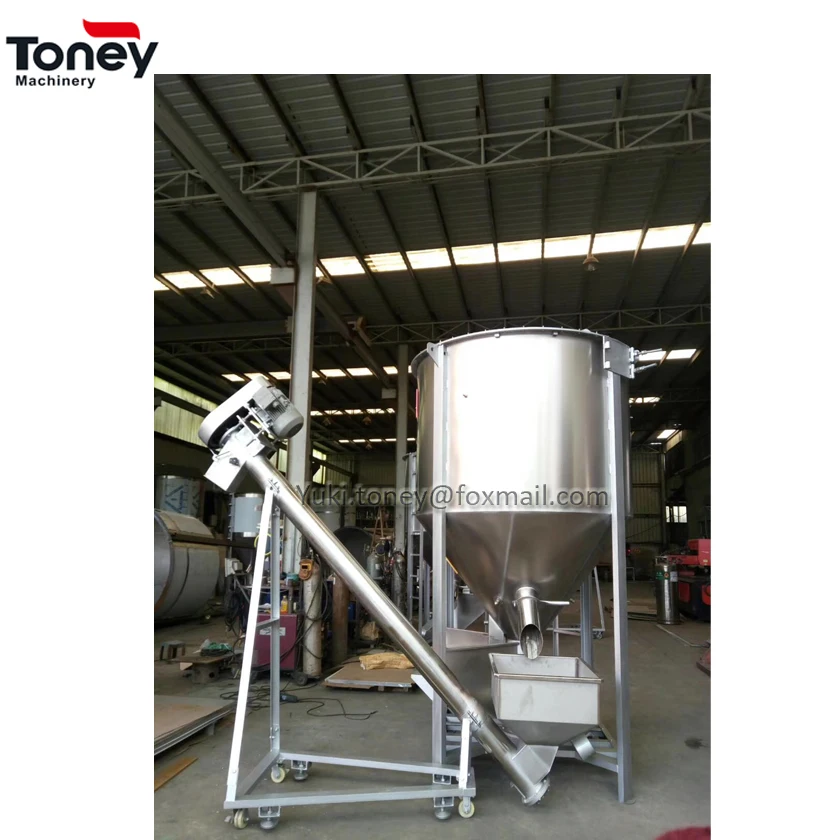

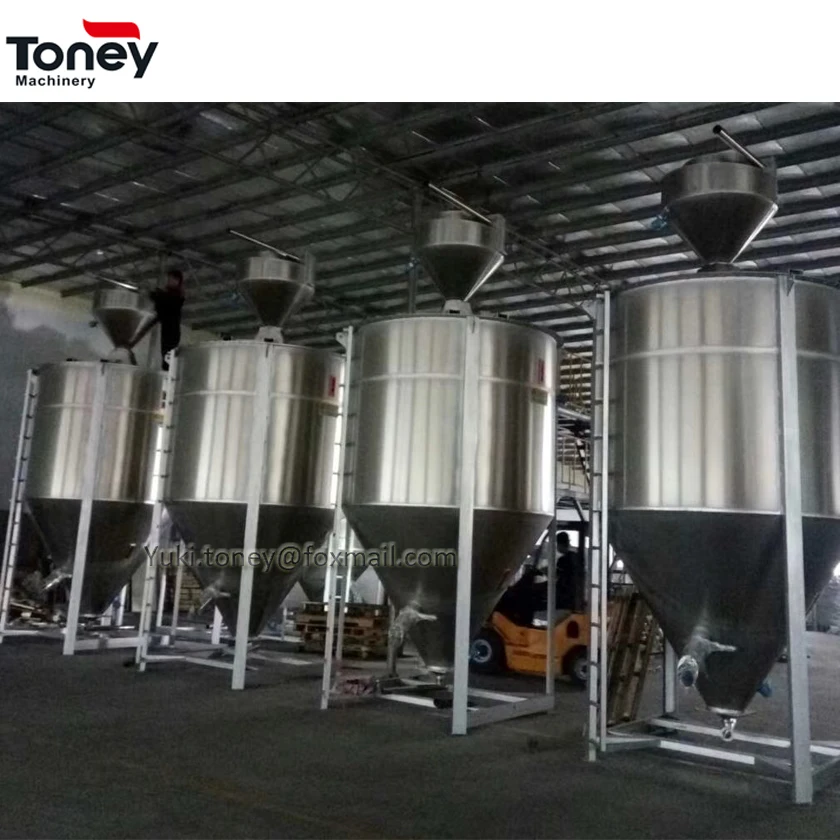

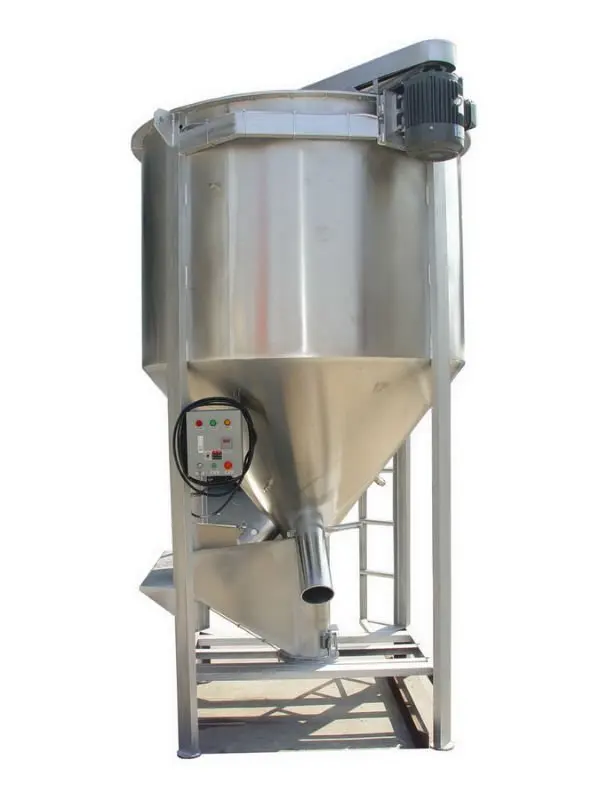

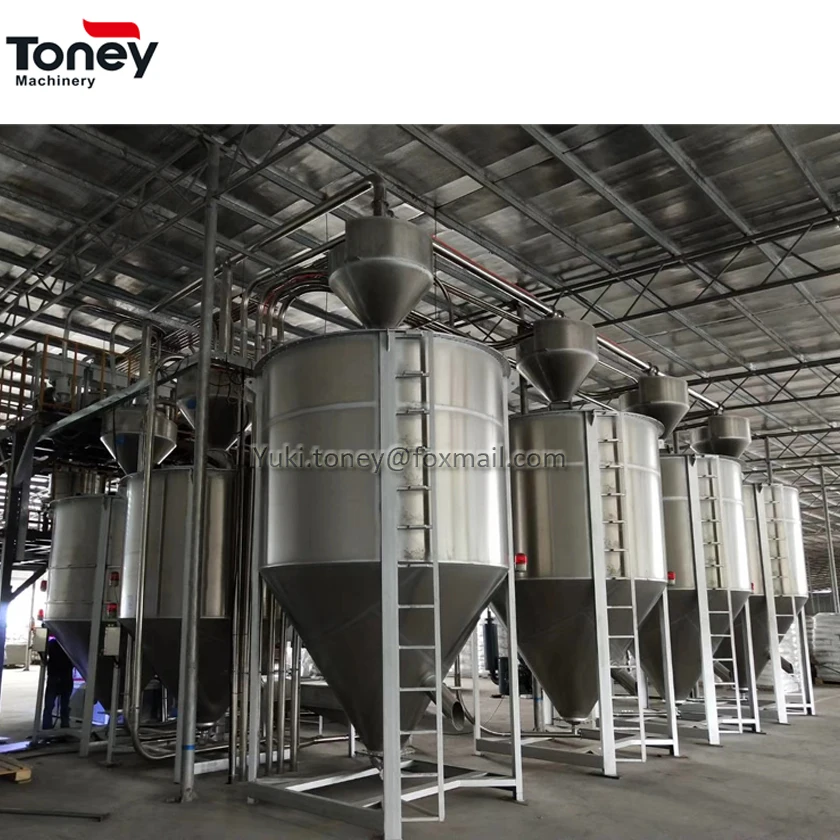

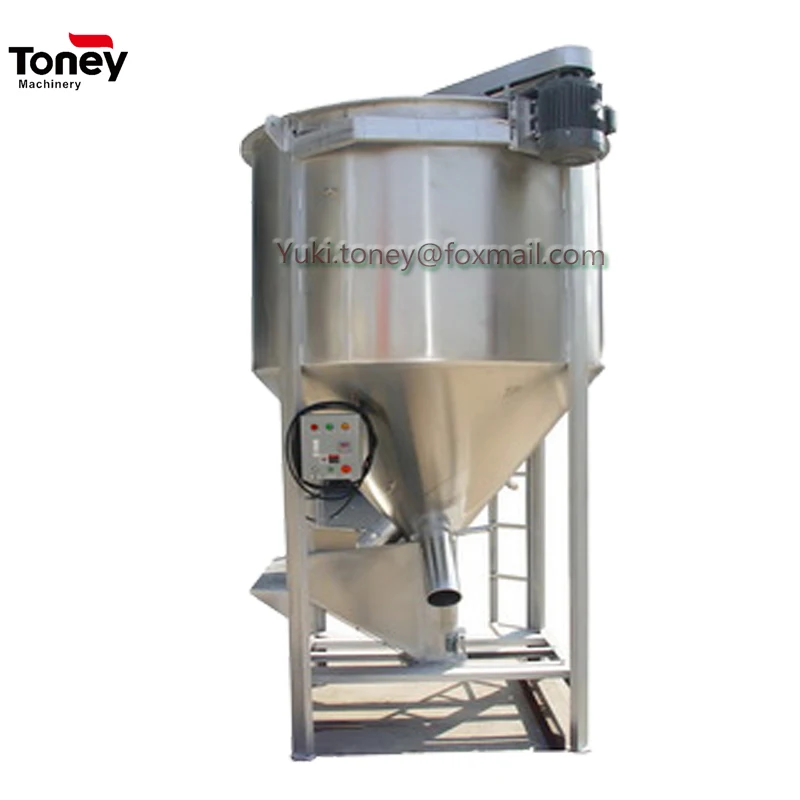

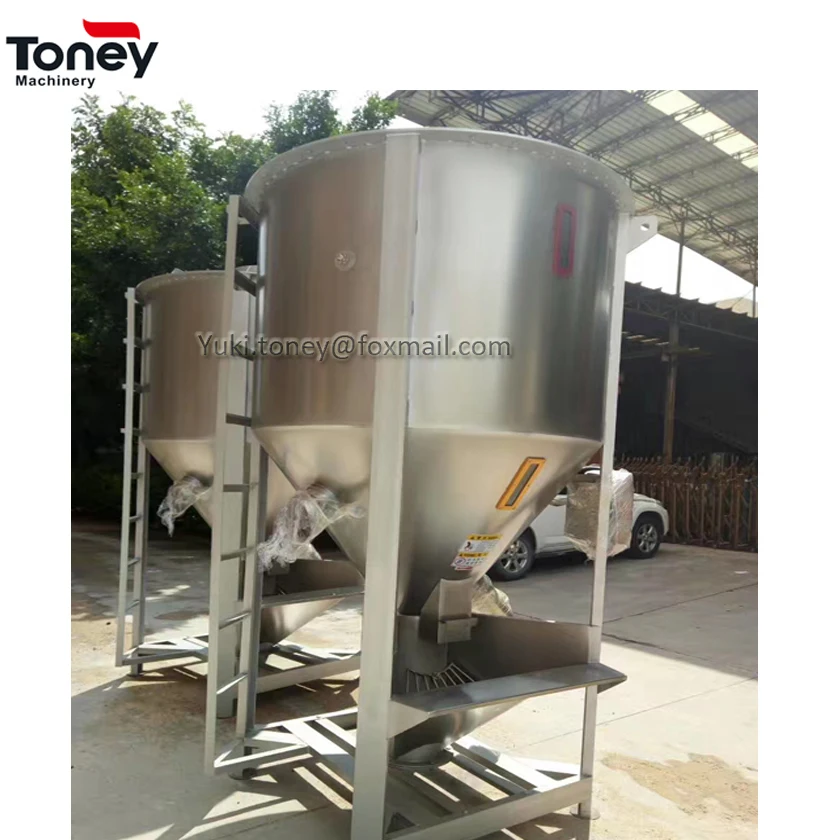

The large capacity vertical mixers are for powder and granule materials. They feature simple structure, fast mixing speed, easy for operation, maintenance and cleaning. It is mainly applied in plastic material mixing and also widely used in different industries, such as: powder metallurgy, pottery, chemical industry and food industry. It is an ideal mixing facility with five models, handling capacity ranging from 500-2000kg.
Features and advantages for plastic color mixer:
1. Both mixing pail and vane are made of Stainless steel.

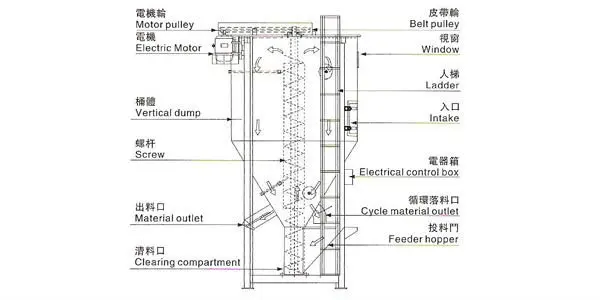

2. Helical circular mixing device, fast and equal stirring.
3. Overload protection device for motor and multi-protective devices for safety of motor and operator.
4. Spiral leaf need to be welded before processing ensure shaft concentricity and running smoothly.
5. Time setting can be controlled easily and Precisely in the range of 0 - 30minutes .
Products Technical Specifications For Large Capacity Color Mixer:
Vertical screw mixer
Motor Power
Capacity
Rotating speed
Net weight
Dimensions
Model
Kw
HP
(kg)
(r/min)
(kg)
(L×W×H)(mm)
TVM-500
2.2
3
500
360
450
1260×2250
TVM-1000
2.2
3
1000
360
630
1360×2520
TVM-1500
4
5
1500
360
800
1500×2820
TVM-2000
4
5
2000
360
1050
1850×3040
TVM-3000
5.5
7.5
3000
360
1250
1950×3420
TVM-5000
7.5
10
5000
360
1600
2200×3800

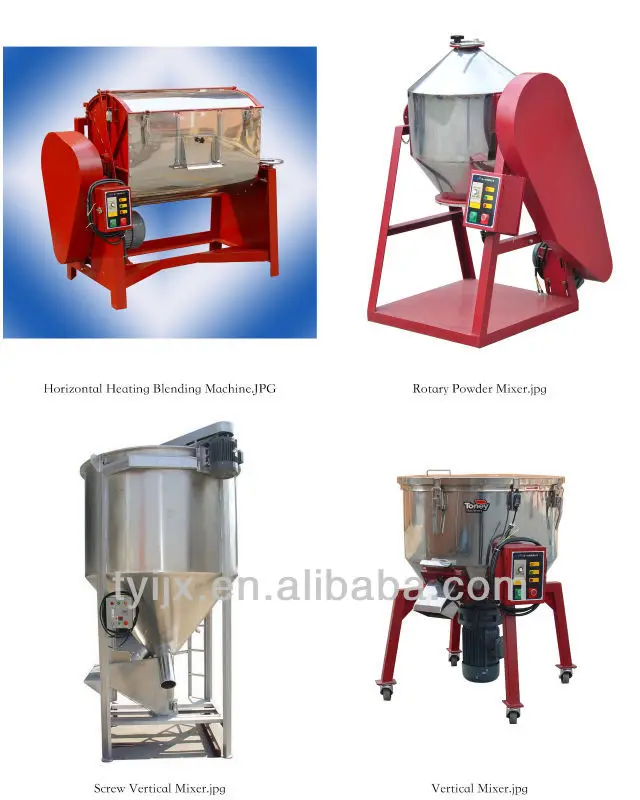

Toney Mixer Series:
Packaging & Shipping
Bubbles and wrap film inside for dust and water proof. Standard export wooden box packaging suitable for long distance shipping.
Shipping by sea, the nearest port is ShenZhen or GuangZhou.
Our Services
Pre-sale services:
Based on the clients' request and budget, we will offer equipment pictures, working site videos, plant processing diagram, assemble drawings, foundation drawings, and plant layout. Clients are welcome to visit our factory, also our equipment working site from former clients.
Sale services:
Our experienced technicians are available on the phone also the Internet, clients can get instance guidance by telephone, email, online service anytime and anywhere.
After-sale services:
Normally, the equipment warranty is 12 months since installation. To establish long term cooperation, we will regularly call and email our clients to check the equipment working condition and offer suggestions for maintenance.
Company Information
Dongguan Toney Machinery Co., Ltd is a high-tech enterprise with 20 years' experience in the research, design, manufacture,distribution and service of injection molding machine auxiliary equipment.
We are professional Taiwan manufacture in Dongguan, Our main product have plastic mixers ,crushers, dryers, dehumidifiers, suction machines, color mixers, mould temperature controllers, water chillers, auto loaders, auto feeders,color masterbatch proportion mixers and vibrating sieves etc.
