Product Overview

Description

Product Description

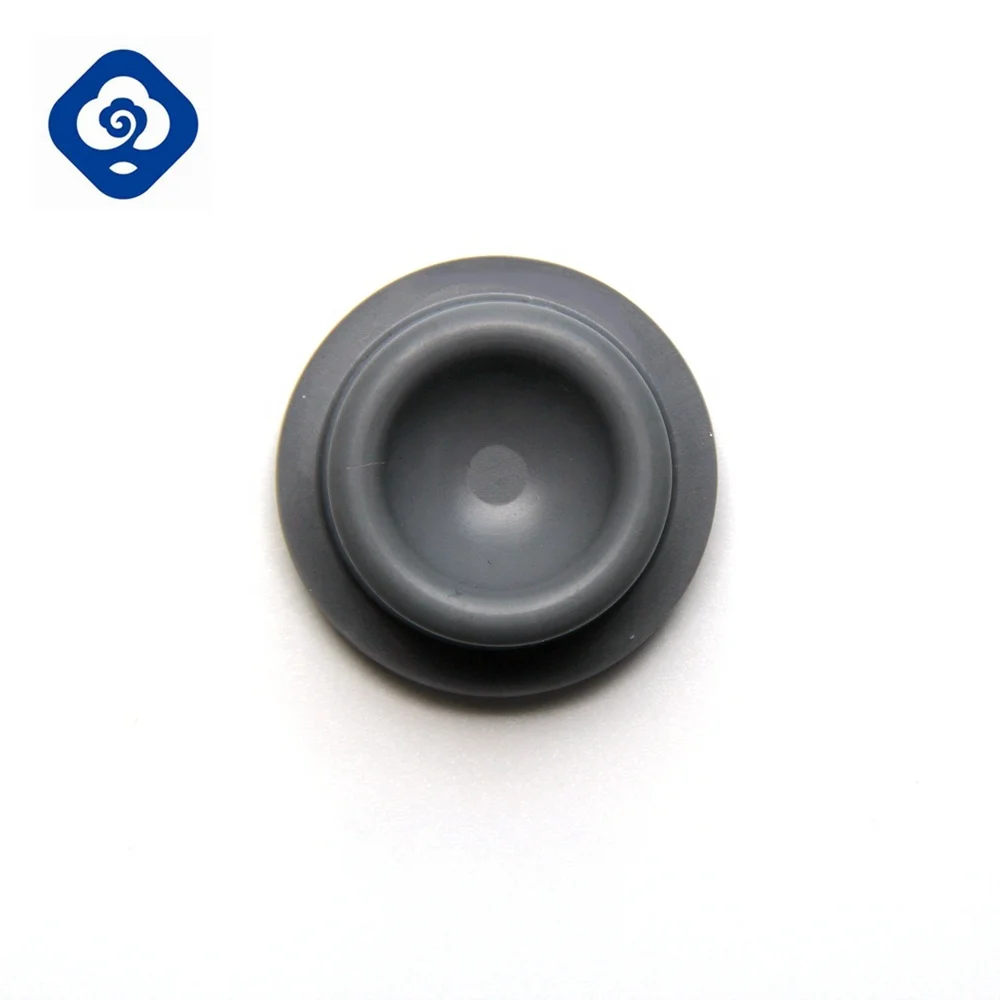

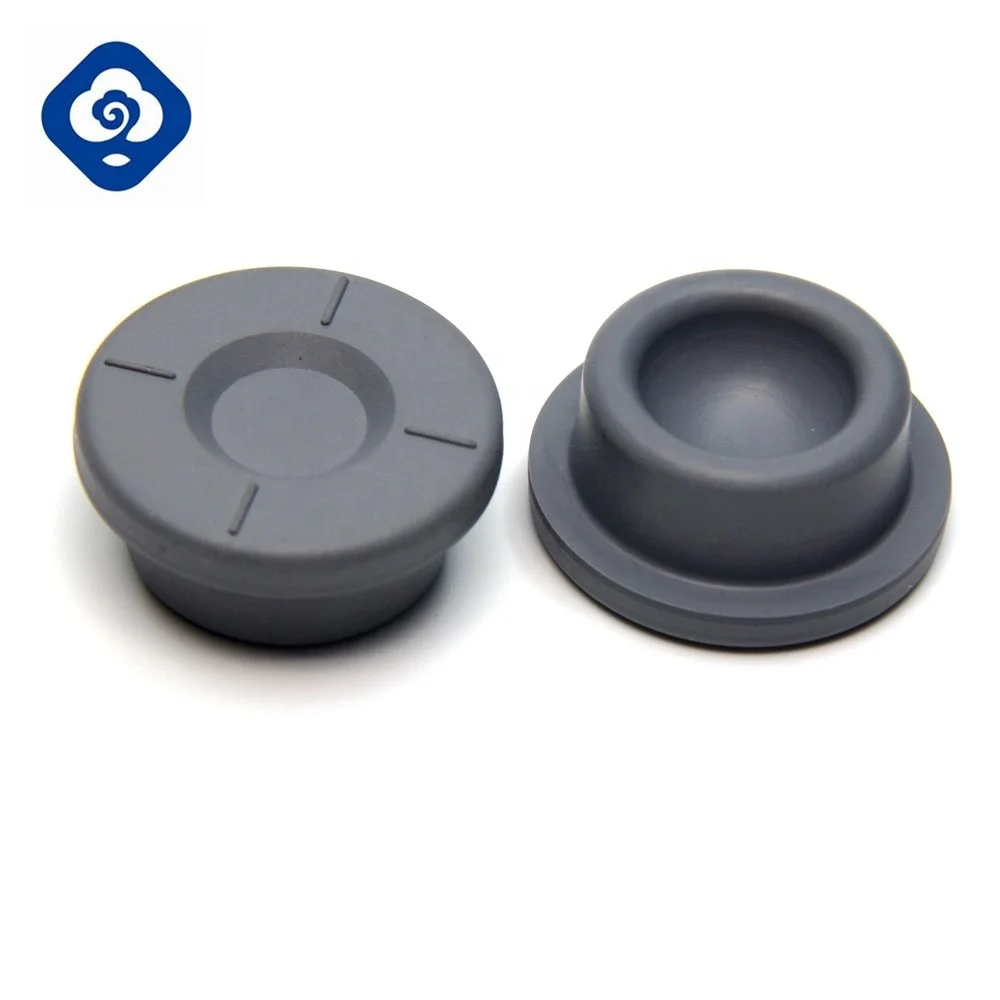

Quality 34 mm Bromobutyl Infusion Rubber Stoppers

● This rubber stopper is designed for infusion bottles with 34mm neck ring finish.
● The main raw material, butyl rubber, is imported from USA, Germany and Russia.

● The production is finished in GMP standard workshop under strict quality control, and in conformity with National Standard.
● Silicon oil free formula is a new technique. By using as less silicon oil as possible, this formula can effectively reduce stopper skipping problem during sealing process.

Product Series
Model
Diameter of
Top part
Thickness of
Top part
Diameter
of Stem
Total Height
13-A
12.5±0.2
2.0±0.25
7.5±0.1
7.0±0.3
13-D1
12.5±0.2
2.1±0.25
7.6±0.1
10.0±0.3
13-D2
12.5±0.2
2.1±0.2
7.8±0.1
10.0±0.3
13-D4
12.5±0.2
2.5±0.2
7.5±0.1
9.9±0.3
20-A
18.8±0.2
3.3±0.2
13.2±0.1
8.8±0.25
20-D1
18.8±0.2
3.3±0.2
13.4±0.1
13.8±0.25
20-D2
18.8±0.2
3.3±0.2
13.2±0.1
13.8±0.25
20-D3
18.8±0.2
3.3±0.2
13.2±0.1
13.8±0.25
20-D4
18.8±0.2
3.3±0.2
13.4±0.1
14.2±0.25
28-B
26.6+/-0.3
3.8+/-0.3
18.1+/-0.1
11.8+/-0.4
32-A
30.8+/-0.3
4.0+/-0.3
23.6+/-0.1
12.2+/-0.4
34-A
32.6+/-0.2
4.0+/-0.6
26.5+/-0.3
14.5+/-1.0
Production Process

Raw material compounding   →   internal mixing & open mixing   →   suspension cooling & extruding   →

three roller calendering & ten roller cooling   →   cutting weighing   →   curing forming & cutting   →

trimming   →   extraction pre-washing   →   washing

auto inspection   →   manuel inspection & inner packing   →   outer packing & storing

Packing & Delivery



Packed in double pharmaceutical Sterile PE bag, ir ultra clean breathe RFS steam bag,  and two corrugated export carton.


● 20,000pcs in one carton


Certification & COA

ISO9001:2008 Certificate

SGS certificate

COA

Packing & Delivery



Packed in double pharmaceutical Sterile PE bag, or ultra clean breathe RFS steam bag,  and two corrugated export carton.


● 10,000pcs in one carton

● carton size: 460mm*350mm*220mm

● G.W.: 19.5kgs


Exhibition

Yantai Xinhui on CPhI Exhibition in South East Asia, Shanghai, Spain

About Us

Yantai Xinhui Packing Co., Ltd.

was founded in 2003, with registered assets of RMB80 million, focusing on R&D, MFG, and sales of pharmaceutical packaging material.

The company's main products are butyl rubber stopper and synthetic poly isoprene disc. All products have been issued "Registration Certificate" by China Food and Drug Administration.

The company was repeatedly honored by local government, and has been ISO9001:2008 certified.

The subsidiary trading company, Yantai Xinhui Pharmaceutical Packaging Material Co., Ltd., cooperates closely with quality manufacturers of related pharmaceutical packaging products, dedicating to provide a one-stop service for overseas customers.

From end of 2017, we moved to the new production base, which covers an area of 30 acres, involving an investment of USD150 million. The base will be finished by two phases. The first phase, which includes office building, research building, workshop 1, water treatment workshop, covering 82,000 square meters, is now in use. Most advanced equipments are used for automatic production. With full operation, annual output will increase to 8 billion pieces, revenue over USD200 million, offering over 500 employments.

"Quality Based, Customer First", is our business concept. We sincerely welcome friends from all over the world, and wish to establish long term cooperation for mutual development!


We are large manufacturer direct sale. We provide the most reliable products, competitive prices, and a specialized, comprehensive service for you.

● Customized service available.
● Samples provided free of charge.
● MOQ 10,000pcs when stock available.
● Normal leading time 10-15 days.
● One-stop service for rubber stopper, glass vial and flip off cap.


Please contact us for a COMPETITIVE quotation now!
