Products Description
Corder Microscope has Fluid,Responsive and Accurate.
Fluid. Responsive. Accurate. These were a few of the principles guiding every phase in the design of the Corder Microscope. With the choicest mechanical machined components, the Corder Microscope has the grace and agility to adjust to every desired position on command. Well designed Apochromatic optics treated with Corder's Mcoatings produce true-to life sharp images with high depth,definition and contrast.
Tiltable binocular tubes available, which can incline more than 60° depending on the posture and physique of the operating surgeon.
Movable range: 30° to 90° (inclined)
Movable range: 30° to 90° (inclined)
fully independent assistant’s microscope ，180° face-to-face observation with the main tube
Corder microscope configured with XYZ and ZOOM motorized movement operated through a comfortable foot control, a very effective co-axial illumination and 100W halogen light source makes it ideal for surgeries.
Doctor-patient communication is easier

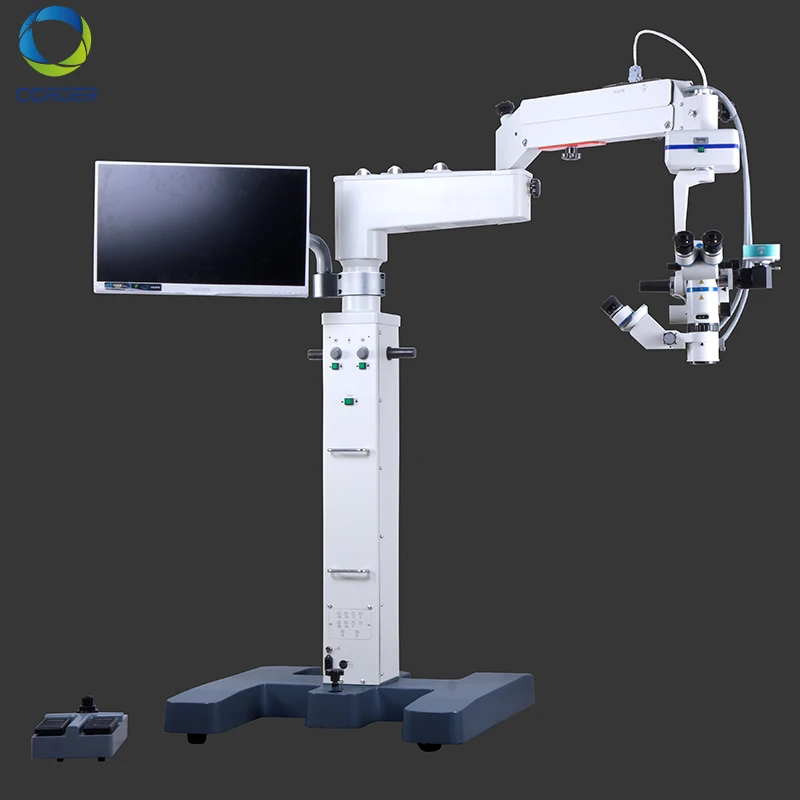

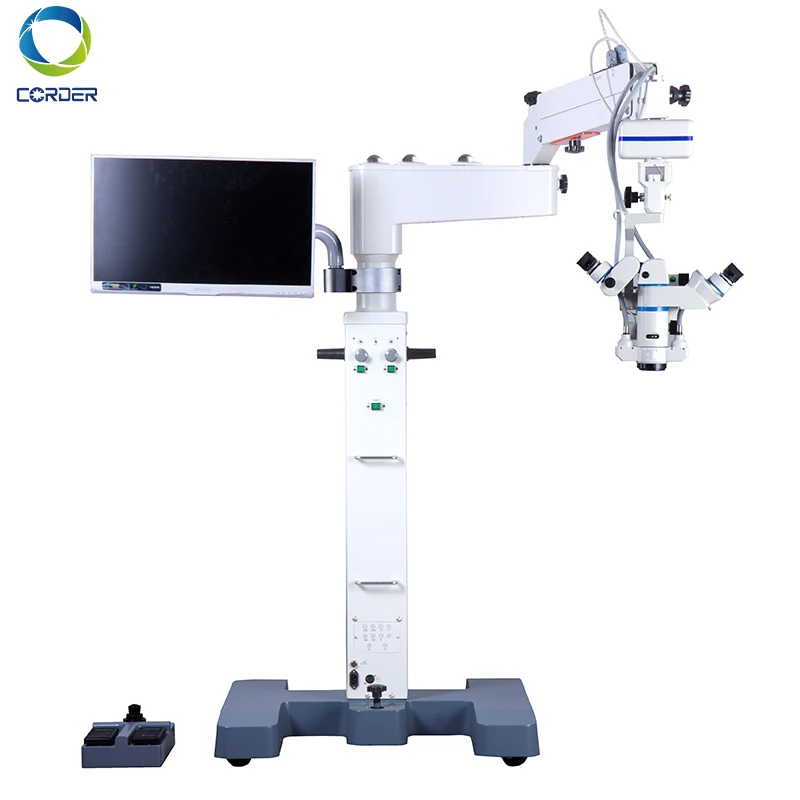

To address digital documentation needs, a host of digital SLR, video camera, and CCD adapters are made available with the ProLine in addition to Corder's proprietary iVu multi-functional imaging solution.
1080P full hd image quality, efficient image management during the operation. Integrate your digital workflow to facilitate case management and facilitate more intuitive patient communication.
Product Paramenters
Model | ASOM-4 | |
Function | Orthopedics | |
Surgical microscope | ||
Magnification | motorized zoom system, 1:6 zoom ratio, magnification 4x~24x | |
Focusing range | 50mm | |
Binocular tube | 30°~90° tiltable tube ，(0° ~200° optional) | |
Eyepiece | 12.5x / 10x | |
Objective lens | F 200mm(175mm, 250mm, 300mm,350mm optional) | |
pupil distance | 55mm~75mm | |
diopter adjustment | +6D ~ -6D | |
Feild of veiw | Φ74~Φ12mm | |
X-Y translator | Motorized by foot switch , ±30mm | |
Assistant tube | Integrated with independent steps changer and same depth of veiw as main tube | |
Reset functions | YES | |
Illumination | ||
System | Coaxial illumination | |
Light source | Halogen lamp | |
Light intensity adjustment | Continuous brightness adjustment 0-100000lux | |
Fiber optic illumination | Dual fiber | |
Field of illumination | Φ50mm | |
Arm & Base | ||
Mount | Floor stand | |
Maximum arm extension | 1200mm | |
Height from objective to floor | 800mm | |
Base size | 800*800mm | |
Brake system | Four-wheel brake | |
Foot switch/Handle controller | Waterproof, 8 function steps | |
Others | ||
Weight | 169KG | |
Power socket | 220v(+10%/-15%) 50HZ/110V(+10%/-15%) 60HZ | |
Power consumption | 300VA | |
Safety class | class I | |
Accessories | ||
CCD Camera system | Beam splitter, CCD adapter, CCD, Display | |
XENON LAMP | 150000lux | |
Integrated Video Adapter | SONY / CANON Camera | |
Ambient conditions | ||
Use | +10°C to +40°C | |
30% to 75% relative humidity | ||
500 mbar to 1060 mbar atmospheric pressure | ||
Storage | –30°C to +70°C | |
10% to 100% relative humidity | ||
500 mbar to 1060 mbar atmospheric pressure | ||
Limitations on use | ||
The Corder ASOM-4 surgical microscope may be used in enclosed rooms and on flat surfaces with max. 0.3° unevenness; or at stable walls or ceilings that fulfill Leica Microsystems' specifications (see installation manual) | ||
