80 tons mouse mat die cutting machine/shoe up hydraulic press/sponge die cutting machine

Product Overview

Description

80 tons mouse mat die cutting machine/shoe up hydraulic press/sponge die cutting machine





Applicable Materials:

This 80 tons mouse mat die cutting machine/shoe up hydraulic press/sponge die cutting machine is used for cutting sheet material,  and it cuts nonmetal materials such as form material, paper board or paper sheet, woven material, leather product, rubber products, plastic sheet, packing materials, laminate flooring, carpet, glass fibre, fiberglass, soft wood and etc.



Features:

- Double oil cylinder, auto balance mechanism with four column structure, this achieve high precision +/-0.2mm;

- Hydraulic press, no need compress air;

- Centrol oil supply, auto lubrication system, reduce damage even in harsh working environment;

- Special design, protect the shaping mould, save cost in daily production.





Specification:

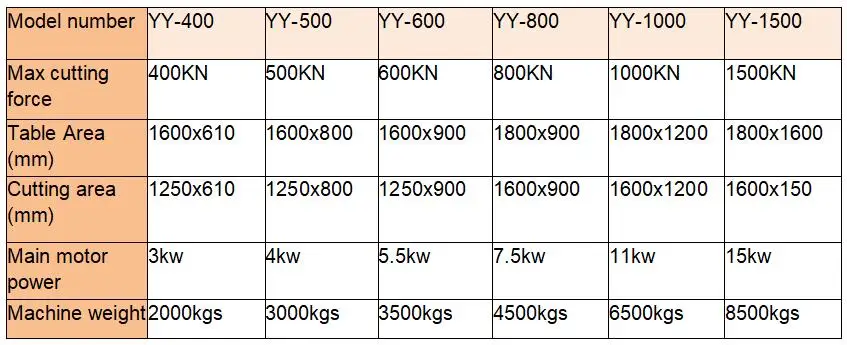

Parameter list for our 4 column four pillar mouse mat die cutting machine/shoe up hydraulic press/sponge die cutting machine:

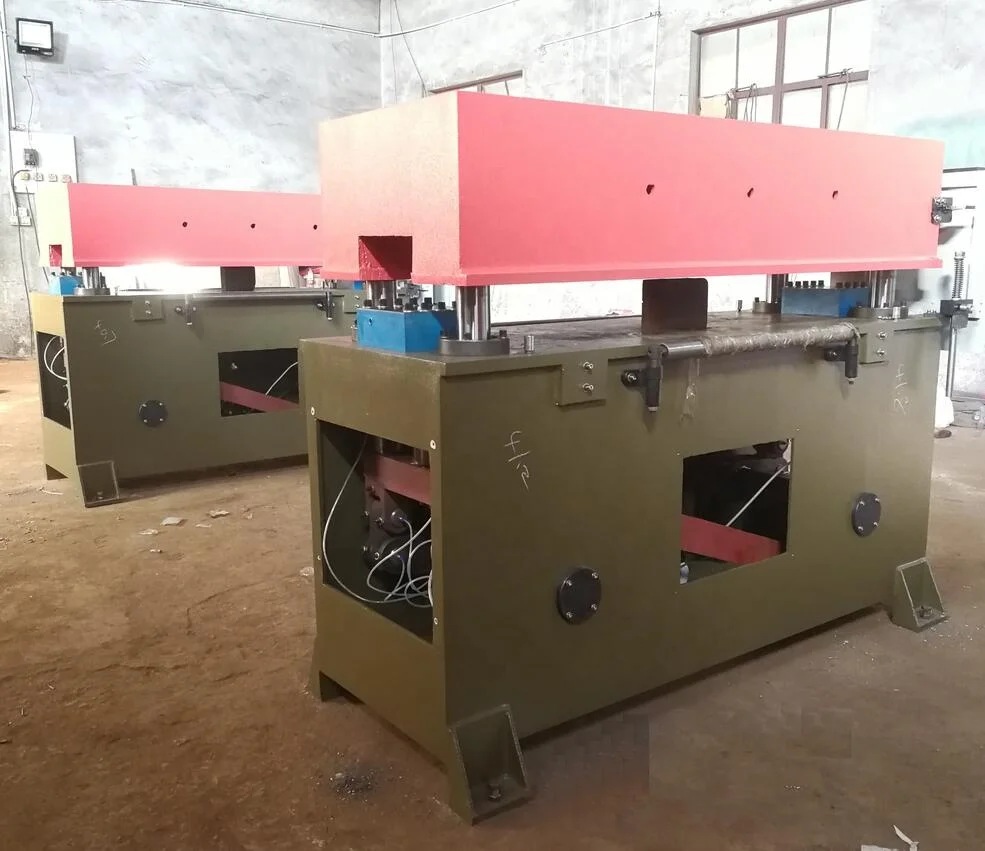

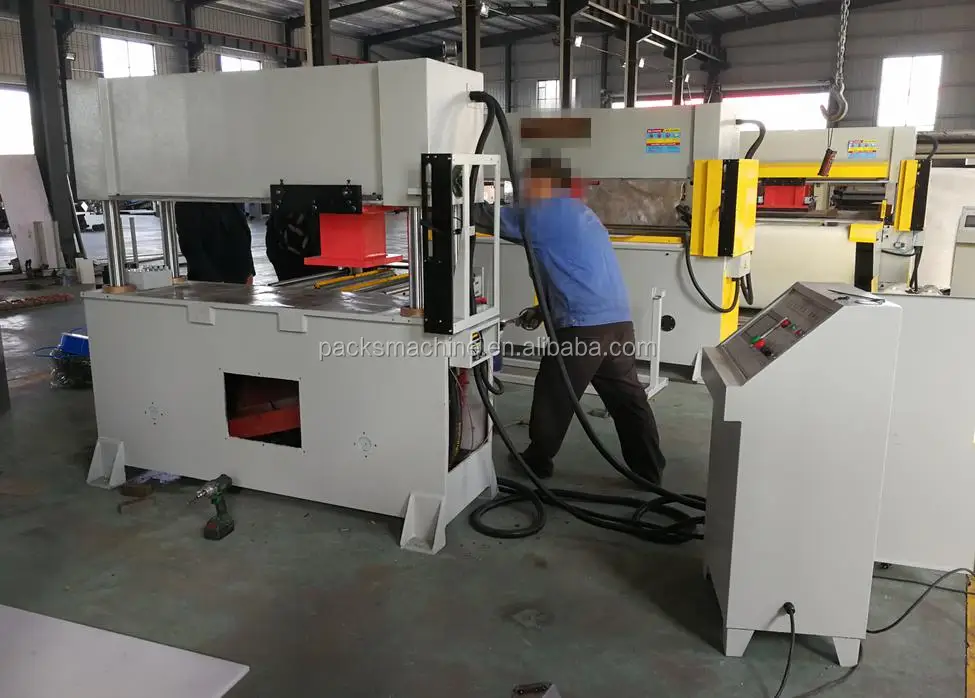

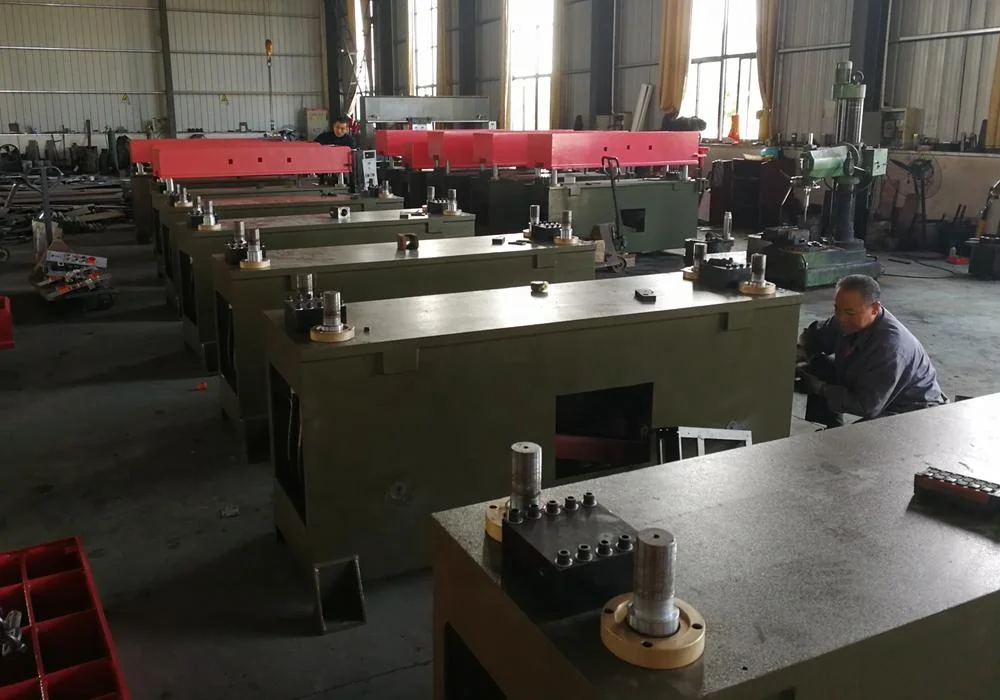

High Precision Four Column Hydraulic Die Pressing Machine in production:

Big strength, 40Ton, 50Ton, 80Ton, 100Ton, 150Tons available from us.

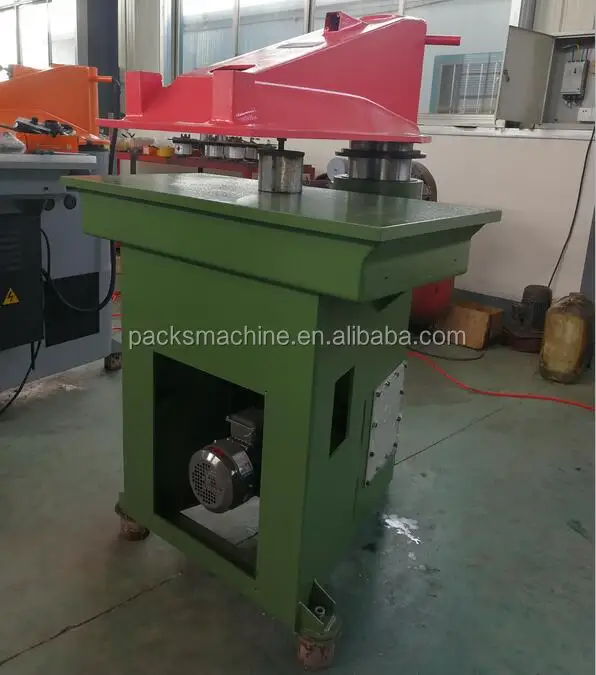

Pictures for Small Swing Arm Die Cutting Machine:







 Parameters for small hydraulic press die cutting machine:

Model number	GSB-2C/12	GSB-2C/20	GSB-2C/25
Max cutting force	120KN	200KN	250KN
Stroke adjustment	5-55mm	5-75mm	5-75MM
Distance between upper table and lower table	60-140mm	65-150mm	65-150mm
Arm Width	330x400mm	350x400mm	400x500mm
Cutting table size	900X410mm	1000x500mm	1000*500mm
Power	380v 50Hz/60Hz	380v 50Hz/60Hz	380v 50Hz/60Hz
Package size	880x845x1420mm	900x960x1570mm	1080x1030x1600mm
Gross weight	350kg	550kg	650kg

We have many more model hydraulic press die cutting machine, 8ton, 10ton, 12ton, plus above 20ton, 25tons, we will recommend suitable model with competitive price.



Application:

The small swing arm hydraulic press die cutting machine can be used to cut shoe upper, cotton, textile, hand bags, leather, rubber, plastic, paper, facial mask, football or other similar materials. It is widely used in shoes making industry, glove making plant, cloth making factory, toy making company, cosmetic industry and etc.







Spare parts for small rotary hydraulic press die cutting machine:

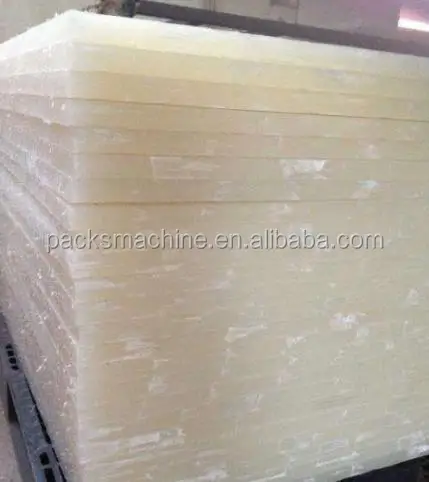

Polypropylene / PP die cutting board, the hydraulic press die cutting plate, we supply this as spare parts, and the size can be customized.

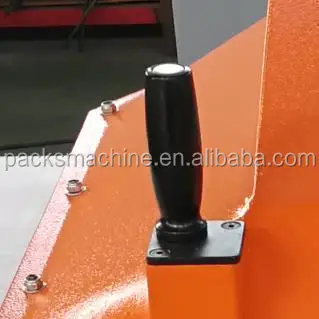

The handle and rotary knob for the cheap hydraulic press die cutting machine, we supply this as spare parts, we have all the spare parts for the shoe or leather die cutting machine, also spare parts for Italia die cutting machines, we supply all the replacements.



Other Machines in Plant:

Leather Roll Strip Cutting Machine:

It cuts the leather rolls into narrow roll, the width can be customized with high precision.

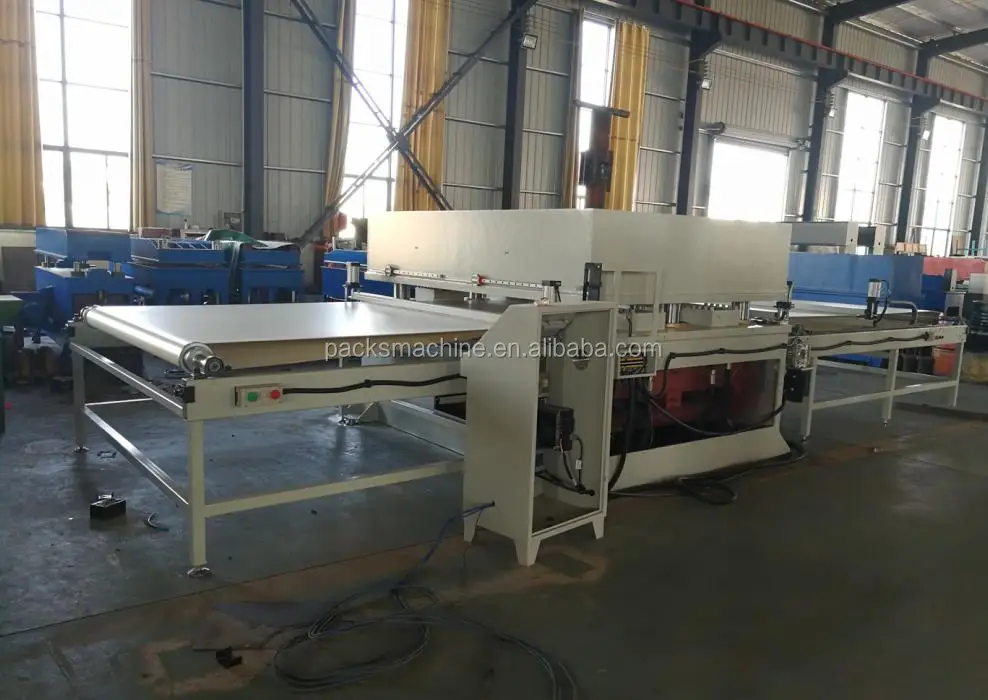

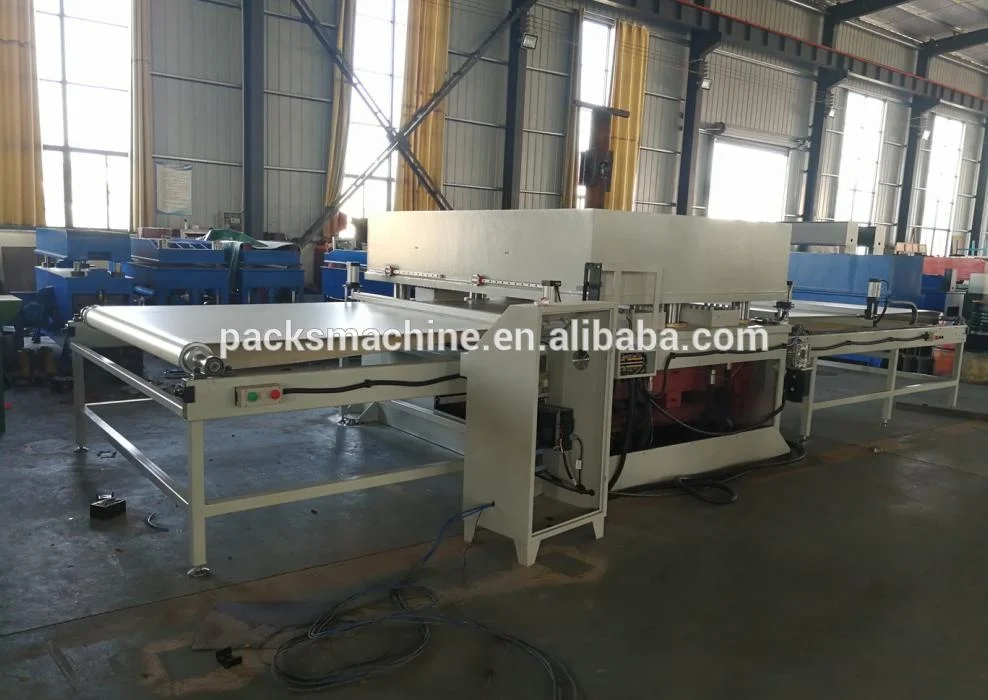

Auto Feeding Hydraulic Press Die Cutting Machine:

with input and output conveying table belt.

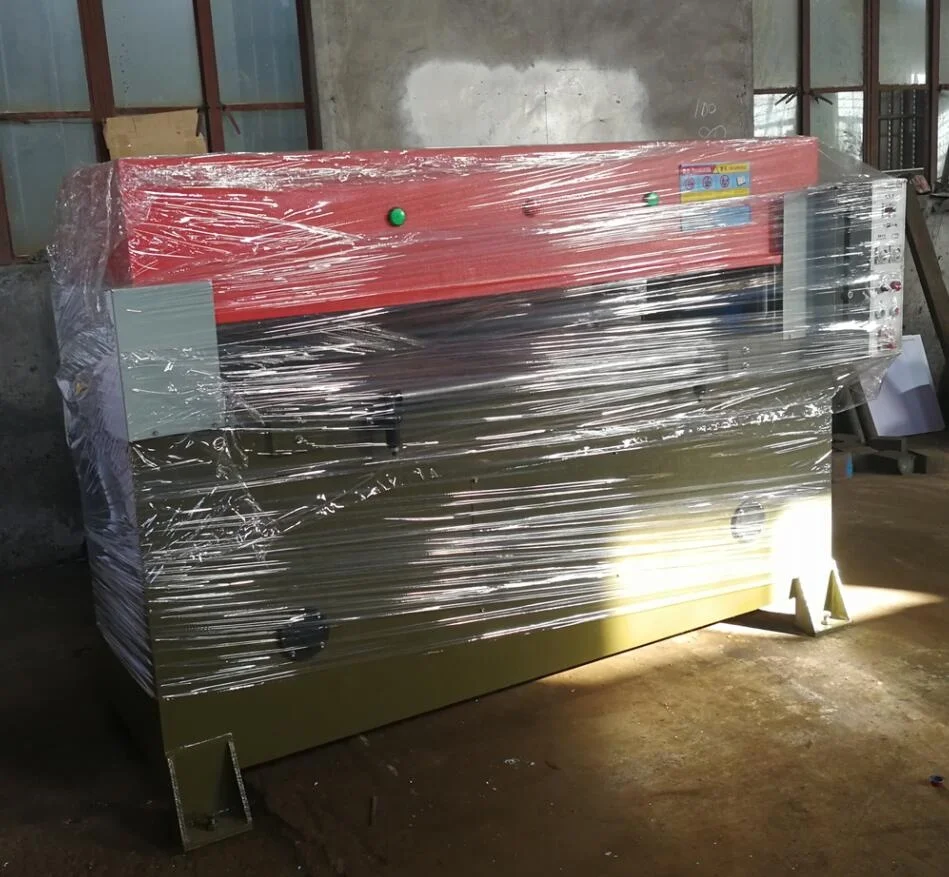

Export Wooden Case Package:
