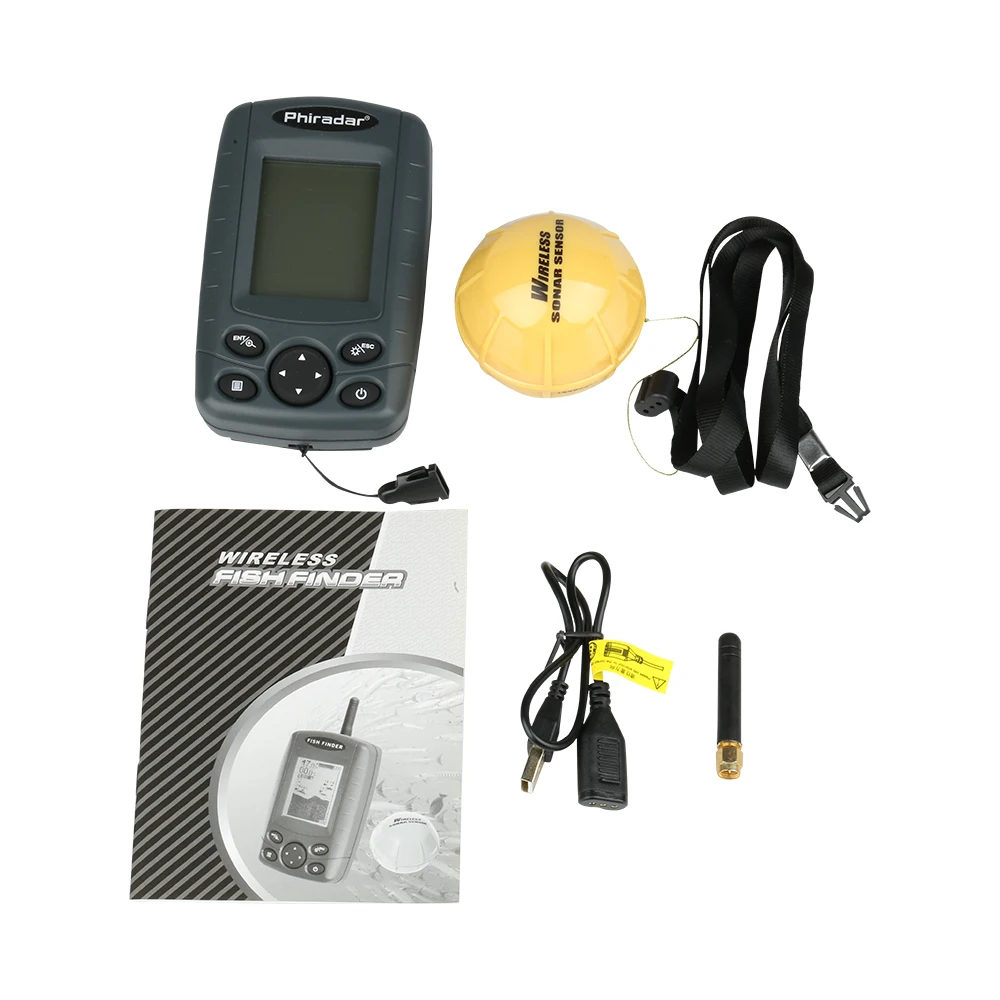

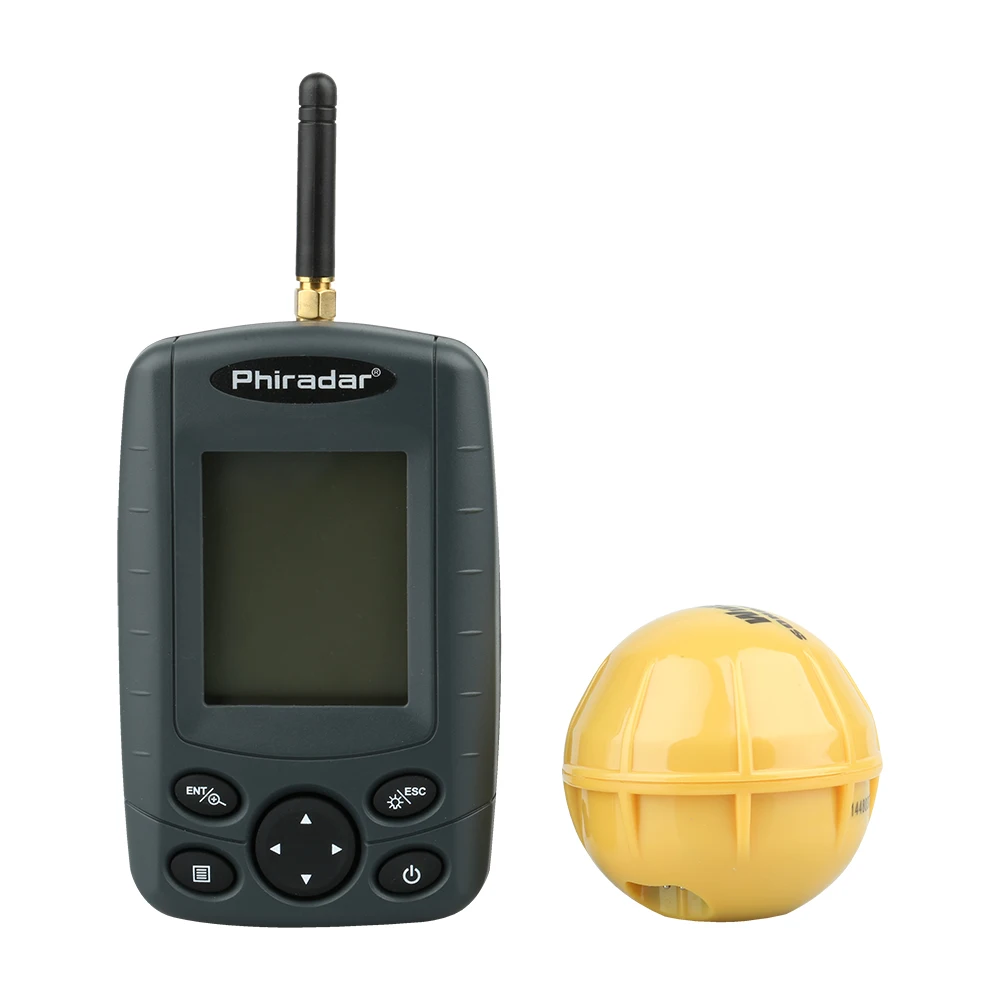

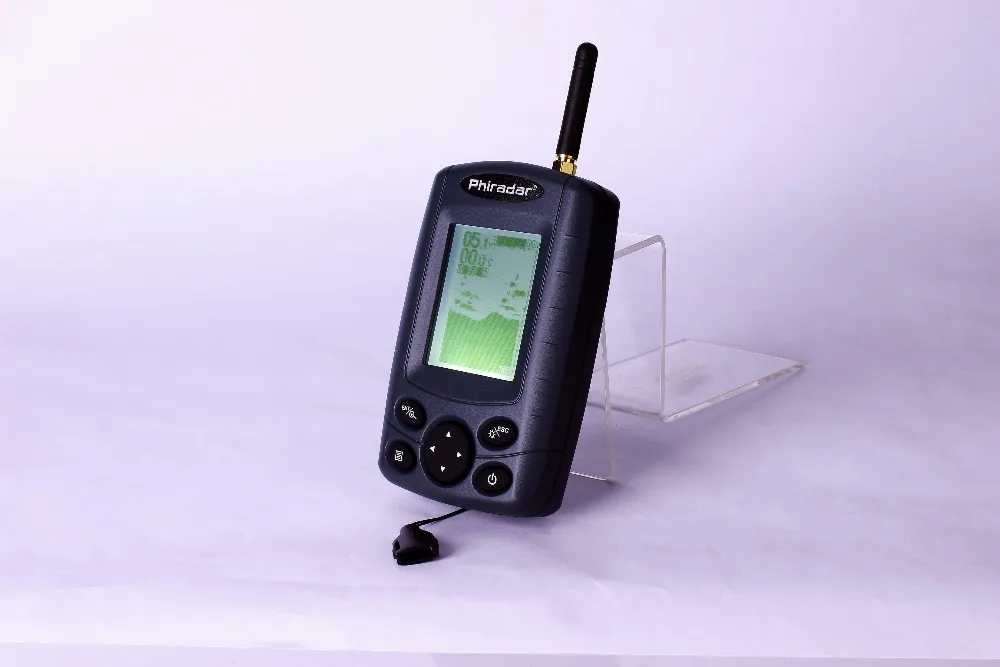

Phiradar fish detector 4 Levels Grayscale wireless fish finder

Display type: 4 levels grayscale V128xH96 with white LED backlight

Depth reading from 2.0 to 120ft (36meters) in 1/10th precision

Bottom contour and water temperature indicator

10-level sensitivity setting and multi levels depth range

Auto zoom bottom tracking and quick manual zoom

"Stop chart" at any time

User selectable feet or meter reading

Big/small fish identification and fish depth indicator

Operational RF frequency: 433/315 MHz, operational range: 200ft (60meters)

125KHz sonar frequency

Customer's language menu

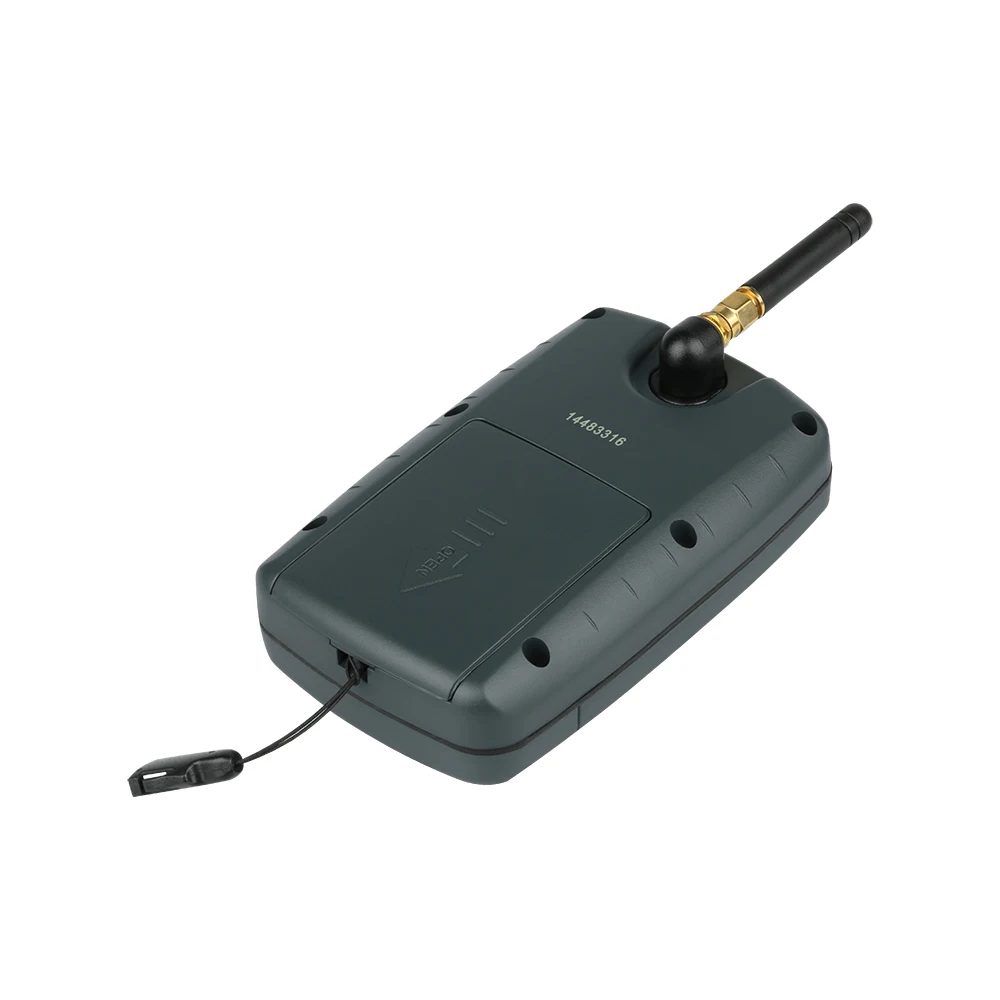

4 "AAA" batteries for main unit operation

Water Switch technology applied: Sensor could shut down when the Sonar Sensor is out of water

Built-in lithium battery for sonar sensor operation, recharge voltage: 5V

Water Activated Smart cast sensor

Product Details

CE certification of FF168W

Product Details

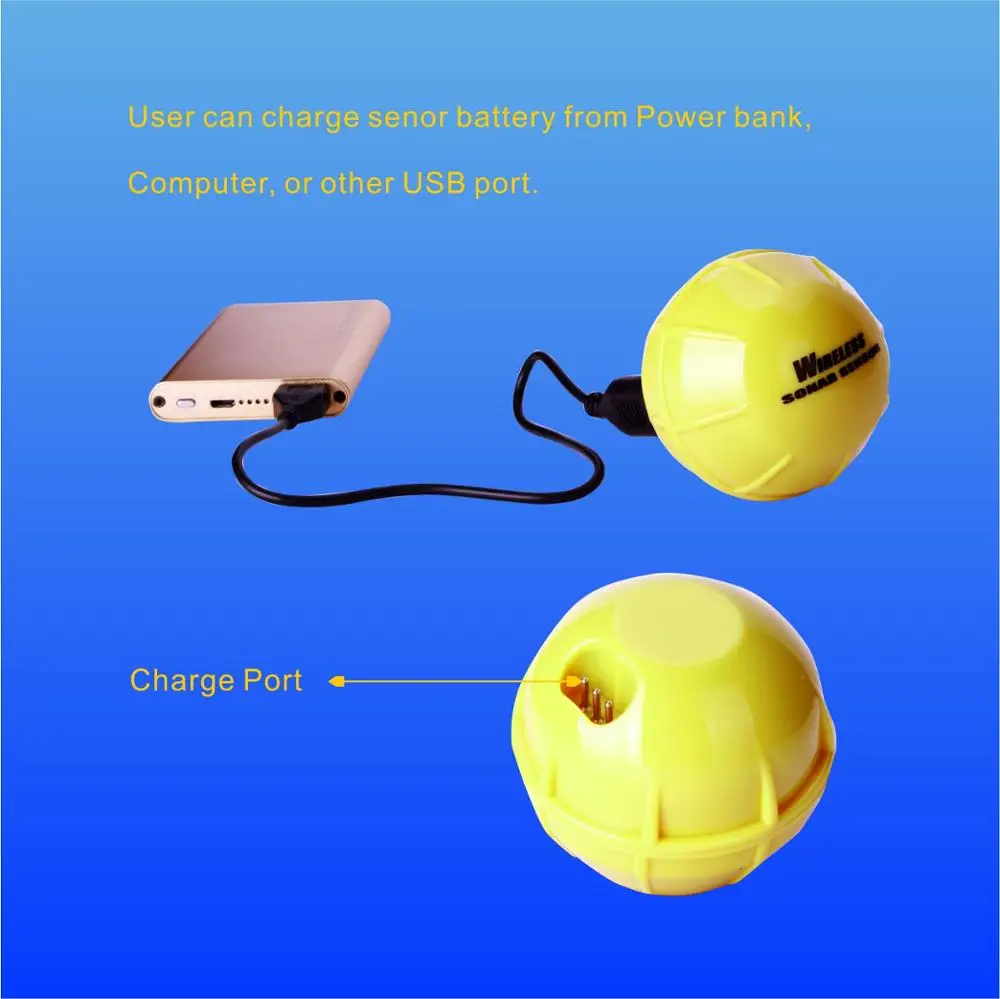

USB Charging system for sonar sensor (Transmitter), 8 hours' working time per charge

Product Details

125KHZ Sonar Frequency, Sonar Detecting Beam Angle: 90 degree

FF168W	FF268W	FF288W	BT100
Depth Range 0.2-120ft	Depth Range 0.2-120ft	Depth Range 0.2-125ft	Depth Range 0.2-125ft
4 Levels Grayscal Display	4 Levels Grayscal Display	512 Colors Display	Phone/ Ipad etc Android/IOS smart Devices
English menu language	English menu language	23 menu languages	23 menu languages

Installation Process

Applications

Certifications

Company Information

FAQ

Q1. Can I have a sample order for Fish Finder?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-5 weeks for order quantity more than

Q3. Do you have any MOQ limit for Fish Finder order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Fish Finder?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on the Fish Finder Product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 1%.
Secondly, during the guarantee period, we will send new products with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
