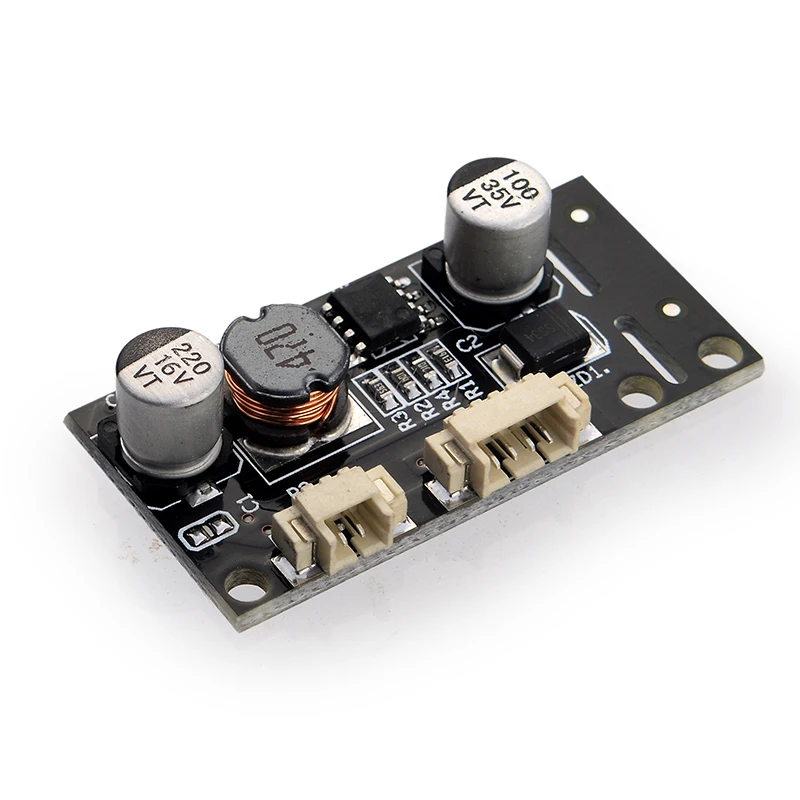

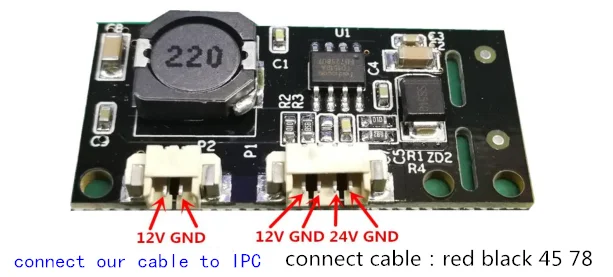

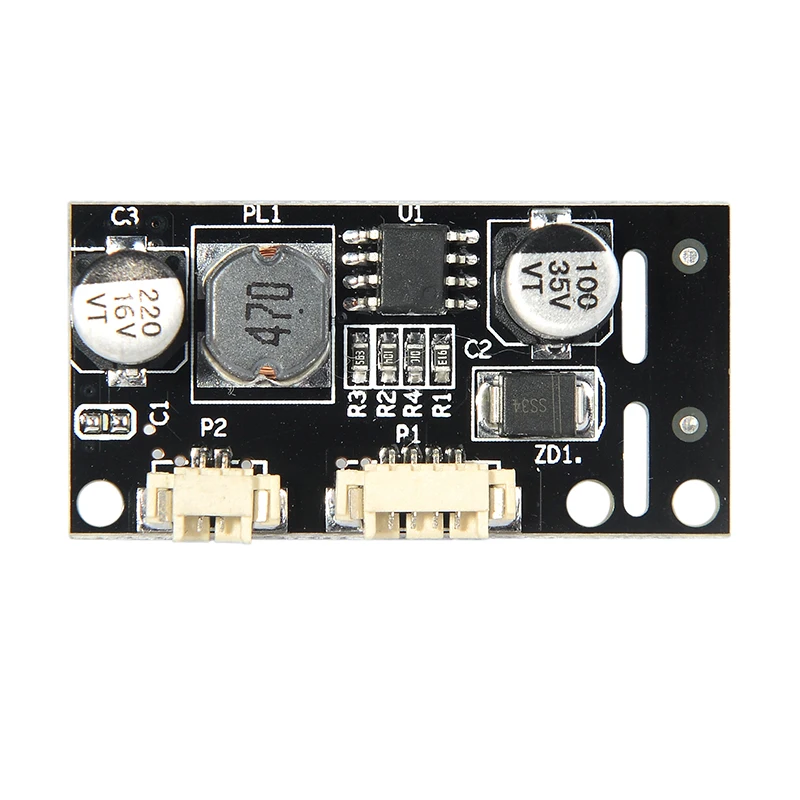

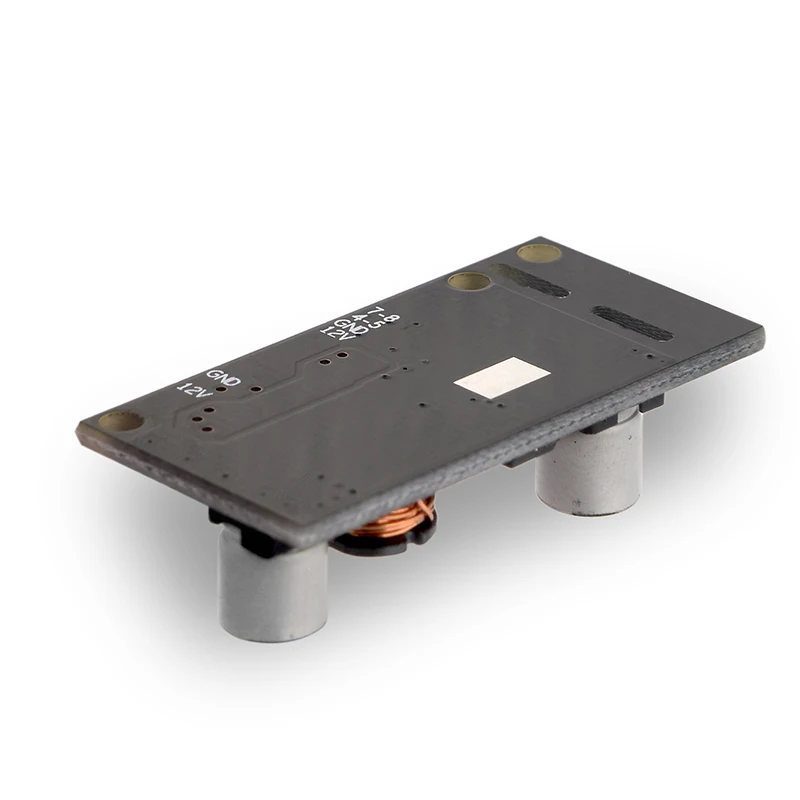

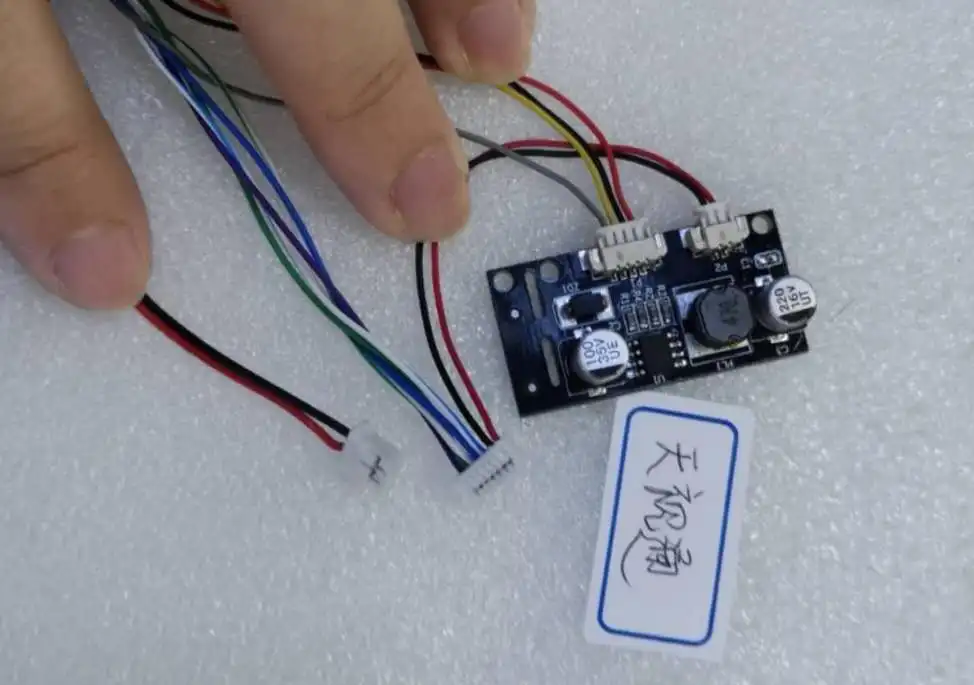

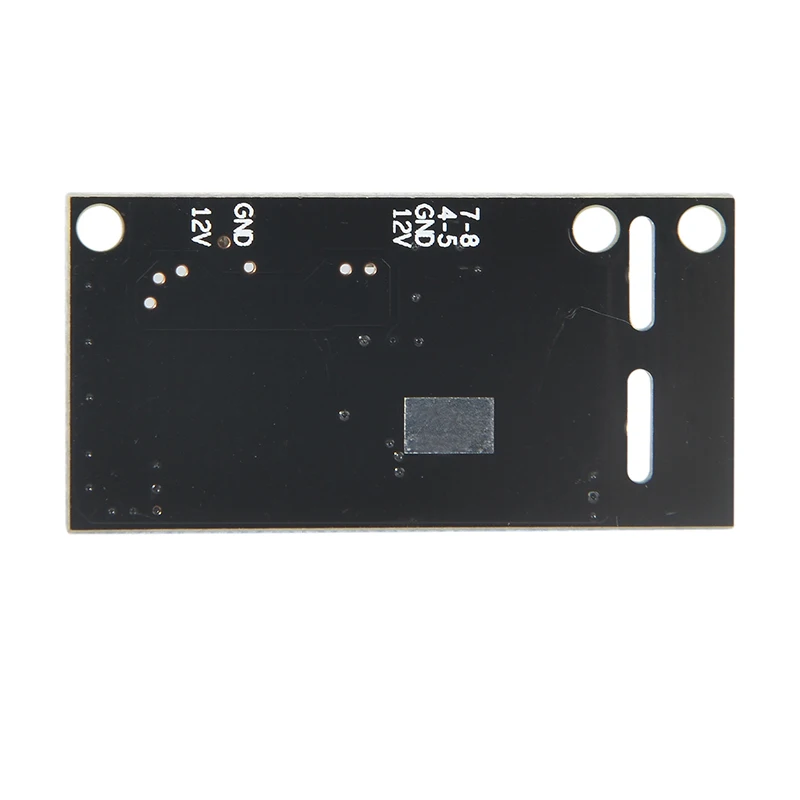

SDAPO PM2401 Пассивный POE 24 В поддерживает только режим B(4578) все IPC могут использовать модуль POE макс. 2 а/24 Вт
- Category: Ethernet Modules & POE >>>
- Supplier: Shenzhen Dapo Communication Co. Ltd.
Share on (60823610829):
Product Overview
Description
Products Description
You are welcome to customize the POE modules of various sizes and appearances and function.The layout is required to receive the initial research and development expenses.After ordering a certain number of modules (usually 5000 pieces), the r&d cost can be deducted.After the sample is qualified, batch production.
1.product features:
1.1 Specification:Short circuit protection
1.2 Security:15-28V input to 12V
1.3 Size :38*19mm
2.Applications:24V POE power supply
3. The main parameters:
1.1 Specification:Short circuit protection
1.2 Security:15-28V input to 12V
1.3 Size :38*19mm
2.Applications:24V POE power supply
3. The main parameters:
No. | Parameter | Symbol | Min | Typical values | Max | Unit |
1 | Input Voltage | Vin | 12 | 24 | 30 | V |
2 | output voltage | +VDC | 11.8 | 12.3 | 12.8 | V |
3 | output Current | PWR | 1 | 2 | A | |
5 | Storage Temperature | Tj | -40 | 25 | 105 | ℃ |
6 | Operating Temperature | Tstg | -20 | 25 | 70 | ℃ |
3.1 is typically 25 ℃, measured under the 24V power supply environment, only for reference design
