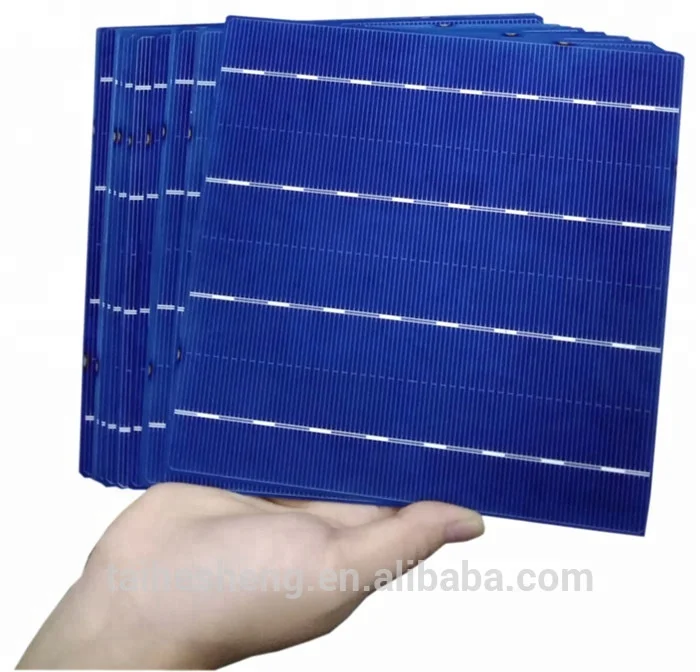

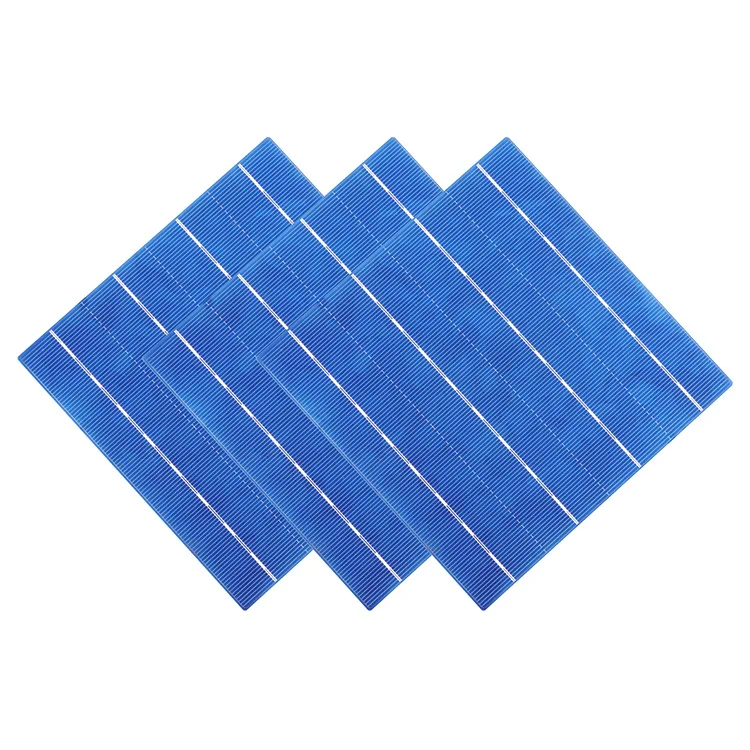

High effciency 4BB 156.75mm polycrysalline solar cell solar panel cheap price
- Category: >>>
- Supplier: Shenzhen Taihesheng New Energry Technology Co. Ltd.
Share on (60823619095):
Product Overview
Description
Product Description
1.High conversion efficiency resulting in superior power output performance.
2.Outstanding power output even in low light or high temperature conditions.
3.Optimized design for ease of soldering and lamination.
4.Long-term stability,reliability and performance.
5.Output power tolerance of +/-3.

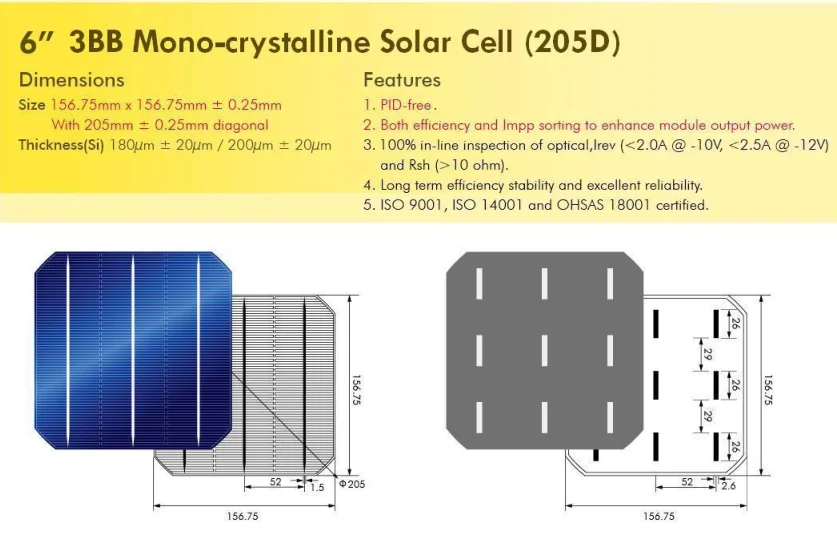

Dimension: 156*156mm±0.5mm
Thickness: wafer(si): 200μm±20μm
Cell: 240μm±40μm

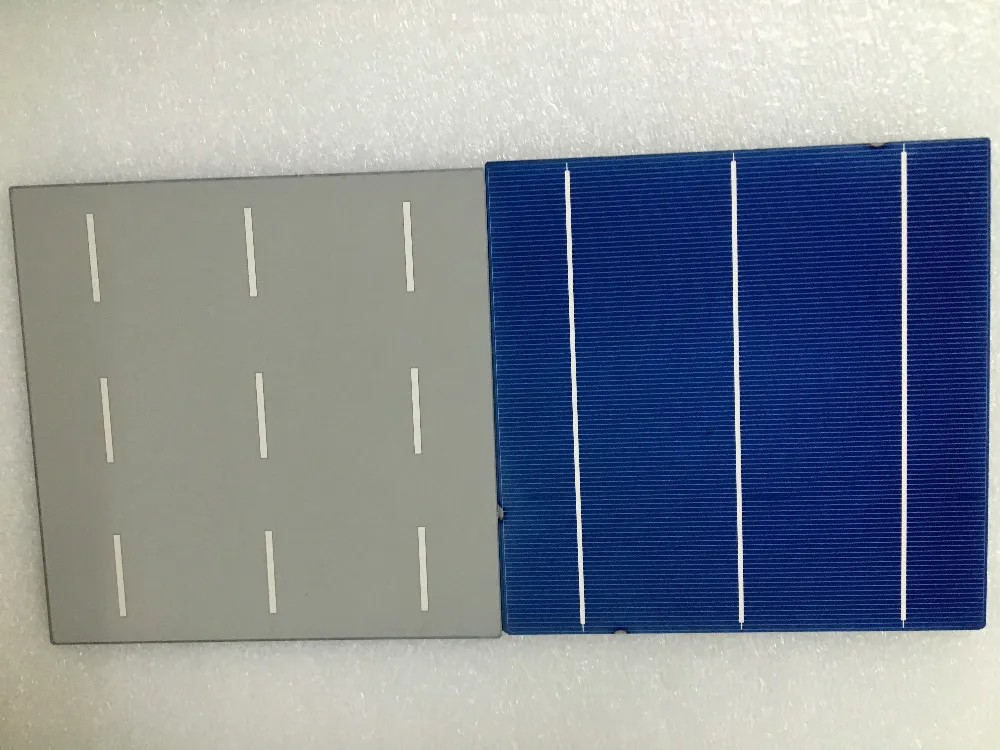

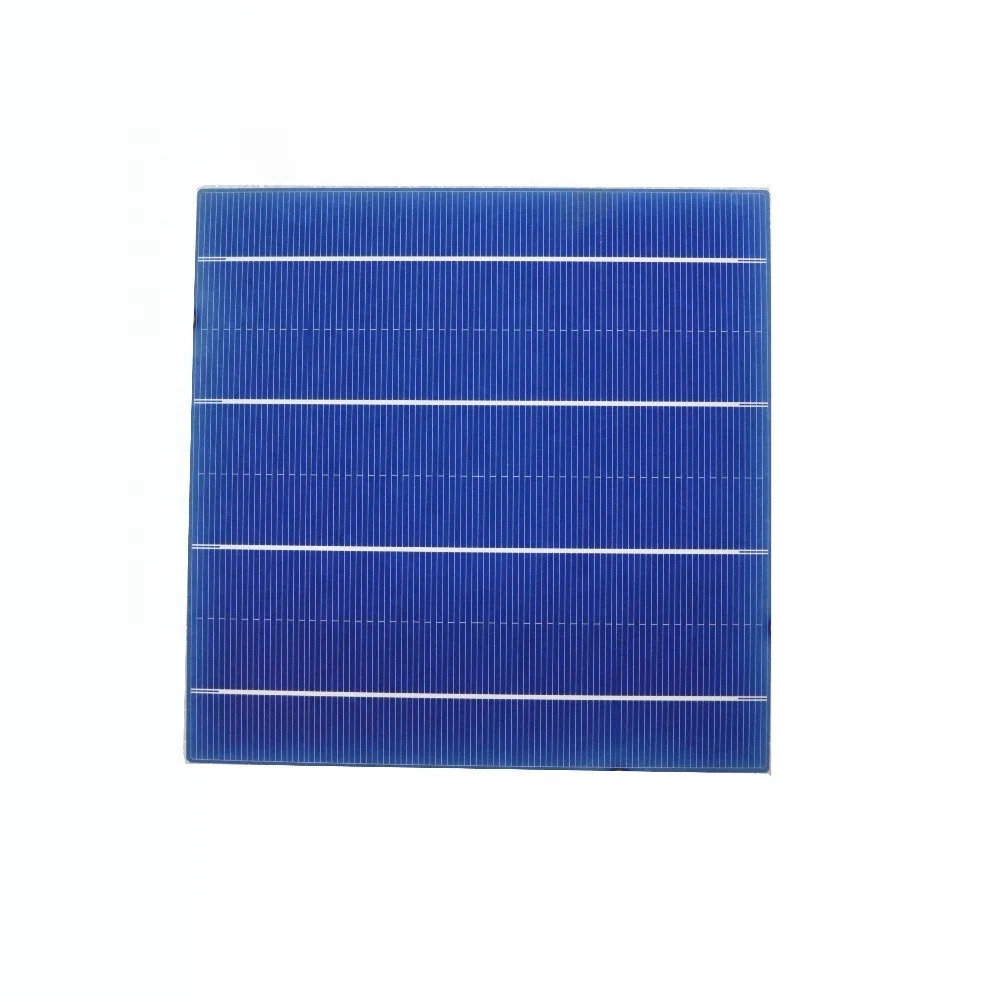

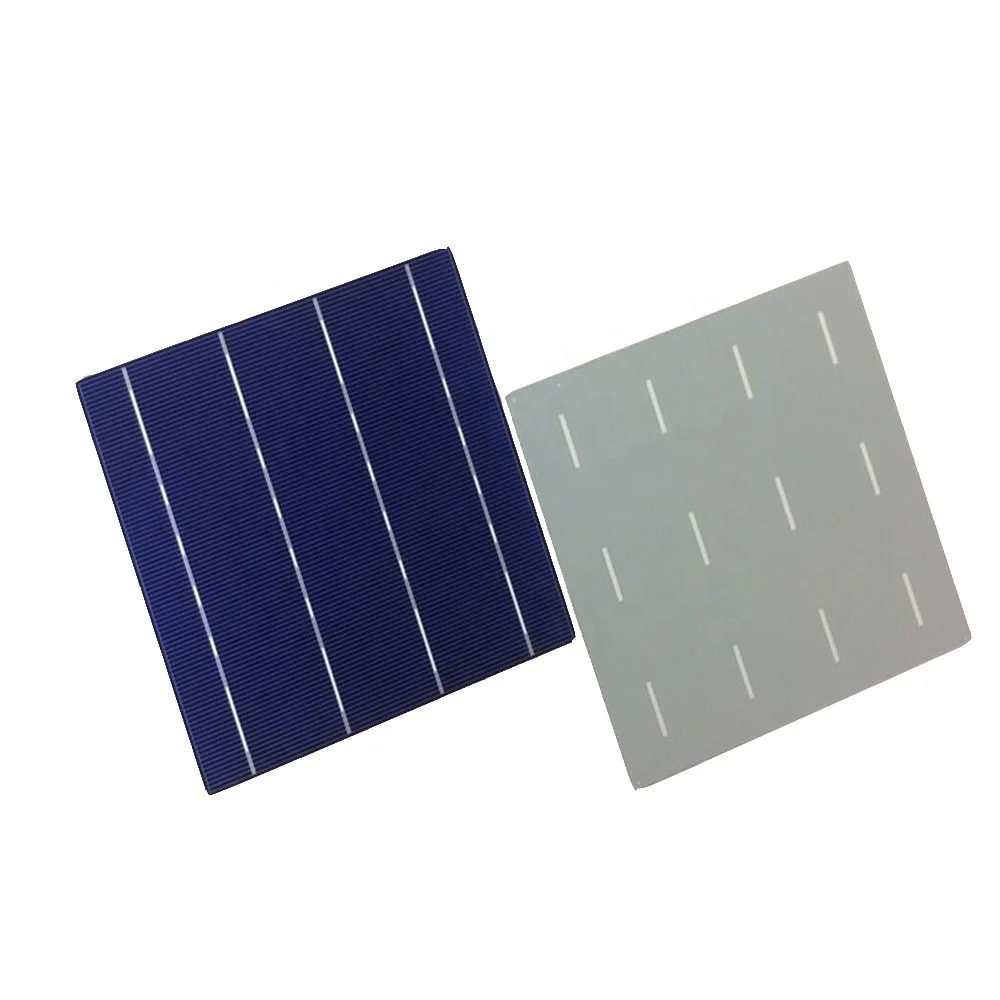

Front: silver bus bars;dark blue/others silicon nitride anti reflection coating

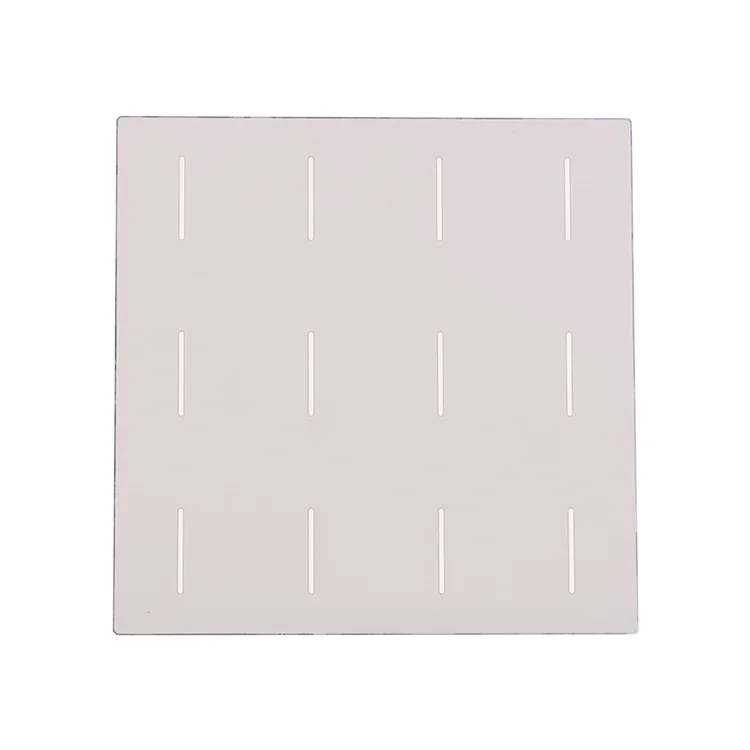

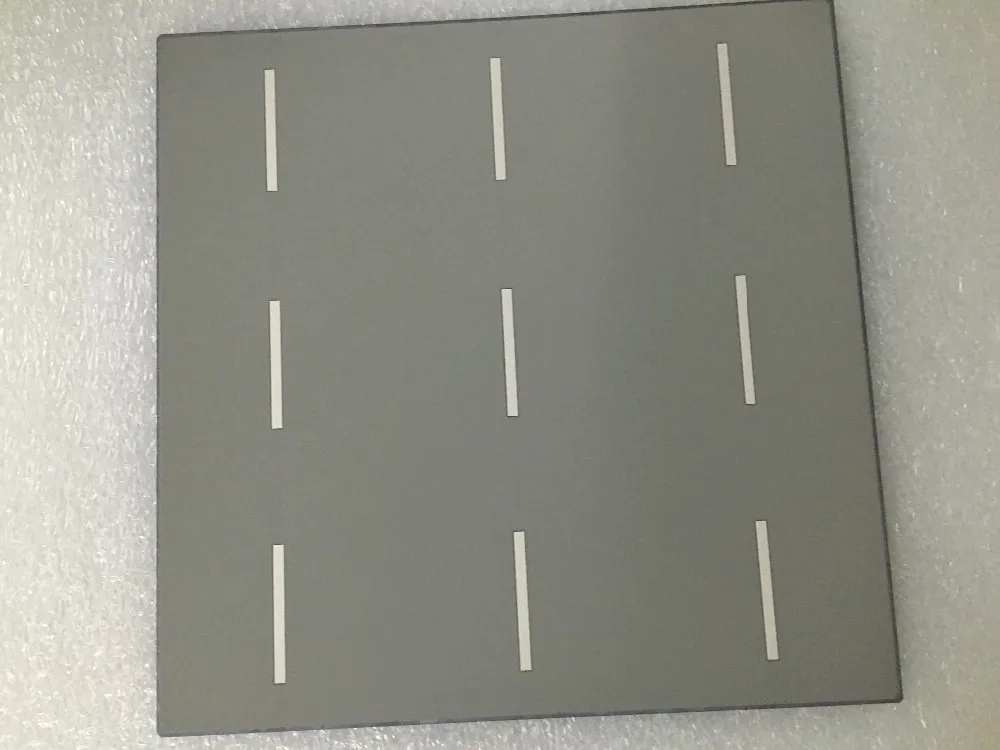

Back: silver/aluminum bus bars;full-surface aluminum BSF
Electrical characteristics
| Efficiency code | Efficiency(%) | Pmax(w) | Impp(A) | Vmpp(V) | Isc(A) | Voc(V) |
| 1980 | 19.8 | 4.81 | 8.78 | 0.547 | 9.25 | 0.643 |
| 1970 | 19.7 | 4.78 | 8.76 | 0.546 | 9.24 | 0.643 |
| 1960 | 19.6 | 4.76 | 8.74 | 0.545 | 9.23 | 0.642 |
| 1950 | 19.5 | 4.74 | 8.72 | 0.544 | 9.22 | 0.642 |
| 1940 | 19.4 | 4.71 | 8.7 | 0.543 | 9.21 | 0.641 |
| 1930 | 19.3 | 4.69 | 8.68 | 0.541 | 9.19 | 0.640 |
| 1920 | 19.2 | 4.66 | 8.66 | 0.540 | 9.18 | 0.639 |
| 1910 | 19.1 | 4.64 | 8.65 | 0.538 | 9.17 | 0.639 |
| 1900 | 19.0 | 4.61 | 8.64 | 0.536 | 9.16 | 0.638 |
| 1890 | 18.9 | 4.59 | 8.63 | 0.534 | 9.15 | 0.637 |
| 1880 | 18.8 | 4.57 | 8.61 | 0.531 | 9.14 | 0.637 |
Data under standard testing conditions(STC):1000W/ sq meter, AM1.5, 25℃
Average accuracy of all tested is 1.0% rel.

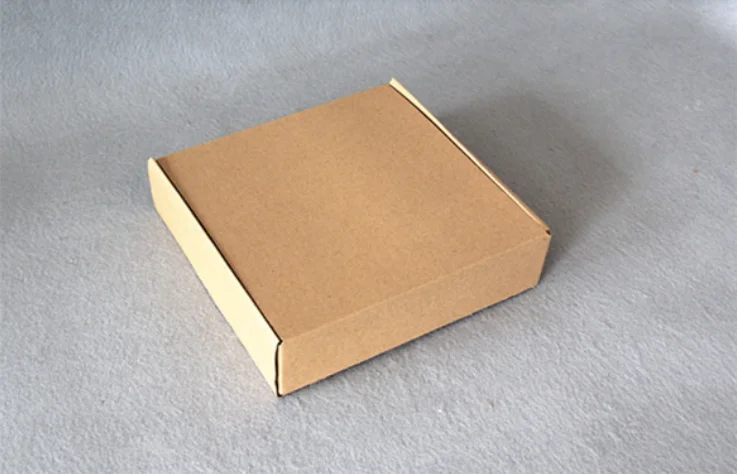

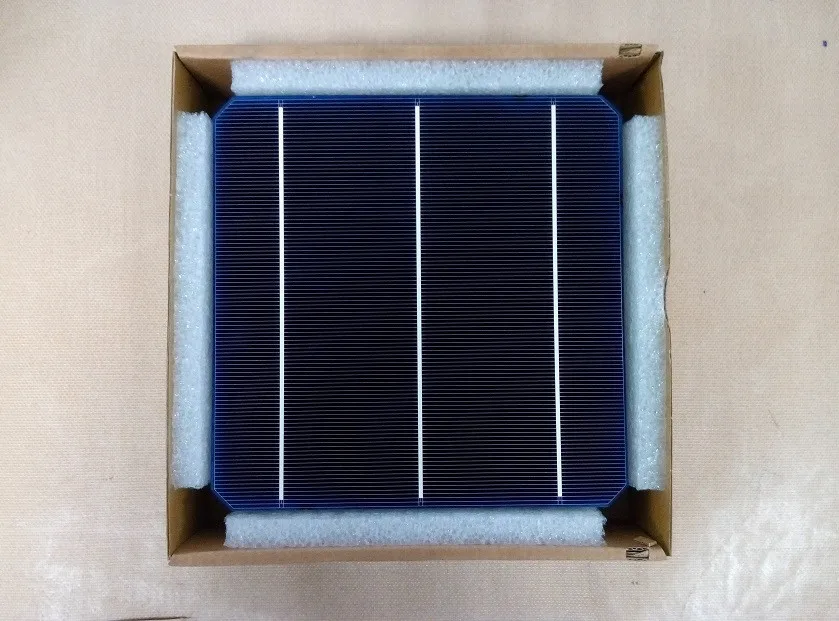

Packaging & Shipping
100 pcs in one box, 12 boxes in one carton.
Our Services
Quick Response
Any time and anywhere, reply clients' email and solve all problems happen in the work at the first time.
Remove clients doubts and offer the best solution at the first time.
Give our clients the lastest news of the photovoltaic, update the newest stock informtion.
Production and Quality Control
Precision cell efficiency sorting procedures
Stringent criteria for color uniformity and appearance
Reverse current and shunt resistance screening
ISO9001,ISO14001 and OHSAS 18001,TUV Certificated
Fastest and cost-optimal Delivery
We always giving our clients the most economical and fastest deliery method.
No matter the Air transportation / Ocean shipping / Internation express, our professional logistic team will ensure cargo transportation Safe and High efficiency
Payment Terms
T/T, L/C are the payment methods we accept at present.
Shipping
Material in stock can be produced (procedure 5-20days) right away after pre-payment
confirmation. COSCO Mearsk MSCship to worldwide for safe shipping, don't worry about
package damage or loss. It takes about 15-40 days to worldwide, Please note us your
contact details include your phone number for easy contacting from shipping company
officer.Feedback
1. Customer satisfaction is completely guaranteed. If for any reason you are unsatisfied
with your order, please contact us first before you leave the feedback.
2. We will do our best to take care of you and if you have any questions please do not
hesitate and feel free to contact us at any time.
company information
THS is an international PV supplier manufacturer in China from 2004.we has the Modern Management Method and a professional and efficient team, and all workers pass the skills access before work.we use the newest technology and equipment, 90% of the production facilities are imported from Germany, Italy and US.All products are approved by ISO9001/14001, TUV, UL, CE& CSA. We has powerful Research Ability, 15~20 new kinds of products are launched each year. We has annual 200MW solar panel and solar cell production capacity.80% of our products are export to more than 60 countries in the world. Successful projects were installed in more than 60 countries in
the world.
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhen China.You are warmly welcomed to visit us!
3. Q: How can I get some samples?
A: Please connect me for samples, and my phone number: +86 13530919252.
4. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount.
