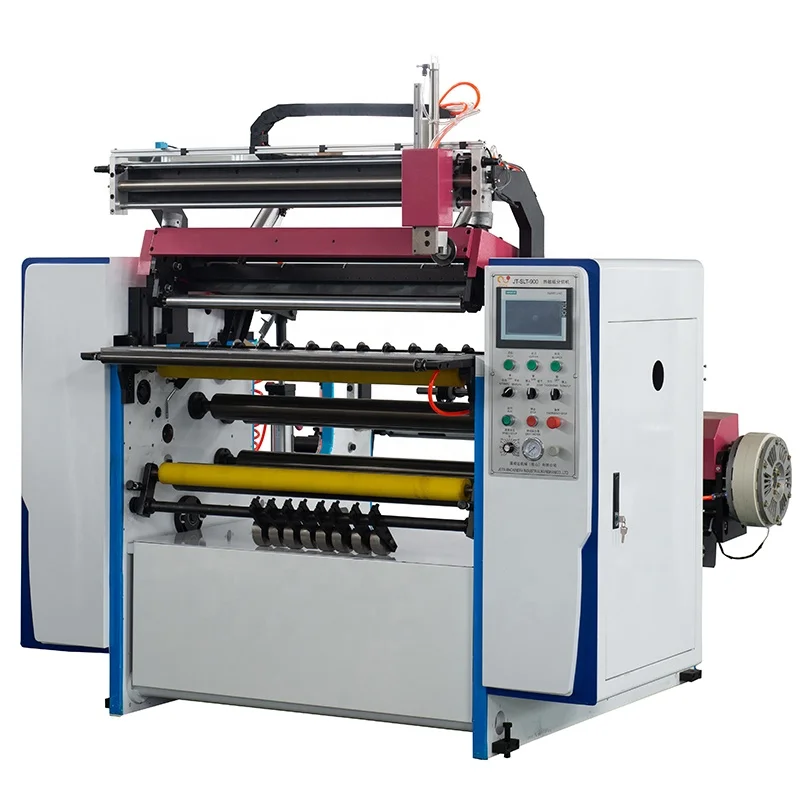

The Hot Cash Register and Thermal Paper Slitter Machine
Machine Feature:
| Components | |
| Unwinding section | -Chain link automatic lift-up loading system |
-3’’(76mm)air expanding shaft | |
| -Floating roller constant tension | |
| -Two set Sensor | |
| -Self expandable chuck | |
| -Guide & Slide AMT from Taiwan | |
| Slitting Section | -Choices of Razor cutter or Disc cutter |
| -Disc Cutter Assembly adopt the cam self-locking | |
| -Cutter with adjustable and moveable blade base | |
| -Meter counter | |
| Rewinding Section | -0.5”,1”,1.5” or as your request |
| -Center Rewinding technology | |
| -Pressure roller | |
| -Electromagnetic Clutch from Taiwan | |
| Controlling Section | -Siemens PLC & HMI from Germany |
| -All the parameters are displayed on the monitor | |
| -Low voltage electrical appliances all from Schneider | |
| Trimmed Waste Edge | - Edge Waste Blower with Expulsion Tube |
| Optional | -Friction Differential Shaft for rewinding |
| -Safety guard for the slitting device | |
| -Emergency Switches on the 4 corner of machine | |
Maachine Parameters:
| Max. Unwinding Width | 900mm |
| Max. Unwinding Dia | 1000mm |
| Max. Rewinding Dia | 160mm |
| Min Slitting Width | 25mm |
| Machine Max. Speed | 110m/min |
| Main Power | 2.95Kw |
| Unwinding Shaft | 3’’ (76mm) air eapanding shaft |
| Rewinding Shaft | 0.5’’, 1’’ or as your request |
| Weigth | 1500Kg |
| Demension | 2000*1700*1500mm |
Configuration:
| Name | Model | Pieces | Remark |
| Computer System | PLC(Siemens) | 1 Set | Siemens+ Weinview |
| Motor | 1 Set | Siemens from Germany | |
| Frequency Inverter | 1 Set | YASKAWA From Japan | |
| Unwinding Shaft | 3’’(76mm)air expanding shaft | ||
| Rewinding Shaft | 0.5’’ 1’’ or as your request | ||
| Upper/Lower Round Knife | 15 Set | ||
| Magnetic Brake | 1 Set | From Taiwan | |
| Sensor | 2 Sets | ||
| Tension control | 1 Set | ||
| Chuck | Self expandable chuck | 1 Set | From Taiwan |
| Magnetic Clutch | 1 Set | From Taiwan | |
| Low Voltage Electrical Switch | SCHNEIDER | ||
| Blower | 1 Set | China | |
| Cylinder | Airtac from Taiwan | ||
| Air Pressure Valve | SMC from Japan | ||
| Relay | CHNT | ||
| Spacer | As your request | As your request | China |
Packaging & Shipping

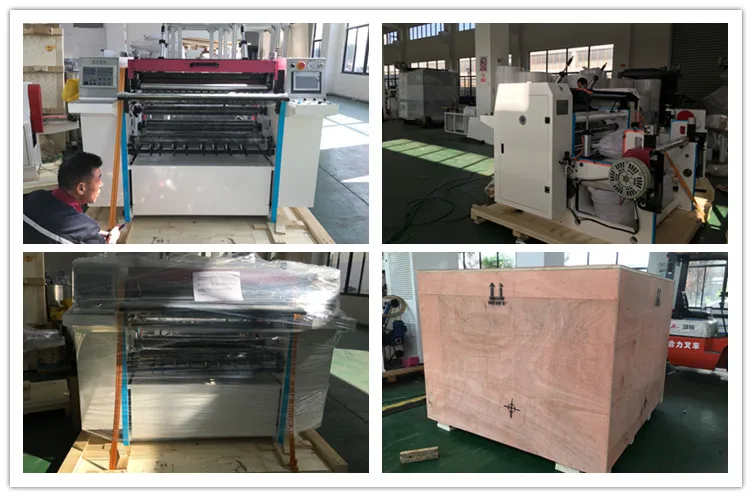

Packing Details: The Hot Cash Register and Thermal Paper Slitter Machine is with flexible wrapping and wooden case.With the machine, we will supply one year guarantee, whole life technical support, a set of tools, a box of vulnerable parts, English Manu, Inverter Manu and Electrical Schematic Diagram.
Delivery time : Within 15 days after received 30% deposit receipt by T/T.The Hot Cash Register and Thermal Paper Slitter Machine .

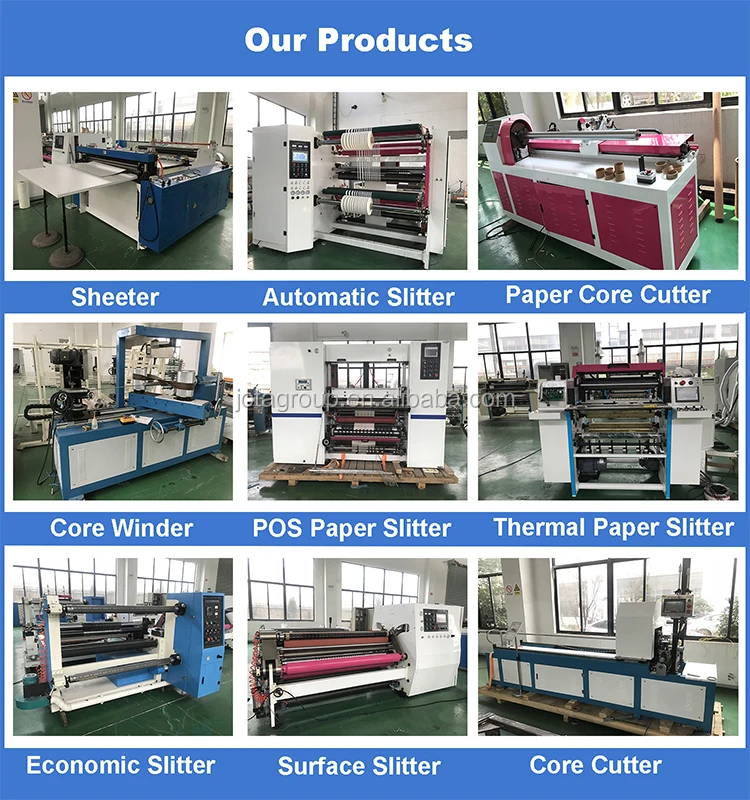

Recommended Products

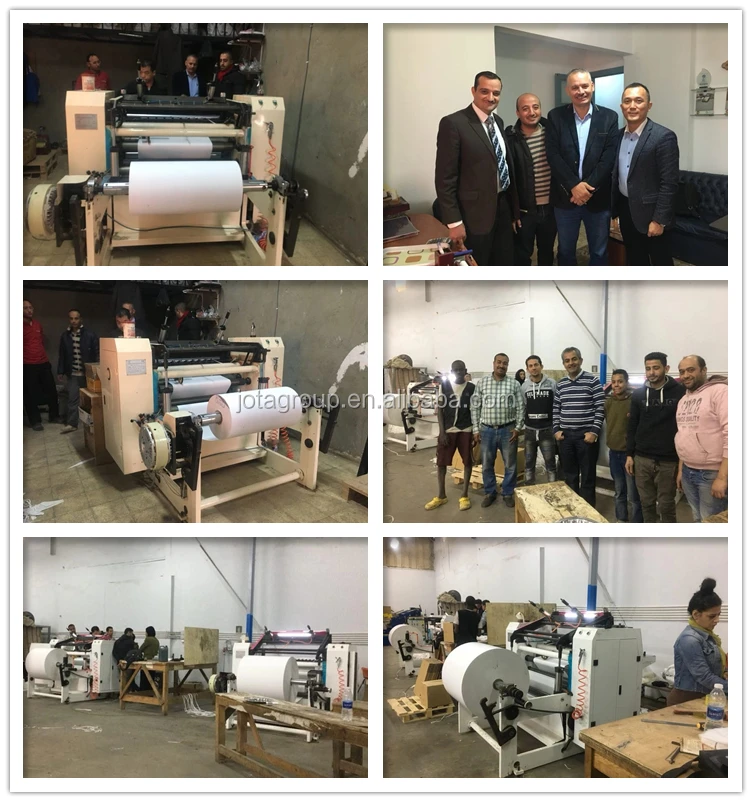

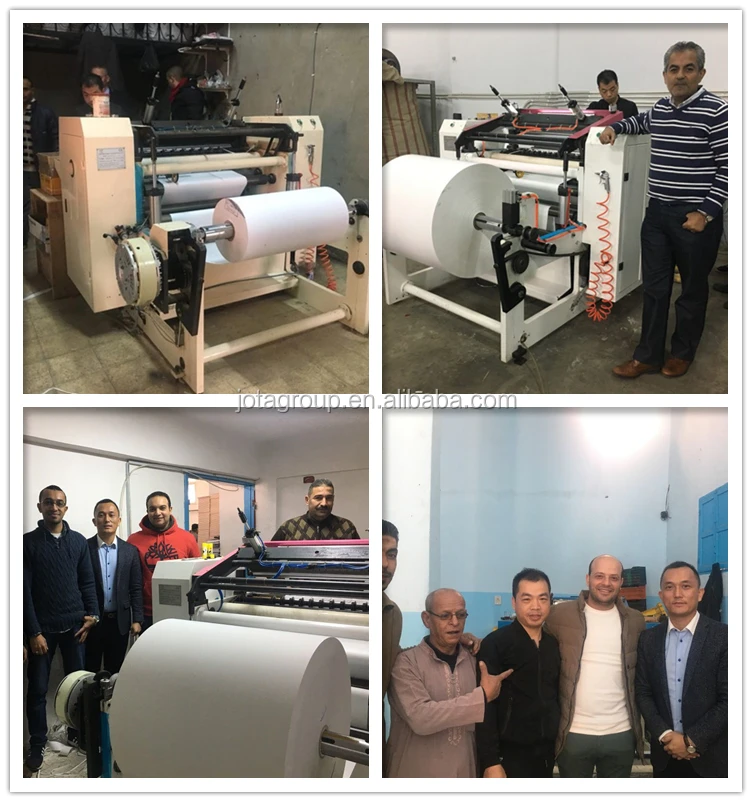

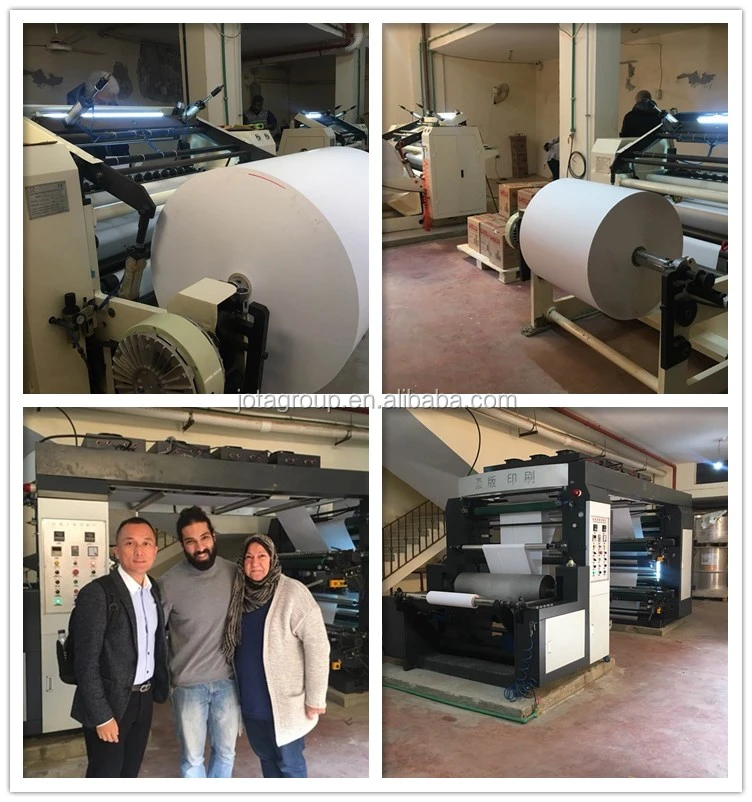

Our Customer
Exhibition
Company Information
Jota Machinery Industrial Co.,Ltd is a long established engineering company combined with science,research, development, production and management, It is specializing in plastic & paper packing machinery with more than 30 years experiences in China.
We supply all kinds of packaging machines tp satisfy the stringent requirements for Health and Safety, and meet the latest European CE standards. We provide customers with professional pre and after sales services, and to guarantee complete satisfaction of the equipments installed all over the world.
Our Services
Q1:what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also accept other way like L/C , wetern union ,and do CFR&CIF etc.
Q2.Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,start the machine and cutting the paper.And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required.
Q4. If the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year ,we will sent you for free
FAQ
1, Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2, Do you have quality certificate?
Yes we have CE, SGS etc.
3,What's the delivery time?
Around 20~30days, however, based on order.
4, Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality
