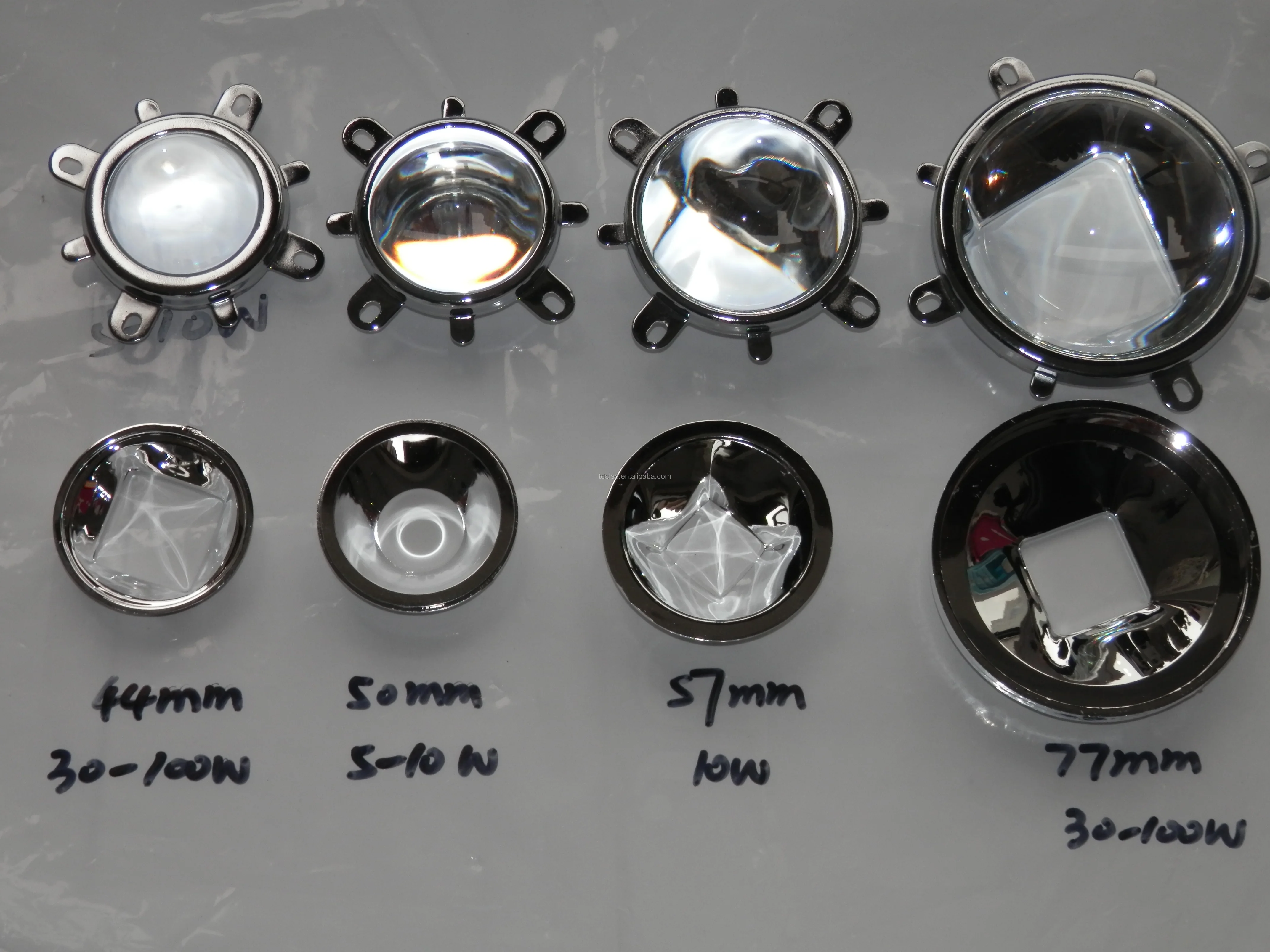

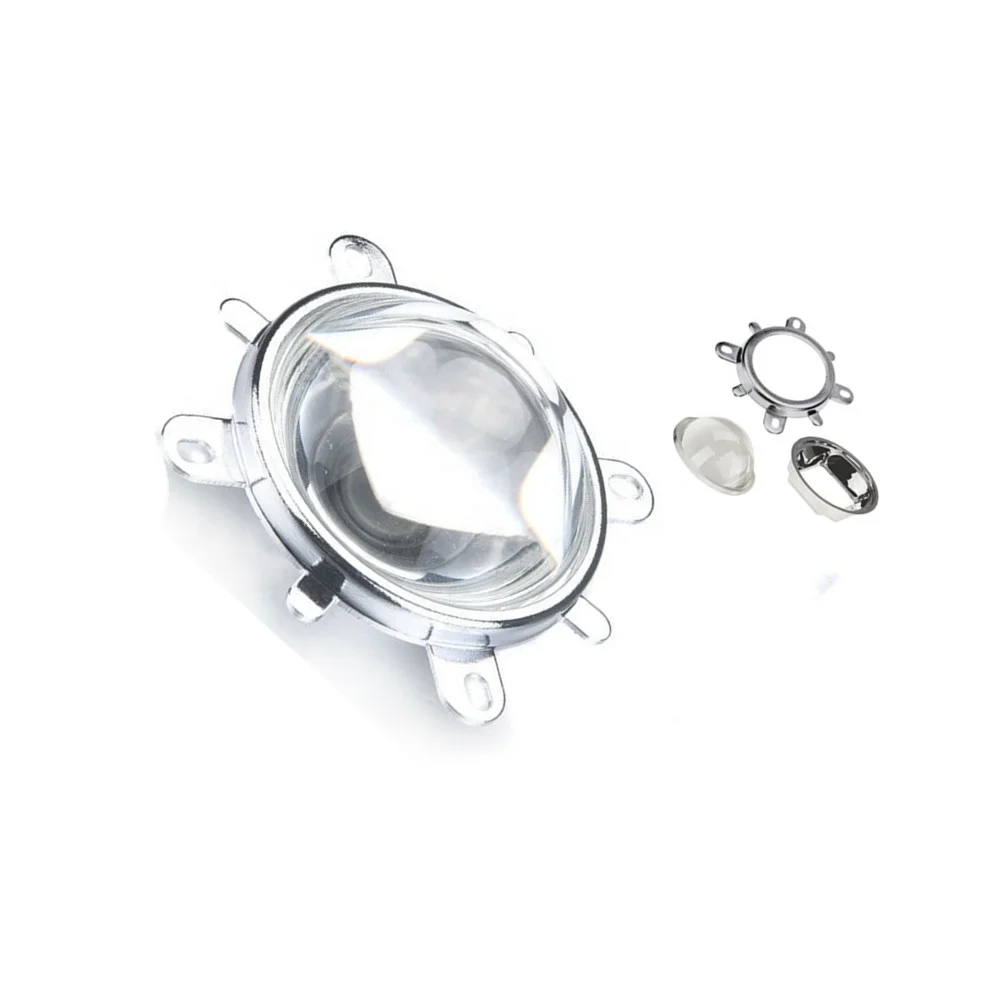

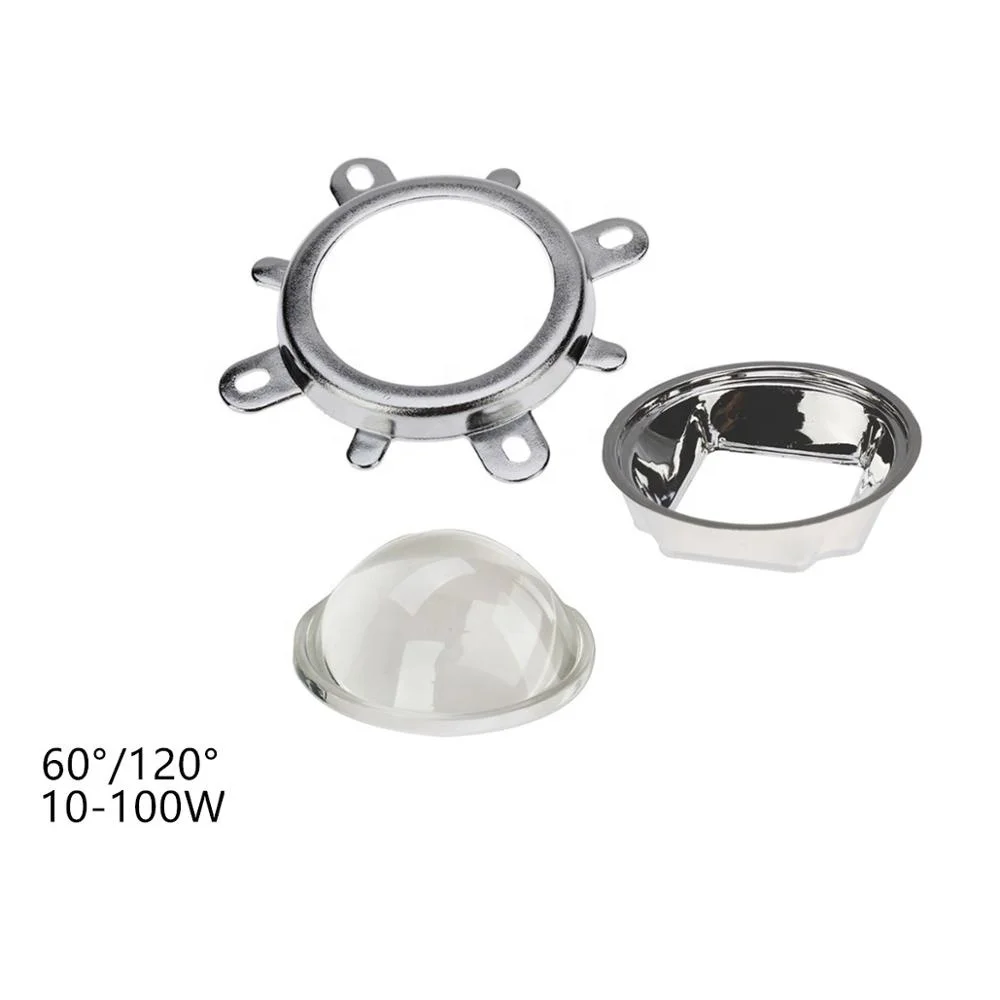

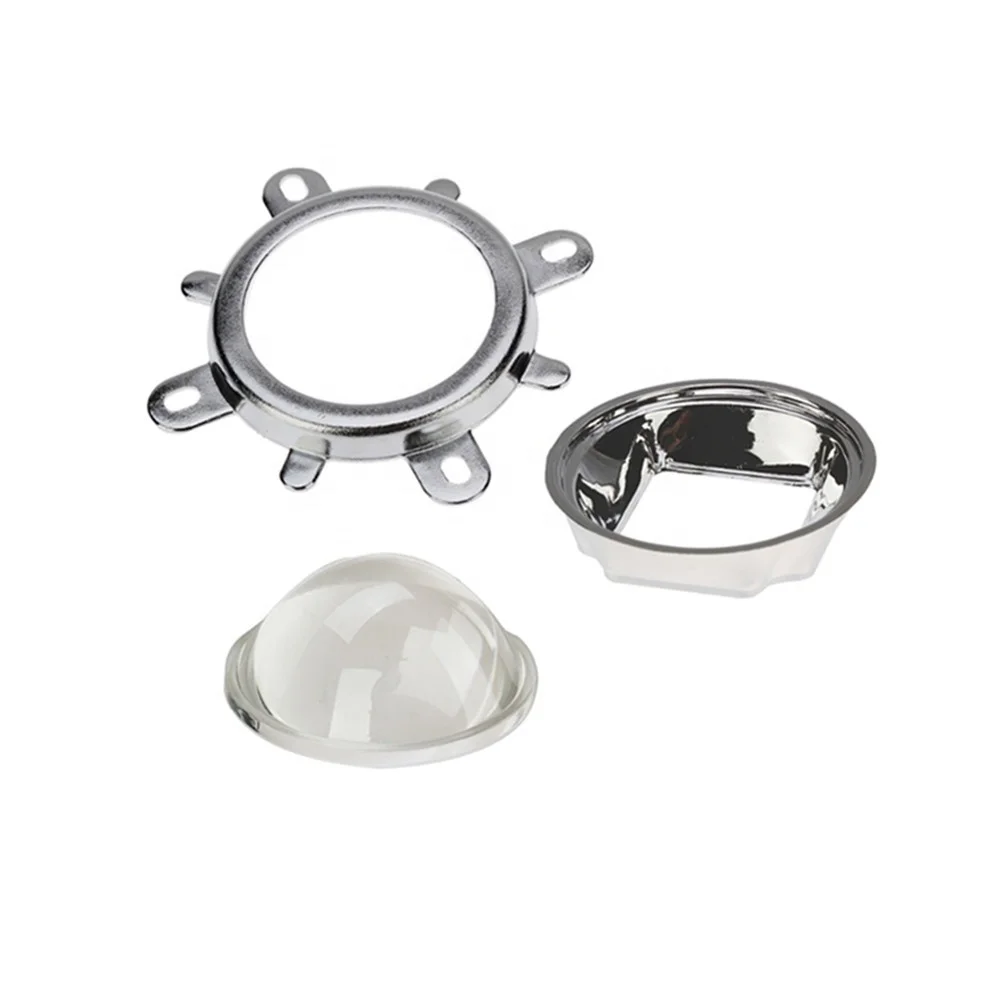

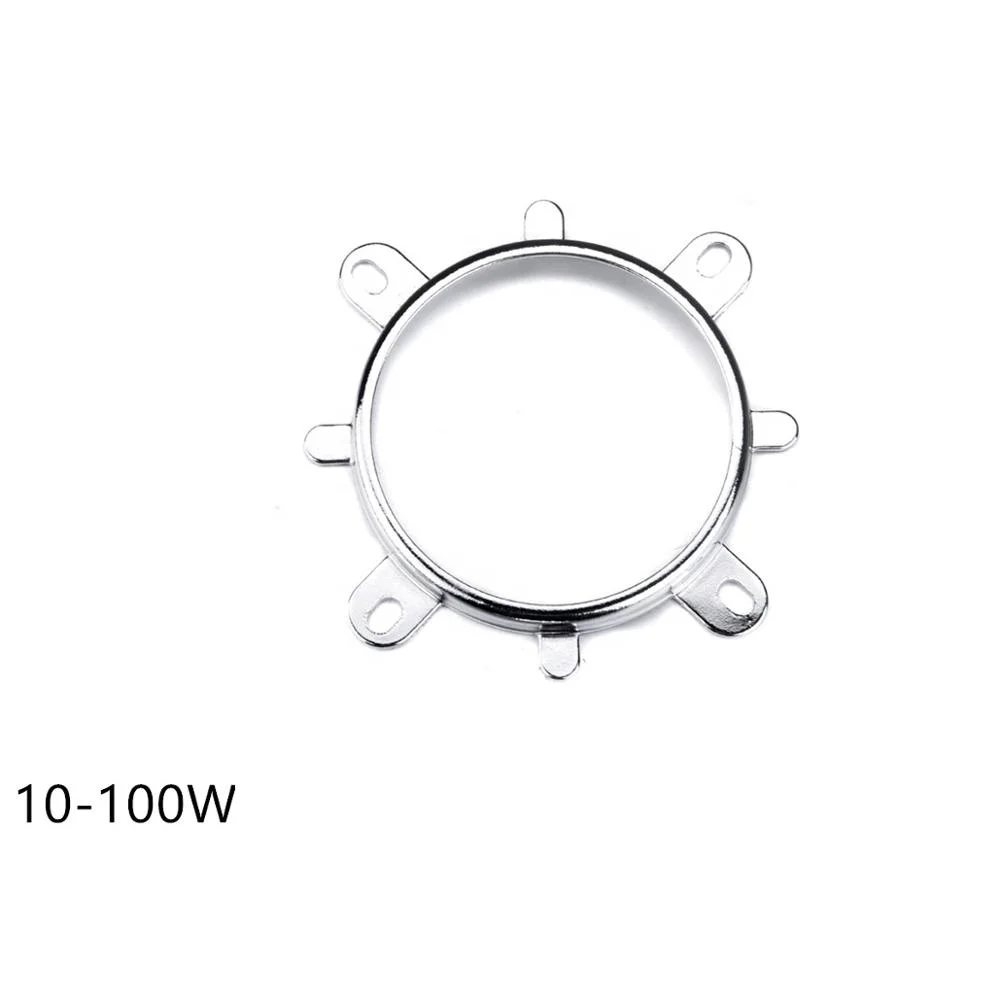

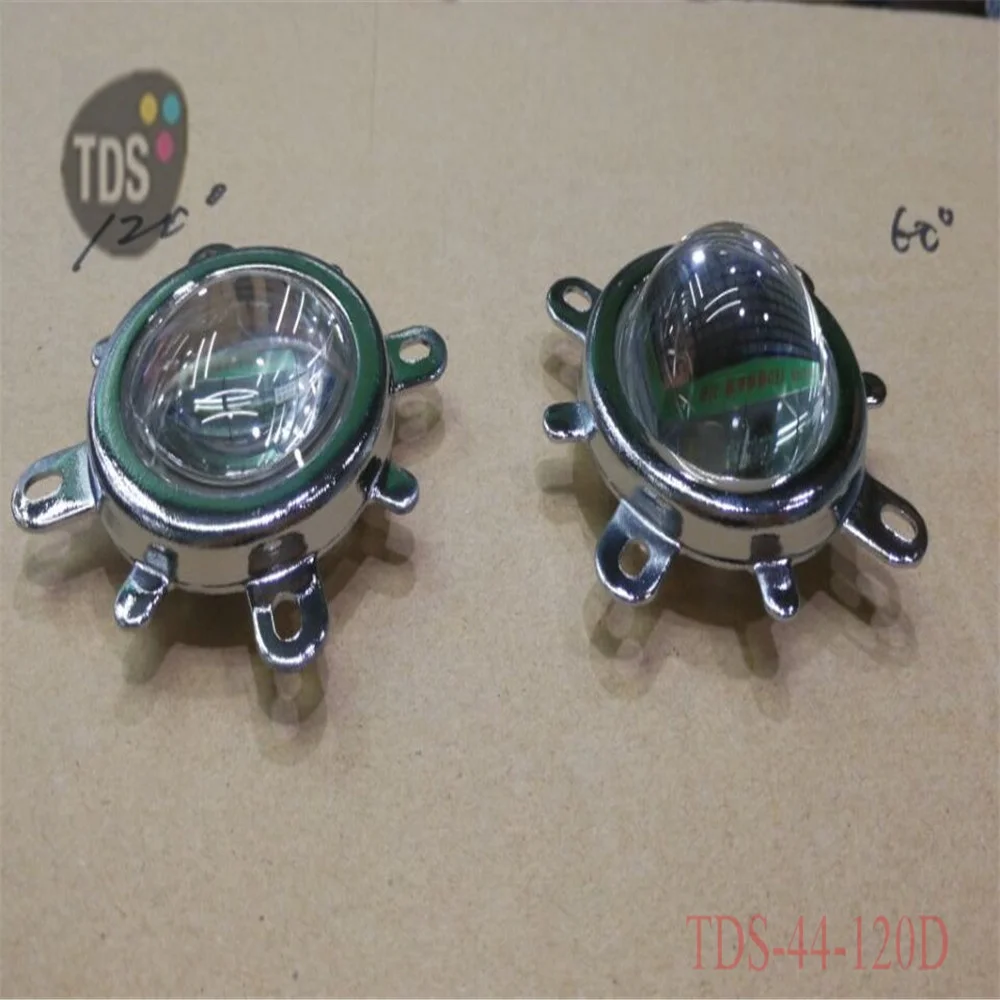

60 degree / 90 / 120 degree 44mm 57mm 77mm cob lens with reflector for 5W 10W 30W 50W 100W LED
- Category: Lenses >>>
- Supplier: Wuxi TDS Lighting Co. Ltd.
Share on (60823639036):
Product Overview
Description
Product Description
- TDS Has the Lens from 1W to 300W Lens which is mainly for our LED.
- we have 13mm - 22mm - 23mm PMMA lens for 1-5W LED in round / peanut / reflector / holder
- We also have 10mm to 110mm Glass lens for 1W - 200W High Power LED
- We can design / OEM the lens you need with drawing.
LENS FOR STREET LIGHTING 10-20W 30Watt~100 Watt LED
- Material :BK7 / K9 / Borosilicate glass
- Product name: Led lens for 5-100W with reflector
- Quality : clear and transparent , no bubble and impurity inside.
- Light transmittance : 93~94%
- Working temperature : -50~550 ℃
- Focus length: 30
- Application: 20W 30W 50W 60W 80W 100W high power LED
- Beam angle: 60° 90°degree
- GW:39g/PCS
- Specifications:
- Assembled size:
- Diameter:53mm Height:33mm
- Viewing angle: 60-90 degree
- Application: 20W 30W 50W 60W 80W 100W High power LED
Material Show
Application
This item is mainly used for street lighting, can get a batwing type lighting pattern. And offer uniform
lighting on the ground, which is very important for traffic.
We have applied this lens for many important road lighting projects
Lens Drawing
