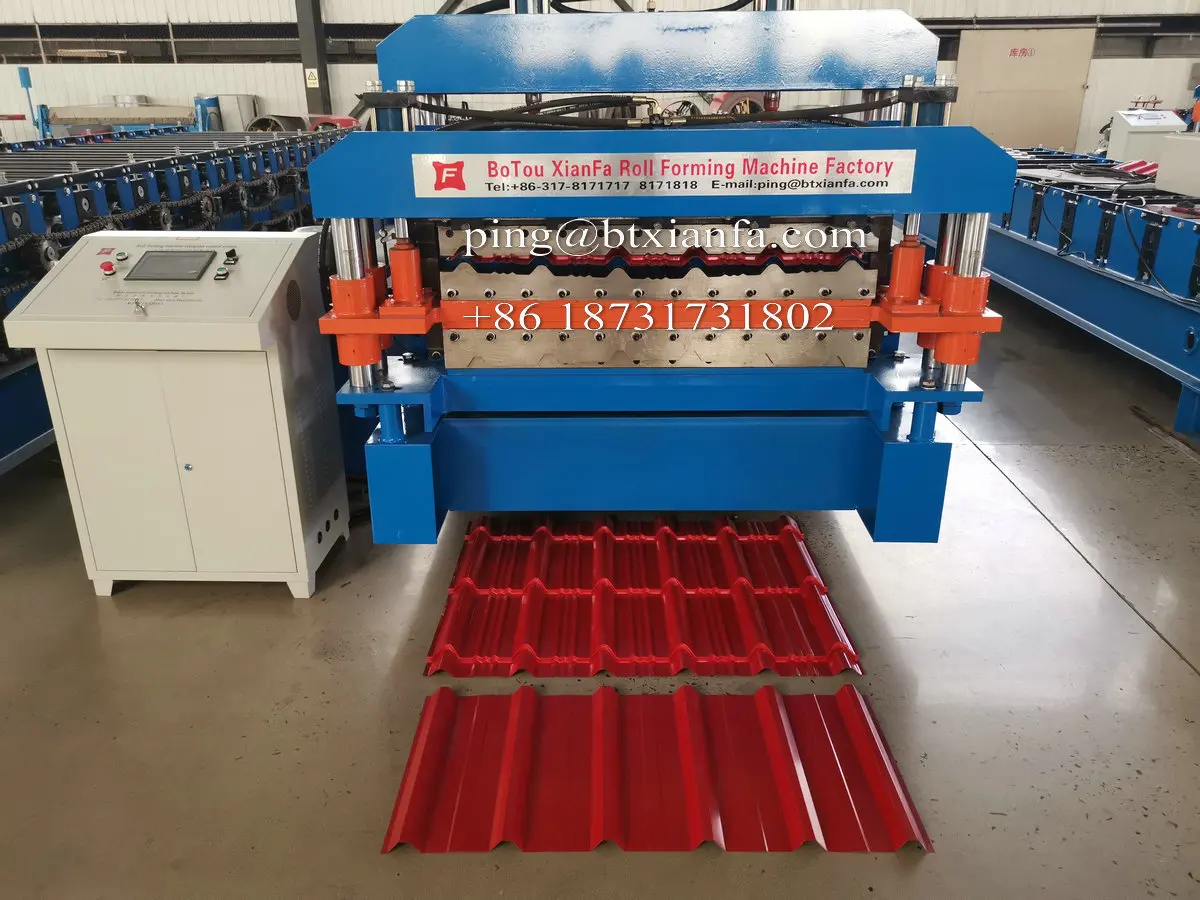

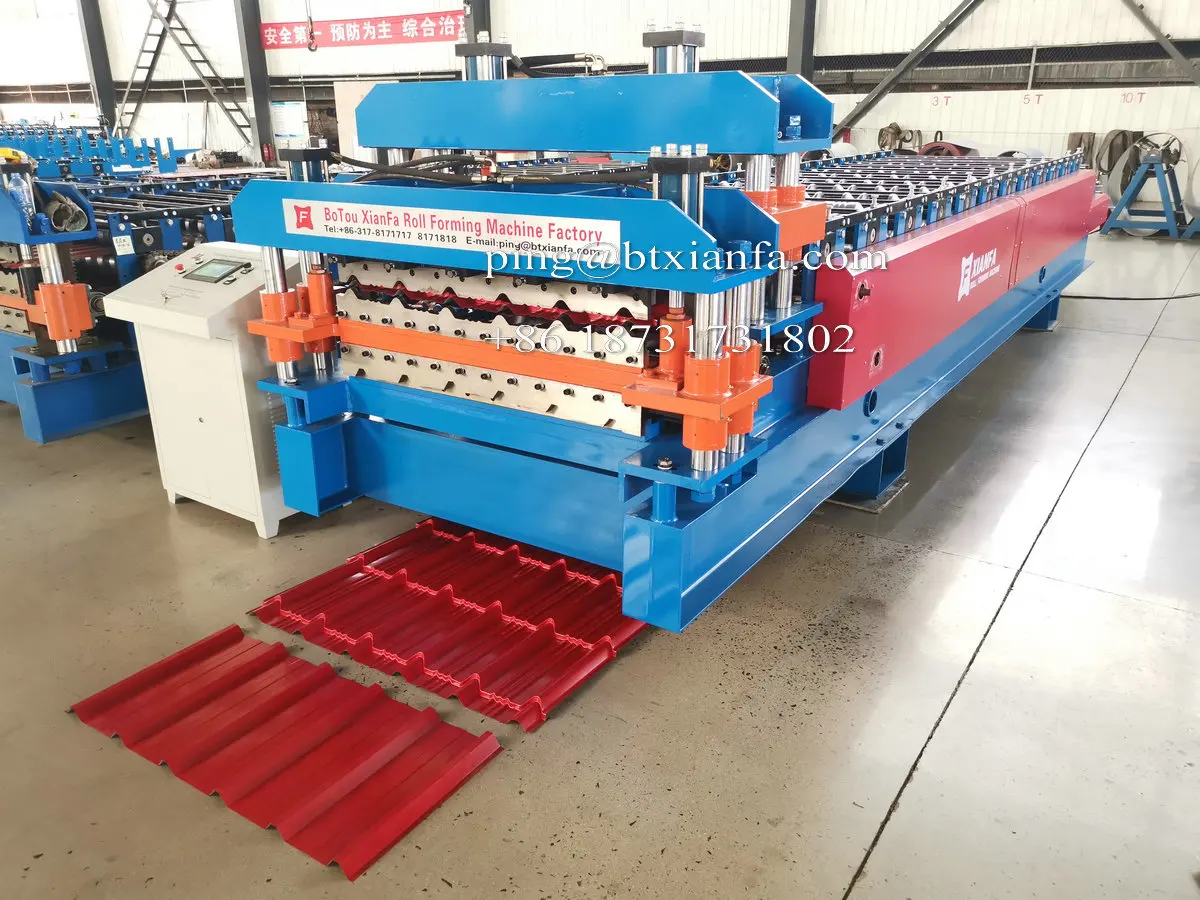

Double Deck Roll Forming Machine

No

Technical Specification

1

Manual Decoiler

Manual Decoiler

Loading capacity:5T

Inner diameter: 480-520mm

2

Manual Pre Cut AND  Feeding Platform

Manual precut steel plate, smooth surface without burr

Feeding Platform,Ensure smooth& precise

material feed.steel plate platform, two

pitching rollers, position stopping block.

The coil is guided in the correct position and

passed to the roll forming

3

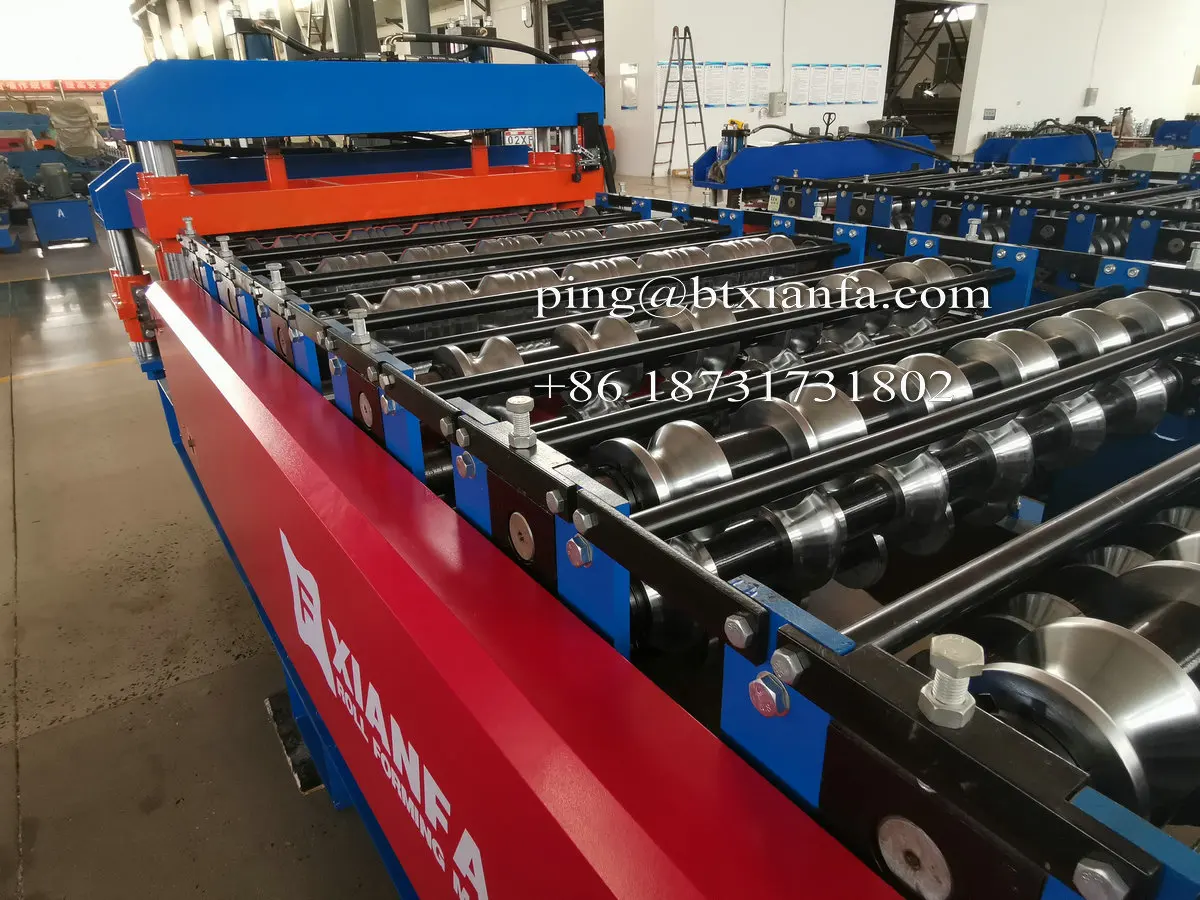

Main Roll Forming Machine

Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

4

Hydraulic System

Adopted top brand hydraulic

system components to

ensure the stability and

lifetime, avoid leakage.Supplies the initial power to

the cuter through a closed oil

tank. It is off without cutting,

which can save the power

5

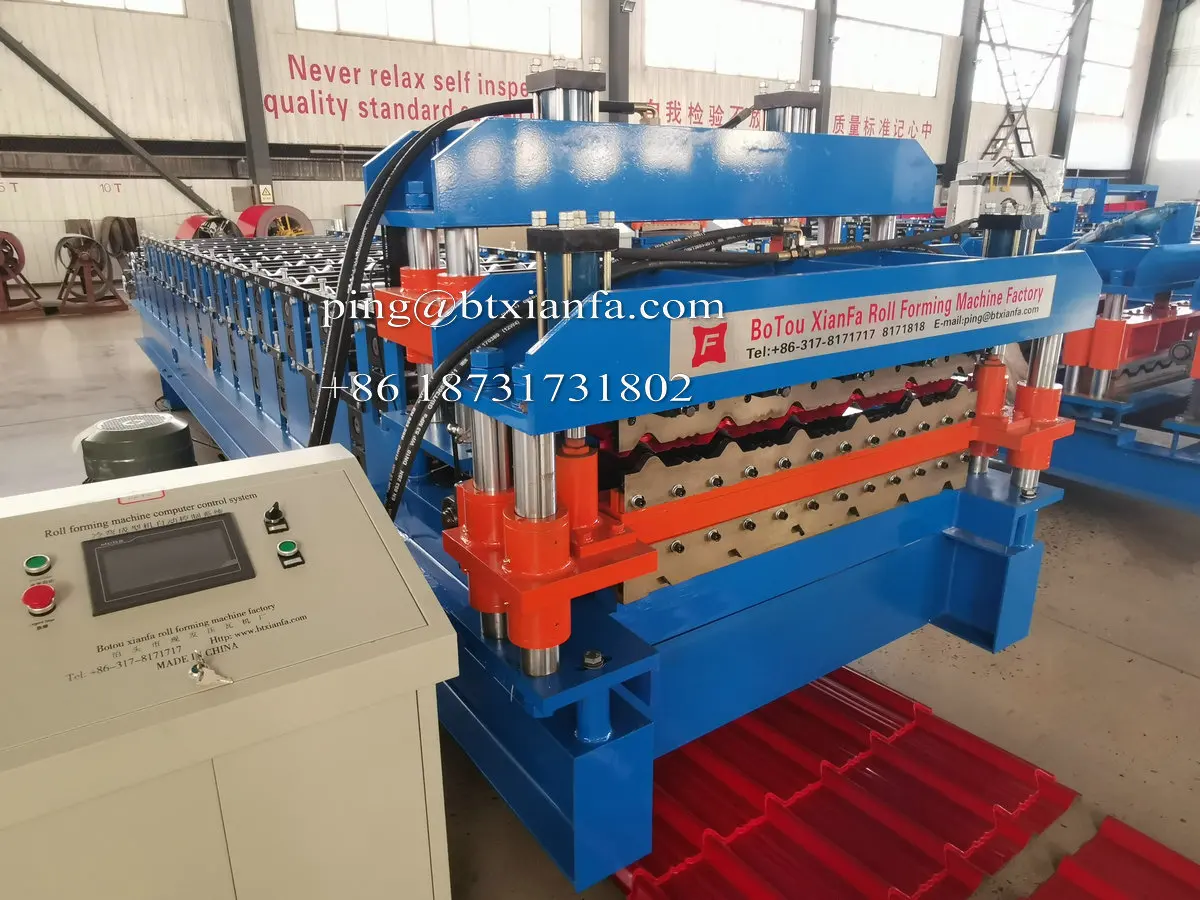

Computer Control Cabinet

Function

The whole line is controlled by

Delta PLC and touch screen operation

Frequency converter: Delta

communication module

it iseasy for operation.

The technical data and system

parameter can be set by touch

Operation

Length is adjustable and digit of it can be adjusted.

Computed mode has two modes: automatic and manual one.

The system is easy to operate and use

6

Press Form

Press Form

Press Form blades: Cr12,quenching treatment

Press Form depth: 14-16mm

Press Form pitch length: 350mm

Can be set according to customer needs

6

Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment

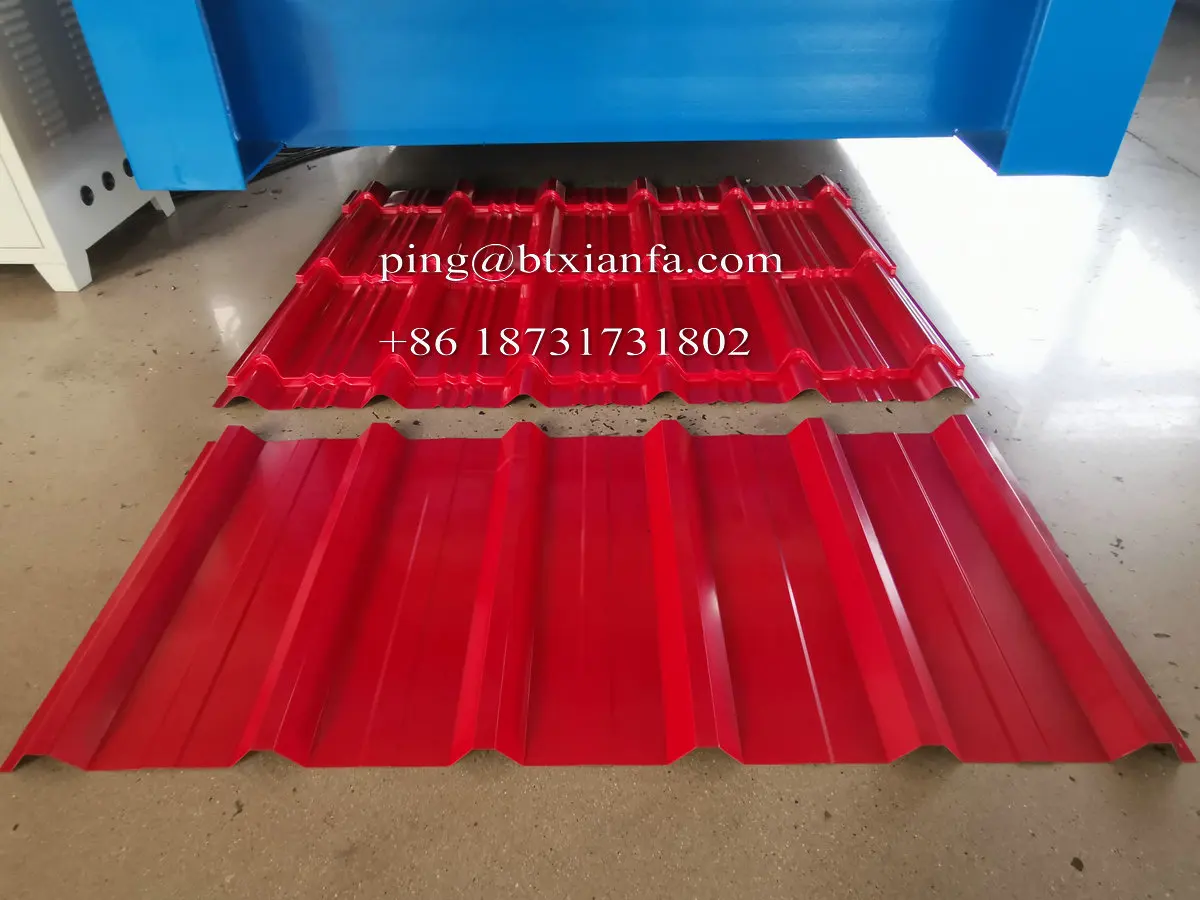

Finished tile fall automatically

7

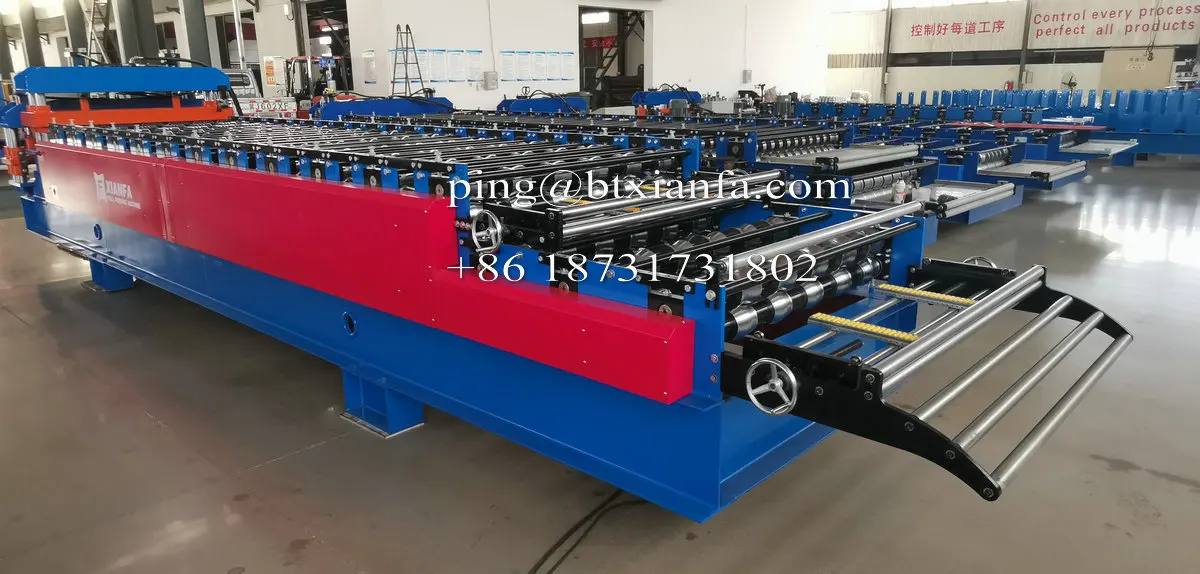

Output Table

It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.
