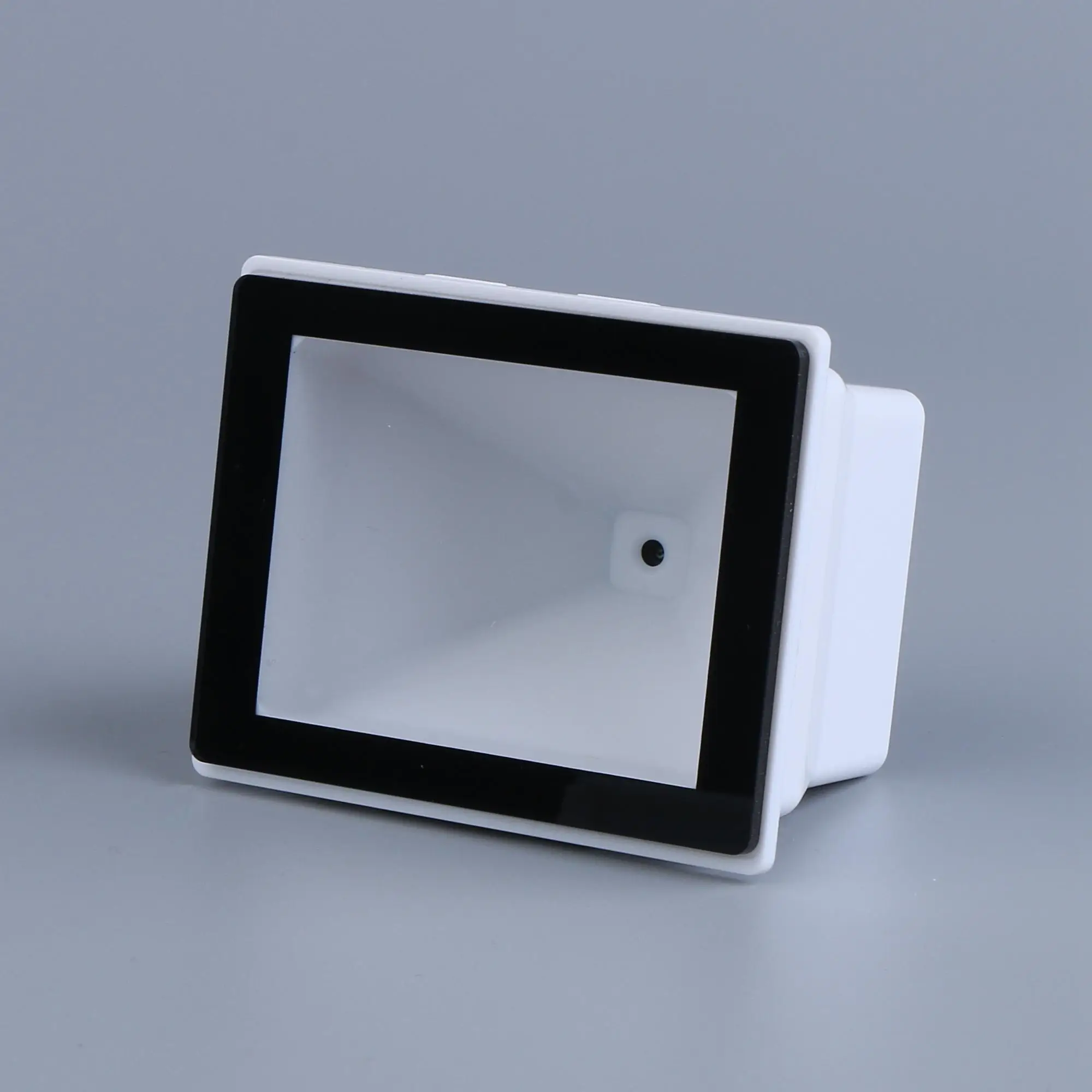

Code Scanning Robot Embedded Barcode Scanner QR Code Reader

Acquisition Performance

Sensor

Image Type,CMOS Sensor, 640*480 Pixel

Acquisition Speed

1/120 fps

FOV

Diagonal 84°,Level 72°,Vertical 54°

Reading Performance

Precision

2D≥7.5mil,1D≥5mil

Reading Mode

Close to the barcode,0-30cm(According to the different barcode)

Code 128 10mil 18bytes    Paper Code       40~150mm

Code 128 18bytes             Phone Code      40~160mm

QR 10mil 160bytes            Paper Code      30~100mm

DM 15mil 100bytes           Paper Code       30~120mm

QR 18bytes                      Phone Code     30~200mm

Scan Angle

Roll 360°,Pitch ± 55°,Skew ± 55°

Symbologies

2D Code: QR Code, Data Matrix, PDF417, Chinese sensible code, etc.

1D Code: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Coda bar, MSI/MSI PLESSEY, GS1 Data Bar ,etc.

Print Contrast

20% minimum reflectance

LED

Illumination

White LED

Physical Parameter

Size

(L×W×H)

E20

E20Z

E20B

69mm×53mm×42mm

 66.5mm×61mm×41mm

50mm×36mm×9mm

Weight

 <35g

 <25g

 <7g

Interface

Socket

Double 5-pin socket, 2.0mm Pitch, common in the POS industry.

12pin 0.5mm Pitch FPC socket, up and down compatible.

Interface

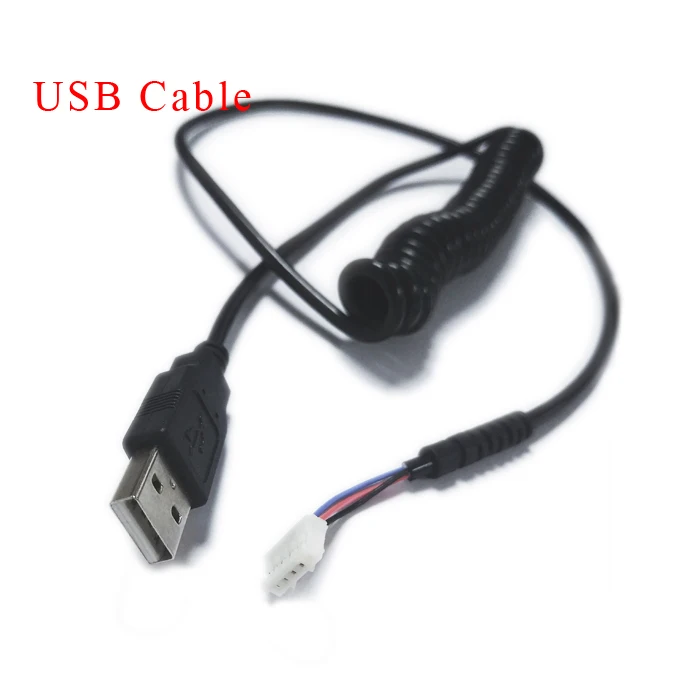

RS232, RS485,Wiegand, USB(VCOM, KBW,HIDPOS), TTL

Scanning Mode

Command Mode/Sense Mode/Auto Reading Mode

Notification

Green LED, Beeper

Environmental Parameter

Operating Temperature

-30℃ ~ 70℃

Storage Temperature

-40℃ ~ 80℃

Humidity

5% ~ 95% RH (non-condensing)

Ambient Light

Max.100,000 Lux

Electrical Parameter

Input Voltage

Input with 5-pin or 12-pin FPC:

the voltage 3-3.6V or 3.6-16V (optional)

Operating Current

<200mA (3.3v Input), <190mA (5v Input), <100mA(10v Input)

Standby Current

<5mA(3.3v Input)
