Discernment: the minimum differential of a test machine's indicator that can be effectively resolved
Remaining height: the height of the object after the spring is deformed under the action of external forces, denoted by H.
Deformation: the relative displacement of the spring along the direction of load action, and the deformation height (free height - remaining height), expressed as "temperature H".
Spring stiffness: load or torque required to cause the spring to produce unit length (horny) deformation, K= (f2-f1)/(h2-h1) units are represented by N/mm.
Model
BJTLY-Z100,1000N,2000N,3000N,5000N
Work Method
Ball screw drive, precision motor load.
Display
LCD
Function
Automatic collection and processing, can save, query, print.
Measuring range
1-100%
Test force resolution.
100N/0.01N 1000N-5000N/0.1N
Relative error of test force indicator
±1.0%
Repeatability relative error of test force indicator
1.0%
Displacement resolution
0.01mm
Tensile space
500mm
Compression space
500mm
Pressure plate diameter
110mm
Upper and lower pressure plate parallelism
≤0.05mm
Speed range
0.01-500mm/min
Host Size
530×275×1250mm
Net Weight
130kg
Protection
Program and mechanical double protection
Feature:
1. This test machine has four test methods:
To measure the force at a certain height, to measure the force at a certain deformation,
Measuring height and deformation with fixed force,
2. One or more test functions can be performed, and up to 5 test points can be set.
3. It can be measured in sections and calculate the stiffness (elastic coefficient) K and the average stiffness of each section.
4. Products can be sampled for inspection or batch test (the mechanical part has batch test tooling
Details:

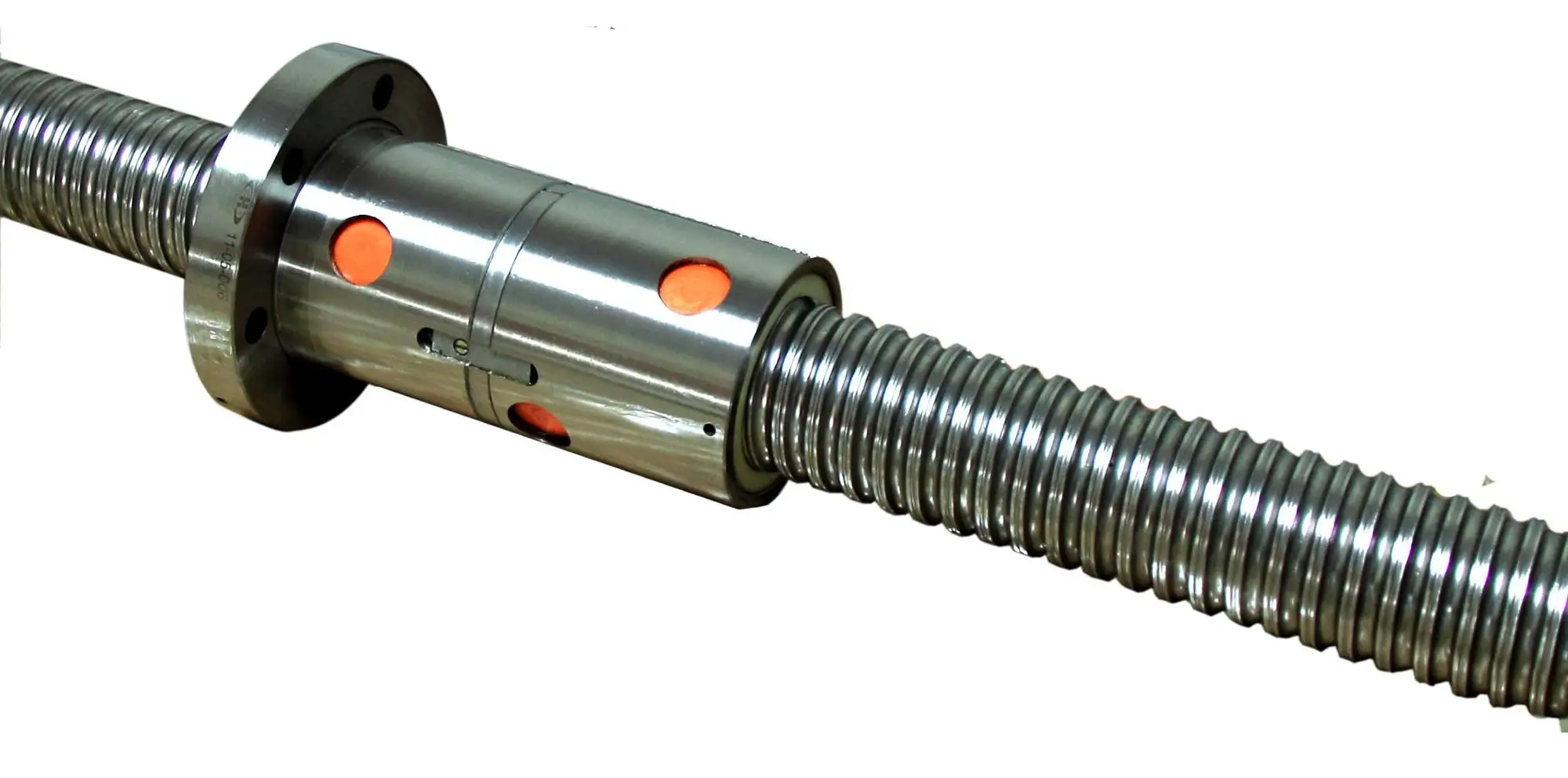

ABBA Ball Screw

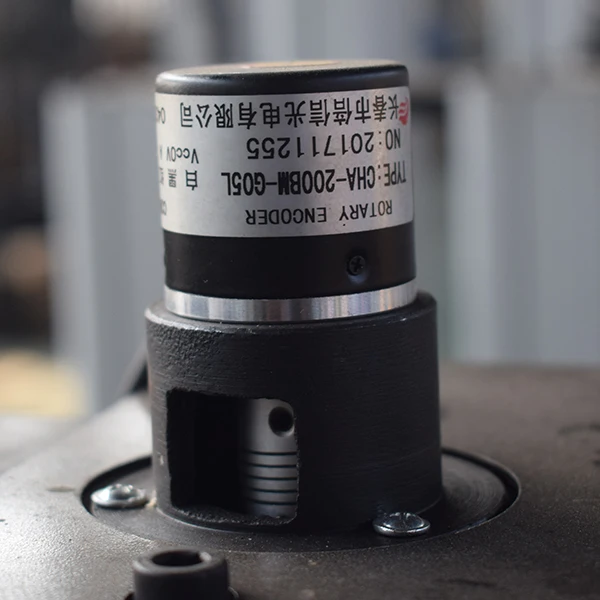

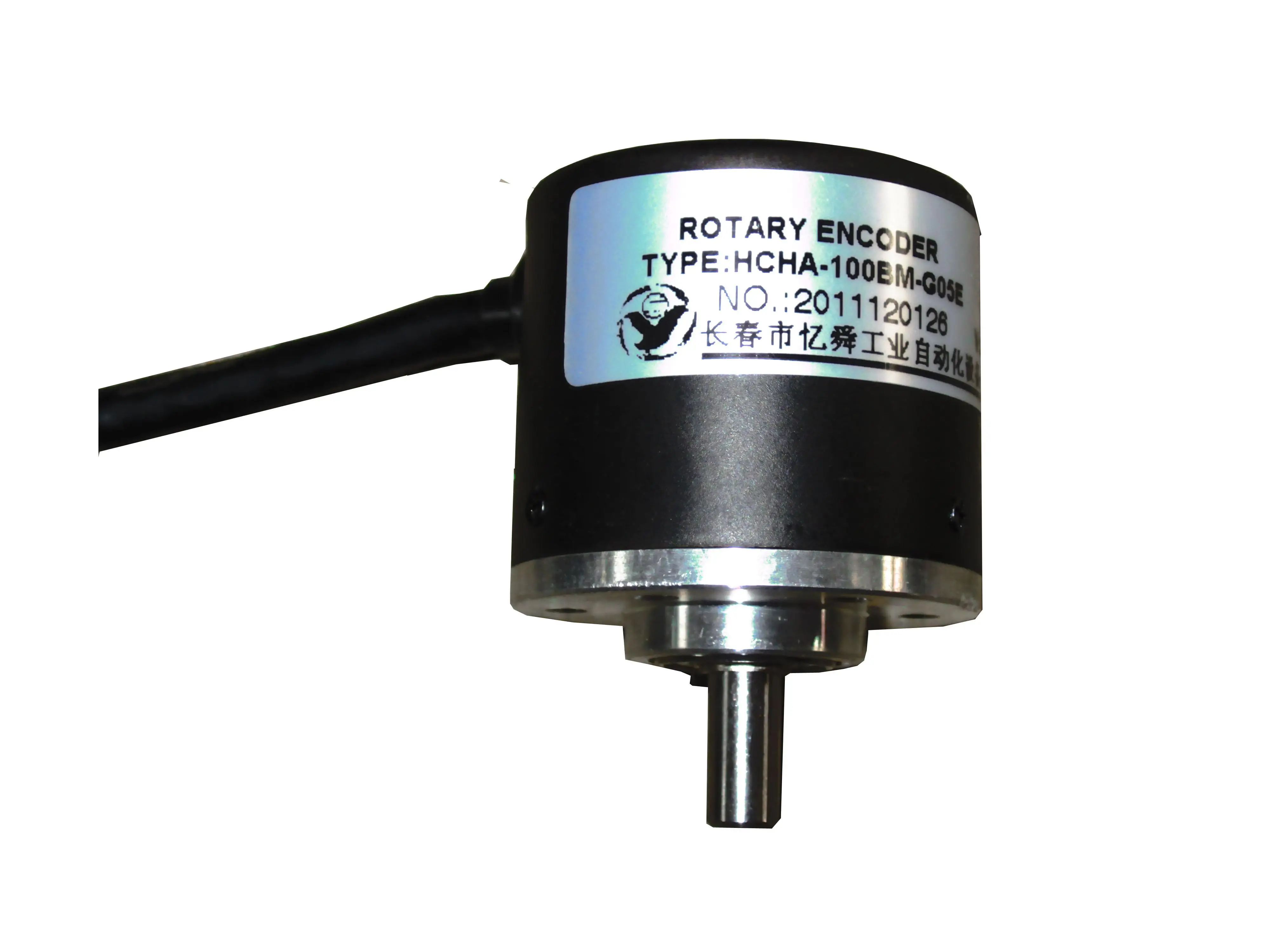

Omnon Encoder

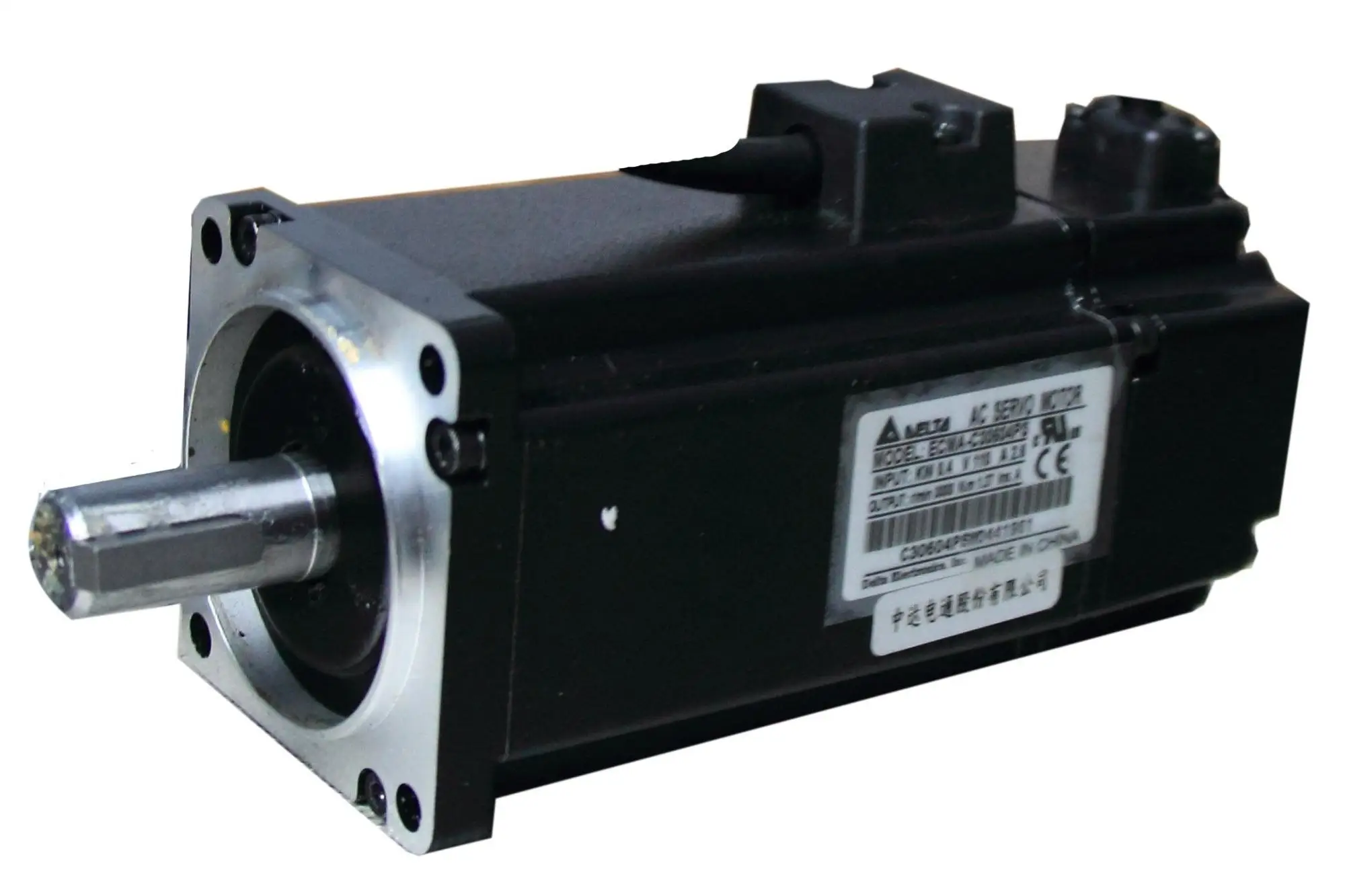

Panasonic servo motor

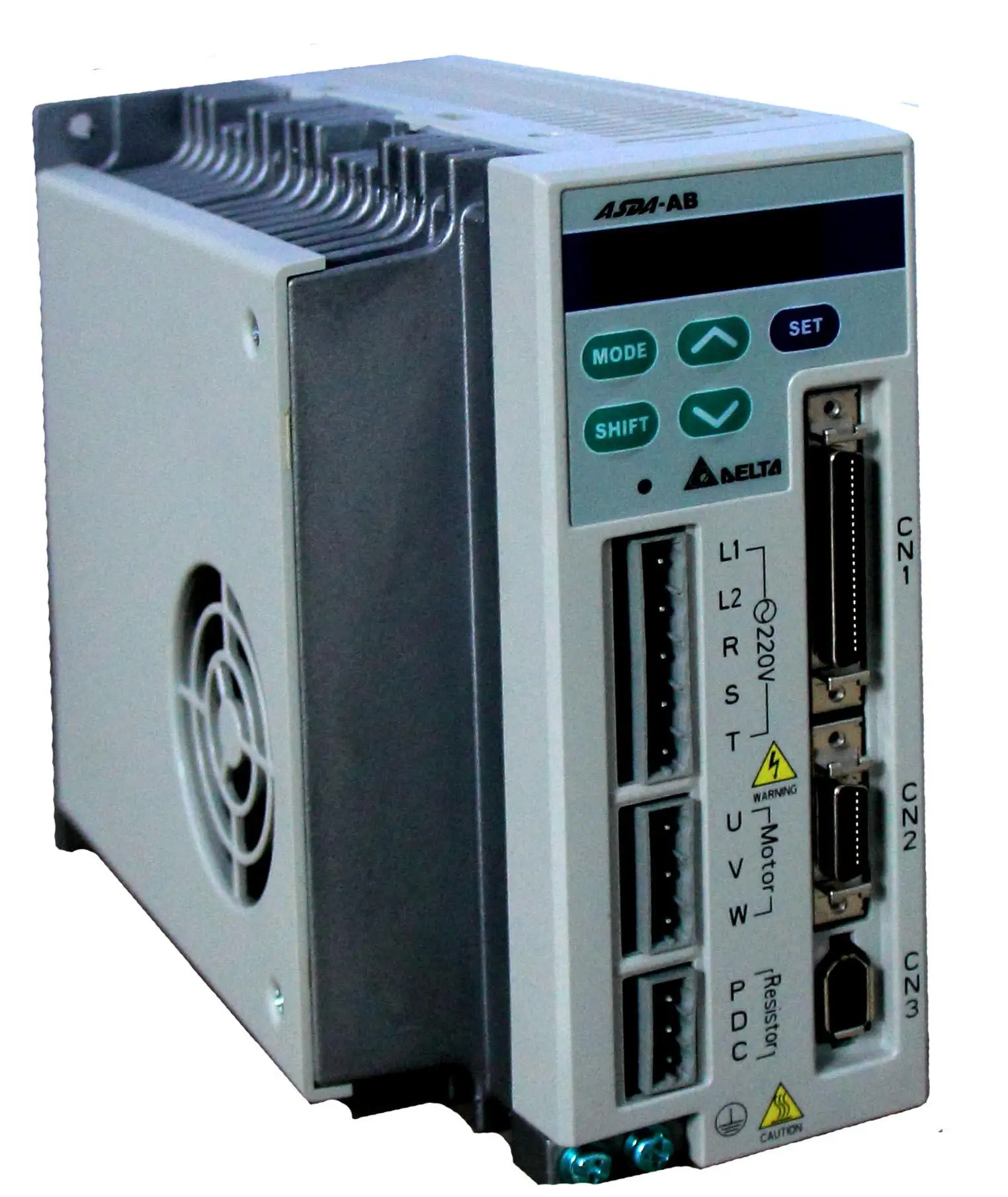

Panasonic speed control
