Wooden Brush Handle Making Machine/ Wood Round Stick Machine/ Wood Rod Machine

Product Overview

Description



Wooden Brush Handle Making Machine/ Wood Round Stick Machine/ Wood Rod Machine





Application of the wood rod machine

wooden broom handles is mainly used for construction equipment wooden bars, round pillar, ancient, tile roofed house building with circular beam, furniture decoration, decoration for circular timber processing.



Description of the wood rod machine



1. The broom handle making machine processing range from 15mm to 50mm diameter can be customized for different types of models.

2. The raw material can be square wood or round wood.

3. The end products has smooth surface, the stick which processed approach to the one through sanding, to leave the sanding process by changing the speed of the machine .

4. The machine has high efficiency. the highest speed of the machine can reach 25 pcs/min, and can be customed the machine which can process more sticks for one time.



Description of the wood rod machine



Model	DV-9050	DV-9050A	DV-9050B	DV-9050C
Main motor power	3kw	3kw	3kw	4/3kw
Feeding motor power	0.55kw	0.75kw	0.75kw	0.75kw
Spindle velocity	4000r/min	4000r/min	4000r/min	4000r/min
Feeding speed	3/5m/min	3/5m/min	3/5m/min	3/5m/min
Cutting diameter	15-50mm	15-50mm	15-50mm	15-50mm
Overall dimension	860*650*980mm	970*650*980mm	1100*650*980mm	1470*590*1000mm
Weight	250kg	310kg	350kg	52

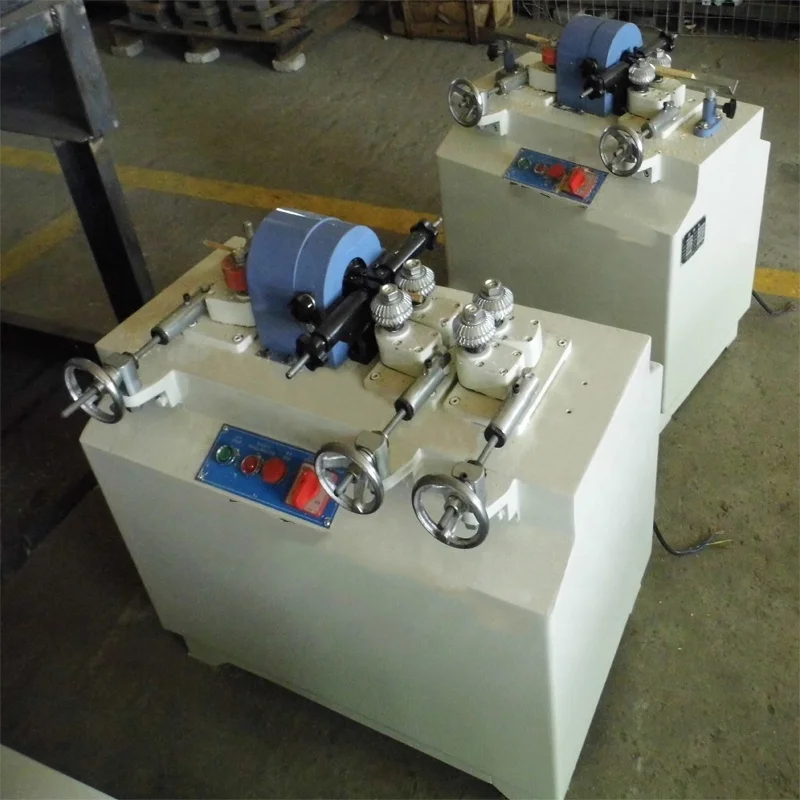

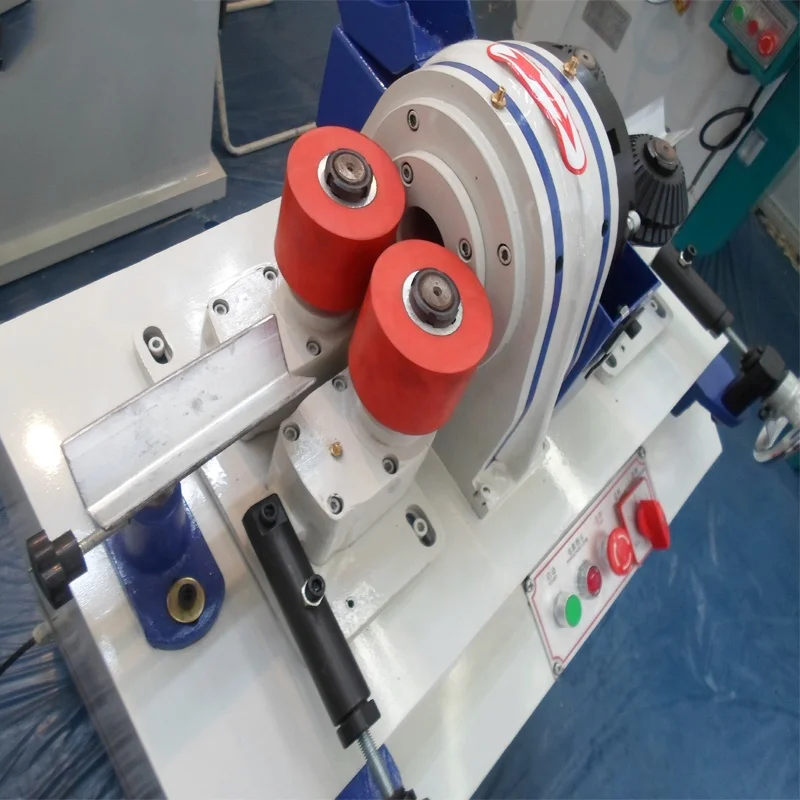

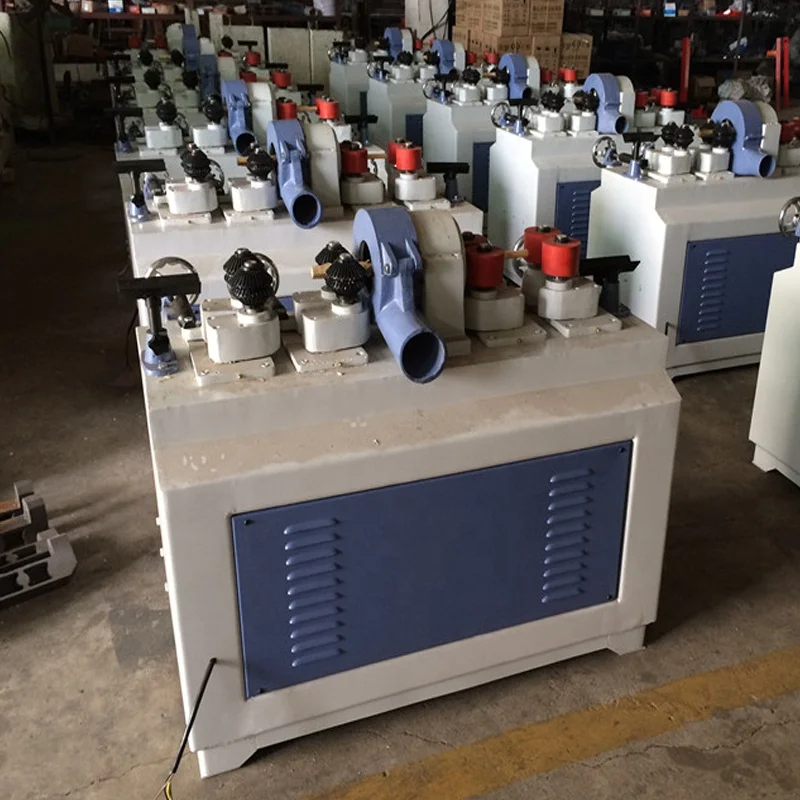

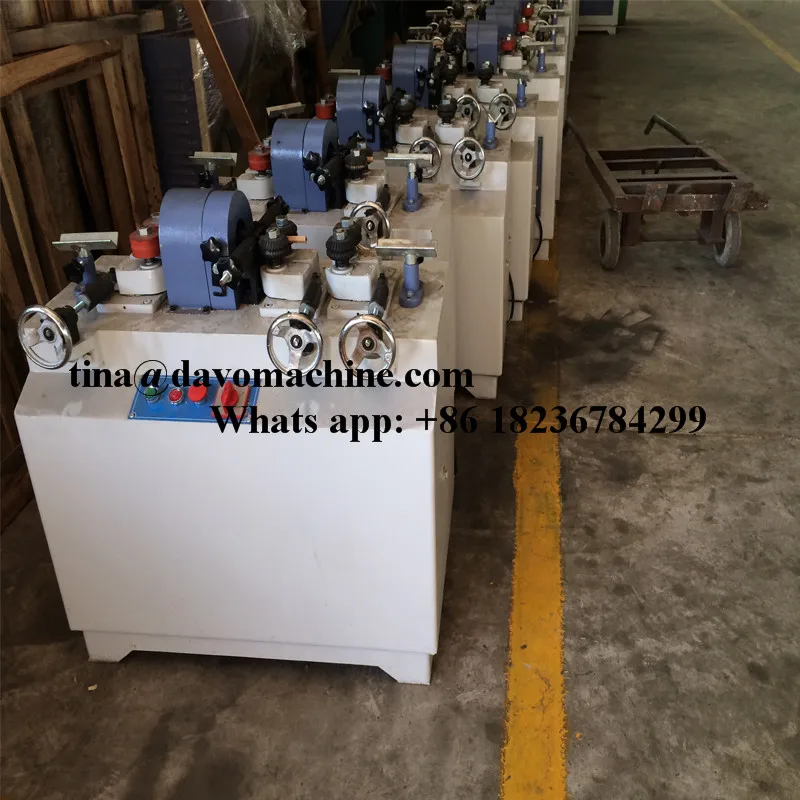

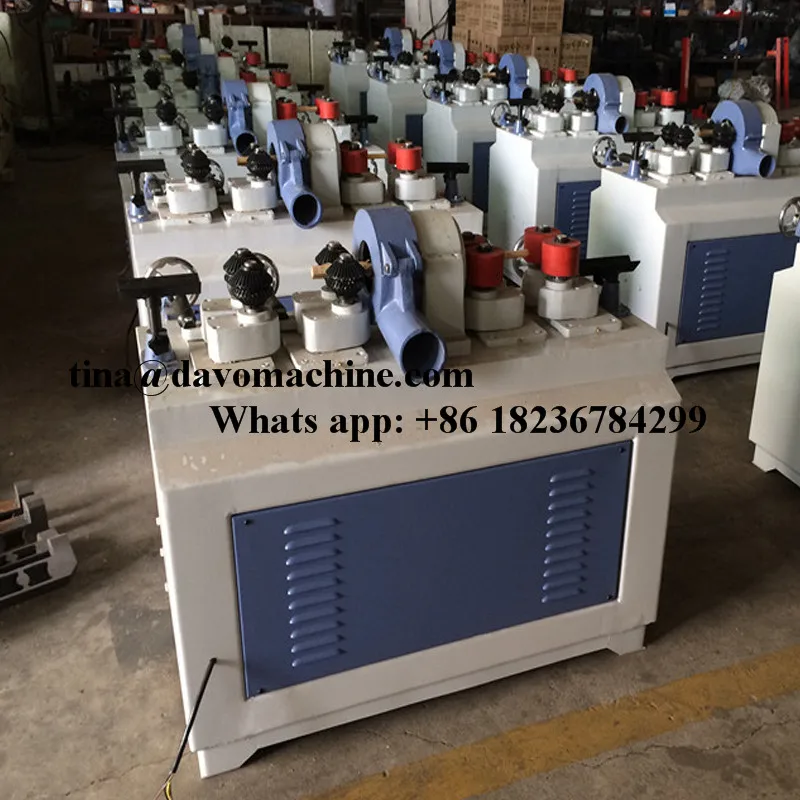

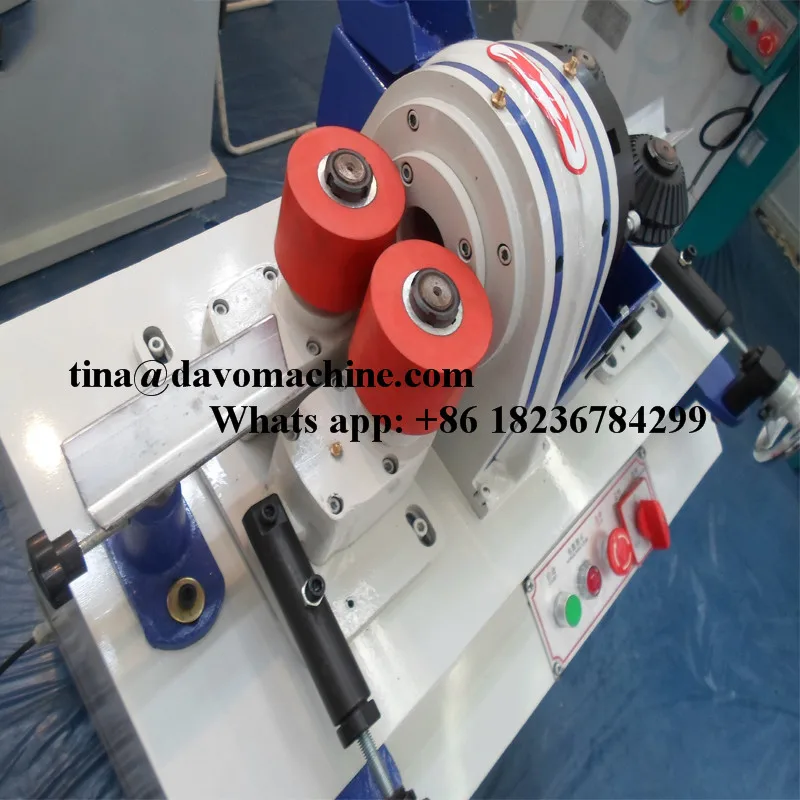

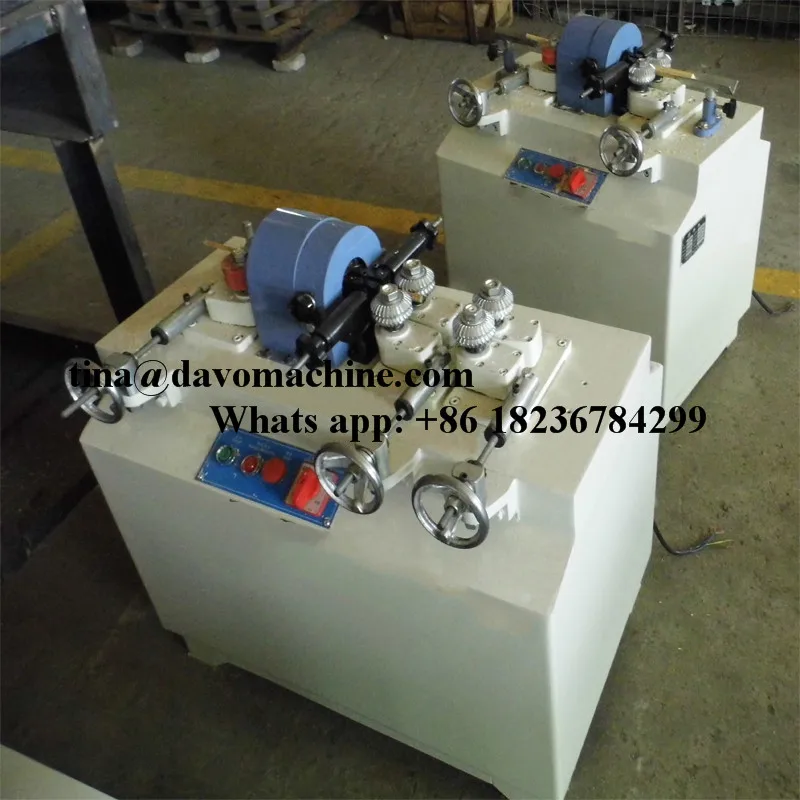

Photos of the wood rod machine

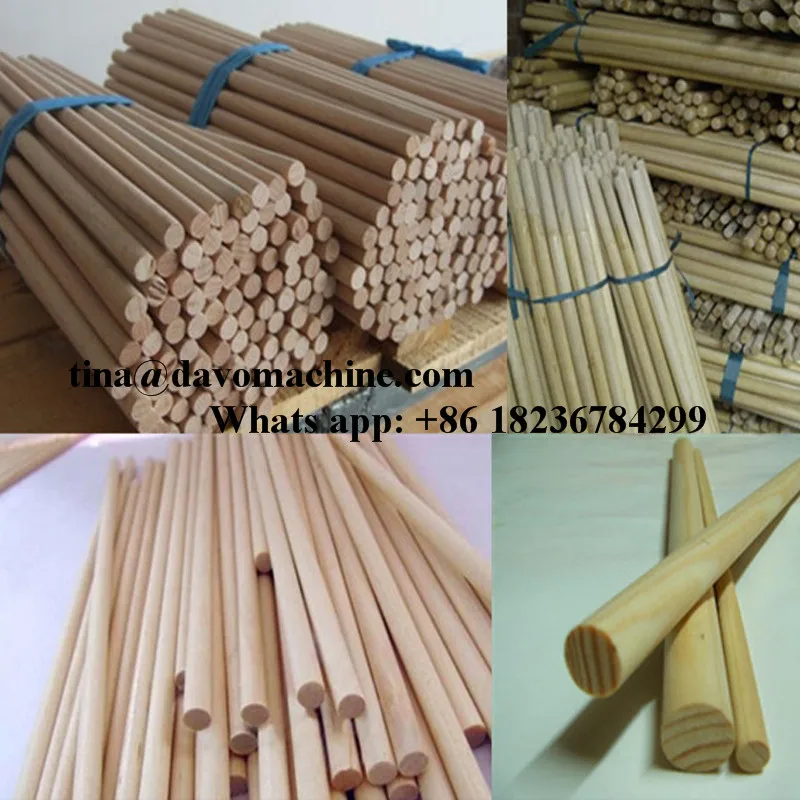

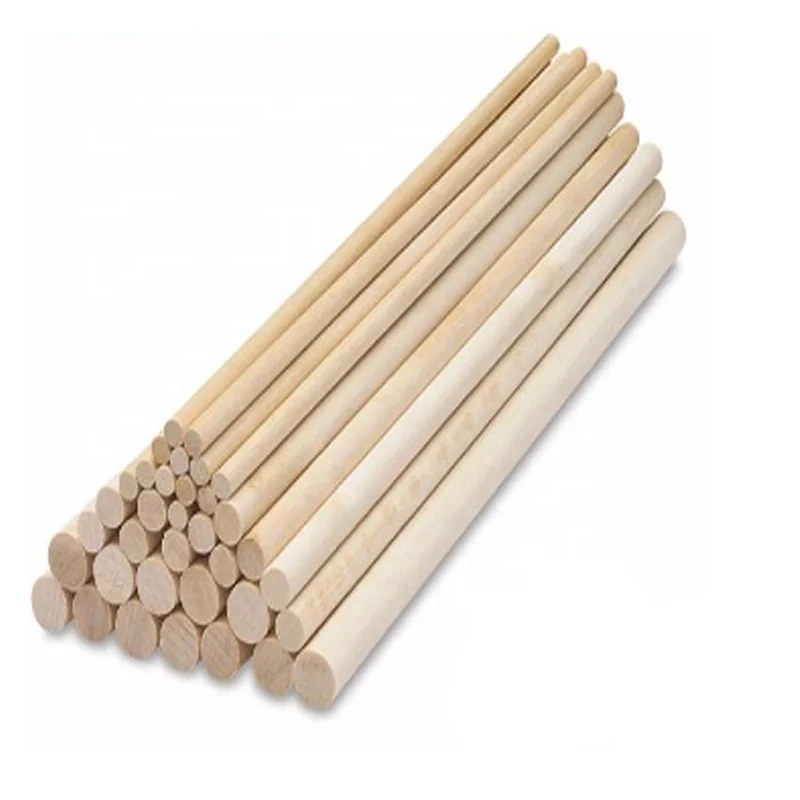

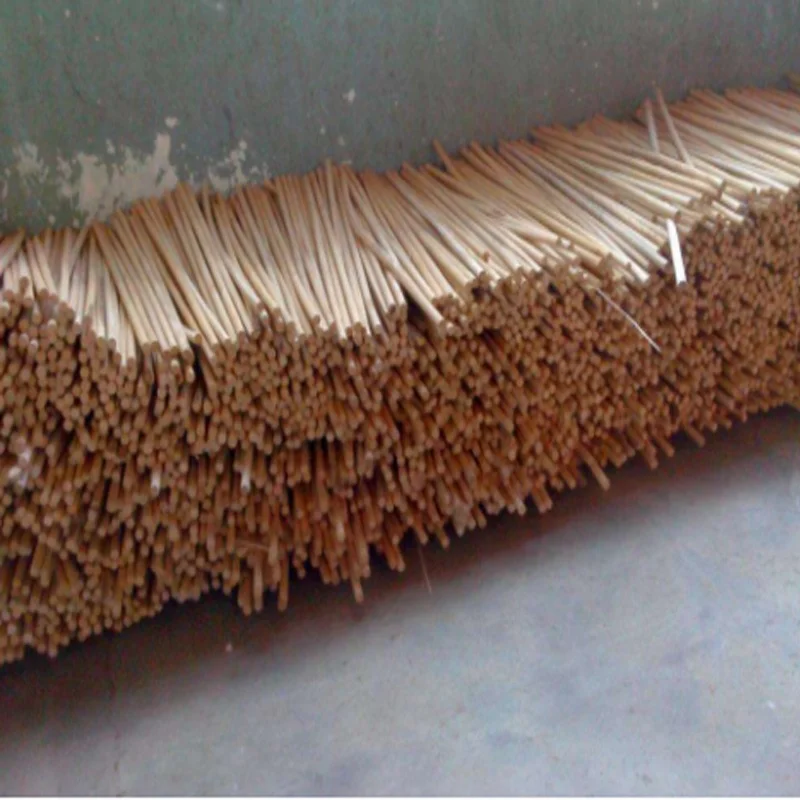

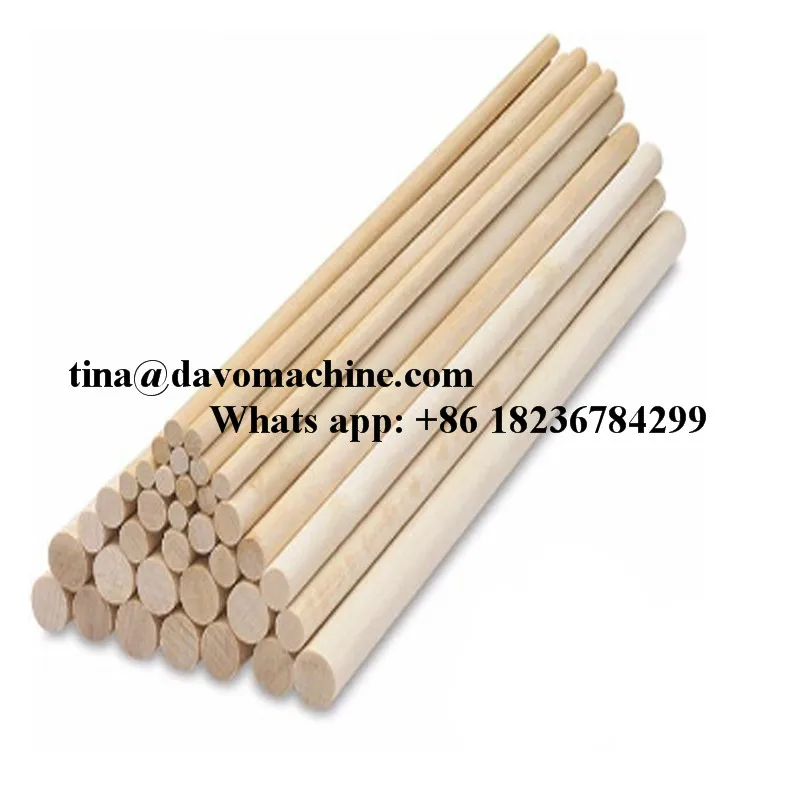

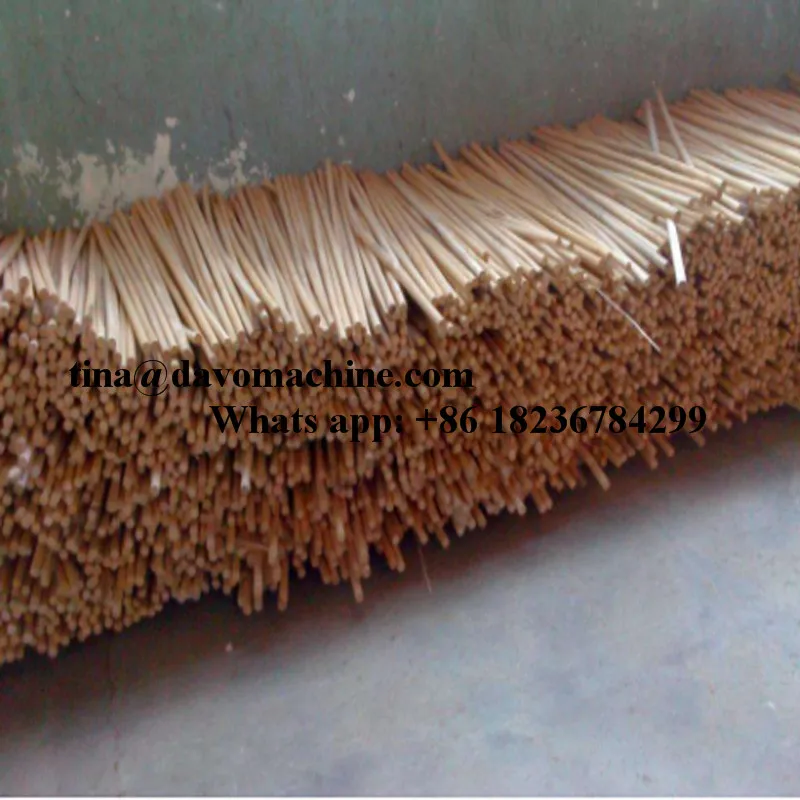

End products photos
