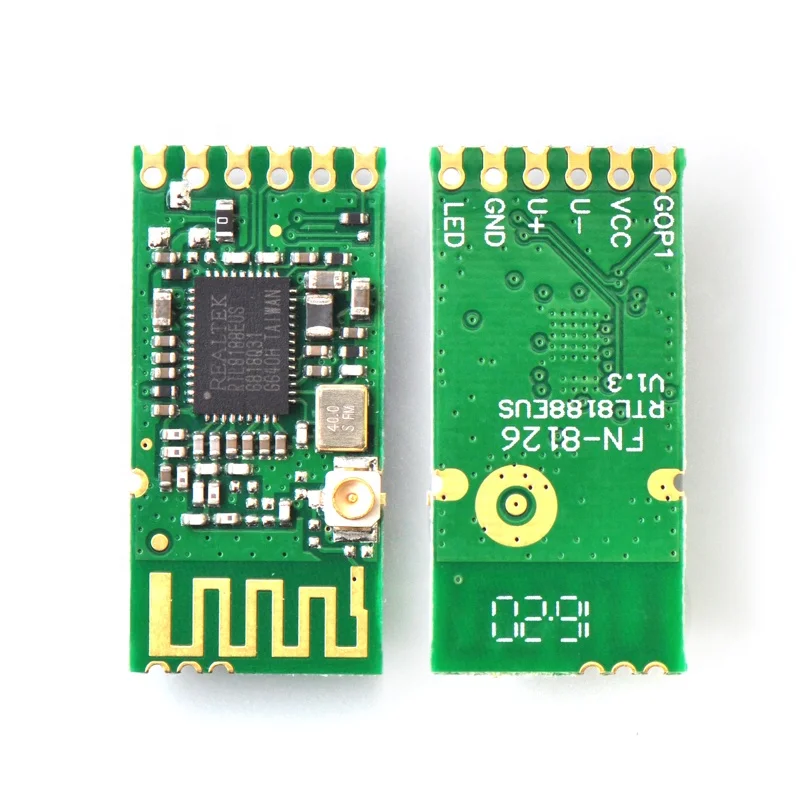

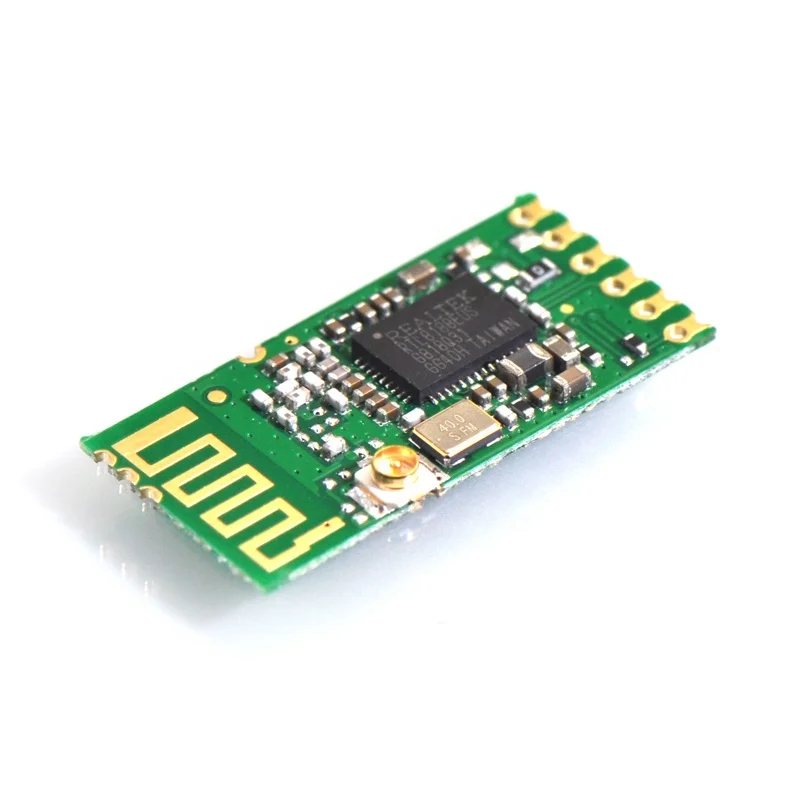

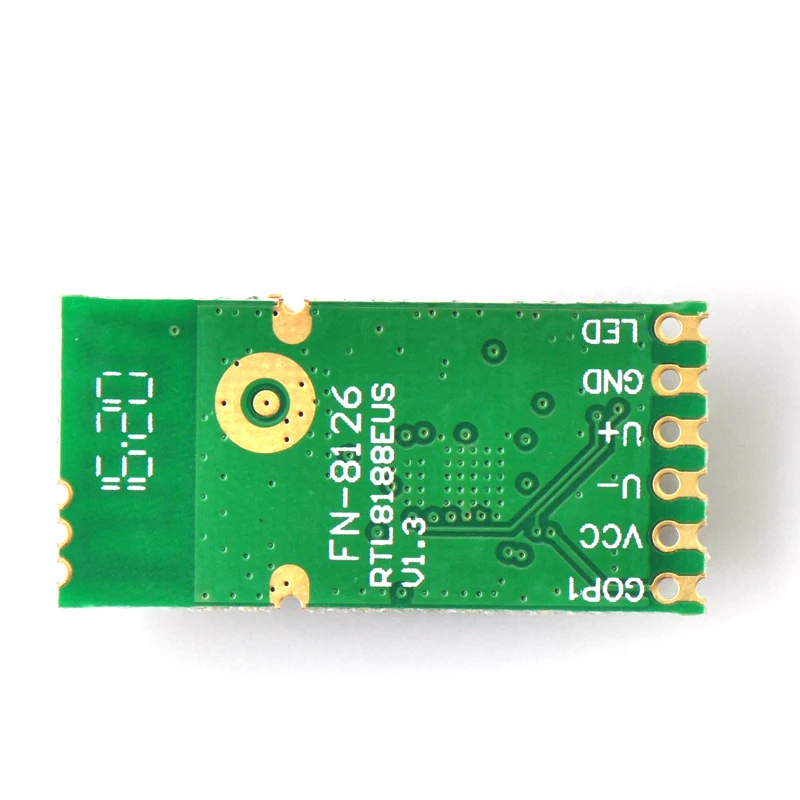

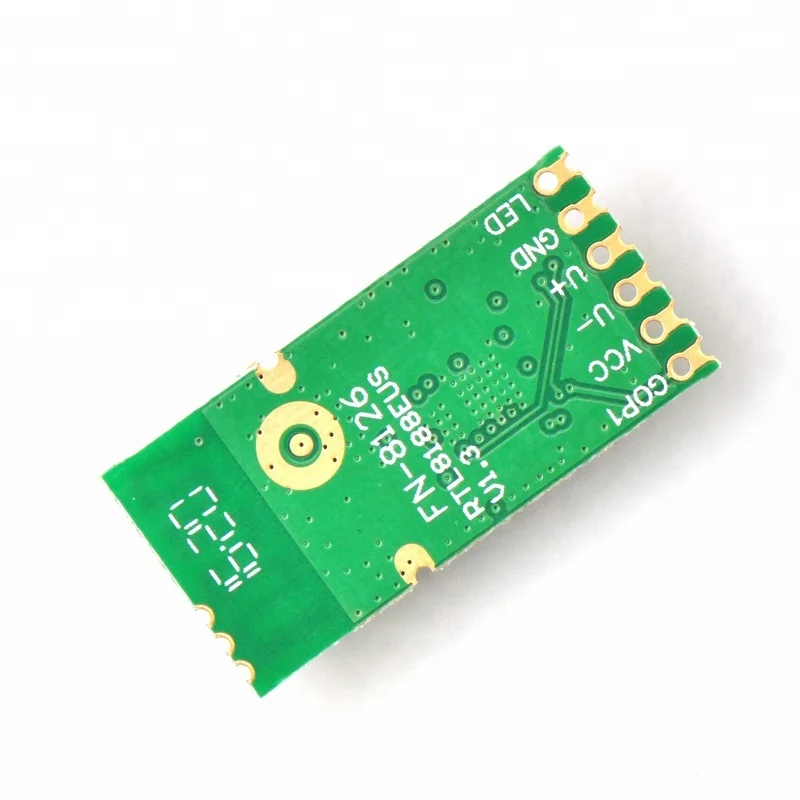

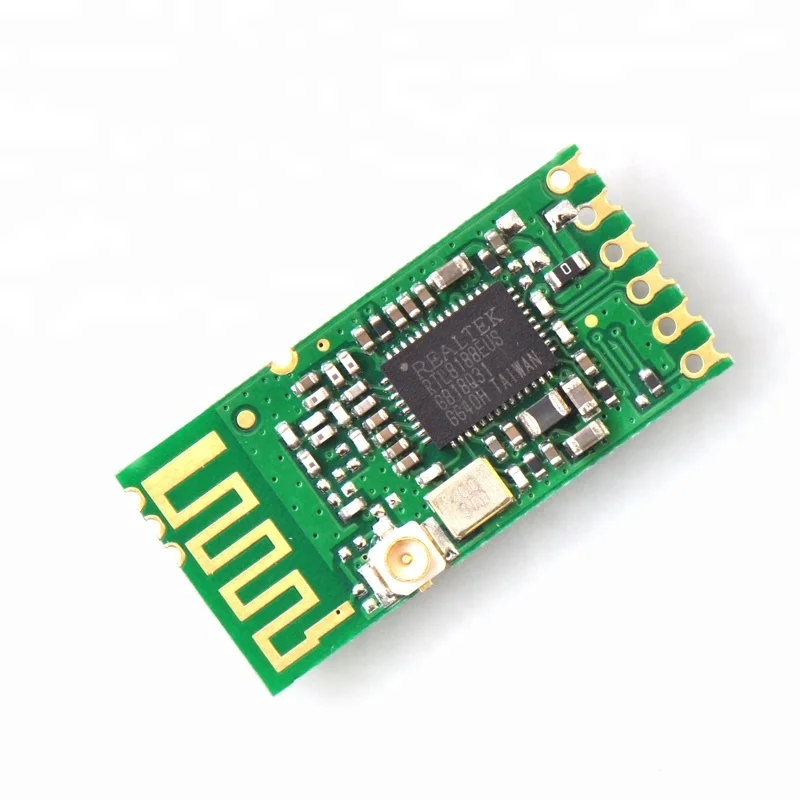

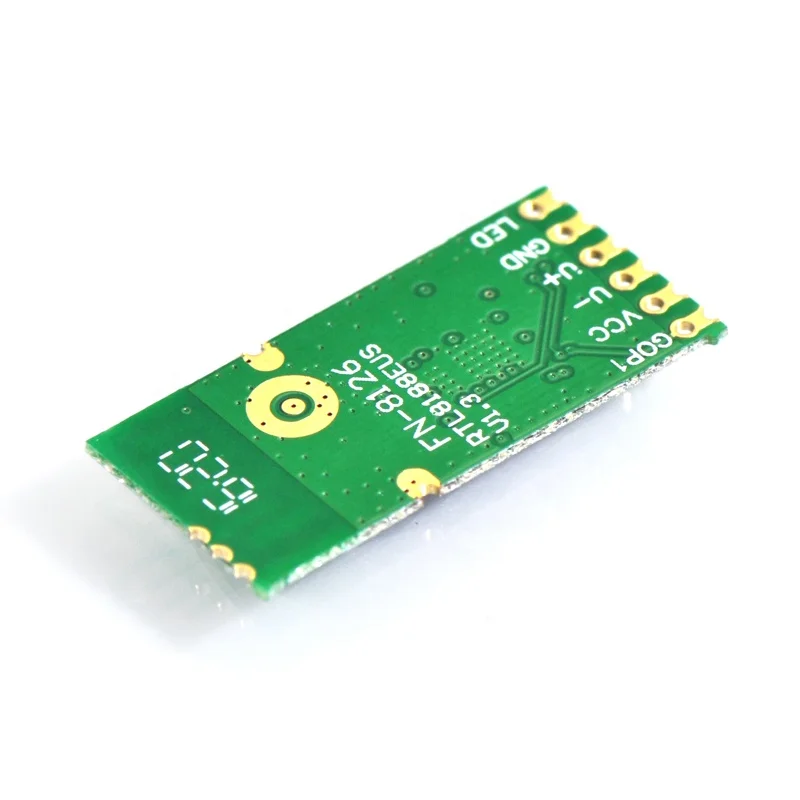

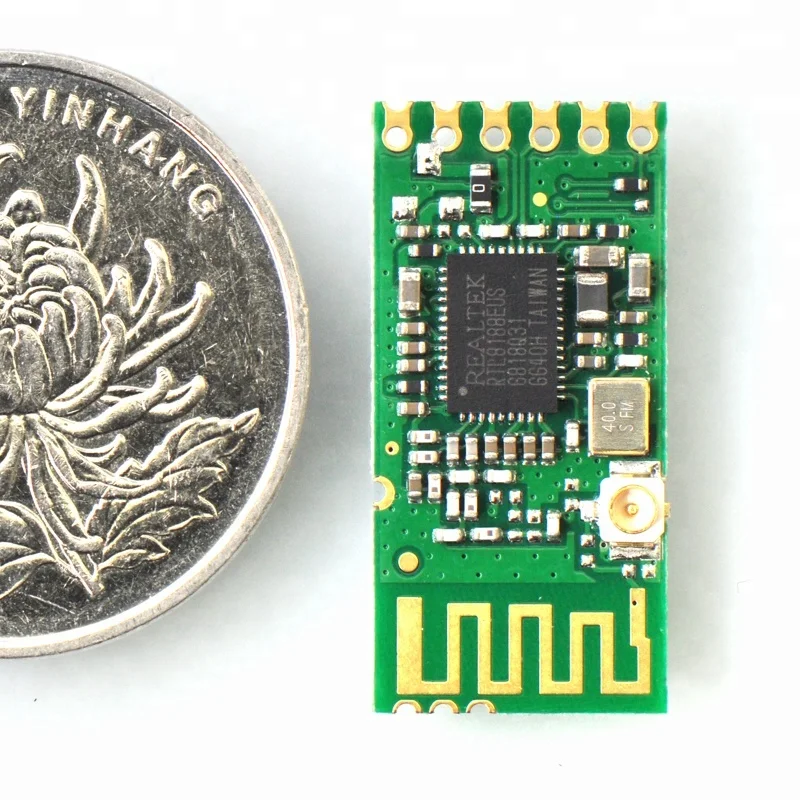

High Performance RTL8188EUS USB WiFi RF Transceiver Module With IPEX Connector
- Category: >>>
- Supplier: Shenzhen Ofeixin Technology Limited
Share on (60823793229):
Product Overview
Description
Product Description
Introduction
F88EUUM23-VH is a highly integrated and excellent performance Wireless LAN (WLAN) USB2.0 network interface device. High-speed wireless connection up to 150 Mbps.
Features
Operate at ISM frequency bands (2.4GHz)
USB Interface for WiFi
IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,
Enterprise level security which can apply WPA/WPA2 certification for WiFi.
WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHYrates
Application Range:
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
& Commercial And OA Application
Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment
& Industrial And Vehical Application
Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile
& Medical Application
Medical equipments/Medical instruments
& Other Consumer Electronic Products
Detailed Parameters
Model No | F88EUUM23-VH | Main Chipset | RTL8188EUS-VH |
WIFI/BT Interface | USB | WIFI Standards | IEEE802.11b/g/n |
Date Rates | 150Mbps | Certification | RoHS,REACH |
RF Antenna | External Antenna | OS Supported | Android /Linux/ Windows |
Operating Frequency | 2.4GHz | Operating Voltage | 3.3V |
Dimensions | L x W : 25x 12 mm | RF Chains | 1T1R |
Operating Temperature | 0°C to +55°C | Storage Temperature | -40°C to +80°C |
Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
