6 12A 6 LOW E window black warm spacer insulated glass unit for project building curtain wall
- Category: >>>
- Supplier: Qinhuangdao Yuntai Glass Co. Ltd.
Share on (60823804749):
Product Overview
Description
Product Description
6+12A+6 LOW-E window spacer insulated glass unit curtain wall
ASSURE your goods INTACT till to your WAREHOUSE, Wherever you are.
What is insulated Glass?

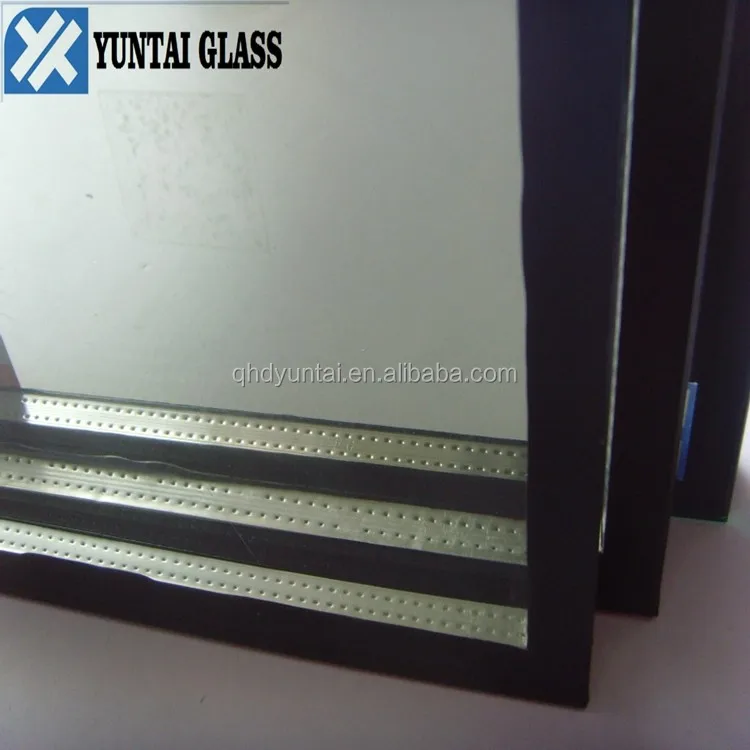

Insulated glass/Hollow glass/Double wall glass is made of two or more pieces of glass glazing sheets which might be low e or reflective glass or normal float colored glass and use sealant gumming and aluminum spacers which was filled with desiccant together. Insulated glass/ Hollow glass/Double glazing glass with the perimeter of the spacer that gets in contact with the glass is properly sealed with primary and secondary sealants to ensure it with air/argon tight.
Glass color can be clear/Ultra clear/low iron/bronze/blue/Europe-grey/Dark- grey/reflective
sound proof windows glass
low-e insulated glass,hollow glass,insulating glass, double glazing glass,reflective insulated glass, silk printed insulated glass, low iron insulated glass, low-e insulating glass, sealed insulating glass,window glass, insulated glass for curtain wall

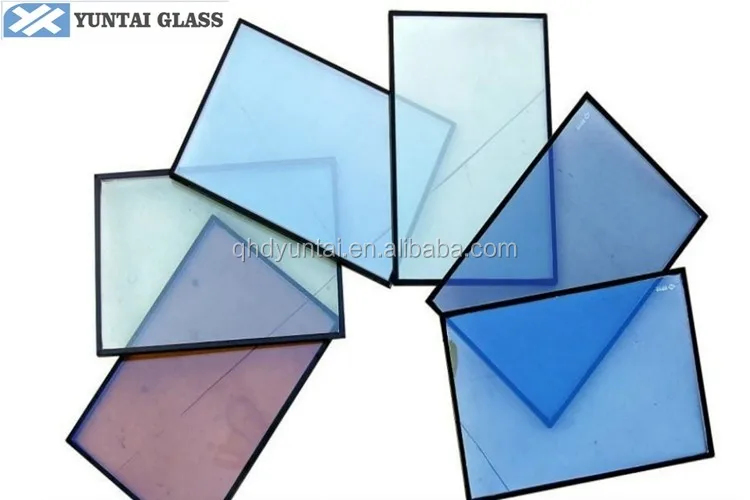

Detailed Images
Glass with round corner Grey colored glass Bronze tinted glass
Feature
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
1)Flat tempered glass
Thickness: 3-19 mm
Size: 200*300 mm--3300*9800 mm/2440*12000 mm
2)Curved tempered glass
Thick: 5/6/8/10/12/15/19mm
-The anti-impacting performance and anti-bending performance are 3-5 times higher than ordinary glass.
-It breaks into granules in case of strongly knocked, so no hurt would be caused.
-deflection angle of tempered glass is 3-4 times larger than that of float glass of the same thickness.
When there is load on tempered glass, its maximum tensile stress does not located on the glass surface as float glass, but on the central point of glass sheet.
Max size:3300X10000mm Min size:300X300mm
3)Insulated Glass
Thickness range 12mm-60mm.(Double Glazing or Triple Glazing 5+9A+5;6+9A+6,6+12A+6;8+12A+8;10+12A+10;12+15A+12,15+15A+15

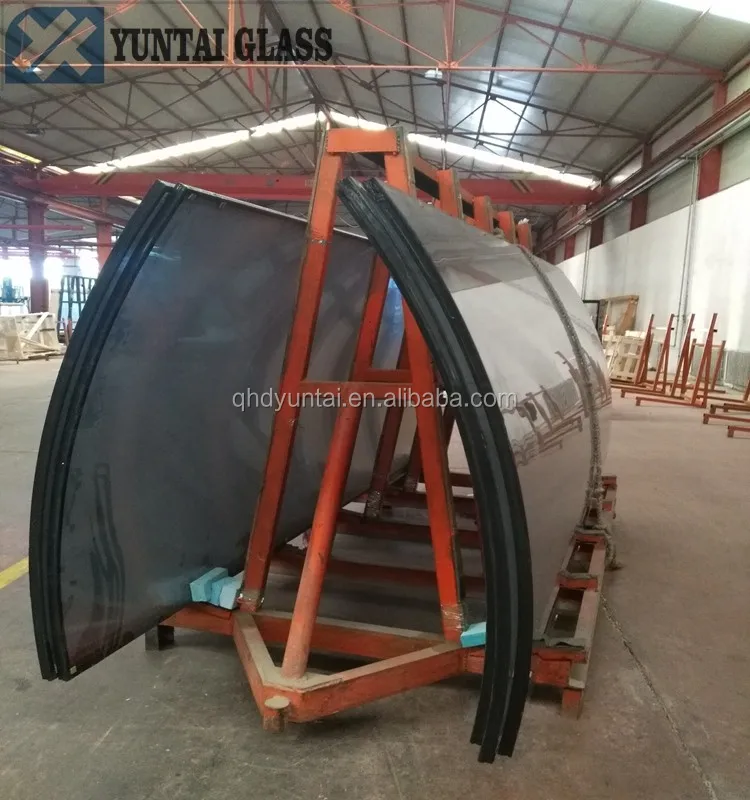

Curved insulated glass:R>500MM, 12000*3300
1)The nor thickness of air layer:6mm,9mm,12mm,16mm,19mm(1/4", 11/32", 1/2", 9/16", 19/32", 5/8")
2)Gas Filling: Dry air, Argon
3)Sealant: butyl rubber sealant with polysulfide sealant or structural silicone based sealant
4)Products can be randomly combined by transparent glass , tinted glass, tempered glass ,Bent tempered glass, coated glass , low-e glass, sandwich glass, glazed glass etc.
APPLICATION FOR TEMPERED INSULATED GLASS
Tempered glass is safety glass, extensively applied in the places which has critical request of high mechenical strength and safety, such as glass door, curtain wall of building, indoor partition, elevator,showcase, door and window of building, furniture and household appliance etc.
Tempered insulated glass for door
Tempered insulated safety glass for railing and balustrade
Ttempered insulated safety glass for balcony
Tempered insulated safety glass for projects

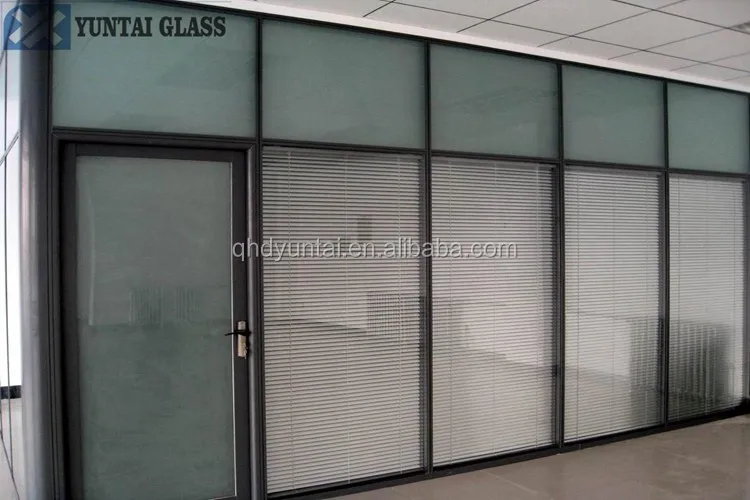

Tempered insulated safety glass for partition wall
Tempered insulated safety glass for building
Tempered insulated safety glass for ceiling
Tempered insulated safety glass for greenhouse
Tempered insulated safety glass for office
Tempered insulated safety glass for curtain wall
Tempered insulated glass For office window
6mm,8mm,10mm,12mm,15mm
Tempered insulated glass For sunroom/Green House
Can produce according to customers'demand
8mm 10mm 12mm 15mm 19mm
Low-e Tempered insulated glass for building/Architecture
Reflective ,Euro-grey,dark-grey,blue,green.Low-e,tinted,super-clear
Main Products
a.Laminated glass:3-19mm
b.Tempered glass:3-19mm
c.Silkscreen printing glass:3-19mm
d.LOW-E laminated glass
e.LOW-E tempered glass
f.Low-E tempered insulating glass
g.Curved tempered glass
3+3/4+4/5+5/6+6/8+8/10+10 and so on
PVB can be 0.38,0.76,1.14,1.52 and so on
33.1 44.1 55.1 66.1 88.2
Standard size: 2140*3300/2440*3300/1830*2440
Can produce it according customers demand sizes
Once the glass is broken,the PVB
Used in the curtain wall,office,fence,railing,balcony ,swimming pool,window,Stairs,elevators
3mm,5mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm
Color: Bronze/Euro-grey/Dark-grey/F- green/Ford-blue/super-white
Used in the window,door,furniture,shower enclosure/shelves and so on
4+6A+4 ;6+12A+6; 8+12A+8
Aluminum frame: 6A 9A 12A 15A
FAQ
1.\tHow to get a quotation
We can calculate a exact price based on your more information
a. Which process and product type?
b. Material and Size.
c. Order quantity.
We can calculate a exact price based on your more information
a. Which process and product type?
b. Material and Size.
c. Order quantity.
You can send me inquiry by alibaba or send me inquiry directly by email.
2. Want to place order
1). After confirmed quotation, we will issue proforma invoice for client to sign back.
2). Send the glass Technical Specification via email.
3). if need to make the sample confirmation, we will send the samples or take the sample photo to client for approved about 7 working days.
4). Production time will base on the order quantity. We will send notice email with product photo to client before delivery.
3. Do you accept small order
Any order quantity is welcome. But some type of products are high cost that not suitable small order.
4. What is the payment method
We accept paypal
Western Union
T/T 30% total USD amount as deposit, the balance 70% before shipment
1). After confirmed quotation, we will issue proforma invoice for client to sign back.
2). Send the glass Technical Specification via email.
3). if need to make the sample confirmation, we will send the samples or take the sample photo to client for approved about 7 working days.
4). Production time will base on the order quantity. We will send notice email with product photo to client before delivery.
3. Do you accept small order
Any order quantity is welcome. But some type of products are high cost that not suitable small order.
4. What is the payment method
We accept paypal
Western Union
T/T 30% total USD amount as deposit, the balance 70% before shipment
5. Want to get free sample
Sure you can. Please send your request via email.
Buyers can get free samples through buyers' express account for freight collect, or transfer the dellivery charge to us for prepaid at your convenience. For some expensive samples, samples cost could be necessary.
6. What is the shipping methods
For small amount, usually send by air shipping. (DHL/UPS/Fedex) Take 4-5 working days.
For large amount, usually delivery by ship. LCL or FCL (FOB/CNF/CIF) Take around 25-30 working days(Depend on which country)
7.What is your delivery time?
Around 45 days depends on what kinds of products the customer order and when
8.Can you do the production as customized?
Yes, we could produce the glass depends on your requirements.
9.What's your glass package? Are they safe?
Wooden Crates are our glass package. Wooden Crates Worthy for Ocean and Land Carriage. The crates will be very strong and we send the loading pictures for you after we loading.
Sure you can. Please send your request via email.
Buyers can get free samples through buyers' express account for freight collect, or transfer the dellivery charge to us for prepaid at your convenience. For some expensive samples, samples cost could be necessary.
6. What is the shipping methods
For small amount, usually send by air shipping. (DHL/UPS/Fedex) Take 4-5 working days.
For large amount, usually delivery by ship. LCL or FCL (FOB/CNF/CIF) Take around 25-30 working days(Depend on which country)
7.What is your delivery time?
Around 45 days depends on what kinds of products the customer order and when
8.Can you do the production as customized?
Yes, we could produce the glass depends on your requirements.
9.What's your glass package? Are they safe?
Wooden Crates are our glass package. Wooden Crates Worthy for Ocean and Land Carriage. The crates will be very strong and we send the loading pictures for you after we loading.
Certifications

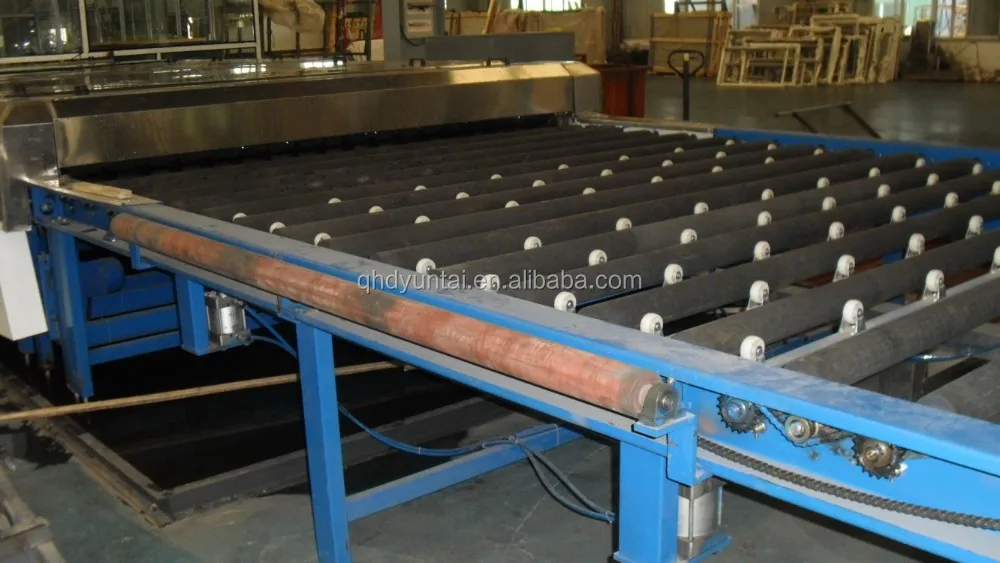

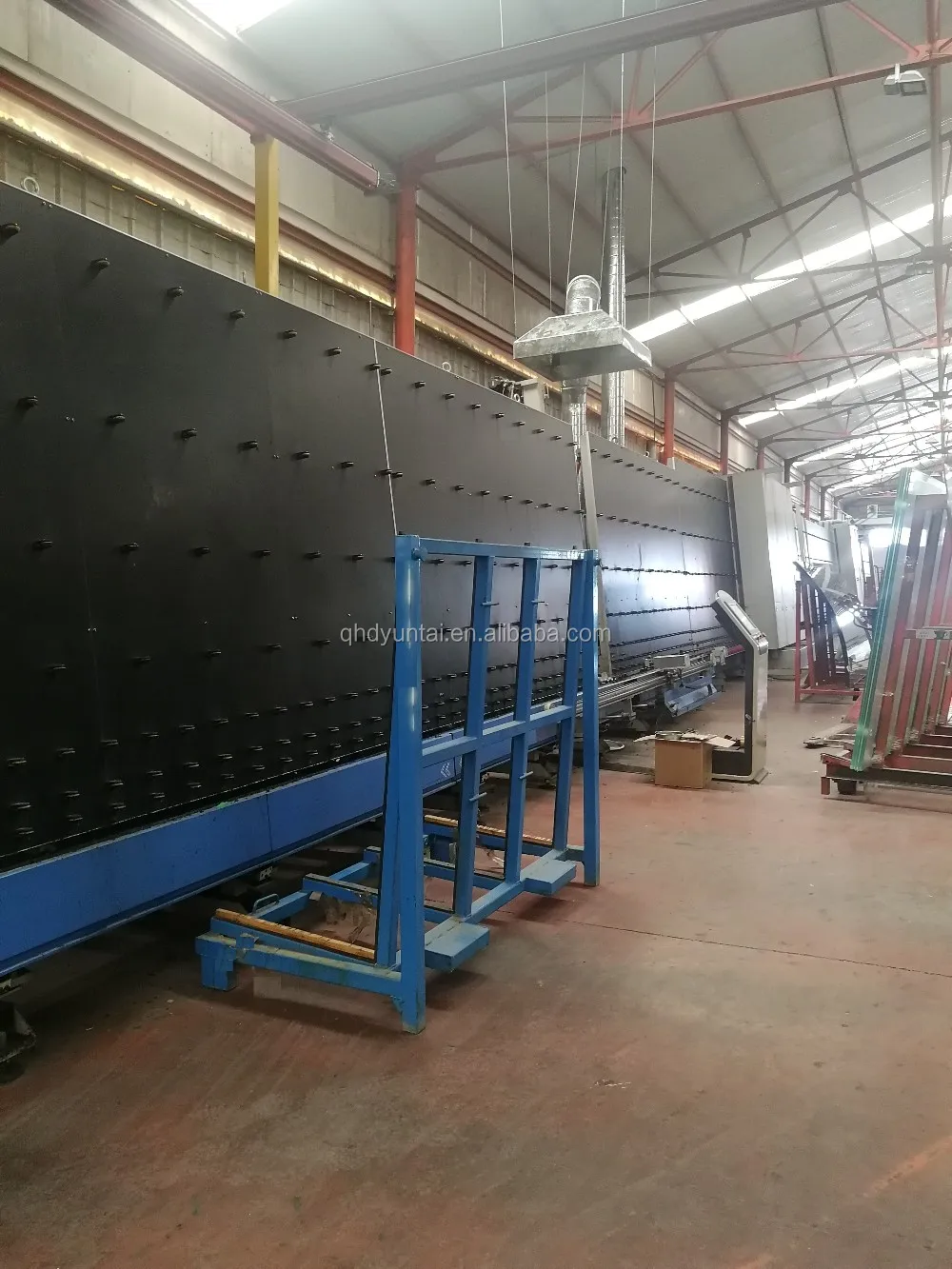

Main machine
Packing & Delivery
Packing:
5+9A+5 low-e tempered double glazed panels glass windows in China
Standard export ply-Wooden crates with steel banding for export and Paper interleaving between each two tempered glass sheet
Transport
WHY CHOOSE US
1. 12 years experiences on toughened glass manufacturing and exporting.
2.We have strong technical support and production capacity.
3.Our factory close to the sea port, transportation is very convenience.,CAN DO DOOR TO DOOR
4.Professional sales team, offering personalized and dedicated services
5.Unique designed strong wooden cases and container fixed method can solve the problems of breakage.
6.Top quality toughened glass with CE, ISO9001,CCC,SGCC,ANSIZ97.1-2015,AS/NZS 2208 Certificate.
7.OEM is feasible, and welcome to visit our factory.
8.Favorable price and reasonable payment terms;
9.We can guarantee the delivery time..
