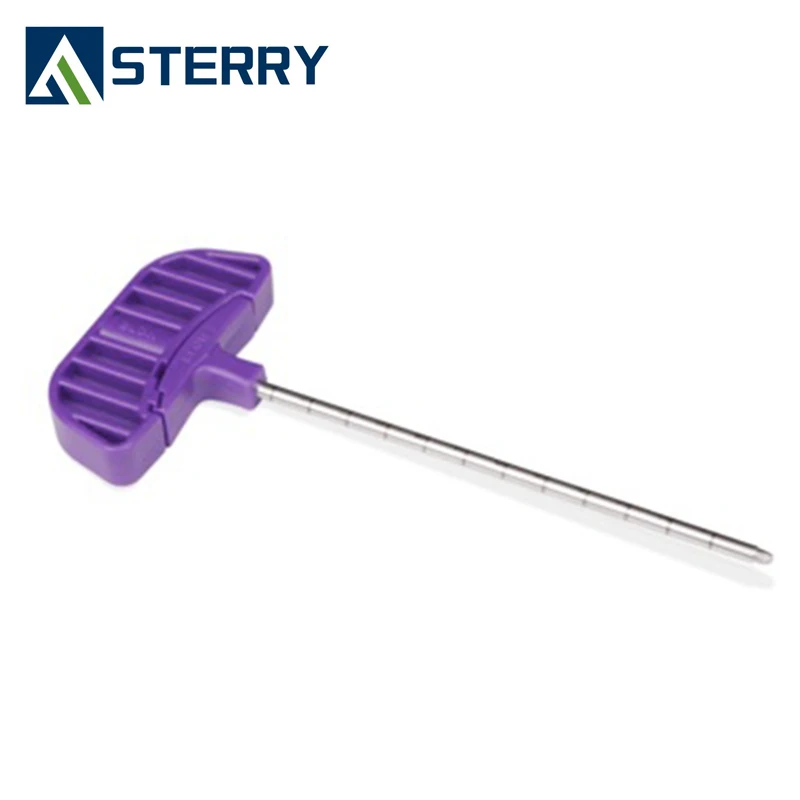

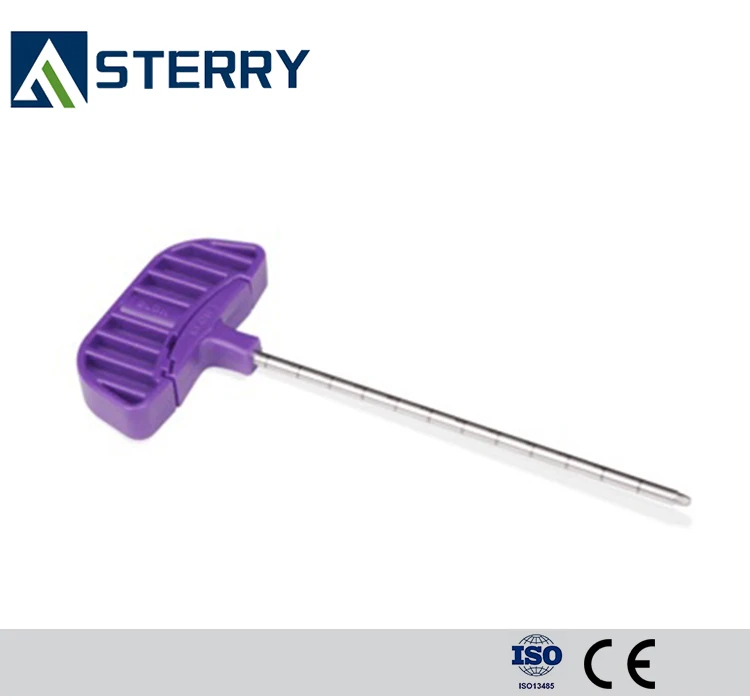

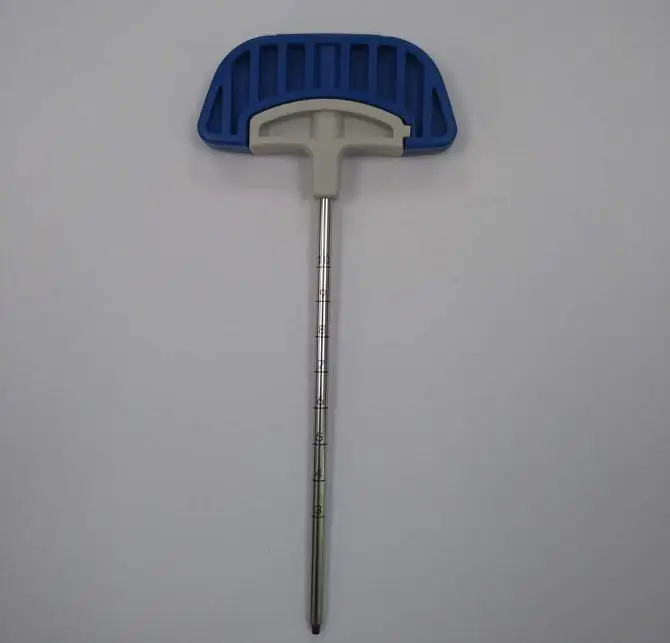

Medical dilator and cannula expandor device for kyphoplasty and spine surgery instrument and PKP

Product Overview

Description

The product is composed of the guide pin  and the expansion component (including the expansion tube and the casing).The guide pin, expansion tube and the casing are made of 06Cr19Ni10,the handle and the sheathing are made of ABS. It is sterilized by EO.It is intended used to deliver dilation balloons in Clinical vertebroplasty.For single use.

Contraindication:Metal materials allergy sufferers; Disturbances of blood coagulation sufferer.



♦Kyphoplasty Standard set:

2*puncture needle; 2*expander kit; 6*bone cement filler; 2*guide wire; 1*drill bit; 1*balloon catheter; 1*balloon inflator pump

No	P.N	Description	Qty
1	T ZT/Ⅰ-3.5	bone cement filler	6
2	T C/BP-Ⅱ-3-Φ3.0	puncture needle	2

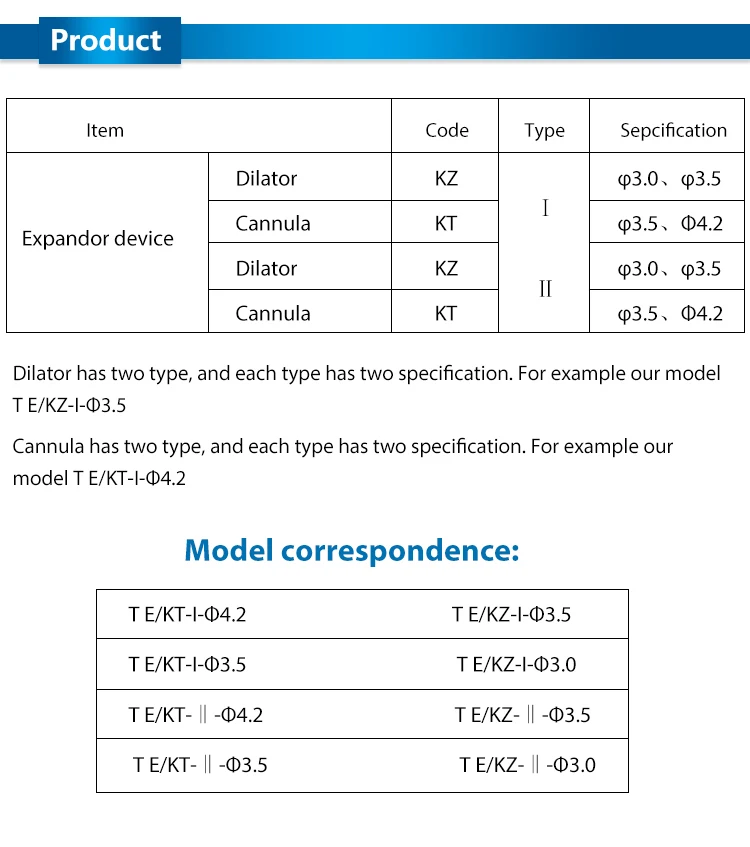

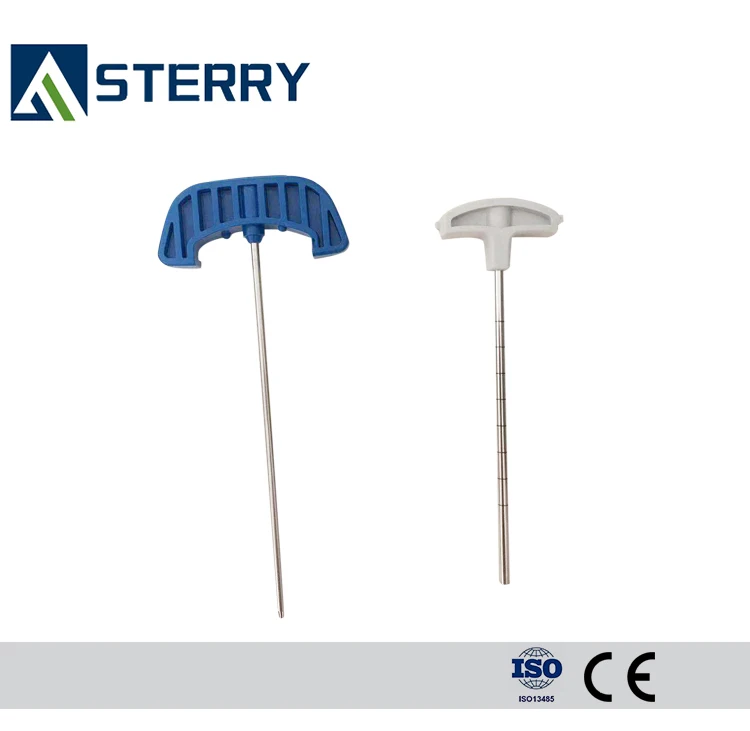

3	T E/KZ-Ⅱ-Φ3.5 (dilator)                      T E/KT-Ⅱ-Φ4.2                  (cannula)	expander kit	2
4	T E/DZ-Ⅰ-M-Φ1.5	guide wire	2
5	T HZ/Ⅰ-Φ3.5	drill bit	1
6	T /CEN-B-15-S	balloon catheter	1
7	TY/JYQ-Ⅰ-20	ballon inflator pump	1



♦Kyphoplasty Simple set:

1*puncture needle; 1*expander kit; 4*bone cement filler; 1*guide wire; 1*drill bit; 1*balloon catheter; 1*balloon inflator pump
