Material: Nylon PA6
Seals: NBR
Protection Grade: IP68(with sealing)
Environment Temperature: from -40°C to 100°C (120°C,short term).
Product Color: Grey RAL7035 Black RAL9005 Please inquire if the other color requested.

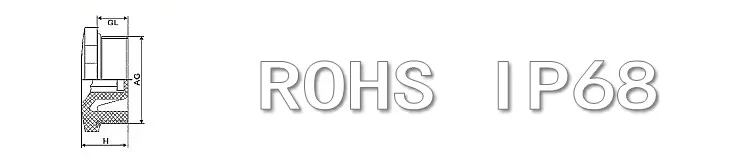

| Series | Thread | ![]() | GL | H | ![]() | AG | Panel Mounting Hole | Grey | Black | Qty/bag |
| mm | mm | mm | mm | mm | mm | |||||
| M | M12x1.5 | 6 | 8.5 | 13 | 15 | 12 | 12-12.3 | M1260PA | M1261PA | 100 |
| M16x1.5 | 8 | 8.5 | 13 | 19 | 16 | 16-16.3 | M1660PA | M1661PA | 100 | |
| M18x1.5 | 8 | 9 | 14.5 | 24 | 18 | 18-18.3 | M1860PA | M1861PA | 100 | |
| M20x1.6 | 8 | 9 | 14.5 | 24 | 20 | 20-20.3 | M2060PA | M2061PA | 100 | |
| M22x1.6 | 8 | 11 | 16 | 28 | 22 | 22-22.3 | M2260PA | M2261PA | 100 | |
| M25x1.5 | 8 | 12 | 17 | 28 | 25 | 25-25.3 | M2560PA | M2561PA | 100 | |
| M32x1.5 | 8 | 12 | 18 | 36 | 32 | 32-32.3 | M3260PA | M3261PA | 50 | |
| M40x1.6 | 8 | 14 | 18 | 46 | 40 | 40-40.3 | M4060PA | M4061PA | 20 | |
| M50x1.7 | 8 | 14 | 20 | 55 | 50 | 50-50.3 | M5060PA | M5061PA | 20 | |
| M63x1.8 | 8 | 14 | 21 | 70 | 63 | 63-63.3 | M6360PA | M6361PA | 20 | |
| NPT | NPT3/8 | 13 | 17 | 24 | 17 | 8 | 17-17.3 | N3860PA | N3861PA | 100 |
| NPT1/2 | 13 | 17 | 24 | 21.2 | 8 | 21.2-21.5 | N1260PA | N1261PA | 100 | |
| NPT3/4 | 15 | 20 | 28 | 26.2 | 8 | 26.2-26.5 | N3460PA | N3461PA | 100 | |
| NPT1 | 15 | 21 | 36 | 33.3 | 8 | 33.3-33.6 | N1060PA | N1061PA | 50 | |
| NPT1 1/4 | 15 | 19 | 46 | 42 | 8 | 42-42.3 | N1560PA | N1561PA | 50 | |
| NPT1 1/2 | 15 | 21 | 55 | 48 | 8 | 48-48.3 | N1360PA | N1361PA | 20 |




1.Q:Do you have your own factory?

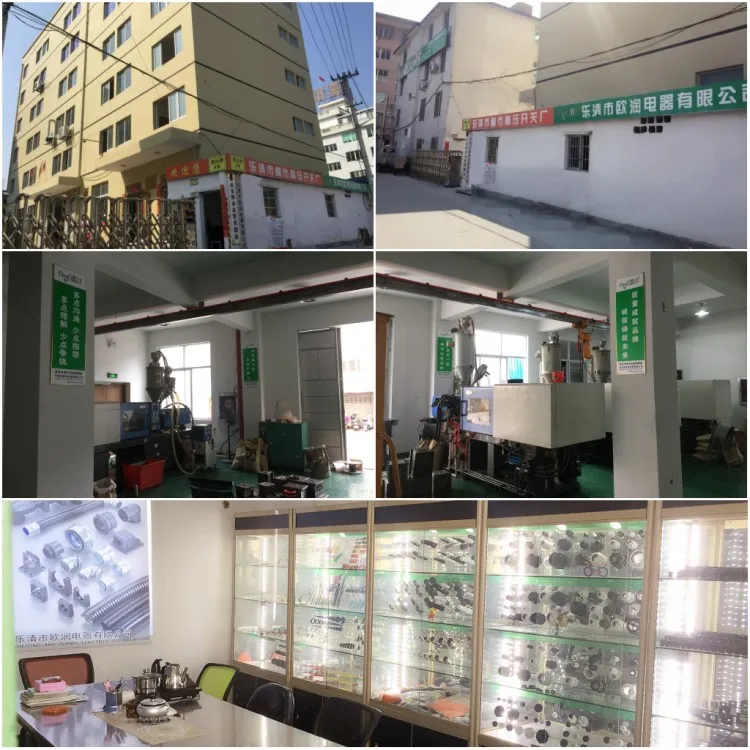

A:Yes,H-V-S Company is manufacturer in china for over 30 years, located in Yueqing City, capital of china electric.
2:Q: What is the Relation about OUORO & Yueqing City Liushi High Voltage Switch Factory(H-V-S)?
A: All wiring accessories been made by H-V-S, will be sell by OUORO. H-V-S & OUORO in the same Building. Their chairmans relation is father and son. The OUORO chairman is largest shareholder for H-V-S company.
3.Q:How can I visit your factory?
A:Before visit, please let us know your trip in advance. We will show you the way, or arrange time to pick up you if possible.
4.Q:Do you provide free sample?
A:Yes, we always do, but first time you'd better pay the delivery charge.
5.Q:Could you print our company logo on nameplate and package?
A:Yes,we can do that.
6.Q:Do you accept custom design on size?
A:Yes, if the size is reasonable.
7.Q:What's your delivery time?
A:H-V-S is factory, so we can efficiently control the production time.
