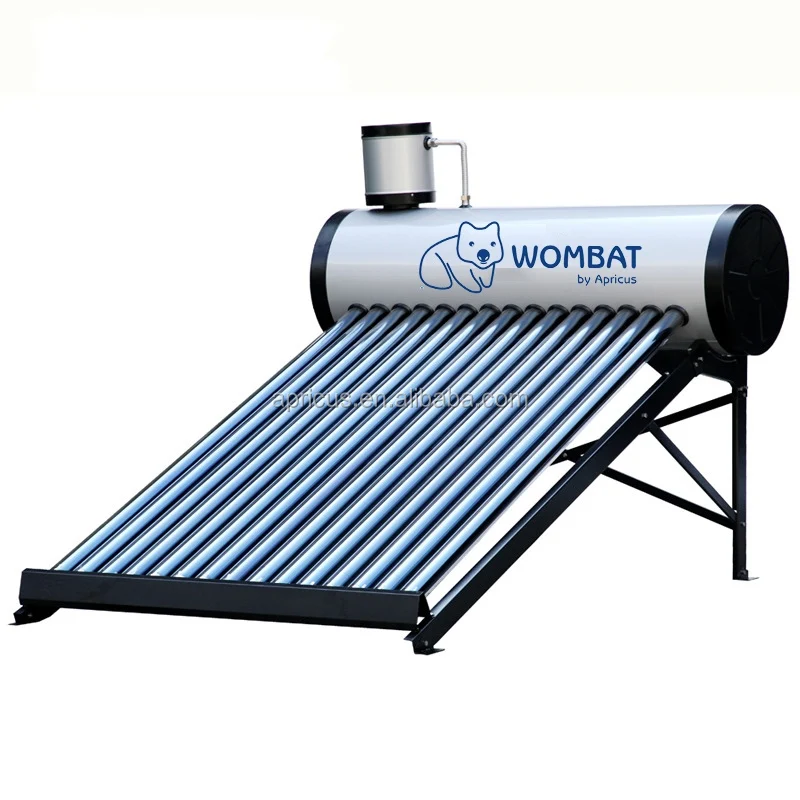

Compact Non Pressure Vacuum Tube Solar Water Heater 200L

Product Overview

Description

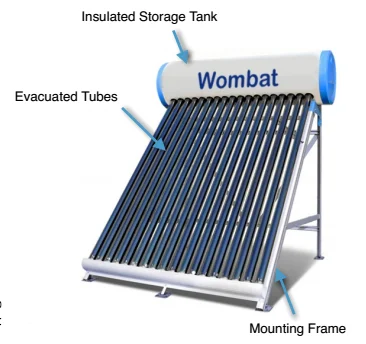

                                            Wombat Evacuated Tube Non-pressurized                        Thermosiphon Solar System



Feature

• Economical solar water heating
• Suitable for climates that don't experience freezing conditions
• Simple integrated product design does not require circulation pump or controller
• Mature technology with reliable operation
• High efficiency solar conversion to heat
• Easy to install & low maintence



Technical Specifications

• Inner Tank: 0.41mm SUS304-2B stainless steel   (optional material: SUS316L)
• Outer Tank: 0.31mm Painted galvanised steel (optional material: SUS304-2B)
• Mounting Frame: Painted galvanised steel (optional material: Stainless Steel)
• Mounting Frame Angles: 20°, 30°,°40°, 45°
• Insulation: 55mm Polyurethane
• Vacuum Tube Material: Borosilicate glass 3.3.
• Absorber Coating: AL-SS-CU selective coating
• Seal Material: UV stabilized HTV silicone rubber
• Evacuated Tube Impact Strength: >25mm diameter hail

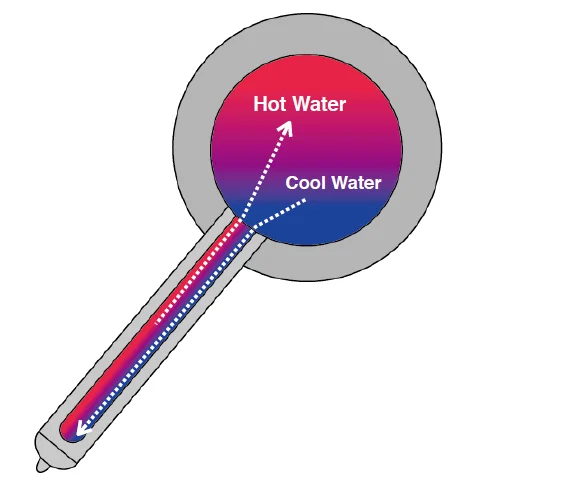

System Operation
The solar heating occurs through a process called thermosiphoning, which allows the solar collector to heat the storage
tank without the need for a circulation pump.
The basic operation is as follows:
  • Cool water from the bottom of the storage tank falls to the bottom of the evacuated tube.
  • As the water heats up it rises back up into the tank, gradually heating the tank throughout the day.

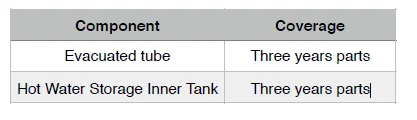

WARRANTY PERIOD
The “Effective Date” of warranty coverage is the installation date as recorded on the installation record form, purchase invoice date, or, if neither are available, the date of manufacture plus sixty (60) days
