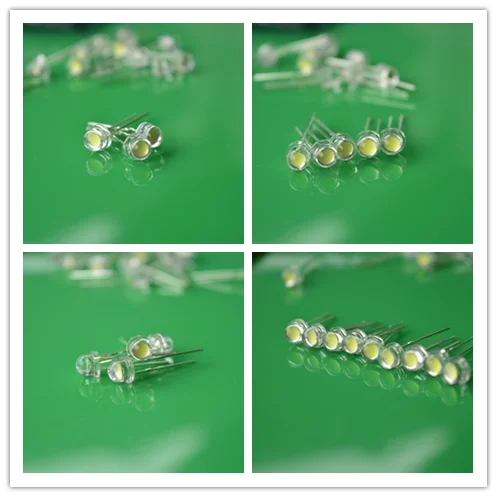

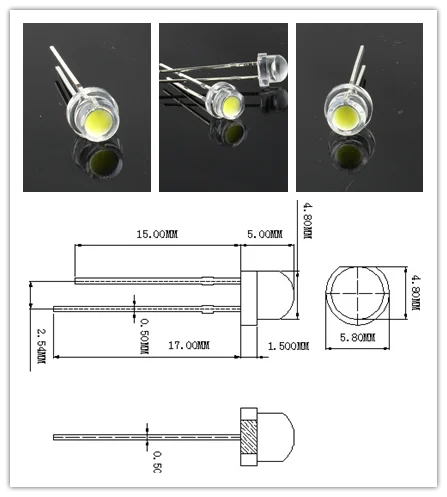

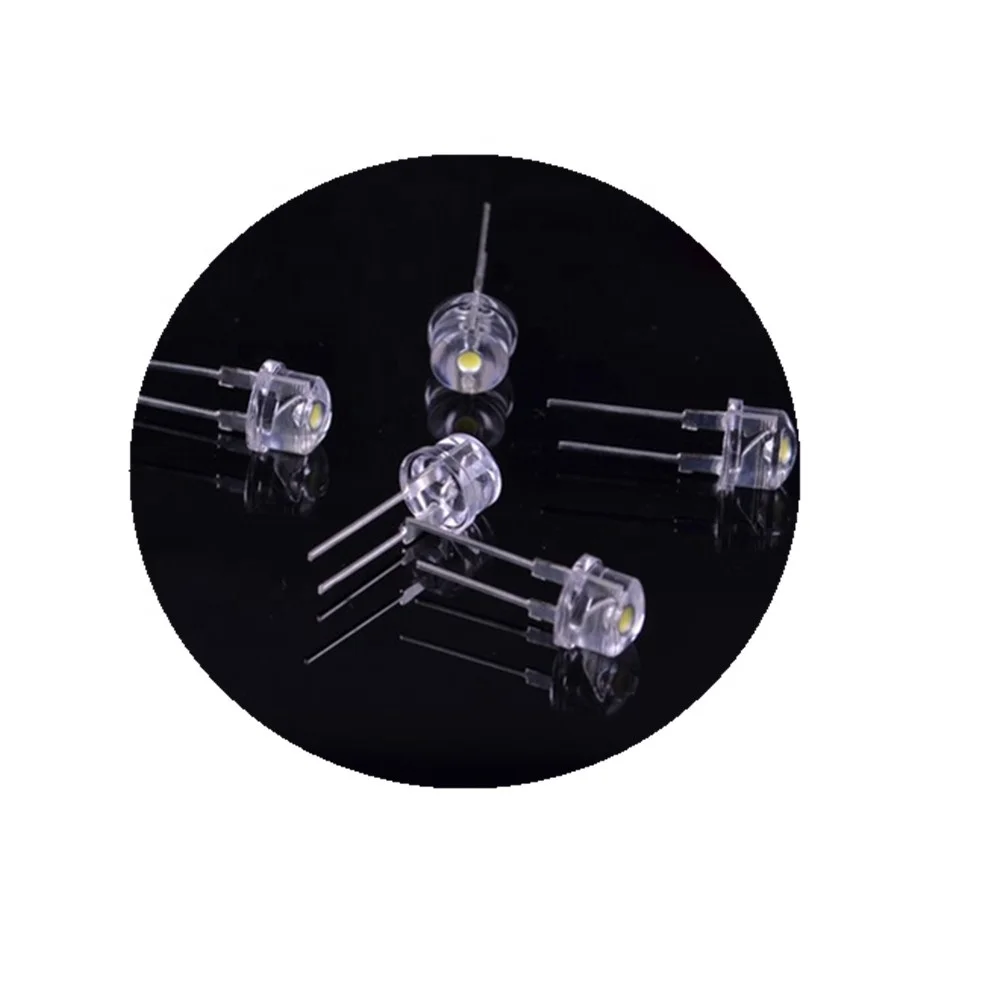

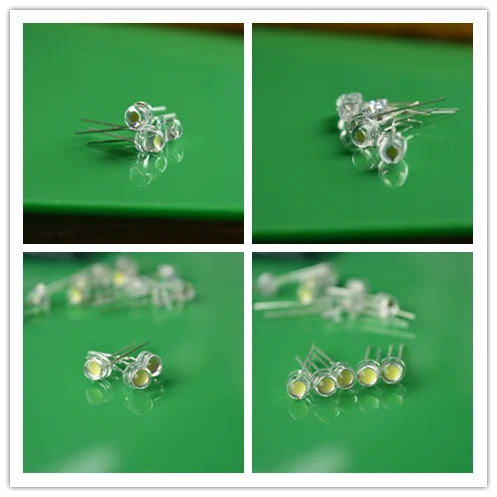

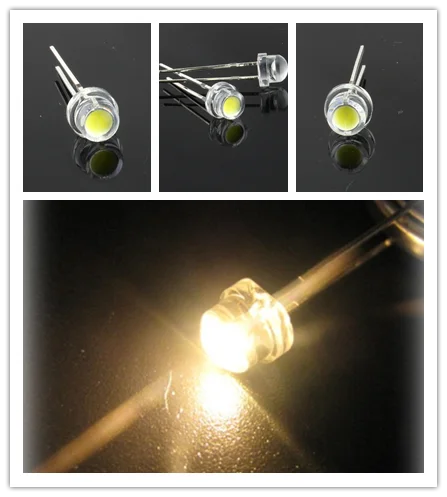

395nm 400nm 405nm 5mm UV Straw hat LED 120 140 degree for curing ink drying
- Category: Lamp LED >>>
- Supplier: Wuxi TDS Lighting Co. Ltd.
Share on (60824050742):
Product Overview
Description
Product Description
| Part Number | Chip Material | λD(nm) CCT Typ. | POWER | lm | IV(mcd)@IF=20mA | VF(V)@IF=20mA | Viewing Angle 2θ½ | |||
| Min. | Max. | Min. | Max. | |||||||
| TDS-5013LW4CN | InGaN | 2700-20000K | 0.06W | 5-6lm | 2000 | 2200 | 3.0 | 3.4 | 120-140 | |
| TDS-5013NW4CN | InGaN | 2700-20000K | 0.06W | 6-7lm | 2400 | 2600 | 3.0 | 3.4 | 120-140 | |
| TDS-5013PW4CN | InGaN | 2700-20000K | 0.06W | 7-8lm | 2800 | 3000 | 3.0 | 3.4 | 120-140 | |
| TDS-5013LW4CN | InGaN | 2700-20000K | 0.06W | 8-9lm | 3200 | 3500 | 3.0 | 3.4 | 120-140 | |
| TDS-5013HR2CN | InGaN | 620-630NM | 0.06W | 4-5lm | 1400 | 1600 | 1.9 | 2.3 | 120-140 | |
| TDS-5013AY3CN | InGaN | 580-595NM | 0.06W | 5-6lm | 2000 | 3000 | 1.9 | 2.3 | 120-140 | |
| TDS-5013RB2CN | InGaN | 450-465NM | 0.06W | 3-4lm | 1200 | 1400 | 3.0 | 4.0 | 120-140 | |
| TDS-5013BG5CN | InGaN | 515-530NM | 0.06W | 5-6lm | 2000 | 3000 | 3.0 | 4.0 | 120-140 | |
The Following is the Data of the 0.2W 5mm Strawhat LED.(60mA 3-3.2V With Bigger Reflector)
| Part Number | Chip Material | λD(nm) CCT Typ. | POWER | lm | IV(mcd)@IF=60mA | VF(V)@IF=20mA | Viewing Angle 2θ½ | |||
| Min. | Max. | Min. | Max. | |||||||
| TDS-5013NW2CN | InGaN | 2000-15000K | 0.2W | 19-22LM | 6000 | 8000 | 3.0 | 3.4 | 140-160 | |
| TDS-5013NW3CN | InGaN | 2000-15000K | 0.2W | 25-30LM | 6000 | 8000 | 3.0 | 3.4 | 140-160 | |
