Tobee Effluent Handling
$12,600
High quality hydraulic hand pump double acting cylinder
- Category: >>>
- Supplier: Dezhou Taigao Import & Export Co. Ltd.
Share on (60824068132):
Product Overview
Description
High quality hydraulic hand pump double acting cylinder
Product Description
Rated pressure:
high pressure :63Mpa
low pressure :1Mpa
Rated displacement:
high pressure :2.3ML/second
low pressure :12.5ML/second
Tank capacity :3L
weight : 10kg
Exit : Single outlet or double outlet
Application
It can provide power for the cutting tool, the hydraulic compressor, punching machine.and other construction machinery, which is operated in the wild field in electric power,railway, rescue, construction and other industries.
Product Description
The features of manual pressure hydraulic hand oil ram pump
1.Compact design and lightweight
2.Handle lock for easy carrying
3.Lower handle effort minimizes operator fatigue
4.Internal pressure relief valve for overload protection
5.Large oil capacities to power a wide variety of cylinders and tools.
Parameters of conventional pumping station:
Product details

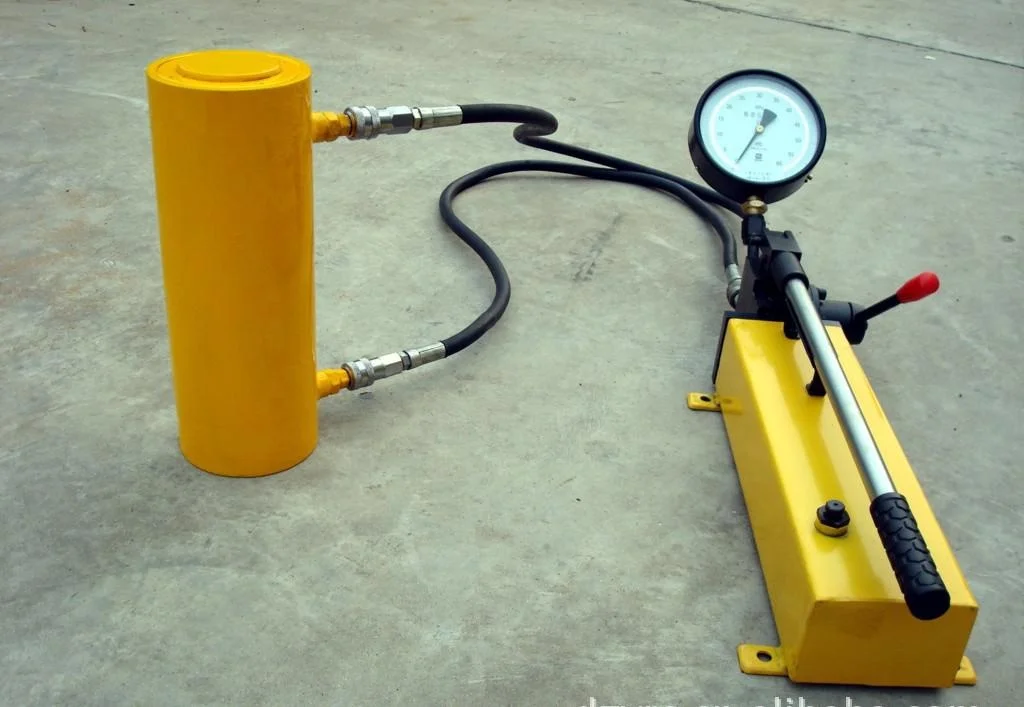

The hydraulic pump usually are used with the hydraulic cylinders.If you need it, pls tell me,will suggest you the best model.
Principle:
The function of a manual hydraulic pump is to convert the mechanical energy of a power engine (such as a motor and an internal combustion engine) into the pressure energy of a liquid.
Working principle:
The cam is rotated by the motor. When the cam pushes the plunger upward, the seal volume formed by the plunger and cylinder block decreases, and the oil is extruded from the seal volume. When the cam rotates to the descending part of the curve, the spring forces the plunger down to form a certain vacuum. The oil in the tank enters the sealing volume under the action of atmospheric pressure. The cam causes the plunger to rise and fall continuously, the seal volume decreases and increases periodically, and the pump continuously absorbs and drains oil.
Quality Control:
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
hydraulic hand pump is designed for portability, durability and easy-of-use. A large selection of hydraulic hand pumps makes it easy to find the most effective compact high pressure pump. The manual hand is also equipped with numerous safety features to provide dependable performance, while maintaining worker safety.
Company Information
Dezhou Taigao Import and Export Co., Ltd. is located in Dezhou City, Shandong Province, China. Dezhou Taigao import and export Co., Ltd. and Dezhou Degao hydraulic machinery Co., Ltd. belong to the same company, is a hydraulic products manufacturing, sales and import and export of industrial and trade company.
The company has machining center, CNC lathe, grinder, boring machine, rocker drill, pipe locking machine and other processing equipments. It mainly produces ultra-high pressure hydraulic products, including hollow hydraulic cylinder, ultra-thin hydraulic cylinder, single action cylinder, super-large tonnage double-action hydraulic cylinder, valve base, manual pump, electric pump, Hydraulic cracking tool, split stone rod, portable rebar extruder, portable rebar bending machine, portable rebar straightening machine and various hydraulic pipe locks. The company also provides sales of electromagnetic valve, plunger pump, cargo lifters, hydraulic pressure packing-machine, rescue equipment and some others.
Dezhou Taigao import and export tries hard to create a professional sales company which has rich products and quality assurance to become one-stop service of purchase and wholesale of China's hydraulic accessories and equipments.
We have other hydraulic pumping stations
Accessories on the pump station
Our Services
1. Any inquires will be replied within 24 hours
2. We can provide professional manufacture and have the R&D department
3. After-sale service
Ø Overseas third-party support available
Ø Before delivery the products are strictly inspected
Ø We also can do alibaba trade assurance order
4. All of our products have 12 month warranty
5. The goods will be delivered within 7-15 days after receive payment and packaged by wooden box
FAQ
Q1: How to contact sales?
A1: Please call: +8613791340627for pre-sales or click the contact find our website and email address.
Q2: How can I buy products in my country?
A2: Please tell me your order list,i will make exact quotation for you.
Q3: How long does it take to get the product If I place an order?
A3: after receive payment,we will deliver in 7-10 days.
Q4: How to make payment?
A4: T/T company account,western union,money gram or alibaba trade assurance order.
Q5: There are many kinds of hydraulic tools and pump,i don't know which one to choose
A5: Wecome to consult my online trademanager,i will suggest you the fitted one,or email me and whatsapp me.i will reply you ASAP
We can customize various functional hydraulic pump stations for you.
