China Supplier Nice Quality Cross Roller Bearing Linear Guide Rails
- Category: >>>
- Supplier: Jiangsu Diye Instrument Technology Co. Ltd.
Share on (60824078926):
Product Overview
Description

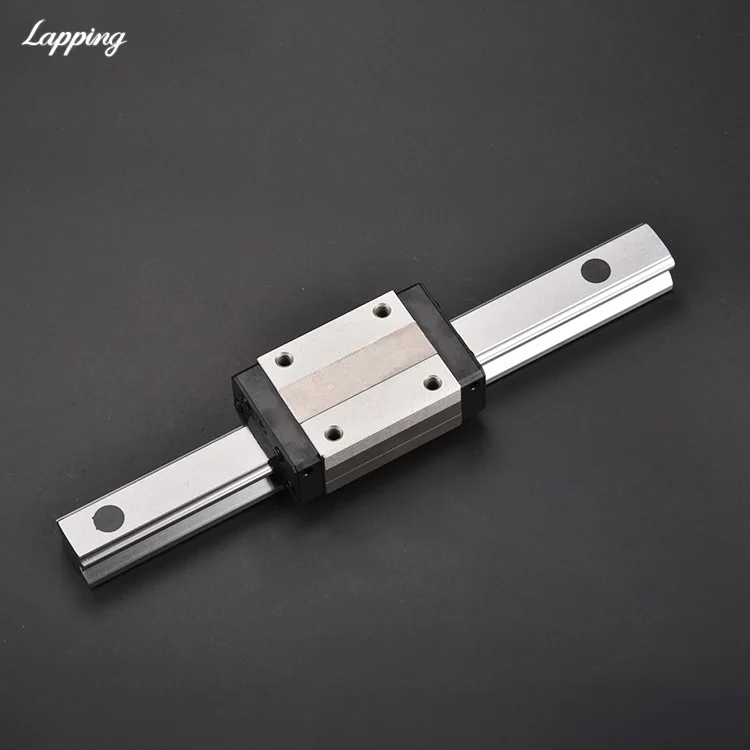

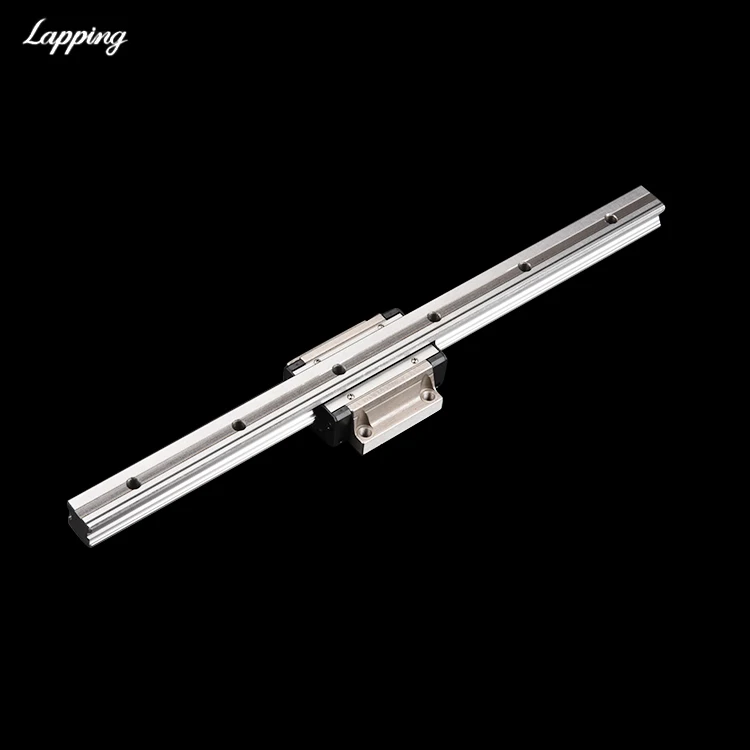

China Supplier Nice Quality Cross Roller Bearing Linear Guide Rails
Product Description
Name | Slider guide |
Type | Automatic equipment high speed transmission device |
Precision grade | N, H, P |
Combination | At least 100mm linear rail + 1 piece slide block |
Material | Heat treated steel |
Guide Size | Width: fixed, between 15-30mm Length: up to 4 meters long, longer stitching |
Colour | Silver or black |
Shape | Rectangle |
Certification | ISO9001 |
Effect | 1. Parallelism and high precision 2. The slider and the guide rail are interchangeable, saving cost 3. High rigidity in all directions 4. Reduce friction |
Application area | Applied to sliding friction guides |
Sample | No |
Delivery period | 7 days |
Packing | 1.PE bag, shockproof bubble bag, export standard carton, wooden box 2. According to customer's special requirements |
Product Details

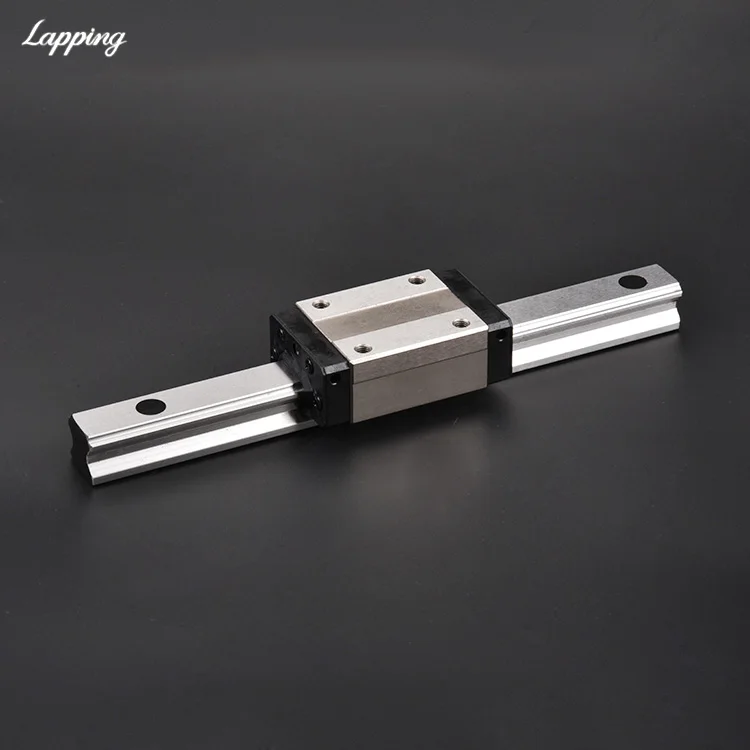

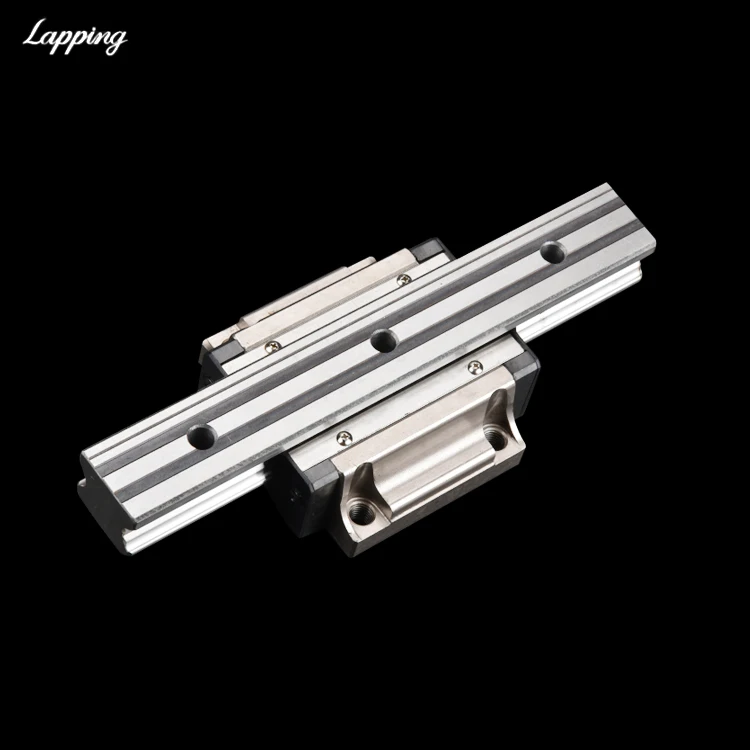

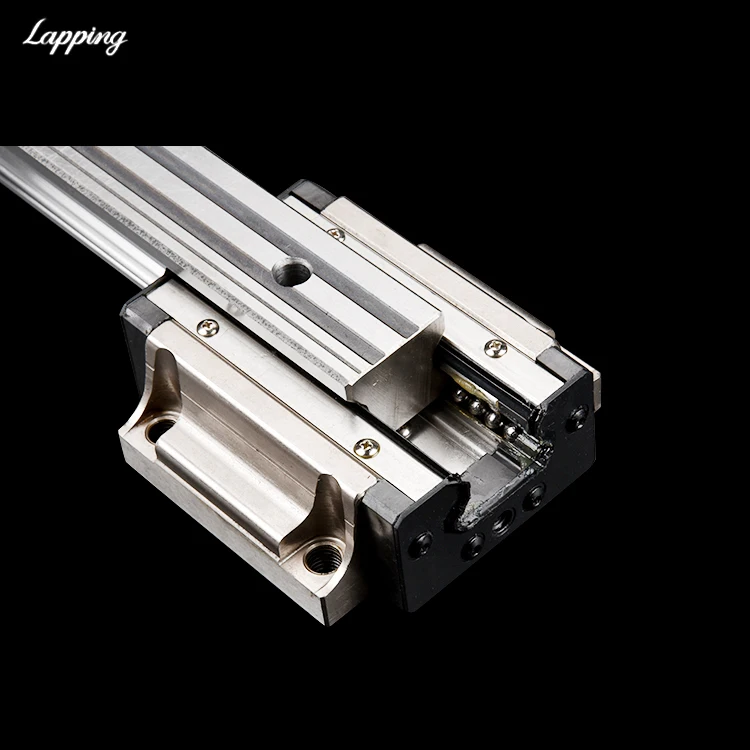

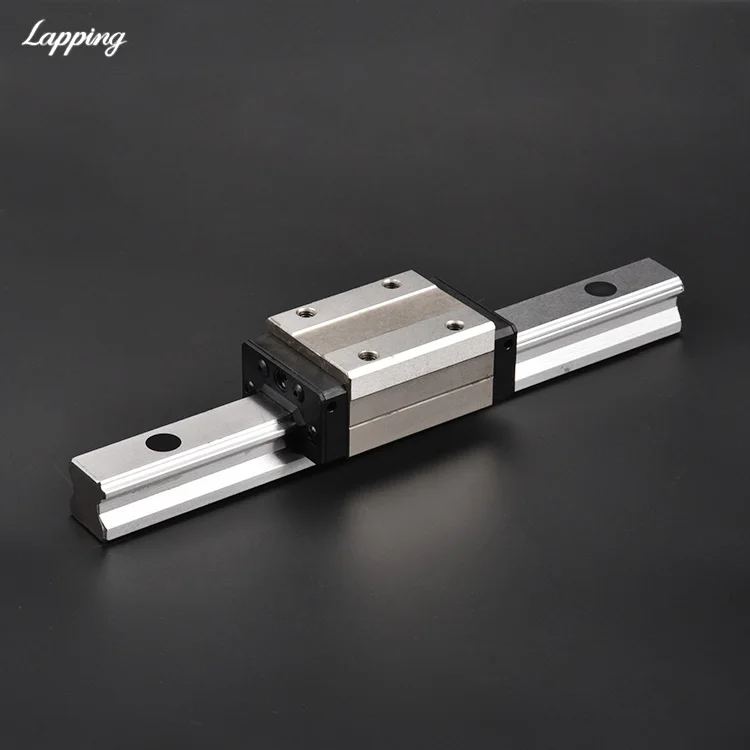

Difference between models

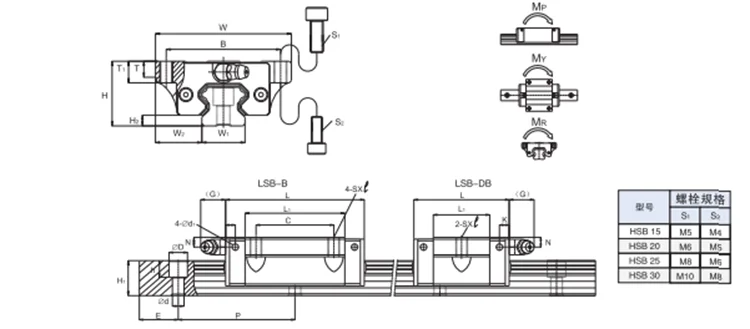

1. Type A has a longer threaded hole than Type B; Type B can be assembled not only from the top of the slider, but also from the bottom of the slider;
2. Type B is compared with C type, the hole of type C is a through hole, and the hole of type B is a threaded hole;

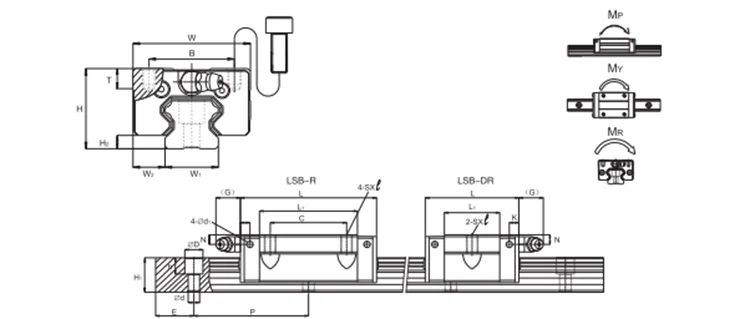

3. The R type has a smaller width than the A/B/C type;
4. Compared with A/B/C/R type, the LA/LB/LC/LR type has the same section size, the length of the slider is increased, and the number of load steel balls is increased to improve the overall load capacity.
Related Products
Specifications

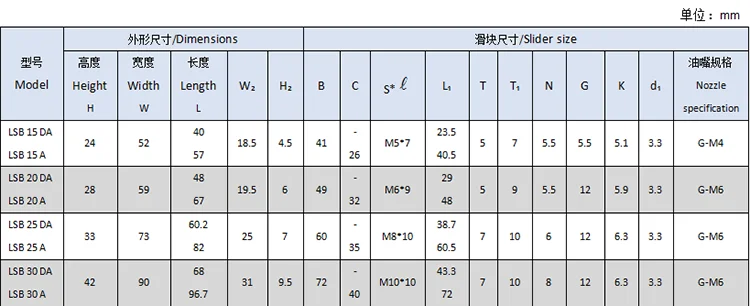

LSB-A/B/C Series
Model
| Rail size | Basic load rating | Allowable static moment | Weight | ||||||||||
Height H
| Width W
| Pitch P
| E std
| D*h*d
| Dynamic load C KN
| Static load C0 KN
| MP KN*m | MY KN*m | MR KN*m
| Slider KG
| Guide KG/m
| |||
Single * | Double* | Single * | Double* | |||||||||||
LSB 15 DA LSB 15 A | 15 | 12.5 | 60 | 20 | 6*4.5*3.5 7.5*5.3*4.5 | 6.7 10.0 | 9.6 16.9 | 0.04 0.10 | 0.26 0.61 | 0.04 0.10 | 0.26 0.61 | 0.07 0.13 | 0.12 0.21 | 1.2 |
LSB 20 DA LSB 20 A | 20 | 15 | 60 | 20 | 9.5*8.5*6 | 9.7 13.9 | 14.2 23.6 | 0.07 0.18 | 0.44 0.97 | 0.07 0.18 | 0.44 0.97 | 0.14 0.24 | 0.20 0.34 | 2 |
LSB 25 DA LSB 25 A | 23 | 18 | 60 | 20 | 11*9*7 | 15.6 22.3 | 22.1 36.9 | 0.13 0.35 | 0.91 1.87 | 0.13 0.35 | 0.91 1.87 | 0.26 0.43 | 0.39 0.60 | 3 |
LSB 30 DA LSB 30 A | 28 | 23 | 80 | 20 | 11*9*7 | 23.1 32.9 | 31.8 53.1 | 0.23 0.60 | 1.39 3.15 | 0.23 0.60 | 1.39 3.15 | 0.45 0.74 | 0.65 1.08 | 4.4 |

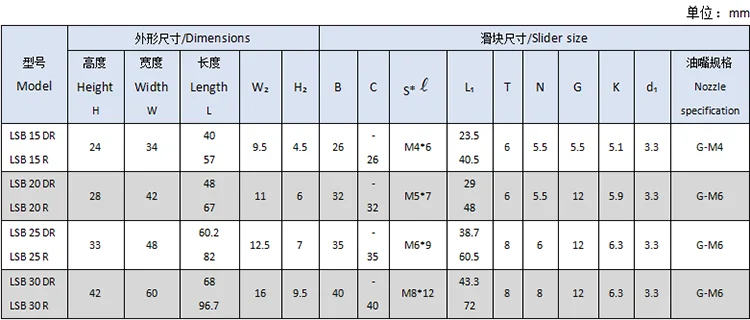

LSB-R Series
Model
| Rail size | Basic load rating | Allowable static moment | Weight | ||||||||||
Height H
| Width W
| Pitch P
| E std
| D*h*d
| Dynamic load C KN
| Static load C0 KN
| MP KN*m | MY KN*m | MR KN*m
| Slider KG
| Guide KG/m
| |||
Single * | Double* | Single * | Double* | |||||||||||
LSB 15 DR LSB 15 R | 15 | 12.5 | 60 | 20 | 6*4.5*3.5 7.5*5.3*4.5 | 6.7 10.0 | 9.6 16.9 | 0.04 0.10 | 0.26 0.61 | 0.04 0.10 | 0.26 0.61 | 0.07 0.13 | 0.09 0.16 | 1.2 |
LSB 20 DR LSB 20 R | 20 | 15 | 60 | 20 | 9.5*8.5*6 | 9.7 13.9 | 14.2 23.6 | 0.07 0.18 | 0.44 0.97 | 0.07 0.18 | 0.44 0.97 | 0.14 0.24 | 0.16 0.26 | 2 |
LSB 25 DR LSB 25 R | 23 | 18 | 60 | 20 | 11*9*7 | 15.6 22.3 | 22.1 36.9 | 0.13 0.35 | 0.91 1.87 | 0.13 0.35 | 0.91 1.87 | 0.26 0.43 | 0.29 0.45 | 3 |
LSB 30 DR LSB 30 R | 28 | 23 | 80 | 20 | 11*9*7 | 23.1 32.9 | 31.8 53.1 | 0.23 0.60 | 1.39 3.15 | 0.23 0.60 | 1.39 3.15 | 0.45 0.74 | 0.52 0.82 | 4.4 |
Product Features
Advantage
1. Adapt to various work too assembled
2. Designed with L-shaped or extended type
3. Self-aligning ability
4. The slider and the guide rail are interchangeable
5. High rigidity in all directions
6. The product is easy to install, easy to operate and fast to transport.
7. High-precision machining: from material optimization to fully automated equipment
8. Quality Assurance: The most efficient laser quality inspection instrument and self-developed slider simulation operation instrument for accuracy inspection
9. Technological innovation: The product has applied for six invention patents and used 27 patents.
Product Applications
Use caution
1. Prevent rust: Keep your hands dry and coated with high quality mineral oil during use. Pay special attention to rust prevention during the rainy season and summer.
2. The installation tool should be suitable: avoid using items such as cloth or short fibers.
3. Keep the environment clean
4. Installation should be carefully
