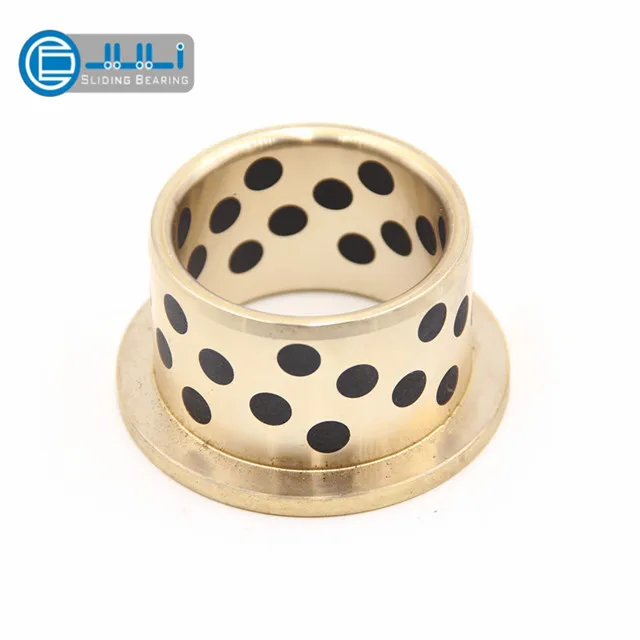

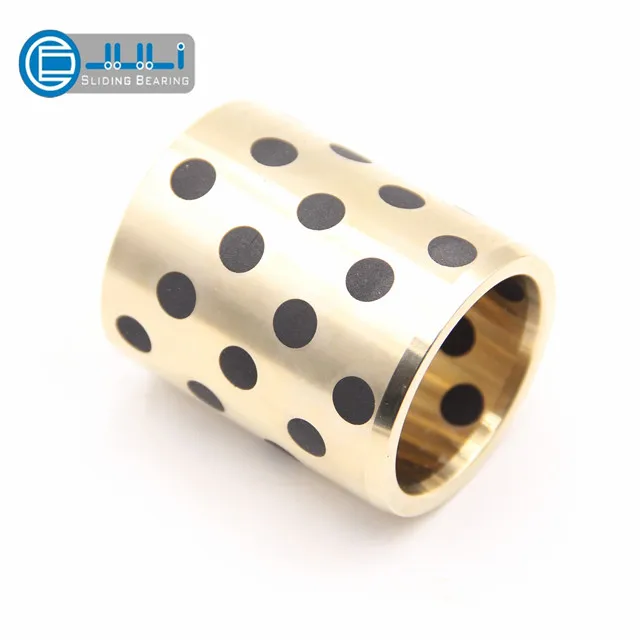

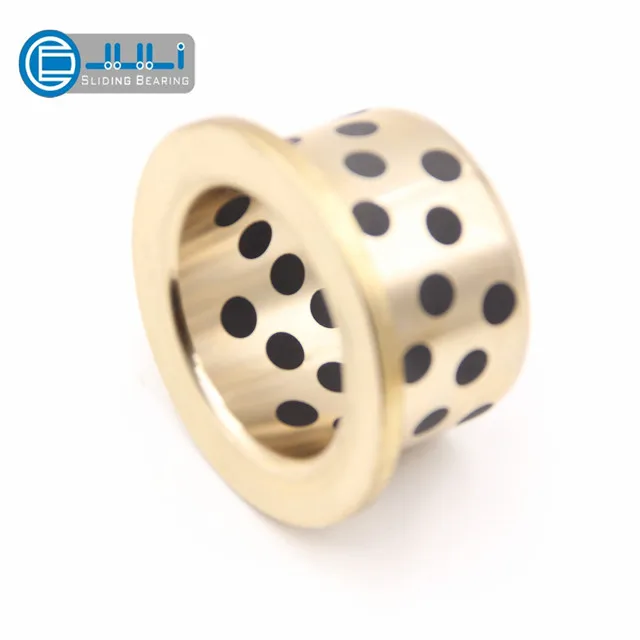

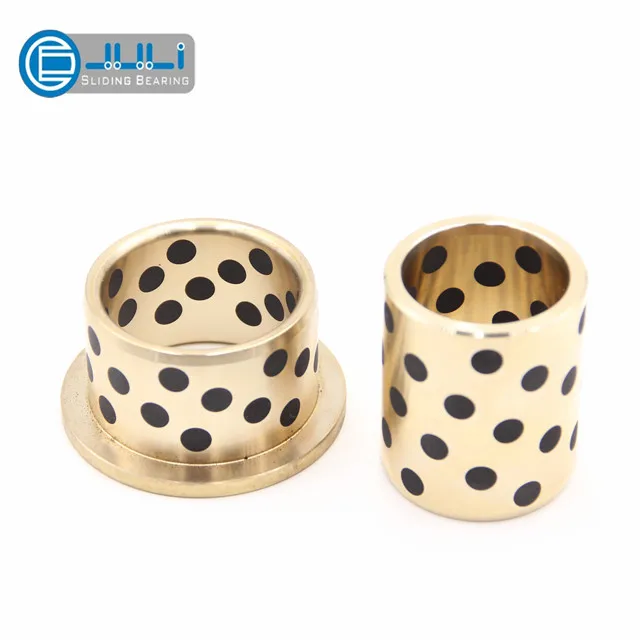

Electric Motor Bronze Bushing

   JDB solid -lubricant-inlaid bearing is based on the high force brass and inlaid solid lubricant regularly into the body .It can work long time on no-oil-lubricant situation, and it has good corrision resistance , so it's mostly used on the places of progressive rotation and no oil-layer. Also it performs well in high-load and low-speed situation. It also has good wear-resistance ability and low friction factor, sso it's wildly used on metal factory, metallurgical , rolling mill ,automobile industry, construction machines, precision tooling,etc

***Solid sliding bearing
***DIN 1850 / ISO 4379
***maintenance-free
***Different bronze alloys available on request
***Water-resistant solid lubrication available on request

Max Move Load Capacity                                          100 N/mm2

Max Sliding Speed                                                     dry 0.3 m/s   /  oil 1 m/s

Max PV Value Limit                                                    3.25 N/mm ·m/s

Density                                                                       8 g/cm3

Tensile Strength                                                         >750 N/mm2

Elongation                                                                  >12 %

Hardness                                                                   210 HB

Working Temperature                                                - 40 ~ +200 ℃

 Alternative materials on request :CuZn25Al5Mn4Fe3,CuSn5Pb5Zn5,CuSn12, etc

Q: Are you trading company or manufacturer ?

A: We are  manufacturer.

Q: How long is your delivery time?

A: Generally it is 2-5 days if the goods are in stock. or it is 7-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra?

A: Yes, we could offer the sample  but do not pay the cost .

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. We also accept payment by L/C,D/A,D/P,and so on.
If you have another question, pls feel free to contact us as below:
