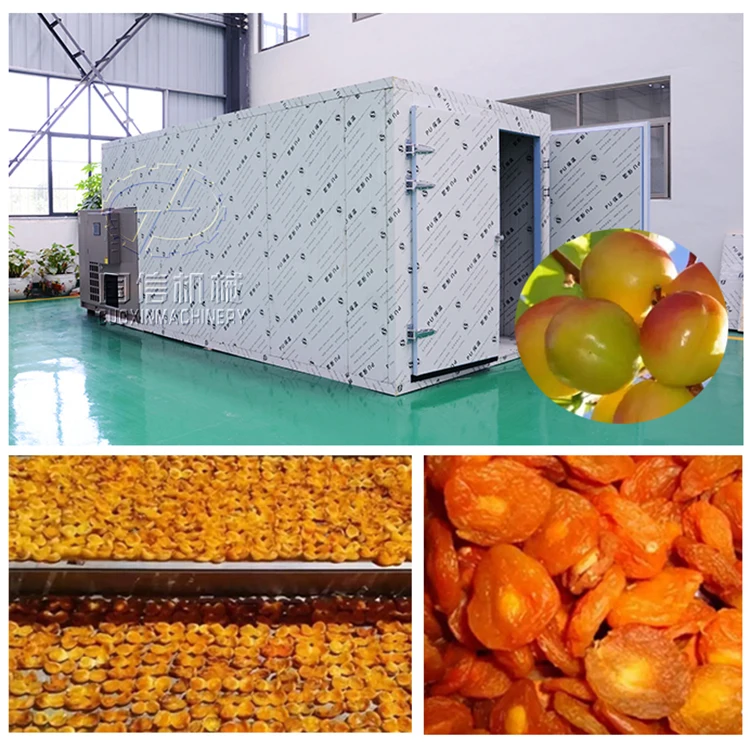

Saving power commercial used vegetable drying machine / onion / ginger /garlic dehydrator
Product Description
Guoxin food dehydrator adopts medium and low temperature for drying, It is suitable for all materials that drying temperature lower than 80℃.such as fruits, dehydrated vegetables, Cereals, seafood, meat products, spices, wood, incense and so on.
Applicable scope of food dehydrator
Guoxin Heat pump drying machine is suitable for drying every surface of raw material,such as dehydrated vegetable,Petal,grain,herbal industry,spice and so on.
After drying,the original color, shape, and nutrient content can be retained completely by the dried material.

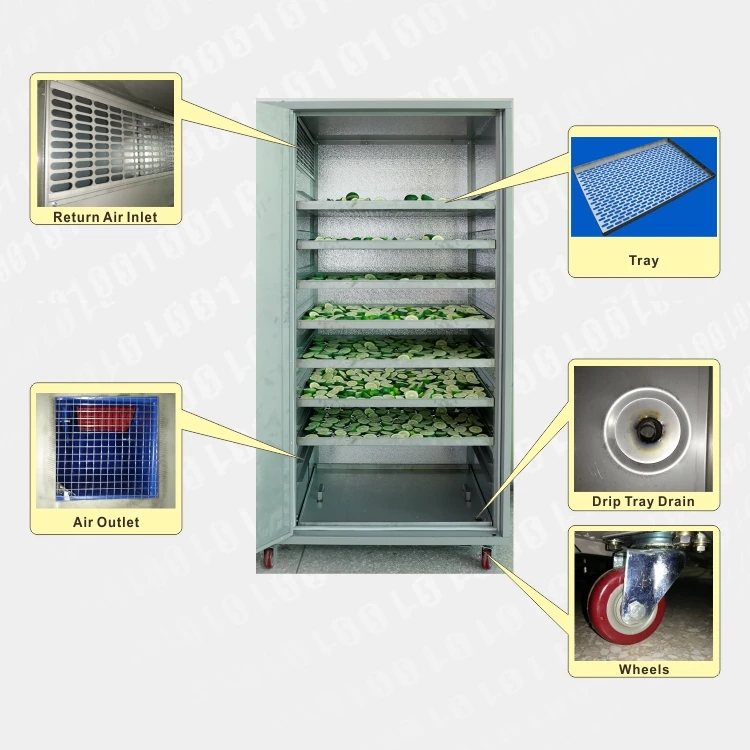

Component of food dehydrator
Guoxin food dehydrator include heating system, drying chamber, trolley and tray.
Heating system has heat pump and fan. The PLT intelligent control system on the heat pump can accurately control the temperature, heating time and discharging Wet strength of the drying room.

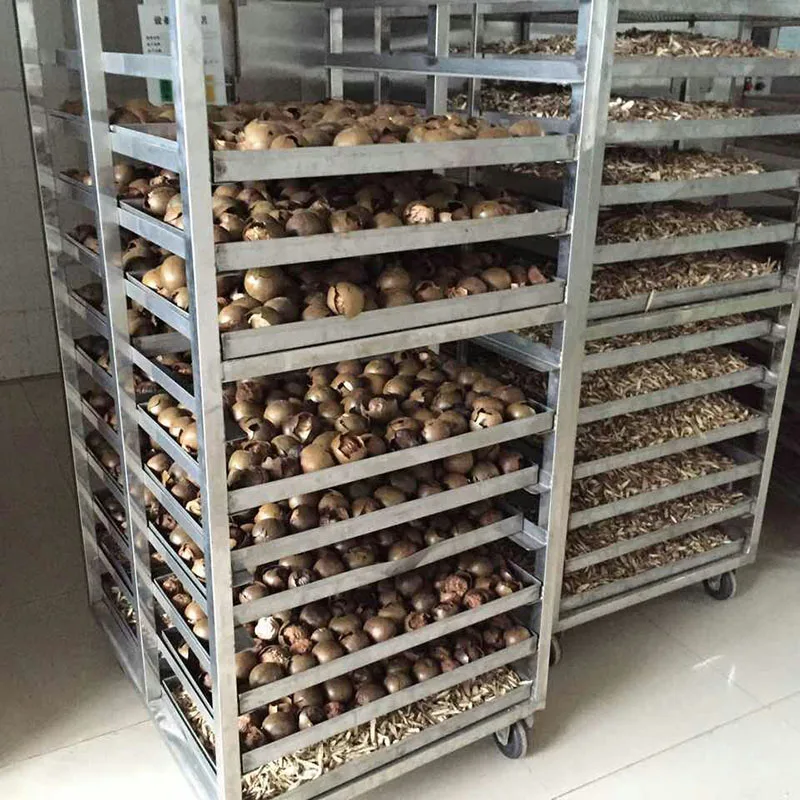

The trolley adopt galvanized square material or stainless steel material, high temperature resistant, corrosion resistance and convenient to use.

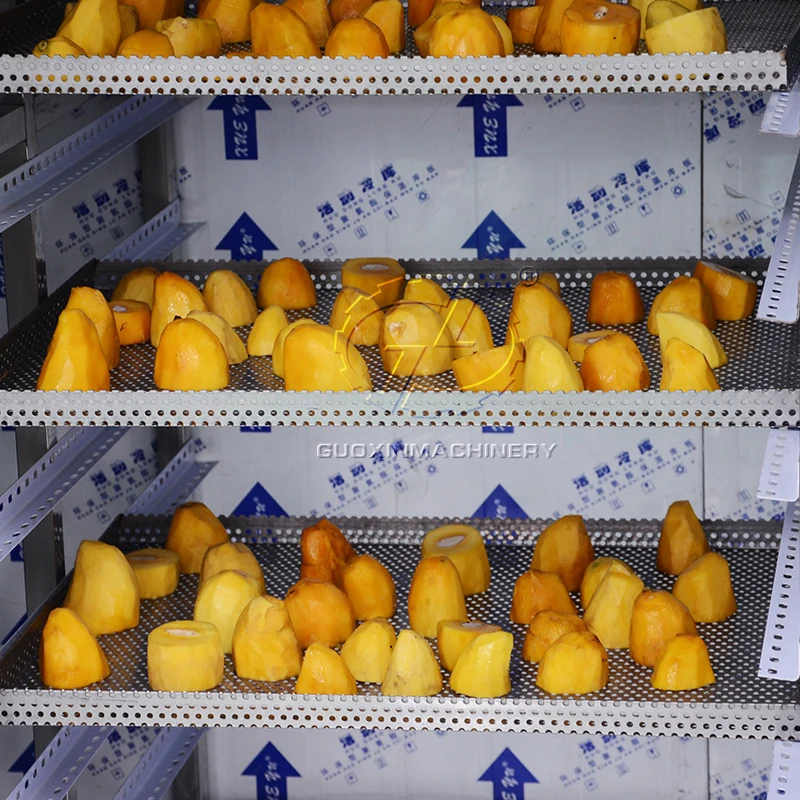

You can choose PP or stainless steel tray to fill the material. If you have trolley and tray already, you can also give up the purchase of them to save some money.

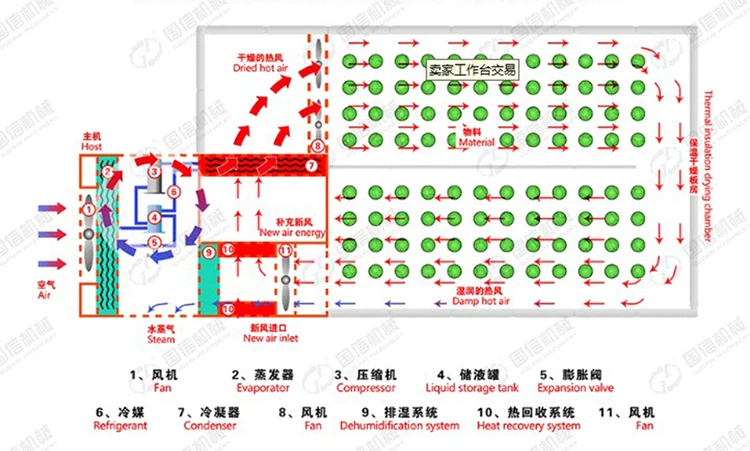

food dehydrator working principle
Guoxin food dehydrator is working through compressor to produce high temperature and high pressure gas enter into condenser to release heat, the heat will be send into chamber by circulation fan.the temperature will reach 20~80℃.
There is a heat recovery device in the dehumidification system,the recycle heat used to heat the new air,it can saving 60~70% fresh air preheating energy consumption.
Hot air cycling flat flow in the drying room, drying more uniform and thoroughly.
food dehydrator technical parameter
Model
Weight(kg)
Power(kw)
Capacity each batch(kg)
Pallet quantity
Over size(mm)
1P
150
1.5
50
16
1180*690*1800
3P
180
4.5
300
96
3500*2100*2200
7P
325
6.5
500
144
5300*2200*2215
14P
459
10.5
1500
360
8400*3000*2215
Advantage of food dehydrator
1.Easy to use just plug and play. there is no necessary to burn coal and wood, one man can operated many machines;
2.The drying process is carried out in a closed chamber, which will not pollute the material and have no pollutant discharge;
3.Compared with the traditional electric heating, burn coal and oil or other equipment, it has obvious energy saving effect and reduces the operation cost;
4.After drying, the original shape, color, and taste of the material can be retained completely;
5.It is widely used in drying all kinds of fruits, vegetables, seafood, meat products and industrial products.

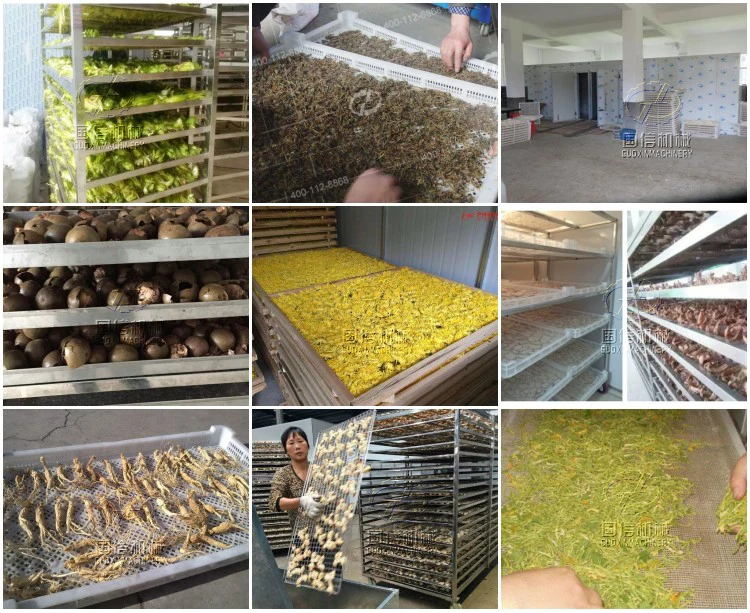

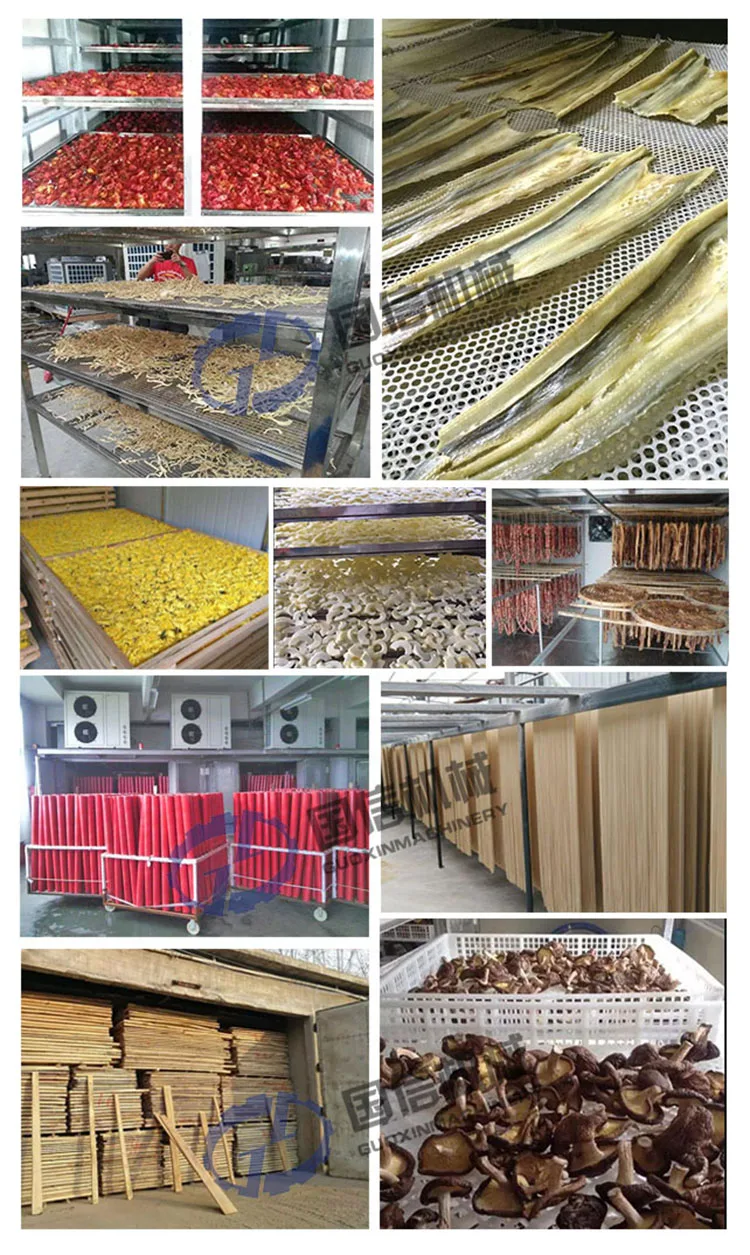

Guoxin heat pump dryer customer case
We have done many successful cases, so can provide you some relevant videos and pictures or test the machine according to the specific material from you.
Packaging & Shipping
For food dehydrator,Packing machine with wooden box, or delivery with Container without packing, to prevent them from destroying during transportation.
Then, we will choose the most convenient and economic way to delivey goods. Besides, if our customer have specific demand with delivey, we can make it.
Our Services
Pre-sale services:
Act as a good advisor and assistant of clients; enable them to get rich and competitive from the returns of their investment. 1) Select suitable equipment model. 2) Design and manufacture products according to clients’ special requirements. 3) Train technical personnel for clients. 4) Professional suggestion for customer.
Services during the sale:
Respect clients; devote ourselves to improving the total value of clients. 1)take photos(including raw material, semi-products, final products, and loading products) 1) Pre-check and accept products ahead of delivery. 2) Prepare all clearance documents, so that the customer clearance smoothly.
After-sale services:
Provide considerate services to minimize clients’ worries. 1) Provide civil engineering drawings of the equipment. 2) Free training(including installation,maintenace) to every customer. 3) Install and debug the equipment, ensure the dryer running smoothly. 4) Examine the equipment regularly. 5) Take initiative to eliminate the troubles rapidly at site. 6) Distribute the guarantee fittings door-to-door. 7) Provide technical exchange and support.

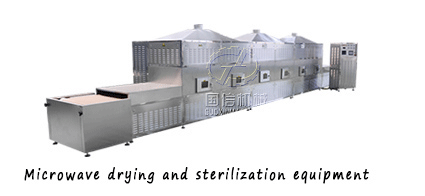

We can also provide you the following equipment:
Company Information
Guoxin machinery factory is located in gongyi zhengzhou city ,henan province,we have 15 years experience in drying field,the machine have exported to more than 30 countries and regions.
We are professional in mesh belt dryer,microwave dryer,heat-pump drying machine,rotary dryer and other auxiliary equipment, like cleaning,peeling,slicing and packing machine. All of our products are approved CE quality inspection certificates.
FAQ
1) How is the quality of your food dehydrator?
Our all products are certificated with CE quality inspection. Also manufactured strictly according to national and international standard, and we take a test on every machine before delivery.
2) What guarantee do you provide?
If the quality is not consistent with the description as we said or promised before you place order, we promise you 100% refund.And we now support Alibaba Trade assurance which can protect your money safe,if we don't deliver on time,and the quality is not good after you receive,we gurantee 100% refund.
3) How about price?
We have our own factory and can give you the competitive price. Besides, we have a policy that " for saving time and absolutely honest business attitude, we quote as low as possible, discount can be given according to quantity".
