TK6513 certificated horizontal boring cnc mill machine
- Category: >>>
- Supplier: Qingdao Huiteng Machinery Equipment Co. Ltd.
Share on (60824169045):
Product Overview
Description
Product Description
Main Specification Of TK6513 certificated horizontal boring cnc mill machine
| Spindle diameter | 130mm |
| Spindle taper | ISO 50 |
| Shank specification | JT 50 |
| Pull stud | BT-50 |
| Max. spindle speed | 1500rpm |
| Cross travel of table | 3000mm |
| Vertical travel of spindle head | 2000mm |
| Longitudinal travel of column W | 1300mm |
| Longitudinal travel of column V | 1300mm |
| Axial travel of boring spindle V | 800mm |
| Axal travel of Ram | 700mm |
| Table rotary travel | 360° |
Feed range of axil X,Y | 1--3000mm/min |
| Rapid movemet of axis X,Y | 6000mm/min |
Rapid movement of axis W Z | 5000mm/min |
| Rapid movement of V | 4000mm/min |
| Rapid movement of B | 1.5r/min |
| Positioning accuracy of X Y Z | ±0.025 mm |
| Positioning accuracy of B | 8" |
Repeatbility of X Y | ±0.02mm |
| Repeatability of W | ±0.02mm |
| Repeatability of B | 6" |
| Motor Power | 22/30 Kw |
| Table size | 2000x3000mm |
| Table loading capability | 20ton |
| Max spindle torque | 2500Nm |
| Max spindle thrust | 20000N |
Main purchase parts Of TK6513 certificated horizontal boring cnc mill machine
No | Name | Specification | Quantity | manufacture |
1 | Front bearing of spindle | 71944ACD/P4ATBTB | 1set | SKF--Germany |
2 | Rear bearing of spindle | 71940ACD/P4ADBA | 1set | SKF--Germany |
3 | Fine lubrication oil | LGLT2 | 1.5kg | SKF--Germany |
4 | Screw rod bearing | 7602045TVP/P4SQBC | FAG--Germany | |
5 | Table bearing | NN3024 | 1set | FAG--Germany |
6 | Roll ball screw rod | 63/80, T5 | 5pcs | BLIS--Germany |
7 | CNC system | Siemens 840D/Fanuc | 1set | Siemens/Fanuc |
8 | Feed servo motor | 6pcs | Siemens/Fanuc | |
9 | Linear grating scale | FAGOR | 4pcs | FAGOR--Spain |
10 | Circular grating scale | HEIDENHAIN RON | 1set | HEIDENHAIN-- Germany |
11 | Main hydraulic units | Compass | Serial | Taiwan |
12 | Auto lubrication station | VERSA III | 3sets | Yongjia lube-Taiwan |
13 | Electrical parts | Low voltage | Siemens, ABB, Schneider |

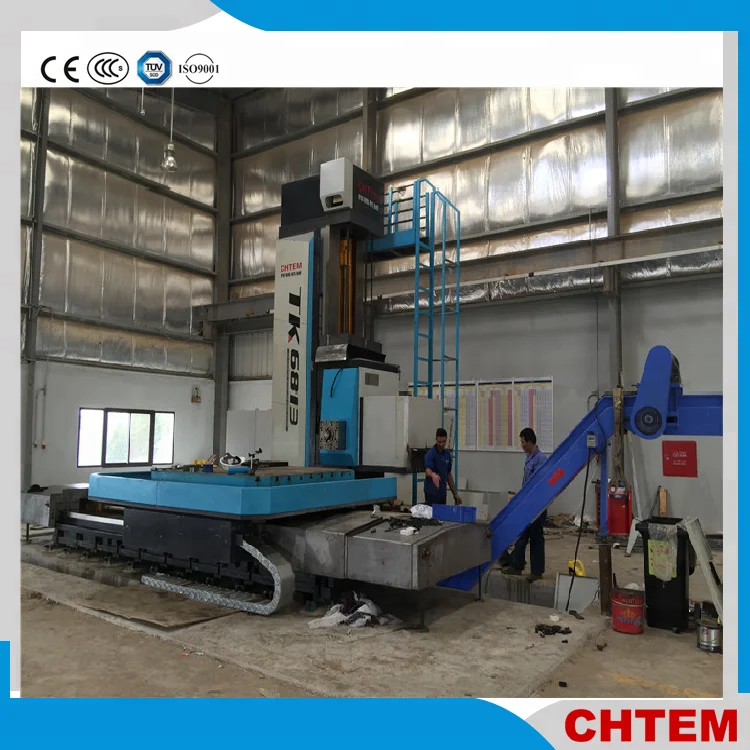

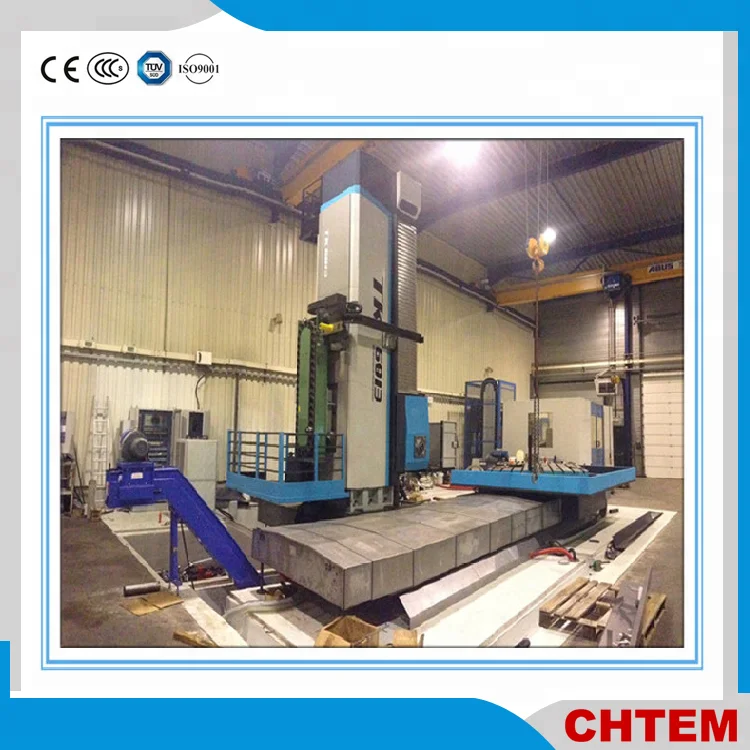

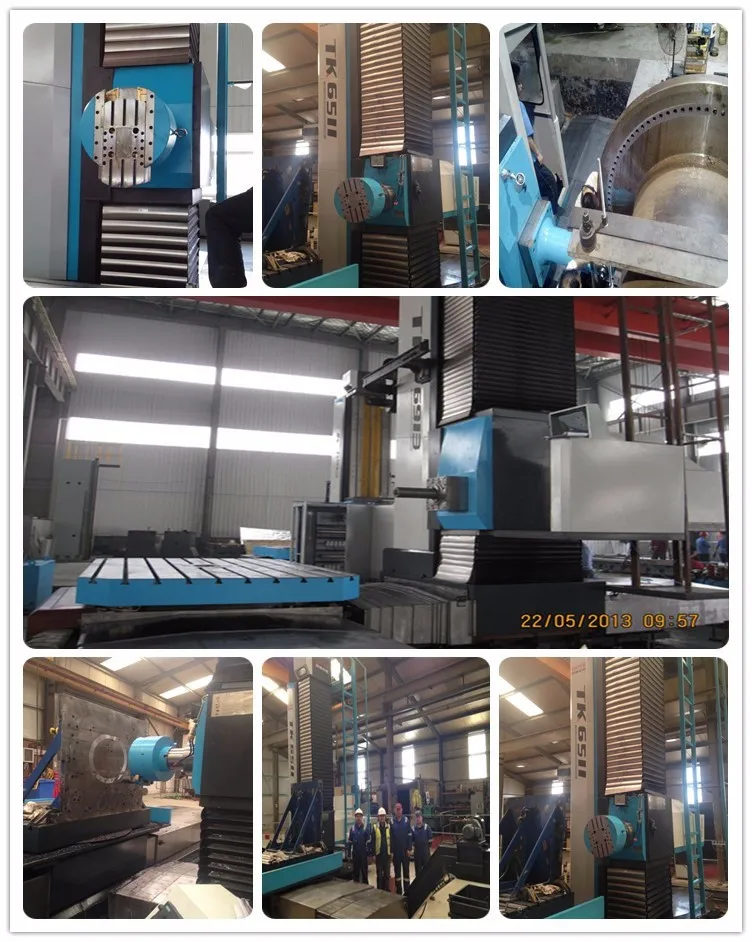

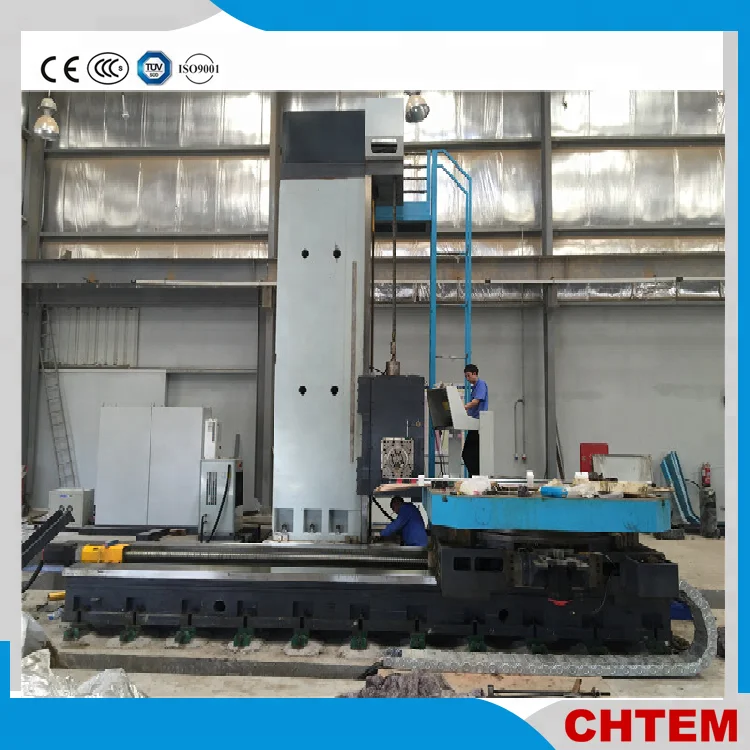

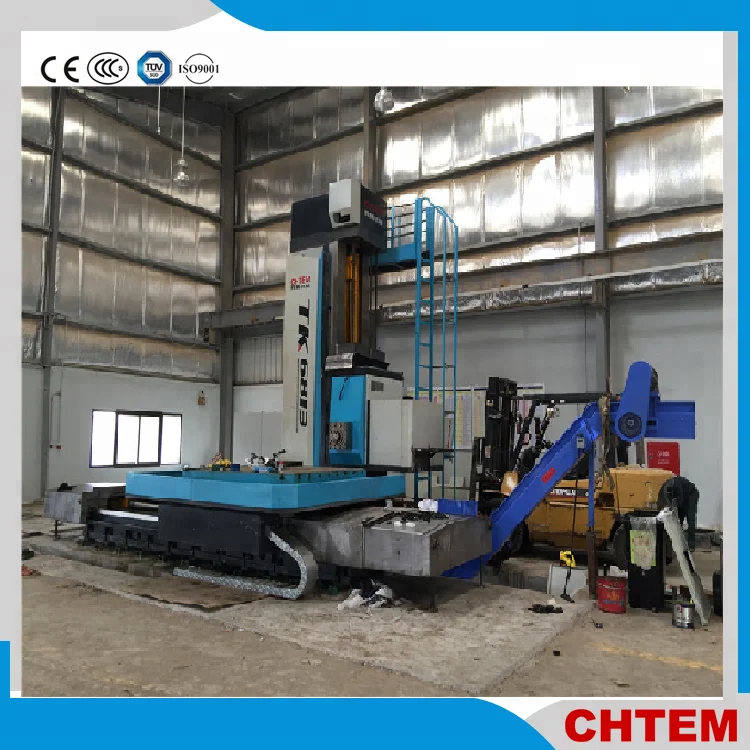

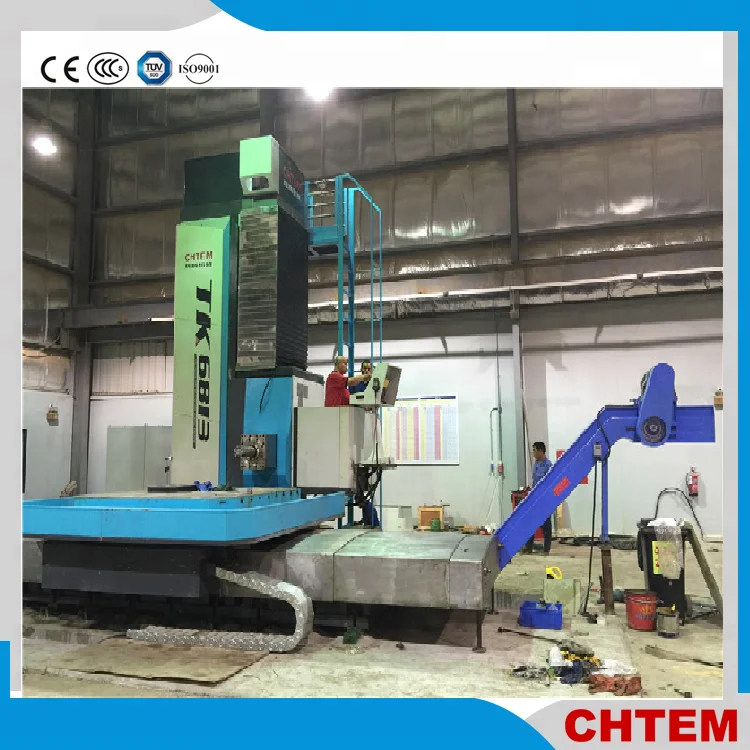

Pictures of TK6513 certificated horizontal boring cnc mill machine
