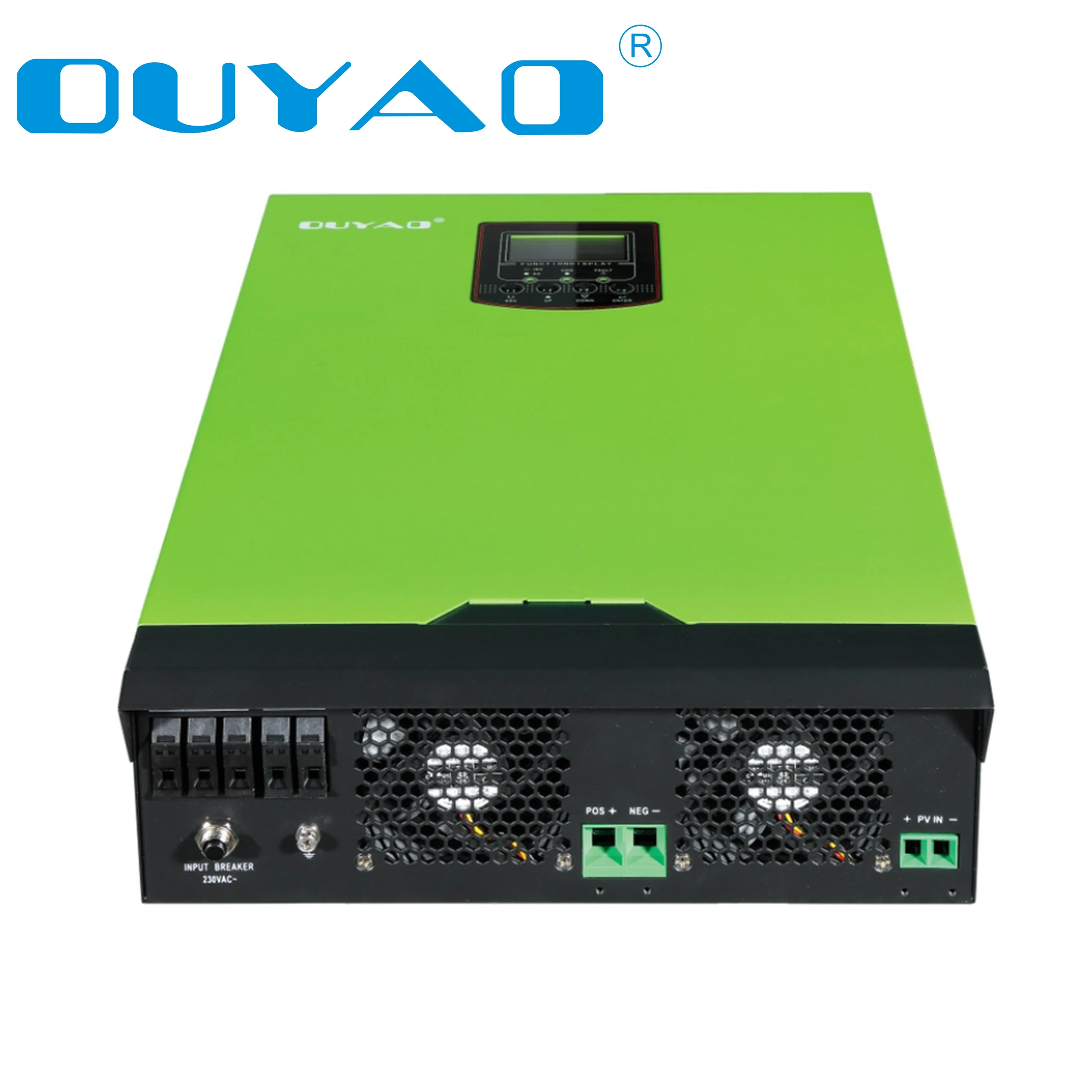

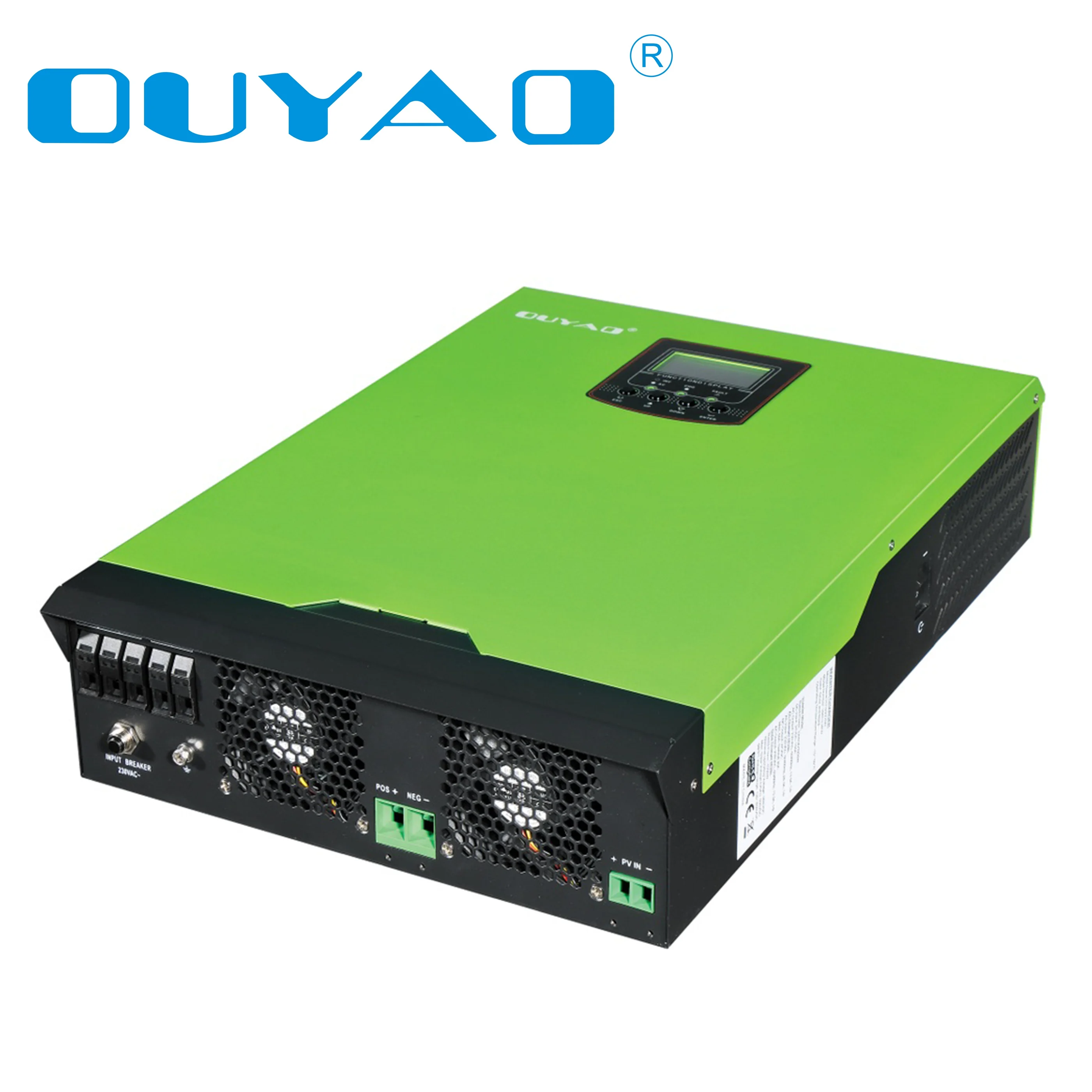

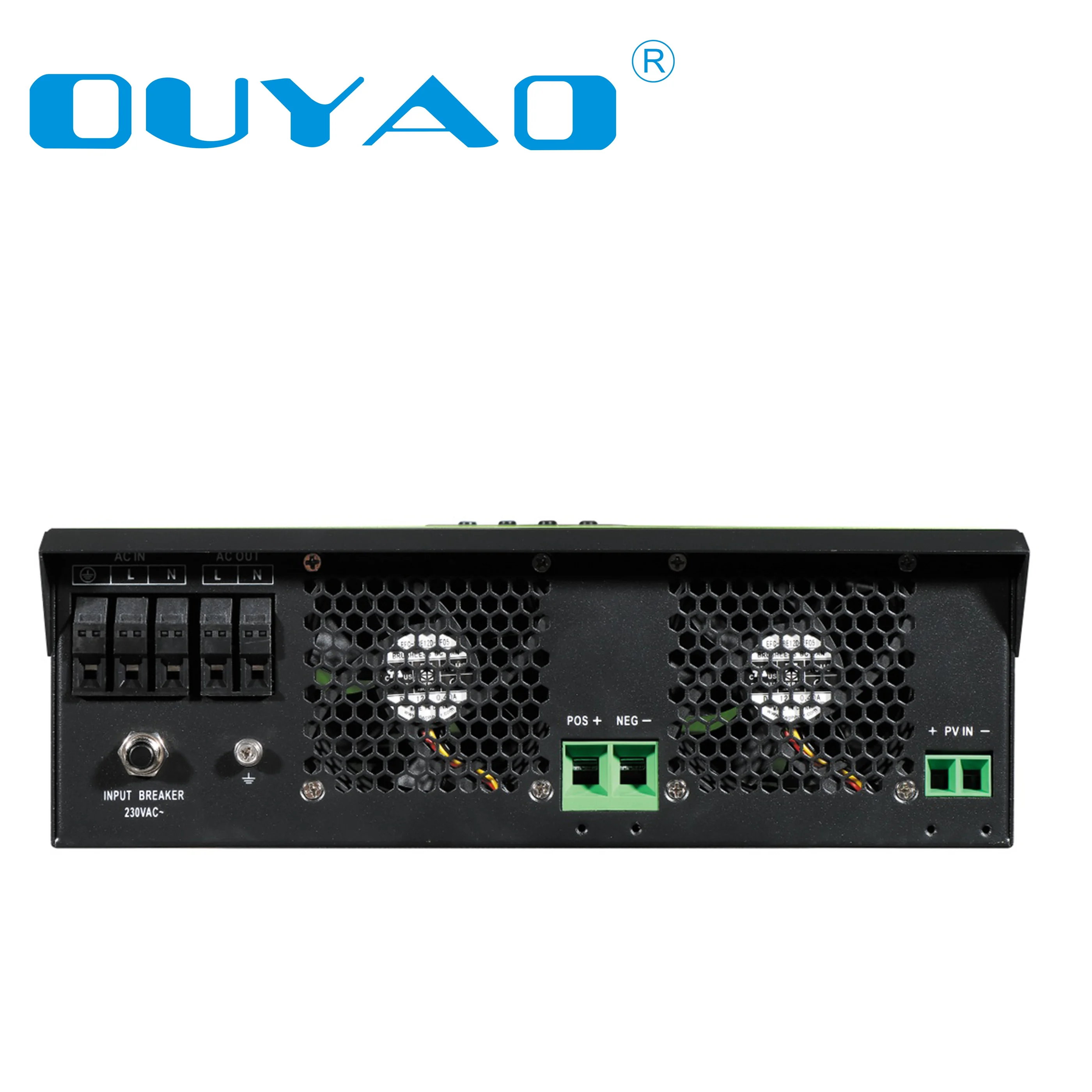

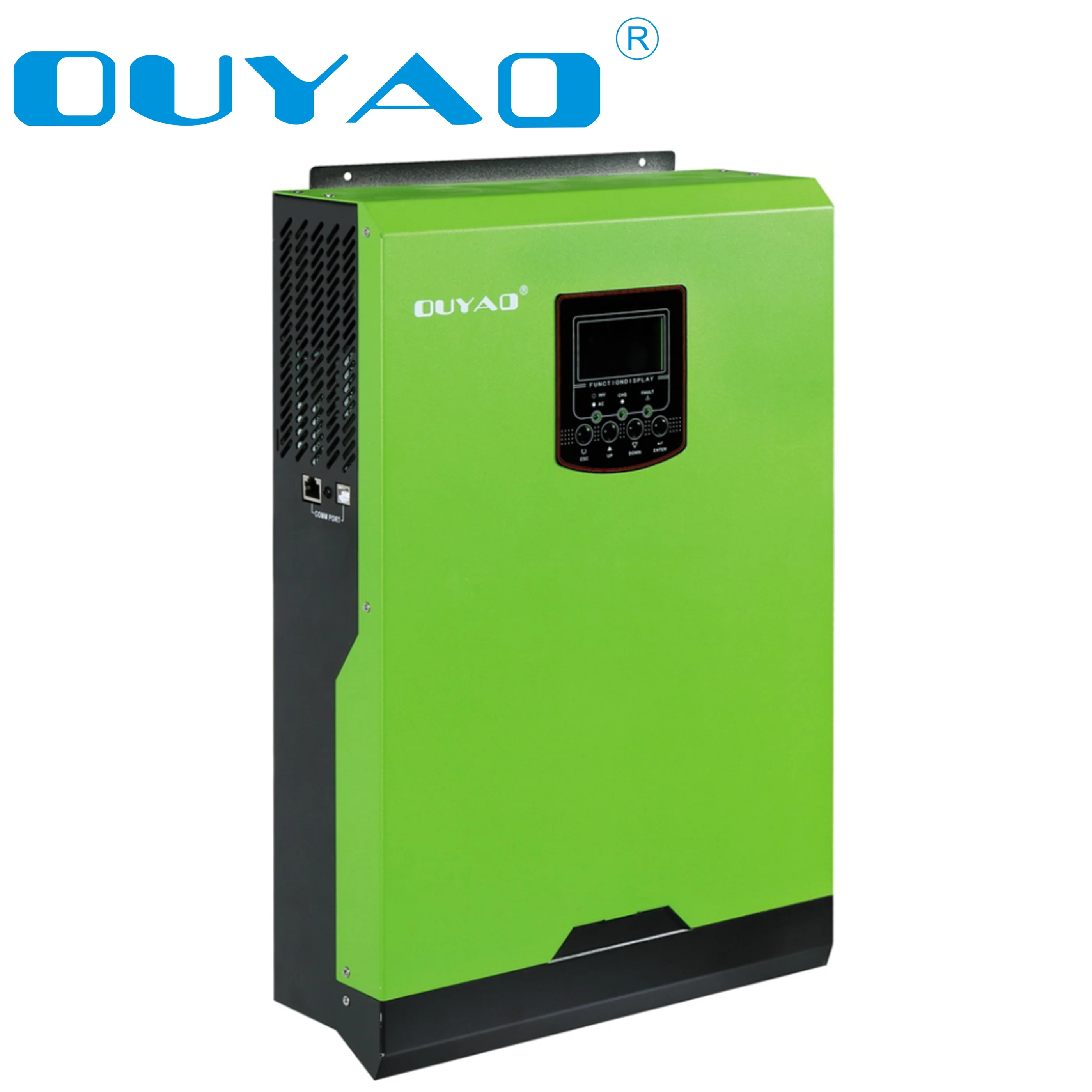

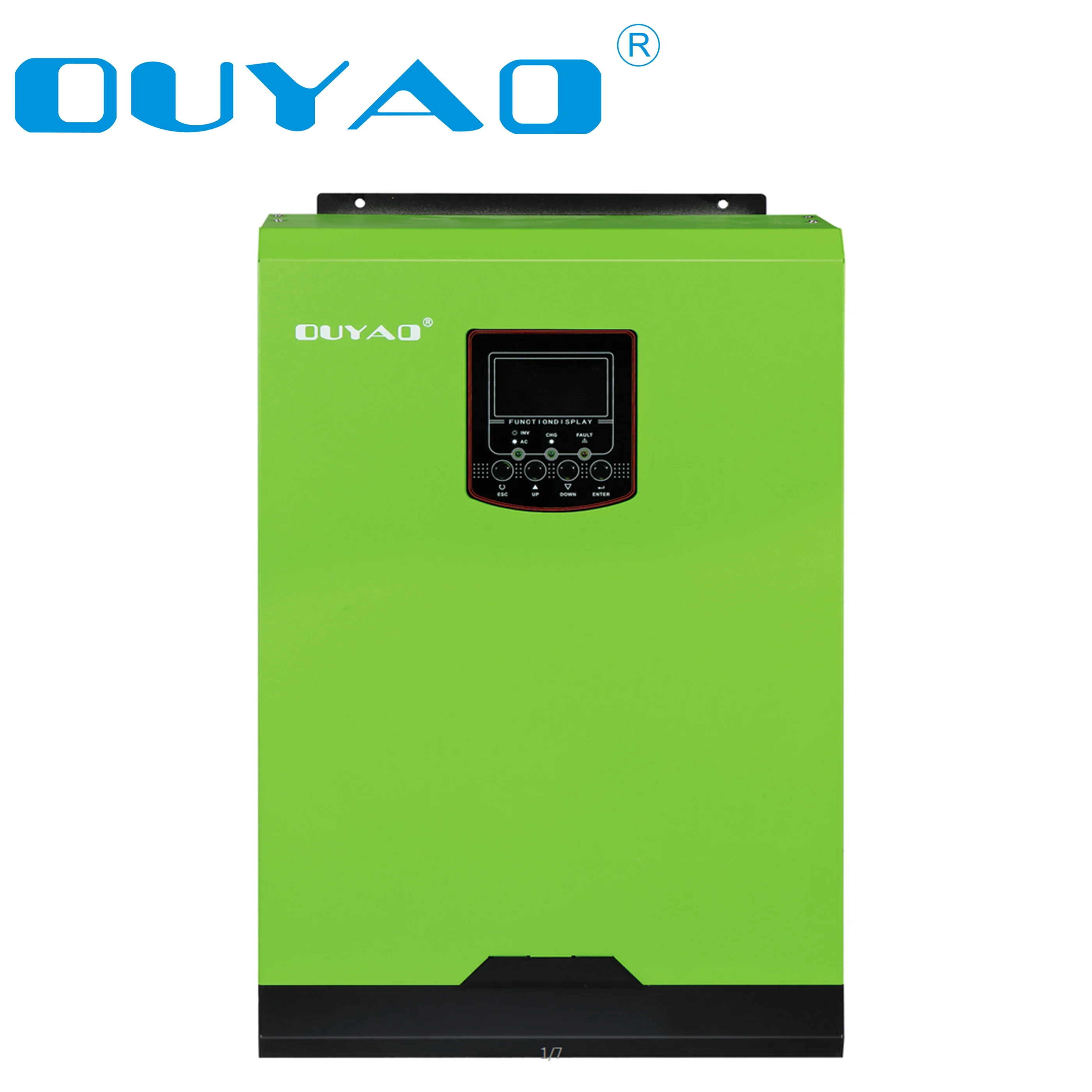

Solar hybrid inverter 5500KVA 48V 80A hybrid solar inverter
- Category: >>>
- Supplier: Foshan Ouyad Electronic Co. Ltd.
Share on (60824252549):
Product Overview
Description
Product Description
Specification
Technical Specifications | ||
Model | HY5532VMII | |
Rated power | 5500VA/5500W | |
INPUT | ||
Voltage | 230VAC | |
Selectable Voltage Range | 170-280VAC(for personal computers) | |
90-280VAC(for home appliances) | ||
Frequency Range | 50Hz/60Hz( auto sensing) | |
OUTPUT | ||
AC Voltage Regulation (Battery Mode) | 230VAC±5% | |
Surge power | 10000VA | |
Efficiency (Peak) | 90%-93% | |
Transfer time | 10 ms(for personal computers) | |
20 ms(for home appliances) | ||
Wave form | pure sine wave | |
BATTERY | ||
Battery Voltage | 48VDC | |
Floating Charge Voltage | 54VDC | |
Overcharge Protection | 63VDC | |
SOLAR CHARGER &AC CHARGER | ||
Max PV Array Open Circuit Voltage | 500VDC | |
Max PV Array Power | 5000W | |
MPPT Range @operating Voltage | 120-450VDC | |
Max Solar Charge Current | 80A | |
Max AC Charge Current | 60A | |
Max total Charge Current | 100A | |
PHYSICAL | ||
Dimension, LxWxH(mm) | 115x300x440 | |
Net weight(kgs) | 10 | |
standby power consumpsion | 2W | |
ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity (non-condensing) | |
Operating Temperature | -10℃ to 50℃ | |
Storage Temperature | -15℃ to 60℃ | |
Packing & Delivery
Company Profile
FAQ
1. who are we?
We are based in Guangdong, China, start from 2007,sell to Africa(32.00%),Mid East(30.00%),Domestic Market(15.00%),Southeast Asia(15.00%),North America(2.00%),Western Europe(2.00%),Northern Europe(2.00%),Eastern Europe(2.00%),South Asia(0.00%),Eastern Asia(0.00%),South America(0.00%),Oceania(0.00%),Southern Europe(0.00%),Central America(0.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Inverter, Windturbine, Lithium Ion Battery, Solar Panel
4. why should you buy from us not from other suppliers?
Company info. & Advantages
OUYAD Group was established in 2000, Ouyad Group is a scientific and technological enterprise engaged in the research, development and production of solar, wind and ternary lithium battery energy storage systems,solar inverter.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2007,sell to Africa(32.00%),Mid East(30.00%),Domestic Market(15.00%),Southeast Asia(15.00%),North America(2.00%),Western Europe(2.00%),Northern Europe(2.00%),Eastern Europe(2.00%),South Asia(0.00%),Eastern Asia(0.00%),South America(0.00%),Oceania(0.00%),Southern Europe(0.00%),Central America(0.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Inverter, Windturbine, Lithium Ion Battery, Solar Panel
4. why should you buy from us not from other suppliers?
Company info. & Advantages
OUYAD Group was established in 2000, Ouyad Group is a scientific and technological enterprise engaged in the research, development and production of solar, wind and ternary lithium battery energy storage systems,solar inverter.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
