Main Application: This machine is used in pharmaceutical, food, chemical, solid beverage and other industries.
Features: Discharged by rotating tray and equipped with cutting knife, the efficiency of this machine is 2-3 times than swinging granulator. With simple structure, easy to operat eand move,it is one of the ideal granulation equipment,which is also reach the GMP standard. An automatic discharge reduces materials accumulation. Water cooling system is optional. Suitable for semi-dry powder and viscous material, food solids drinks, chicken powder and so on.

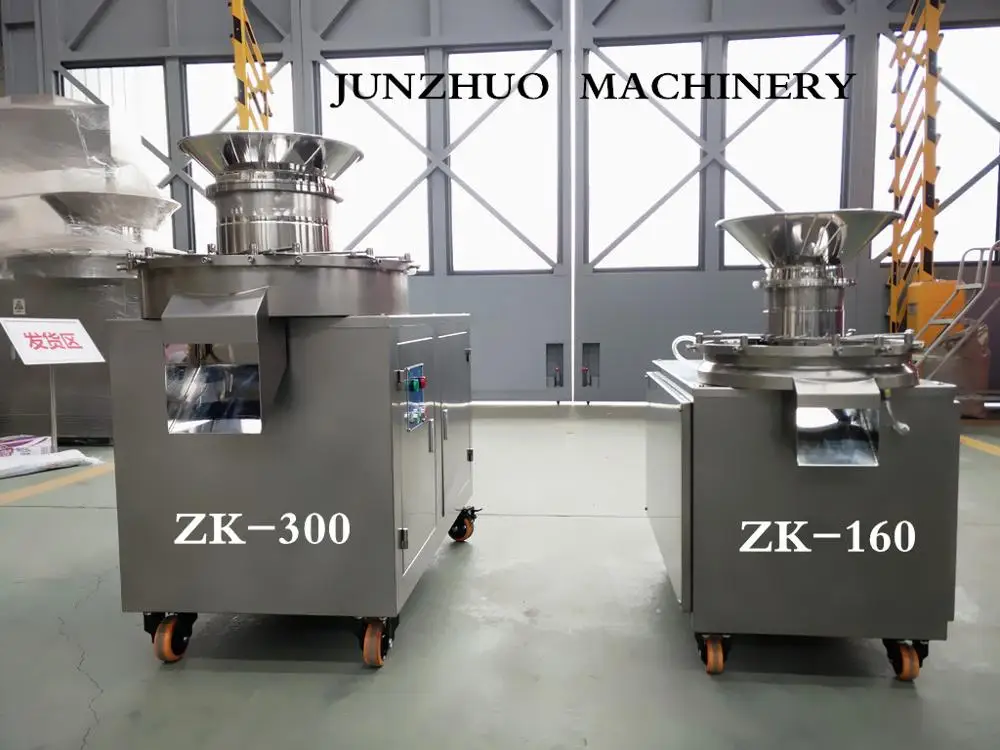

Technical Parameter
Model
ZK-160
ZK-200
ZK-300
ZK-500
Paddle Diametere
158mm
198mm
268mm
500mm
Screen Mesh Diameter
1.2-3mm
1.2-4mm
1.2-4mm
1.2-8mm
Screen Installation Diameter
160mm
200mm
270mm
500mm
Motor Power
2.2KW
4KW
7.5KW
15KW
Paddle Rotation Speed
55r/min
45r/min
45r/min
45r/min
Capacity
20-80KG/H
80-200KG/H
100-350KG/H
100-750KG/H
Overall Dimension
950*500*1000mm
1000*500*1030mm
1250*680*1250mm
1600*1200*1580mm

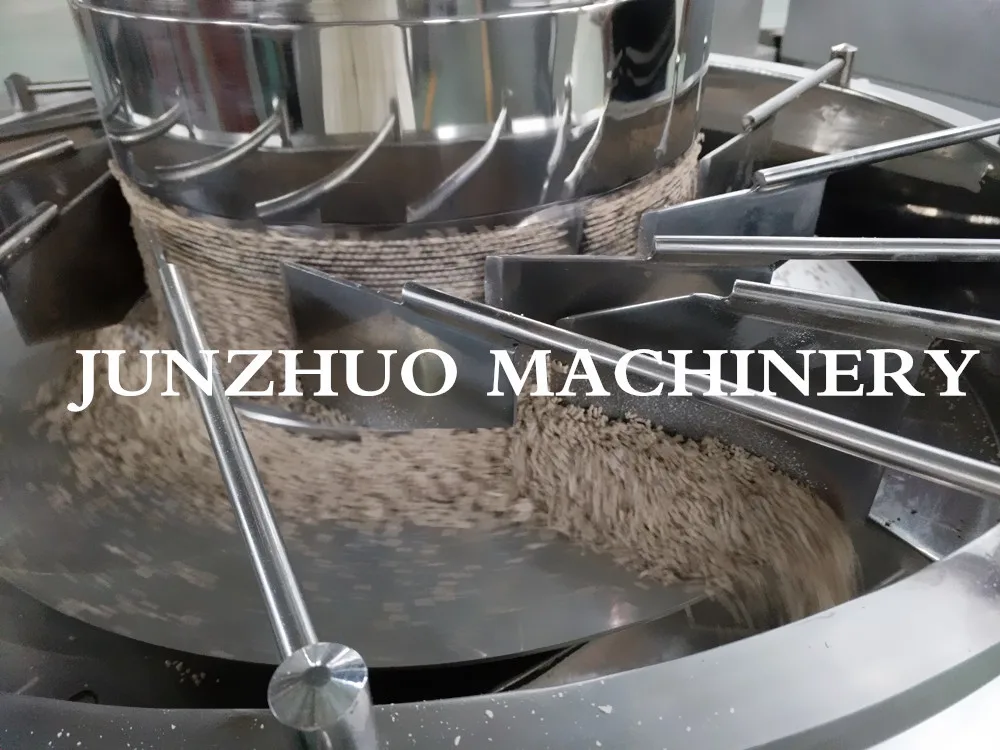

Working Principle
Company Profile
Since 2008
JUNZHUO MACHINERY was set up to 2008 with the objective to develop & provide process technology offering of international standards. We keep the mission of staying committed to innovation and by consistently exceeding customer expectations, helping companies do business more efficiently and profitably. Our customers range from small family run operations to famous companies. Regardless of customer size, our philosophy for each is the same, to achieve a creative process solution that efficiently and economically meets the requirements of the application with a smiling service.
Our dry granulation system comprising of roll compactor and cone mill, wet granulation system including of oscillating granulator,basket extruder and screw granulator. All of the products have scale up capability from lab to production equipment, we make over 90% of our machine parts in-house, ensuring stringent quality control. JUNZHUO MACHINERY also provide mixing machine, crushing machine, grinding machine, sifting machine and other machines. The main motto of the company is to deliver best quality products at most economic price & excellent customer service after delivery.
Product packaging
Spare Parts
It will be packed into a wodden case, such as motor, screen sieves, O-ring and so on.
