Высококачественное морское резиновое крыло super cell ocean guard

Product Overview

Description

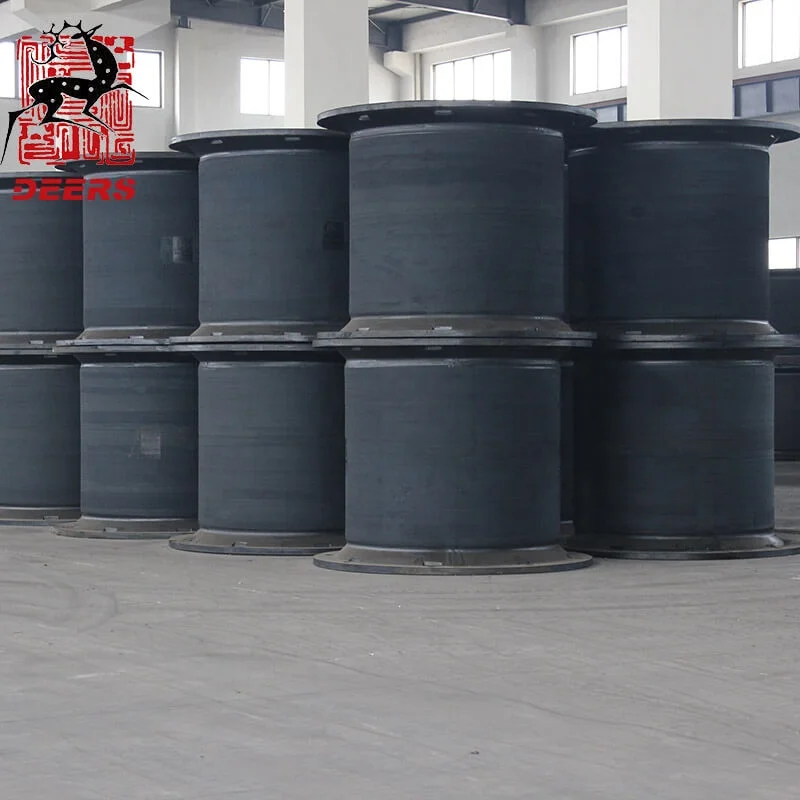

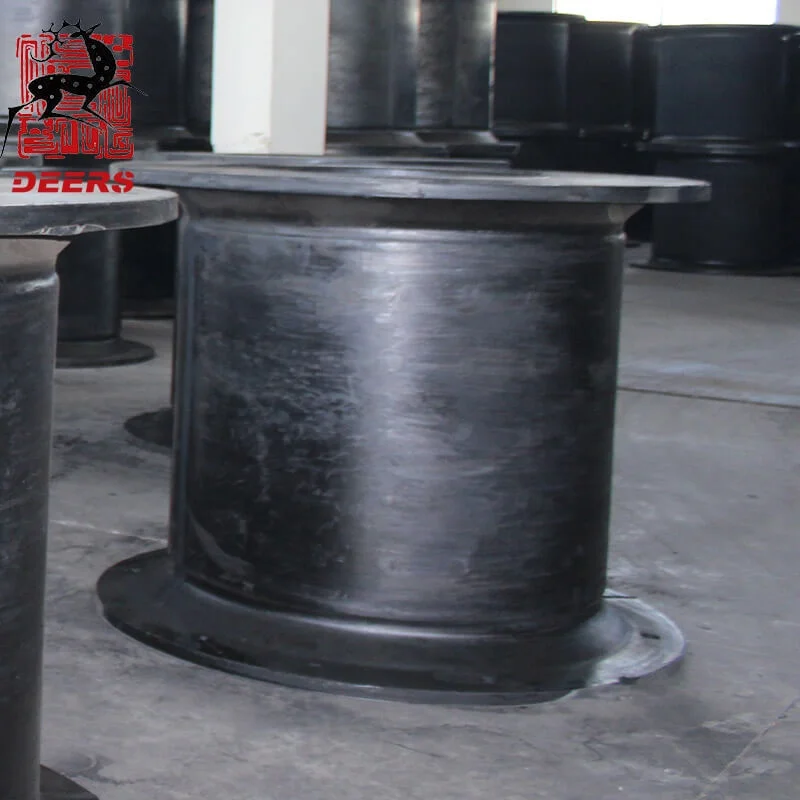

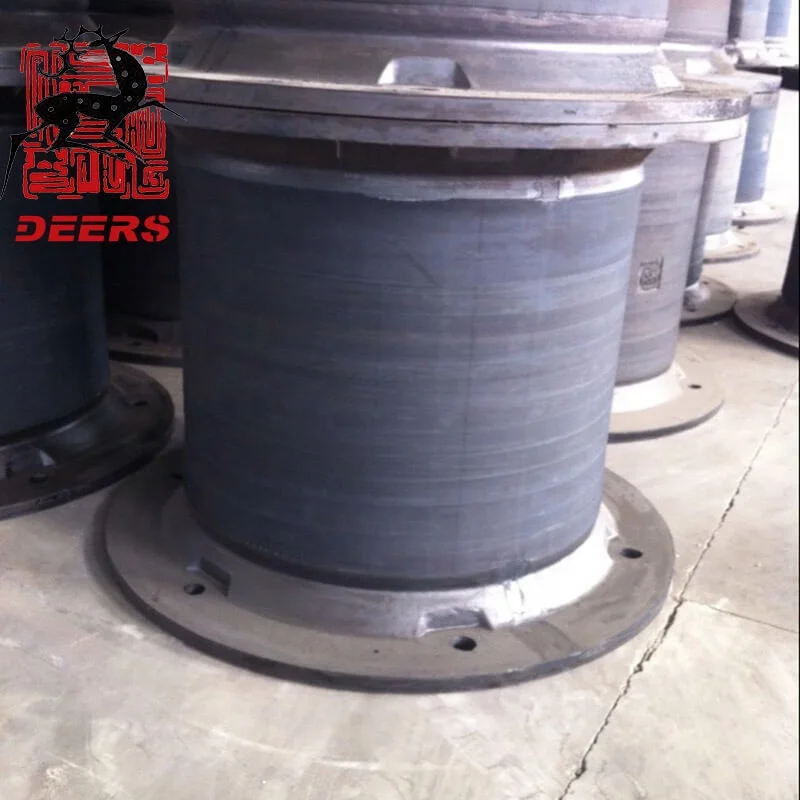

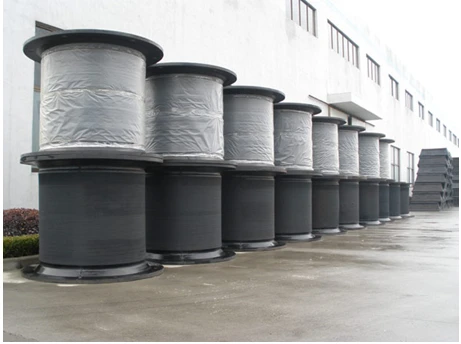

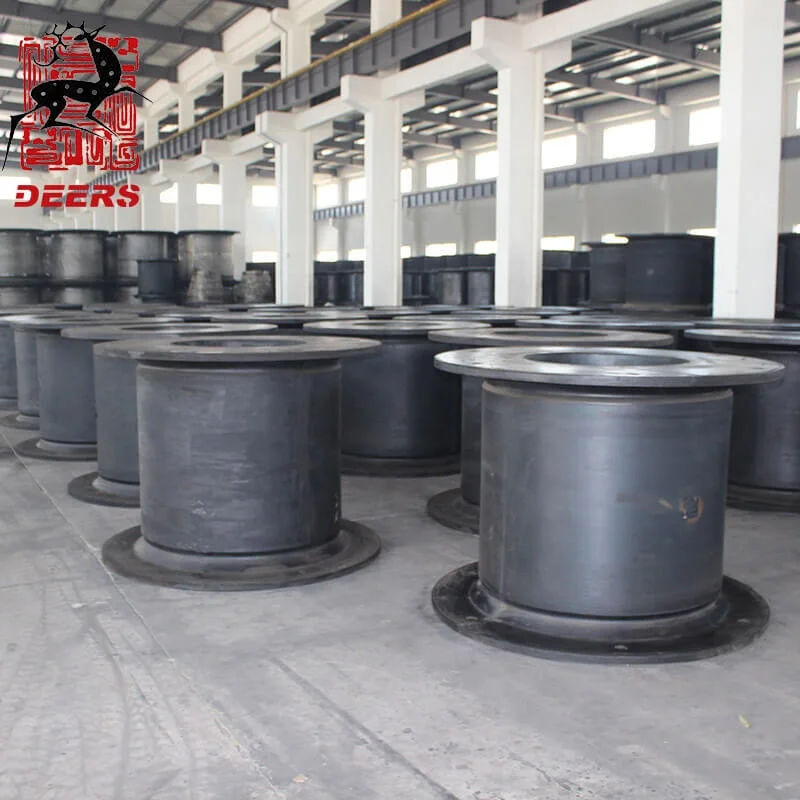

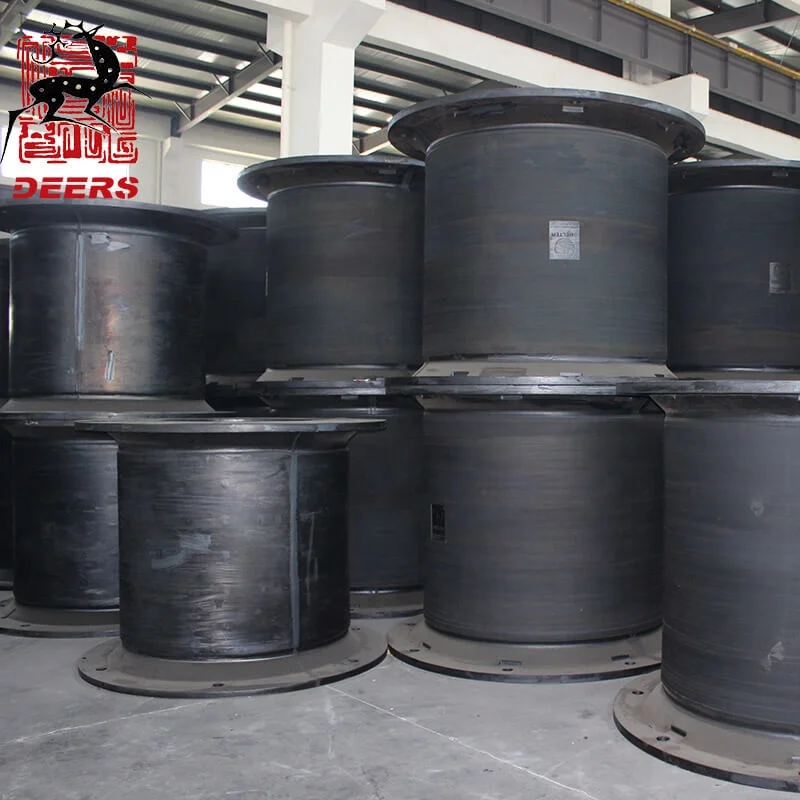

Cell Fender

High Quality marine cell fender has a very long track record and remain popular because of their simplicity, high performance and strength. They come in a wide range of standard sizes and are interchangeable with many older cell fender types.

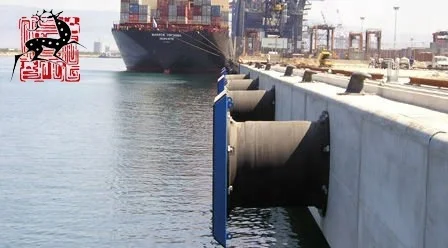

Super Cell fenders are typically fitted with fender panels to obtain a wide contact area on contact with the vessel, thus reducing pressure against the vessel hull as much as required.

Feature

High energy absorption with relatively low reaction force

Excellent multi-directional angular performance

High durability as the internal stresses are dispersed throughout the fender body

Wide range of sizes (Up to SUC2500H)

Ease of installation

Can support large panels

Strong, well-proven design

Ideal for low hull pressure systems

More reasonable structure

High E/R. H value

Verge suitable for the large wharf

Spectification

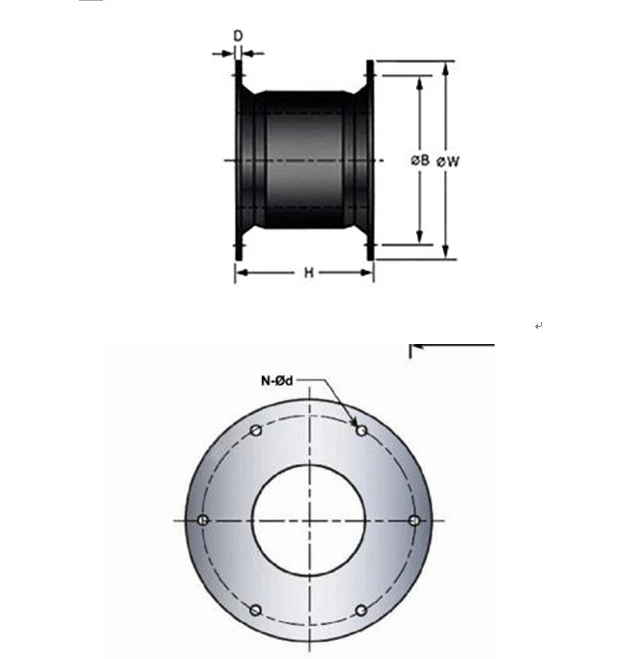

Specification	H(mm)	ØW(mm)	ØB(mm)	D(mm)	N*D	Weight(kg)
SC630H	630	840	700	25	4*39	230
SC800H	800	1050	900	30	6*40	410
SC1000H	1000	1300	1100	35	6*47	790
SC1150H	1150	1500	1300	37	6*50	1200
SC1250H	1250	1650	1450	40	6*53	1500
SC1450H	1450	1850	1650	42	6*61	2300
SC1600H	1600	2000	1800	45	8*61	3000
SC1700H	1700	2100	1900	50	8*66	3600
SC2000H	2000	2200	2000	50	8*74	4200
SC2250H	2250	2550	2300	57	10*74	7400
SC2500H	2500	2950	2700	70	10*74	10500





Type	Rated Compression Deflection 52.5%		Max. Compression Deflection  55%
	Reaction Force KN	Energy Absorption KN-M	Reaction Force KN	Energy Absorption KN-M
Super high Reaction Force (RE)	2131	1591	2266	1685
Super high Reaction Force (RS)	1892	1413	2012	1495
High Reaction Force (RH)	1640	1224	1743	1300
Standard Reaction Force (RO)	1262	941	1342	997
Low Reaction Force (RL)	1009	753	1073	798

Note: 1. Fenders in different reaction force are available upon request.

          2. Performance tolerance: ±10%

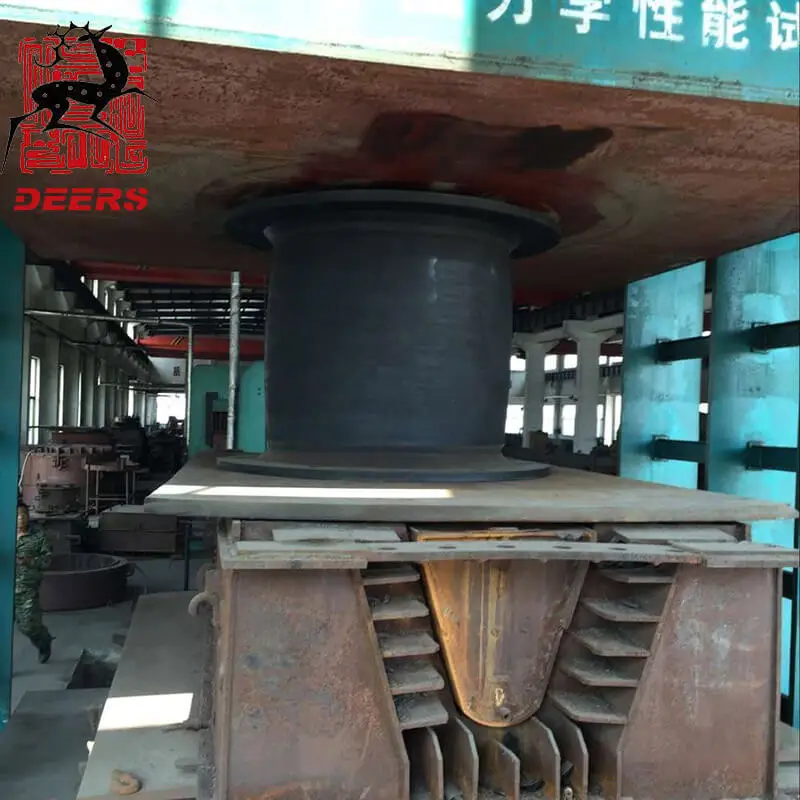

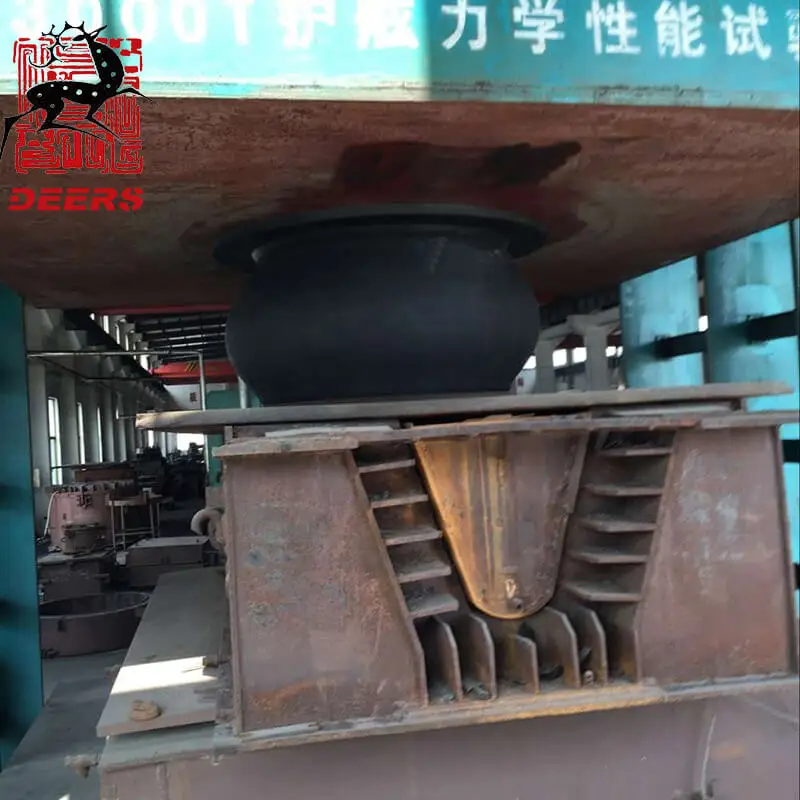

Testing



Please consult the salesperson in advance for sample details and prices, if you need it.
