Water Steam Distillation Machine for Essential Oil
- Category: >>>
- Supplier: Shanghai Better Industry Co. Ltd.
Share on (60824406647):
Product Overview
Description
Introduction

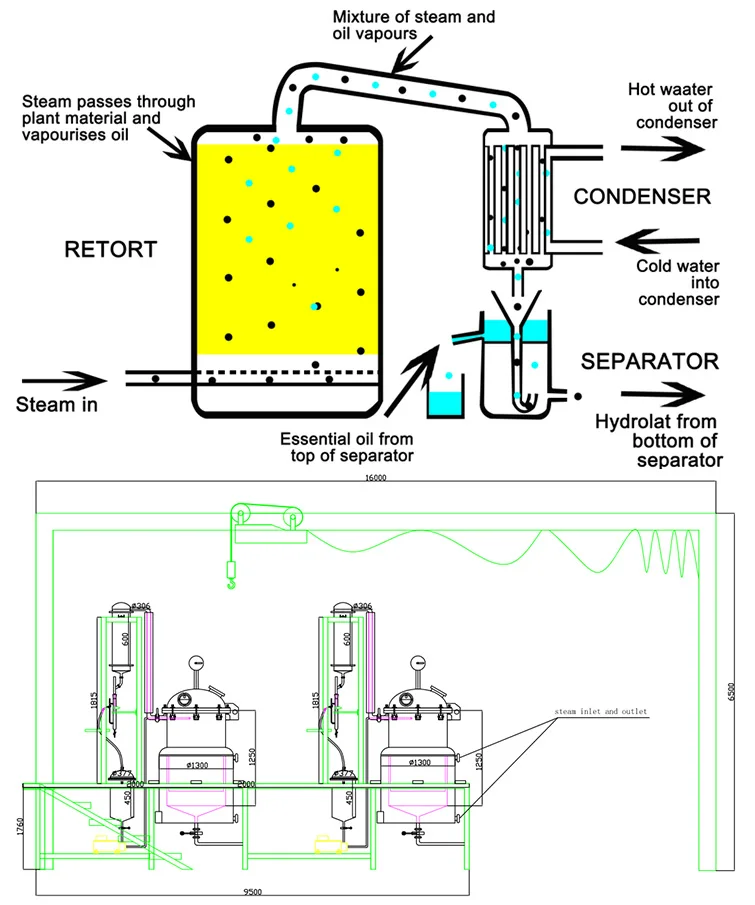

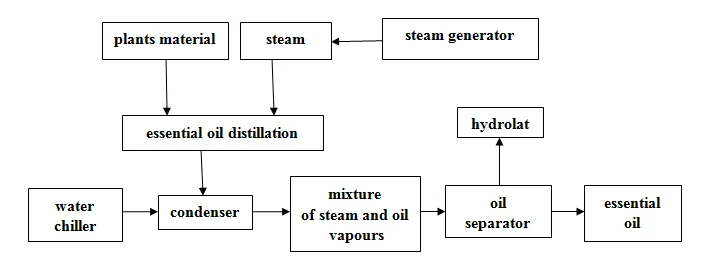

This unit is popular in extraction of essential oil from plants,flowers,leaves,wood, such as rose,lavender,eucalyptus leaves,lemongrass,citronella,sandalwood, agilawood etc.By steam distillation or water distillation, the steam passes through plants material and vaporizes oil,mixtures of steam and oil vapors go into the condenser.After the cooling,oil formed.This is the ideal device for you to make essential oil no matter for laboratory use or batch production.
Specifications
| Essential oil extraction equipment | ||||||

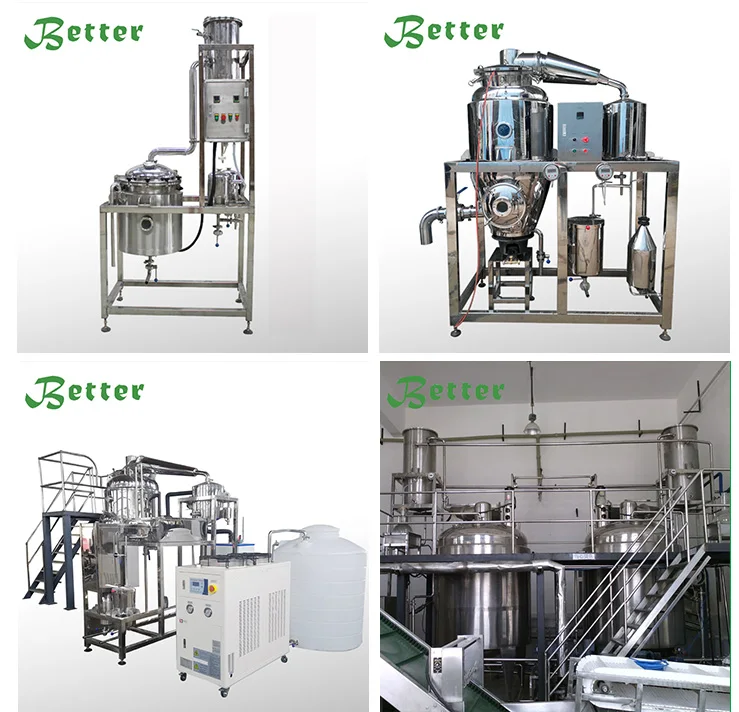

| Small&Medium size Essential Oil Distiller | ||||||
| Model | Capacity | Power | Diameter of Condenser | Material | Heating Area of Extraction Tank | Condensing Area of Condenser |
| HEC10 | 10L | 4KW | 102mm | SUS304 | 0.3M2 | 0.7M2 |
| HEC20 | 20L | 4.5KW | 102mm | SUS304 | 0.4M2 | 0.75M2 |
| HEC30 | 30L | 5KW | 133mm | SUS304 | 0.45M2 | 0.8M2 |
| HEC50 | 50L | 11KW | 133mm | SUS304 | 0.5M2 | 0.85M2 |
| HEC100 | 100L | 15KW | 133mm | SUS304 | 1.05M2 | 0.95M2 |
| HEC150 | 150L | 17KW | 133mm | SUS304 | 1.45M2 | 1.25M2 |
| HEC200 | 200L | 20KW | 133mm | SUS304 | 1.85M2 | 1.50M2 |
| HEC300 | 300L | 25KW | 133mm | SUS304 | 1.95M2 | 2.00M2 |
| Large Customized Machines | ||||||
| Model | Capacity | Temperature display | Cooling water circulation pump | Crane system | Console | Boiler |
| HEC400 | 400L | Digital temperature control system, with steam stop valve, drain valves, steam traps, etc. | Cooling water circulation pump, 20tons/H, the cooling water through the pipe into the condenser | Carbon steel rust treatment table | The gas \\ coal \\ electric boilers according customer local conditions to select | |
| HEC500 | 500L | 750kg | ||||
| HEC1000 | 1000L | 1000kg | ||||
| HEC1500 | 1500L | 1000kg | ||||
| HEC2000 | 2000L | 1000kg | ||||
| HEC3000 | 3000L | 1500kg | ||||
| HEC4000 | 4000L | 2000kg | ||||
Description
| Materials suitable for essential oil extraction machines | |||
| Flower | Rose, lavender, ylang ylang, chamomile, neroli, Geranium etc. | ||
| Plants | Rosemary, citronella, lemongrass etc. | ||
| Citrus | Lemon, orange, Bergamot, grapefruit,lime etc | ||
| Leaves | Eucalyptus leaves, Mugwort, Patchouli, Peppermint, pine needle etc. | ||
| Wood | Sandalwood, agarwood, cedarwood,Wintergreen etc. | ||
| Resin | Frankincense, myrrh etc. | ||
| Others | Cinnamon,pepper, fennel, ginger etc. | ||
FAQ
I’m interested in purchasing one set of your essential oil distiller, could you provide me some specs and price?
---Yes,but we need to confirm the model first and then provide you with the specs and quotation.
What capacity do you provide?
---We have many different capacities from 10L to 6000L, larger models also can be customized by customer’s requirements.
Can I use the same machine to extract different raw materials?
---Yes, of course, before extract different raw matrials you need to cleaning the machine.
How to clean the machine?
---Just pour in water or ethanol and the cleaning process is the same as the extraction process.
What is the oil yield?
---It depends on the oil content of your raw materials, oil content is different, the oil yield will be different.
How long does it take to run one batch?
---The batch processing time of plant materials is about 3-4 hours, wood chips is about 6-8 hours generally.
Can I do the extraction test with my own raw material?
---Yes, you can come to our warehouse to do the test by yourself or send your raw materials to us ,we will help you do the test.
What kind of heating types does your machine support?
---Electricity/gas/wood/steam,you can choose by yourself and we do manufacture.
Do you provide installation service?
---Yes,we do. As for small models, we install it before we ship and also will provide online video to teach you how to operate it;As for big models, we can arrange our engineer fly to install in your factory.
Does the quotation include boiler and cold water system?
---Nope,boiler ,chiller or cold water circulating pump are the choices for customers.
