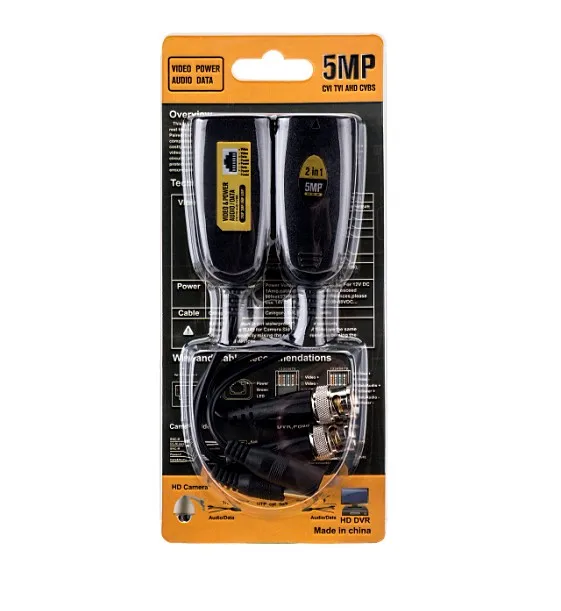

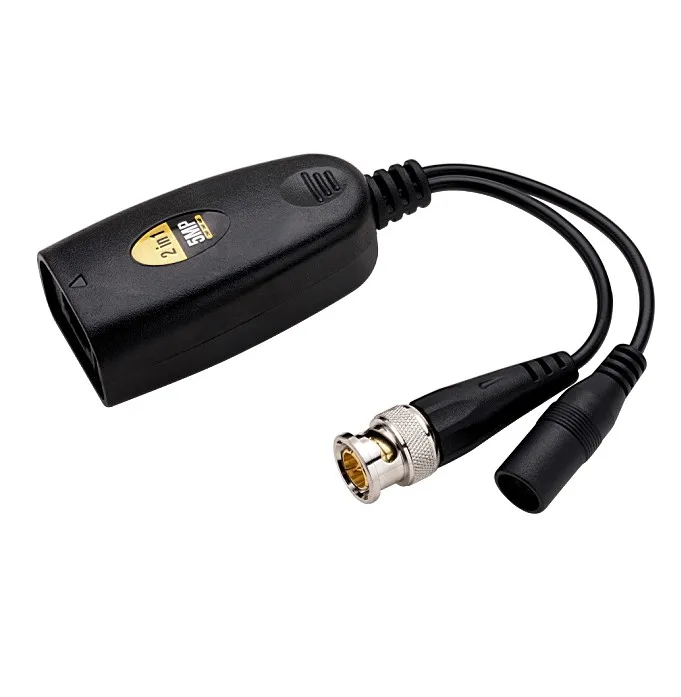

AHD Analog High Definition 1CH Passive Balun RJ45 CCTV Balun Video Transceiver Supply Power BALUN

Product Overview

Description

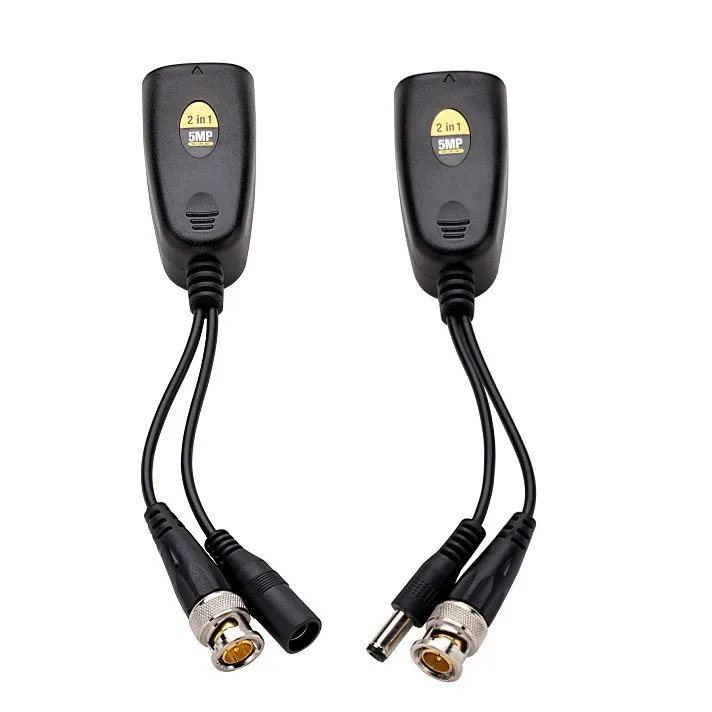

AHD Analog High Definition 1CH Passive Balun







Pair CCTV Coax BNC Video Power Audio RJ 45 Balun Transceiver To CAT5e 6 Protection

CCTV Coax BNC Video & Power Balun Transceiver to CAT5e 6 Surge Protection

1CH Passive Balun RJ45 CCTV Balun Video Balun Transceiver Supply Power For HDCVI/HDTVI/AHD Analog High Definition Camera



Features:

 *Compatible with all HD-CVI, HD-TVI,HD-AHD

 *Up to 450m for 720P CVI Cameras

 *Up to 250m for 1080P CVI Cameras

 *Up to 250m for 720P/1080P TVI Cameras

 *Up to 320m for 720P AHD Cameras

 *NTSC,PAL, and SECAM video formats

 *No Power Required

 *60dB cross talk and noise immunity.

 *Compact size and easy installation

 *Built-in transient suppression protection

 *Innovative combinabie design



Technical Specifications

 *Frequency response: DC to 60Mhz

 *Attenuation: 0.5dB type

 *CMRR: 60dB

 *Surge Protection: 4KV

            ESD: 8KV

 *Connectors: Male BNC and “Prees-Fit” Terminal blocks

 *Impedance: BNC: 75ohmas

        Terminal: 100ohms

 *Working Temperatrue: -10 to + 70

 *Storage Temperature: -30 to +70

 *Humidity: 0 to 95%

 *Dimension:45mm*25mm*21mm with 14cm cable

 *Material: ABS Plastic



Power-Distance Chart

 Using PVD product, cameras can be powered at extended distances, please refer to the chart below for more information.



Power Supply Voltage	24VAC	28VAC	13VDC
Resultant Camera Voltage	21VAC	21VAC	10VDC
100 mA Camera	300m	700m	300m
300 mA Camera	100m	230m	100m
500 mA Camera	60m	140m	60m
