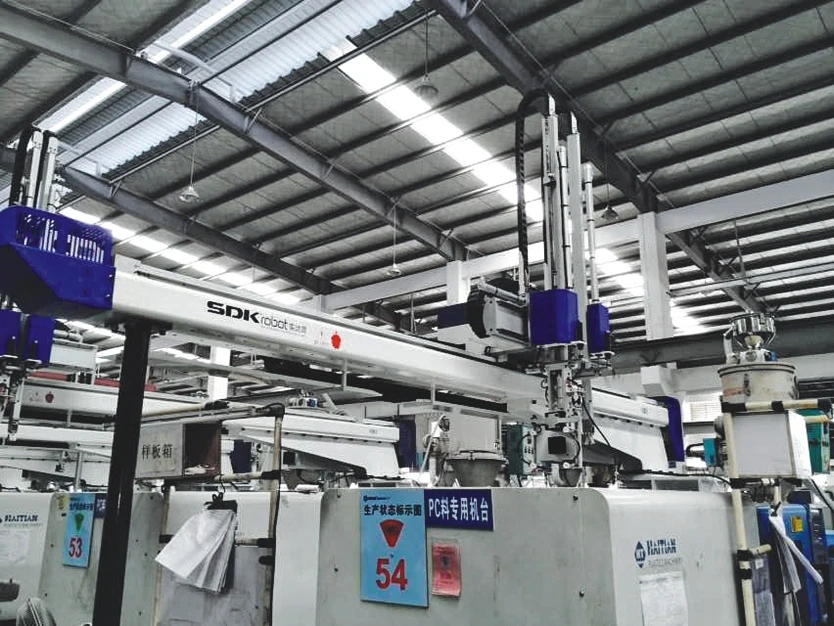

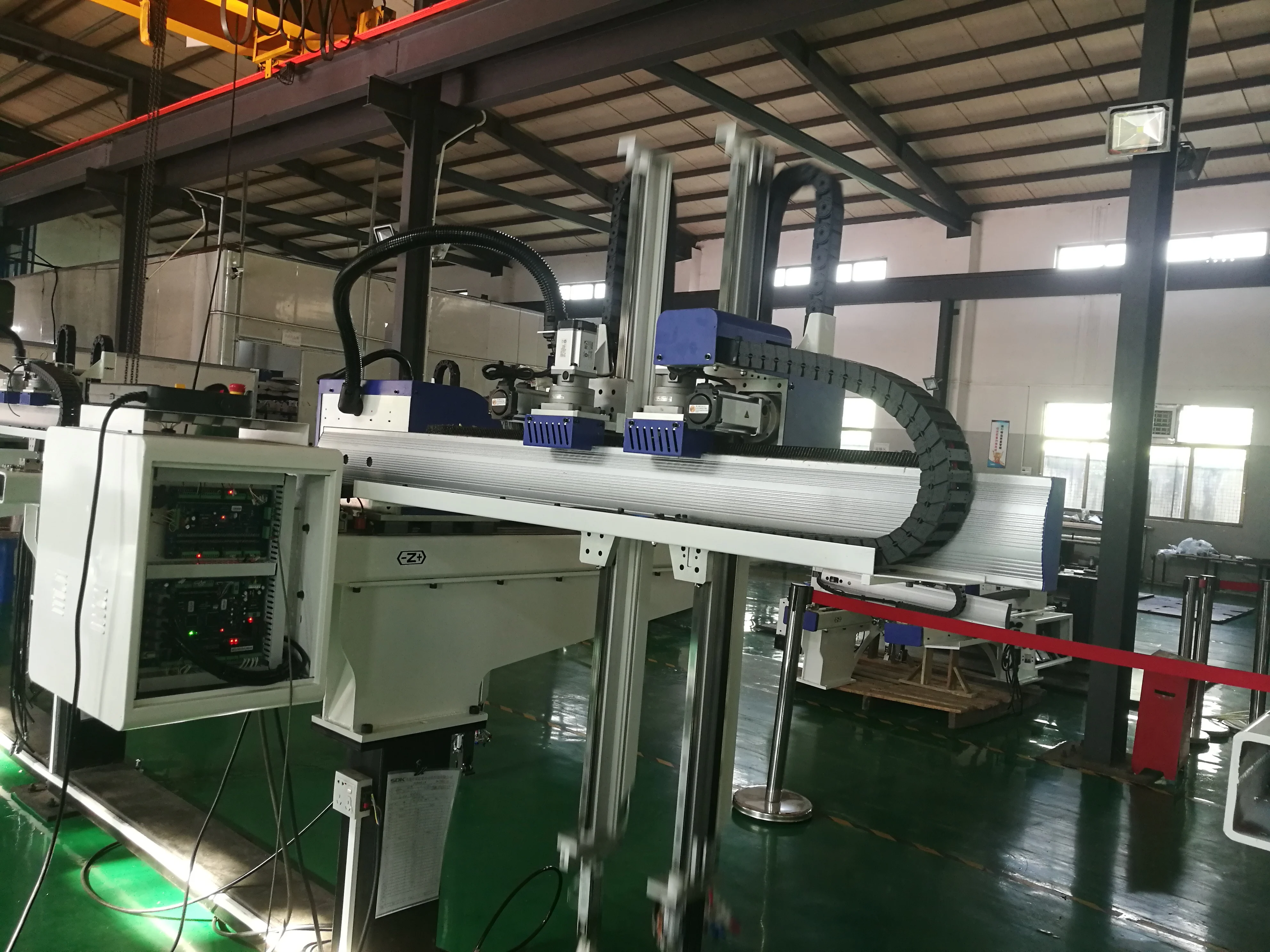

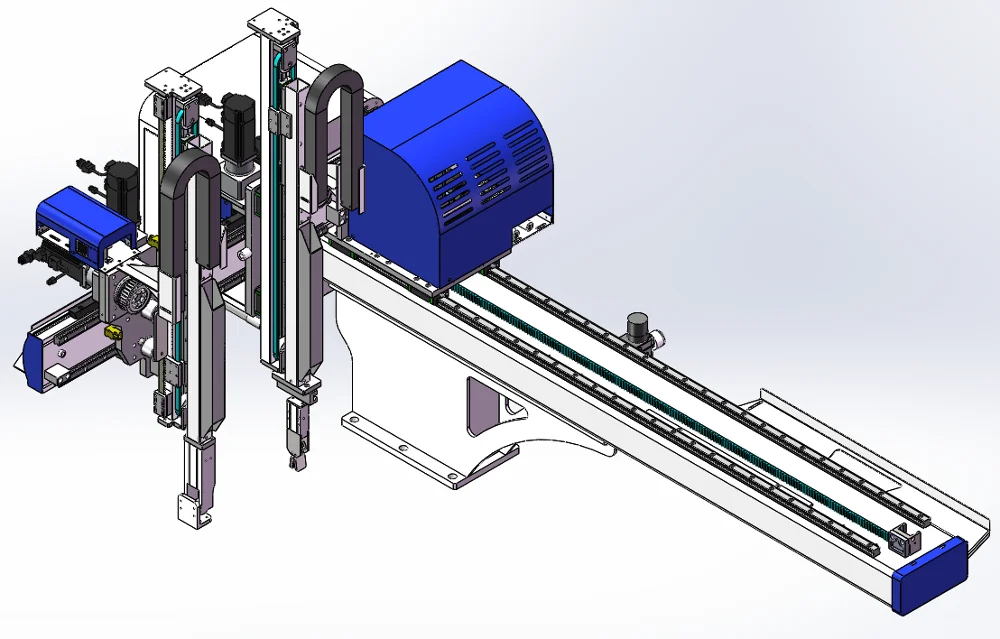

5 axis Robot arm for plastic injection molding machine in hot sale manipulator
- Category: >>>
- Supplier: Dongguan Shi Da Kun Automation Technology Co. Ltd.
Share on (60824473556):
Product Overview
Description
Product Description
Product Application
SDK products are widely used in: household appliances, computers and peripheral industries, photoelectric industry, cosmetics packaging, automobile and parts, machine parts, precision gear, household necessities, mobile phone, communication, medical supplies, food packaging, etc.
MAIN SPECIFICATIONS | ||||||
Applied to injection molding machine | Ton | 100~280 | ||||
Stroke | vertical stroke | mm | 850 | |||
crosswise stroke | mm | main arm 300,vice arm 120 | ||||
horizonal travel | mm | 1350 | ||||
Time | Take-out | sec | 1.3 | |||
Dry cycle time | sec | 8 | ||||
side posture angle(degree) | . | 90 | ||||
gripper rotation angle(degree) | kg | 3 | ||||
power consumption | kva | 2.8 | ||||
KN | 125 | |||||
PRODUCT SERIES:

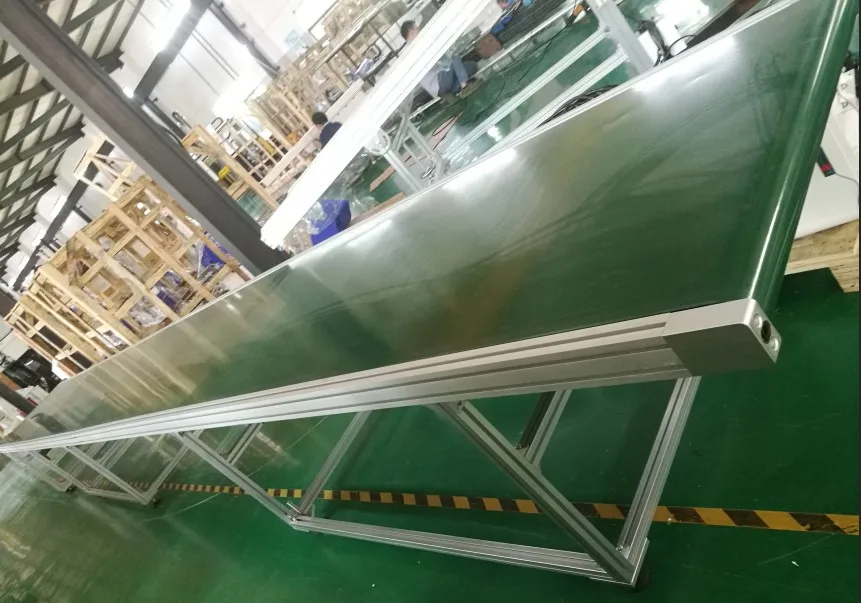

SDK produces oblique arm robot, horizontal robot, high-speed tau robot, large five-axis servo manipulator, conveyor belt, receiving station and other peripheral, fully meeting the demands of injection molding machine from 50 to 4,000 tons.
Main Features
The device was drived by High-Performance Ac servo motor, High payload can pick up big/heavy products, High Speed performance allow to move fast to improve the prodcution efficiency.
1. High-rigidity 3D structure design, stable and durable
2. Using high-precision special linear slide, hot-resistance, abrasion performance, long life without deformation
3. The arm structure is made of high rigid aluminum extruded beam, light weight and high rigidity, with belt speed doubling mechanism to ensure the time of taking out
4. T type steel with PU belt drive, good stability, accurate positioning and reproducibility up to 0.15mm
Control Features:
1. Imported AC servo motor and driver with high performance.
2. Easy programming and simple operation.
Certifications
Detailed Images
Machine Parts
Name: motor
Brand: Panasonic
Original: Japan
Main Features

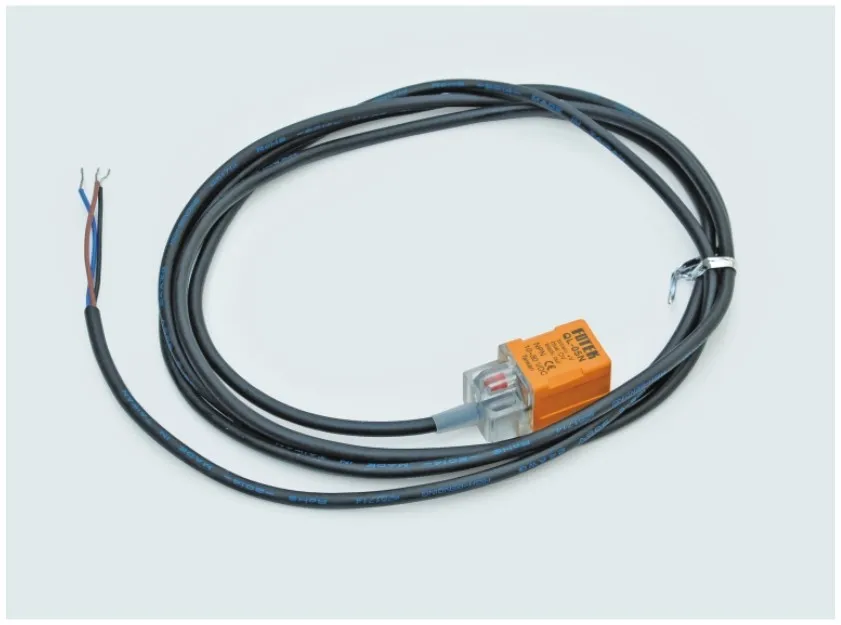

Name:Sensor switch
Original:Taiwan
Machine Parts
Name: slideway,slider
Brand: THK
Original: Japan
Main Features

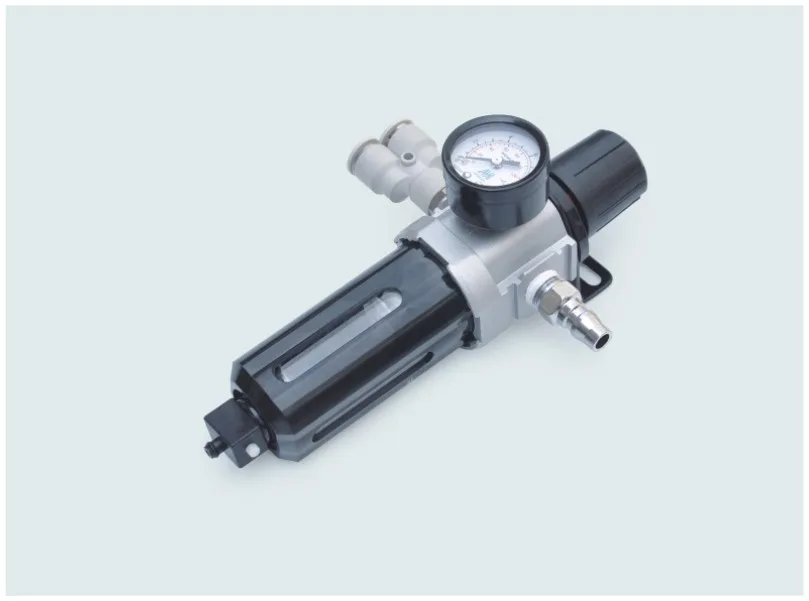

Name: LFR
Original: Taiwan
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 2100(L) * 1400 (W) * 1700(D) | |
Weight | 400 | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 2100(L) * 1400 (W) * 1700(D) | |
Weight | 320 | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |

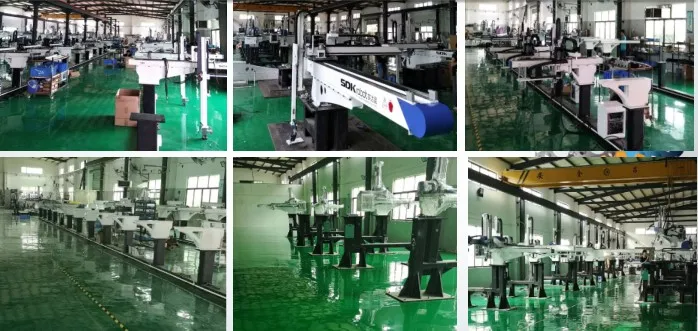

Our Company
Dongguan Shidakun Automation Technology Co., Ltd. was established in 2003 with years of manufacturing experience of automation equipment. We specialize in the production of more than three axis linkage injection molding special robot arm and peripheral automation equipment, focusing on product design, manufacturing, sales service, etc.
We produce oblique arm robot, horizontal robot, high-speed tau robot, large five-axis servo manipulator, conveyor belt, recriving station and other peripheral, fully meeting the demands of injection molding machine from 50 to 4,000 tons.
Related Products
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Q: How long is your delivery time?
A: Generally it is 15-20 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: No. Customers can visit our factory and view samples.
Q: What is your terms of payment ?
A: 50% T/T in advance. balance before shippment.
