2020 New Electric Industrial high speed flat electric transfer cart for sale
- Category: Hand Carts & Trolleys >>>
- Supplier: Xinxiang Hy Crane Co. Ltd.
Share on (60824513664):
Product Overview
Description
Product Overview
PRODUCT SPECIFICATIONS
Modle | KPX-10T | KPX-30T | KPX-50T | KPX-80T | KPX-100T | KPX-150T | |||||
Table Size (m) | 3.6*2.0*0.5 | 4.5*2.2*0.6 | 5.5*2.5*0.65 | 6.0*2.6*0.8 | 6.5*2.8*0.9 | 10*3.0*1.2 | |||||
Power | Maintenance Free Battery | ||||||||||
Rail inner Gauge | 1435mm | 1435mm | 1435mm | 1800mm | 2000mm | 2000mm | |||||
Wheel Dia. | 350mm | 400mm | 500mm | 600mm | 600mm | 600mm | |||||
Running Speed | 0-20m/min | 0-20m/min | 0-20m/min | 0-20m/min | 0-20m/min | 0-20m/min | |||||
Motor Power | 1.6kw | 3.5kw | 5kw | 8kw | 10kw | 15kw | |||||
Battery Capacity | 180Ah | 250Ah | 330Ah | 400Ah | 440Ah | 600Ah | |||||
Battery Volatge | 48v | 48v | 48v | 72v | 72v | 72v | |||||
Max Wheel Load | 42.6Kn | 110.4Kn | 174Kn | 278.4Kn | 343.8Kn | 265.2Kn | |||||
Reference weight | 4.2t | 6.8t | 8t | 12.8t | 14.6t | 26.8t | |||||
Recommend Rail | P24 | P38 | P43 | P50 | QU100 | QU100 | |||||
PRODUCT CONFIGURATION

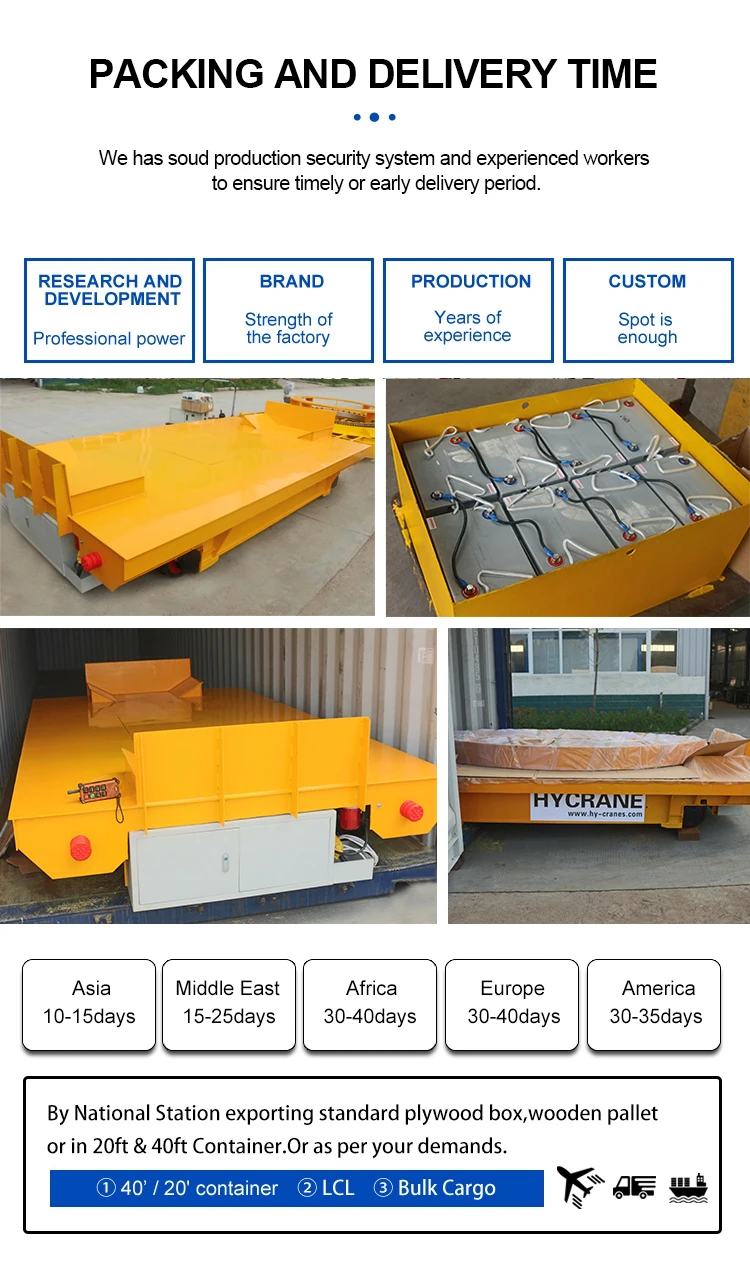

Product packaging
