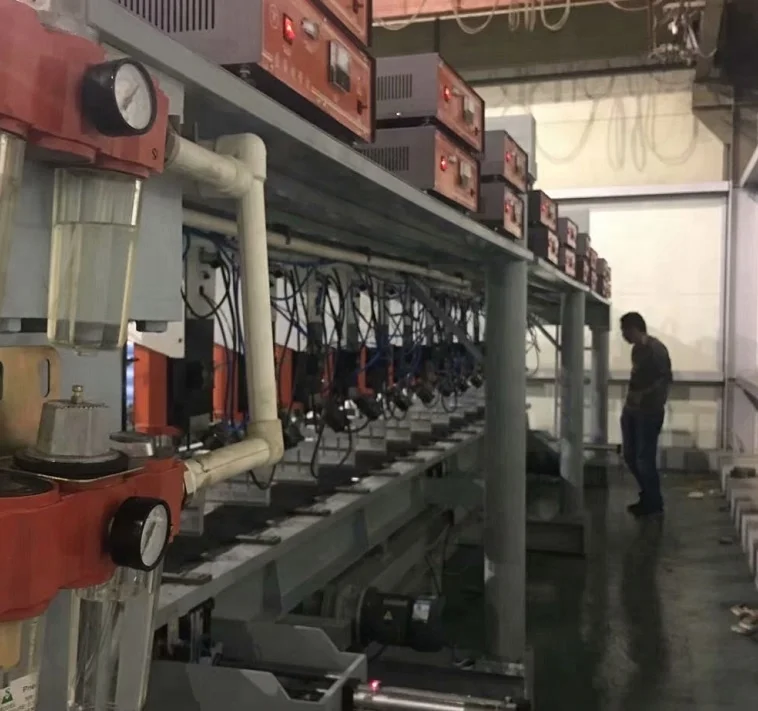

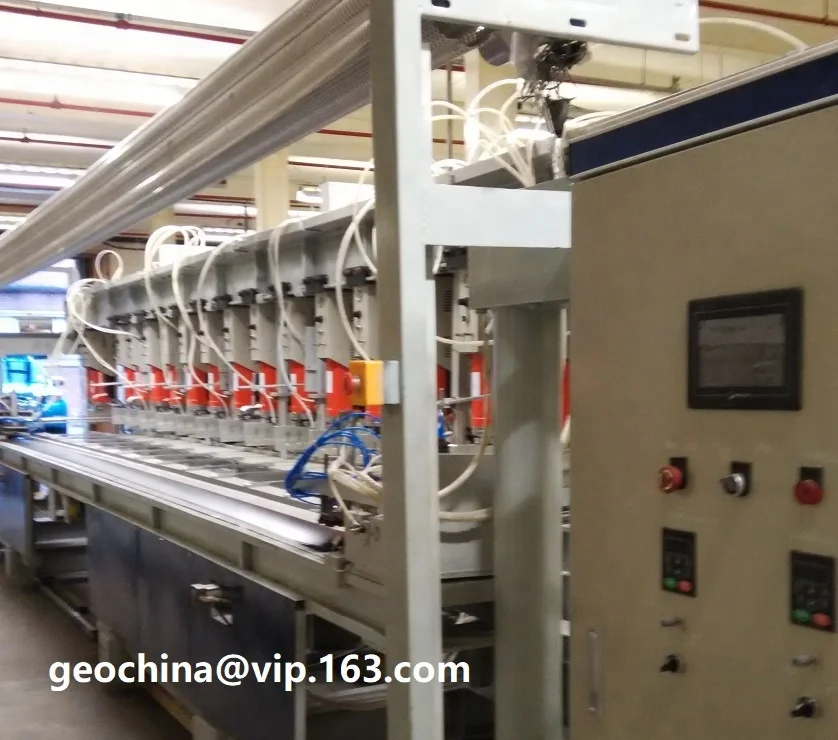

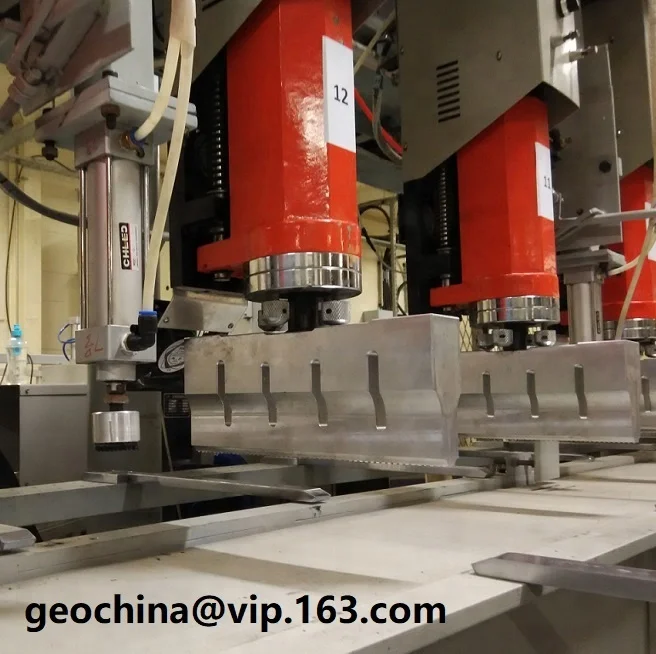

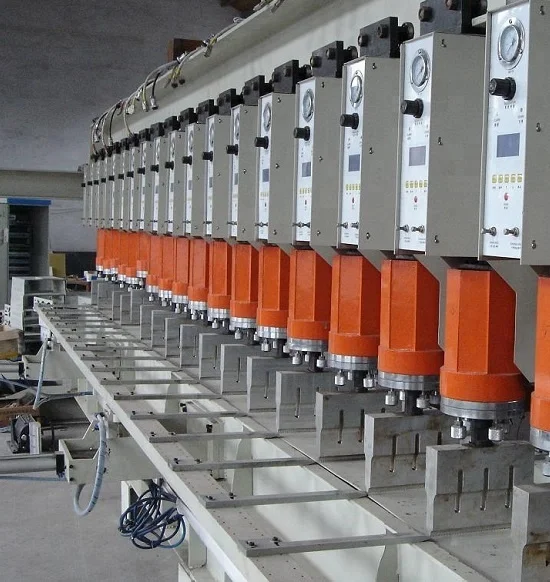

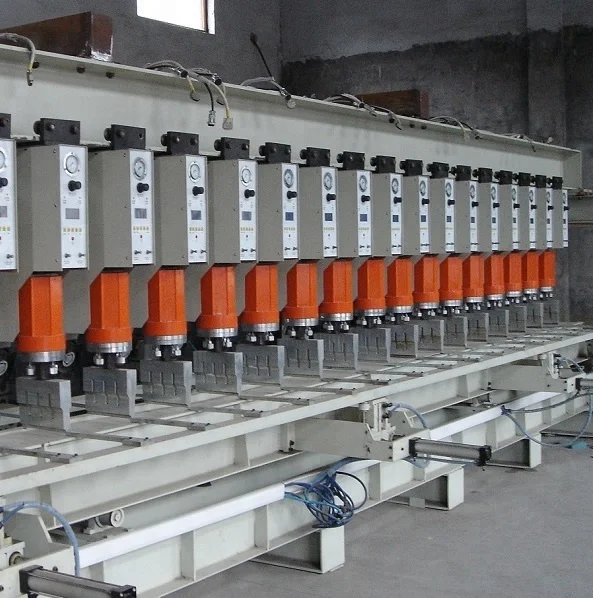

Ultrasonic Plastic Welder HDPE geocell Production line

Our ULTRASONIC WELDING EQUIPMENT is designed specially for PE (polyethylene) Geocell production which can improve the working efficiency compared with single instrument welding. It is a combination of multiple ultrasonic welding machines by adopting the imported the PLC control system thus realizing the automatic operation by two workers only, easy working and self mal-operation protection and mistake warning functions. Our equipment is with most advance technology and humanized design and superior quality in China., The main characteristics are:
☆ Touching screen demonstration in main server box
☆ Touching screen in parameter setting for each welding instrument
☆ Easy working menu
☆ Convenient altitudinal Adjustable for each welding heads
☆ Newly designed enlargement electric circuit with stronger power and durable Transducer
☆ Ultrasonic Frequency Automatic Tracing reducing troubles in running.

Electricity supply\t380V 50hz ( extra transformer be equipped suitable for 415V 50hz)

MODEL NO.                                                 NCT-09      NCT-11     NCT-15         NCT-17
No.of welding heads                               09 units        11 units     15 units      17 units
Max. Power                                                 27Kw              33kw          45kw          54kw
Ultrasonic Viberation Frequency                        20KHZ
Welding distance scope                                330mm-660mm

Geocell strips width                                    100mm-300mm

Maximum effective length of strips                6300mm or customerized

Max No. of strips for each pane                               60

Working Speed                                            30 sec. Max for each welding cycle
Size of the equipment                               10000mm (L) x 1700m ( W) x 2000m (H)

                                                                (working space required: 12m(L)x5m(w)x 2.5m(h)
Weightness                                               5500kgs        5700kgs       6800kgs     7000kgs
Geocell strips   width                                                          50mm-200mm

Daily output ( reference)                          1000sqm     1300sqm      1600sqm      2000sqm
Size of the equipment                                     10.5m (L) x 2.1m ( W) x 1.8m (H)
Weightness                                                                                      7-8 tons
