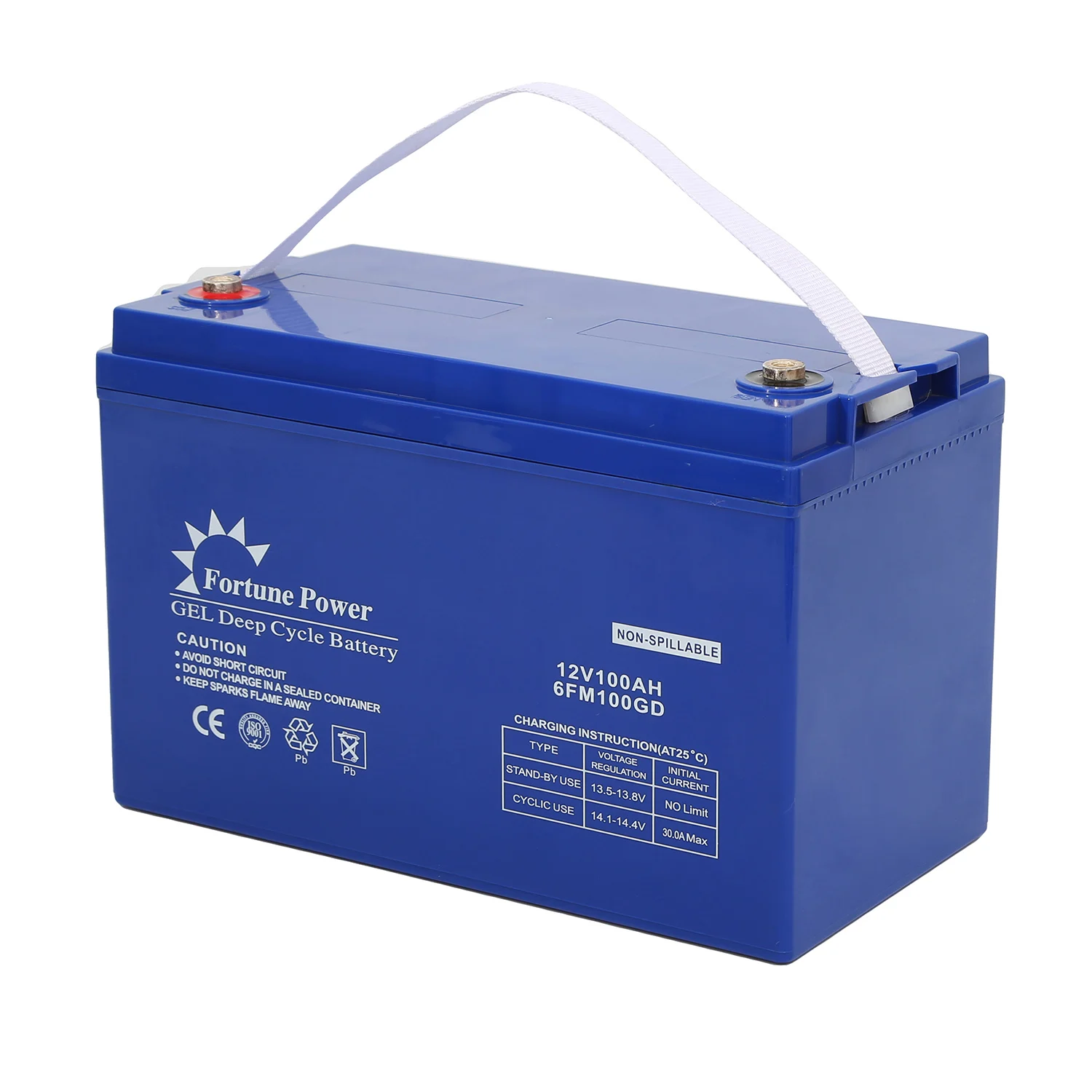

lead acid battery plate 12v 100ah gel battery green inverter battery
- Category: >>>
- Supplier: Guangzhou Fortune Power Co. Ltd.
Share on (60824558159):
Product Overview
Description
Guangzhou Fortune Specifications of 12V100Ah SMF high temperature solar gel battery : | ||
Nominal Voltage | 12V | |
Rated Capacity (10 hour rate) | 100AH | |
Size (Length*Width*Height*Total Height) | 329*172*238MM | |
Weight Approx | 28.0KG | |
Capacity 25°C (77°F) | 10 Hour Rate(9.0A) | 100AH |
5 Hour Rate(14.4A) | 80AH | |
1 Hour Rate(54.0A) | 60AH | |
1.5 Hour Discharge To 10.5V | 40A | |
Internal Resistance | Full Charged Battery at 25°C(77°F) | 5mΩ |
Capacity Affected By Temperature (10 Hour Rate) | 40°C(104°F) | 102% |
25°C(77°F) | 100% | |
0°C(32°F) | 85% | |
-15°C(5°F) | 65% | |
Self-Discharge at 25°C (77°F) | Capacity after 3 Month Storage | 91% |
Capacity after 6 Month Storage | 82% | |
Capacity after 12 Month Storage | 64% | |
Terminal | T16 | |
Cycle Charge (Constant Voltage) | Initial Charging Current Less Than 40A | |
Voltage 14.40-14.80V Time 14~16h | ||
Float Charge (Constant Voltage) | Voltage 13.50-13.80V | |
Warranty | 2 Years | |
OEM Service | Accept | |
Color | Black, Gray | |
Certificate | CE; UL; ISO9001; ISO14001; TLC; Solar Product Certificate | |
Product Application
Fortune Power Mainly Applied For:
1.Solar power system(off-grid solar power system, solar street light system, solar garden light system)
2.Wind Power System
2. UPS and computer backup power
3. telecommunication system
4. Power station System
5. Railway System
6. Emergency lighting system
7. Automatic control system
8. Alarm system for fire protection, security
Storage and installation
1.Fortune Power battery is not in use should remove the cable, pole jacket cover and wipe clean;
2.once every three months for Fortune Power battery to maintain charging, constant voltage charging method for limiting law, the initial charging current is 0.1CA, the charging voltage is 2.4V / single cell (25 ℃ when);
3.Fortune Power battery should be stored in dry and ventilated place, away from direct sunlight and away from heat sources;
4.when handling batteries even force, the force of the housing portion of the battery to avoid damage to the pole;
5.the installation should use insulated tools to prevent click.
FAQ
Q1. Are you the manufacturer?
Yes, we are the leading manufacturers in Guangzhou.
Q2. What kinds of battery do you have?
We have AGM Battery, GEL Battery, UPS Battery, Solar Battery, Lead Acid Battery…
Q3. What is your product series range?
12V 1.2Ah-250Ah
6V 1.2Ah-220Ah
2V 100Ah-3000Ah
Q5.What is your products advantage?
We produce lead plates by ourselves, we control the quality strictly. Offer you excellent quality with reasonable price and good service.
Q6. What is your battery life cycle?
Life cycle is connecting with discharge depth of discharge(DOD)
If 30% DOD,1500 cycle times,
If 50% DOD,700 cycle times,
If 100% DOD,300 cycle times.
Q7.How about the warranty of your products?
3 years warranty since shipping day.
Q8.Do you offer samples for testing?
Yes, we offer free samples for testing, but the clients need pay the freight.
Q9.Is it available for OEM service?
Yes, registered brands from reliable client are available.
Q10.What certificates do you have?
We have CE,ISO,SGS,UL,CQC certificates.
