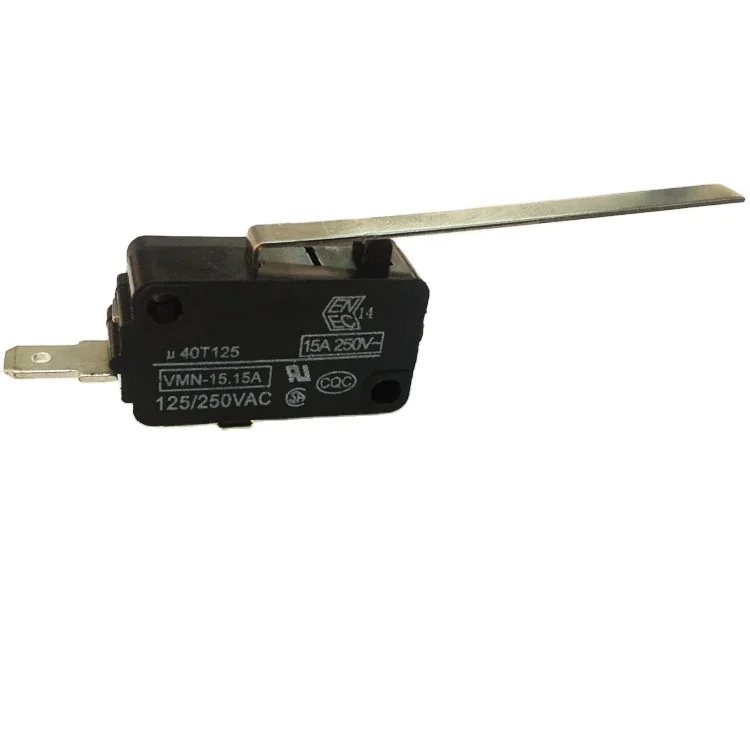

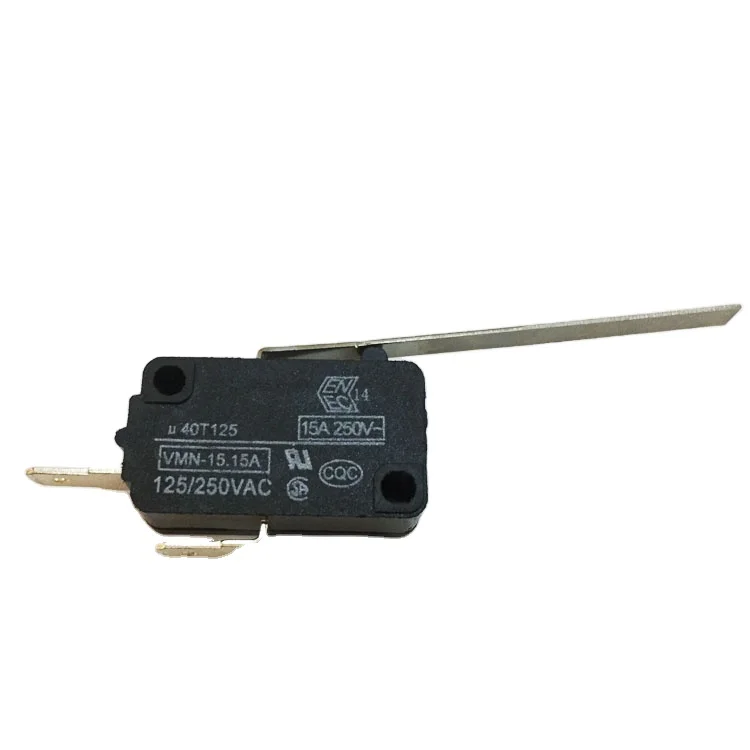

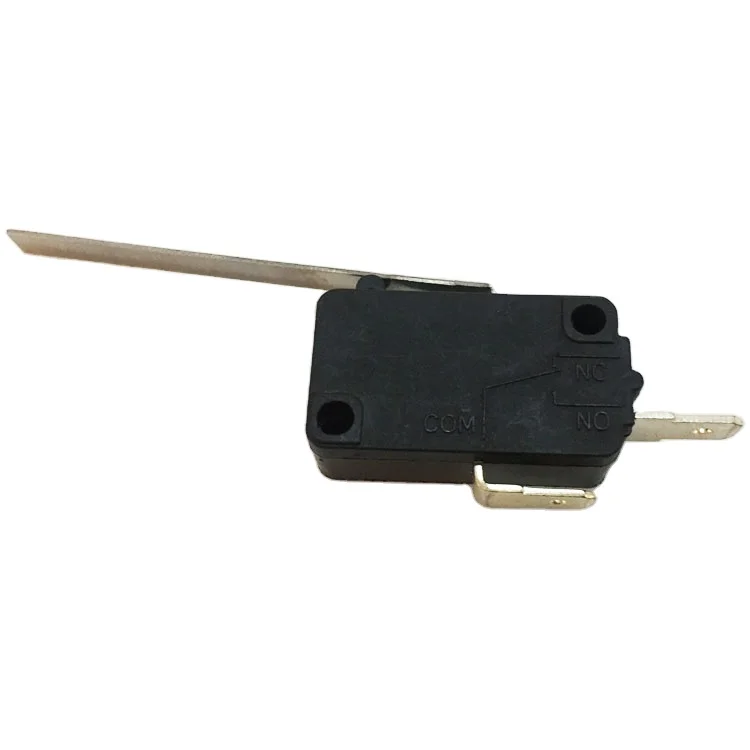

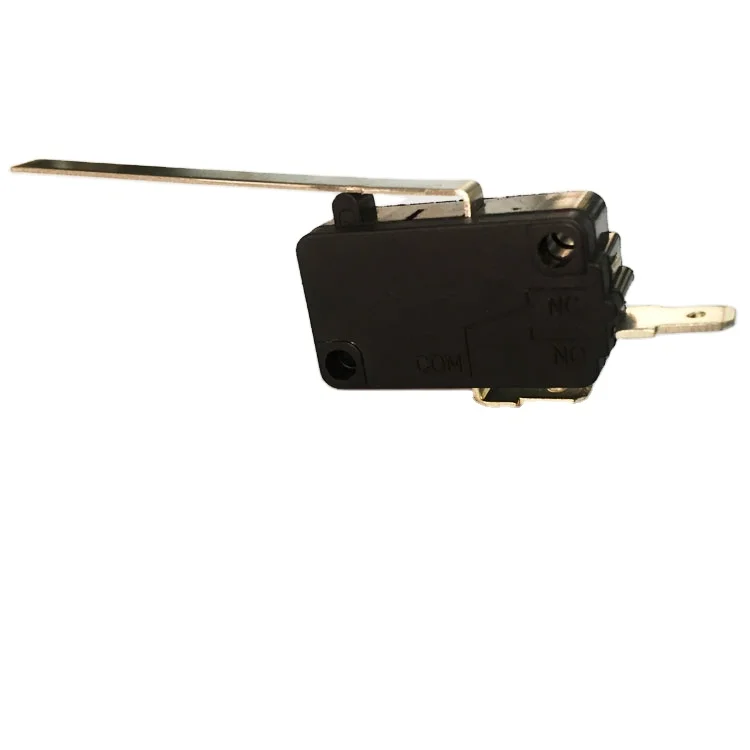

Tuowei/Towei safety micro switch supplier manufacturer 15A/250V t125 2 pin heater micro switch with long lever
- Category: >>>
- Supplier: Shenzhen Towei Electronics Co. Ltd.
Share on (60824577833):
Product Overview
Description
Product Description

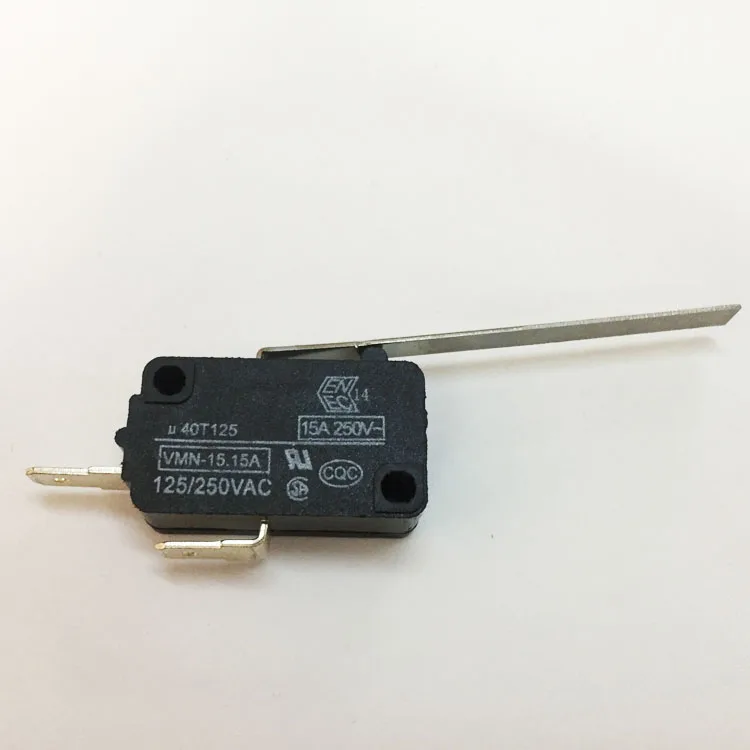

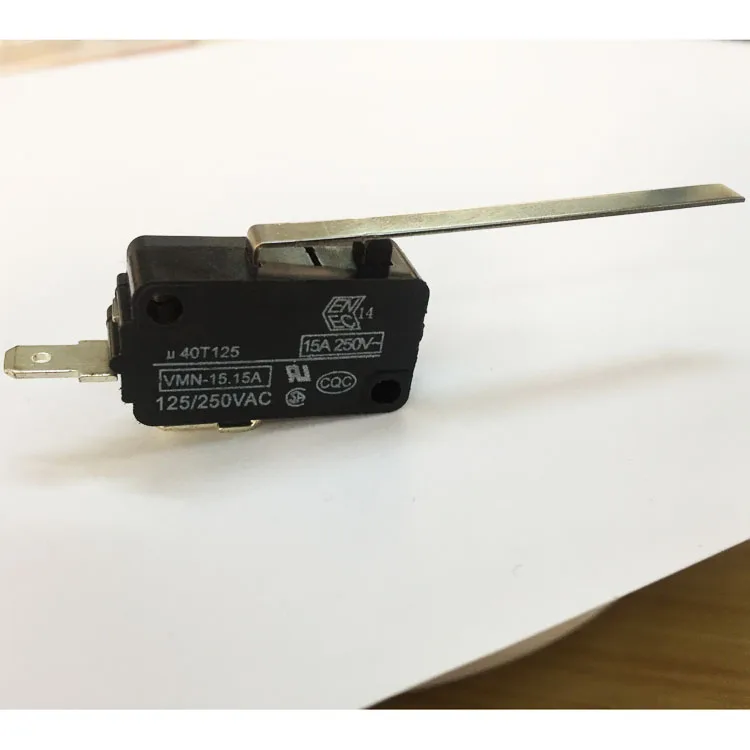

Towei switch supplier 15A/250V t125 2 pin zippy heater micro switch with long lever
Technical Parameter | |
Electrical Rating | 15A/250V.A.C. |
HZ | 60/50 |
| Load | Res/ Mot |
| Temp(C) | 125°C |
| Pol/Thr | 1/ M |
| PP/Circuit | A/-- |
| Endur | 10K CYCLES |
| Operation force | 200G+_50GF |
| Withstand voltage | 1500 V.A.C |
| SPCOA | 24-18AWG UL1015 |
Material: | |
| Housing:PA66 Grade: SABIC | |
| Terminals: Brass Flame rating: V-2 or V0 Temperature: 130°C Grade: Dupont | |
| Contract: Copper | |
| Base: PA66 Flame rating: V-2 or V0 Temperature: 130°C Grade: SABIC | |
| Apply to: | |
All kinds of electric heater,coffee machine,electric oven ,humidifier,vacuum cleaner,massage equipment , air purifier,lamps,toys,blenders,massager and so on. | |
