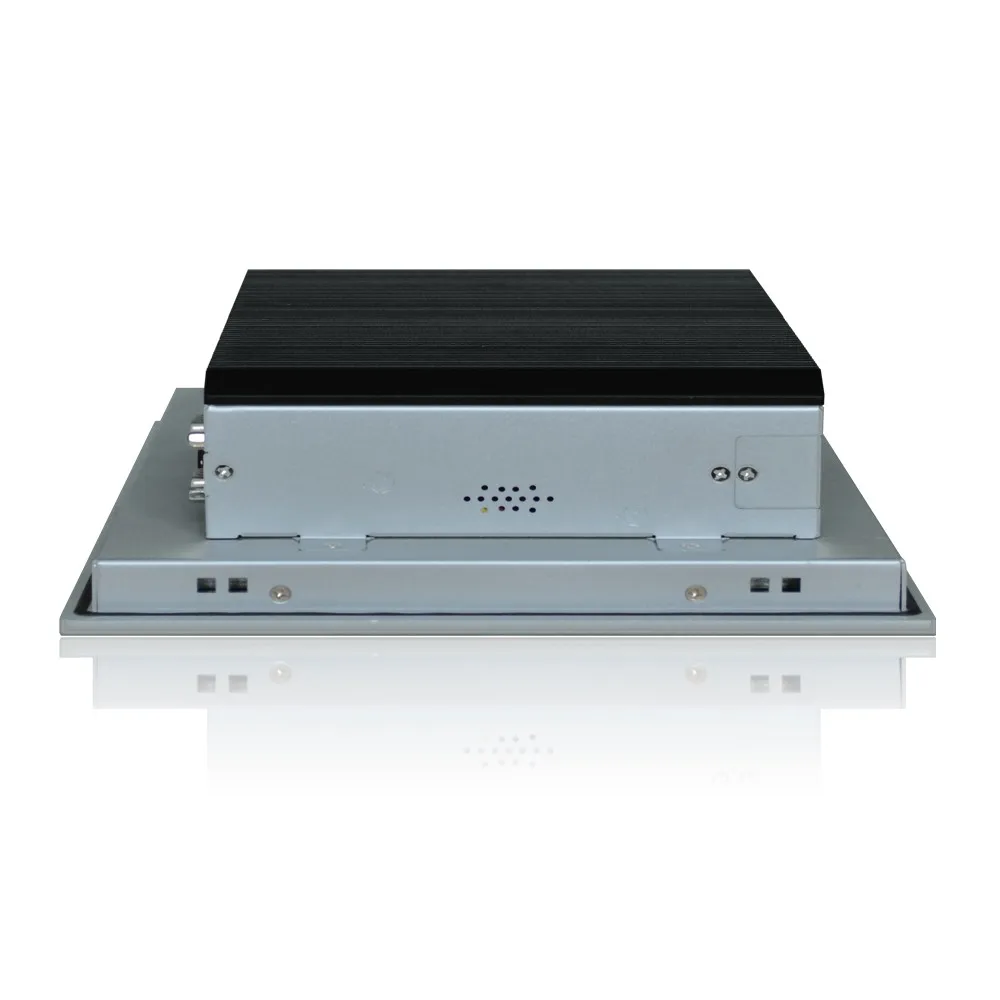

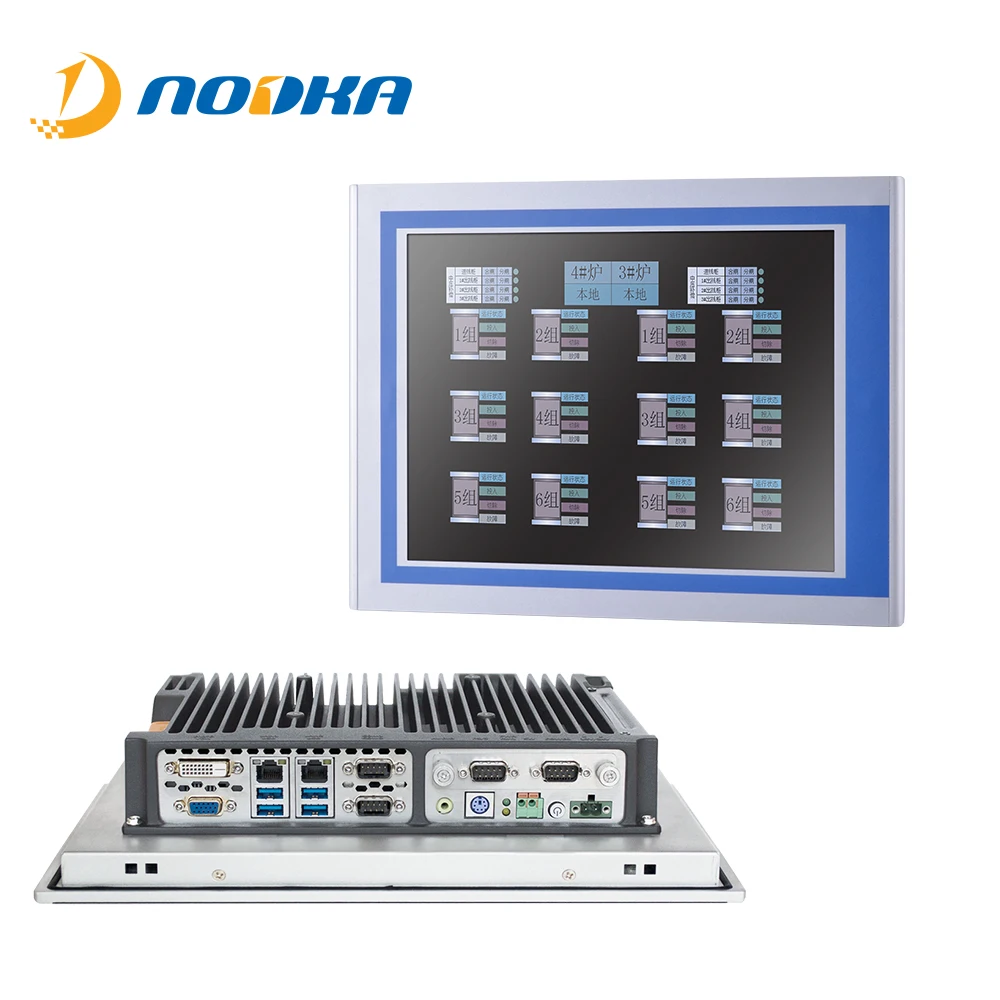

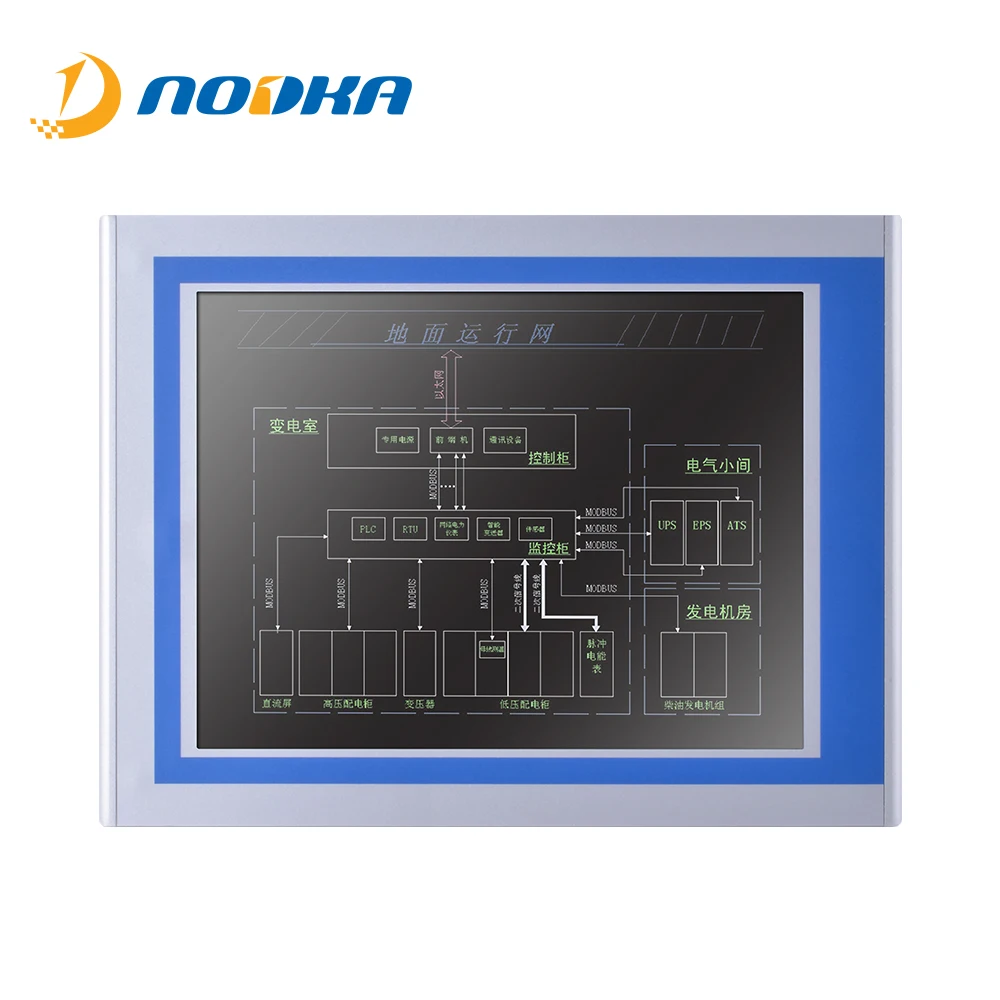

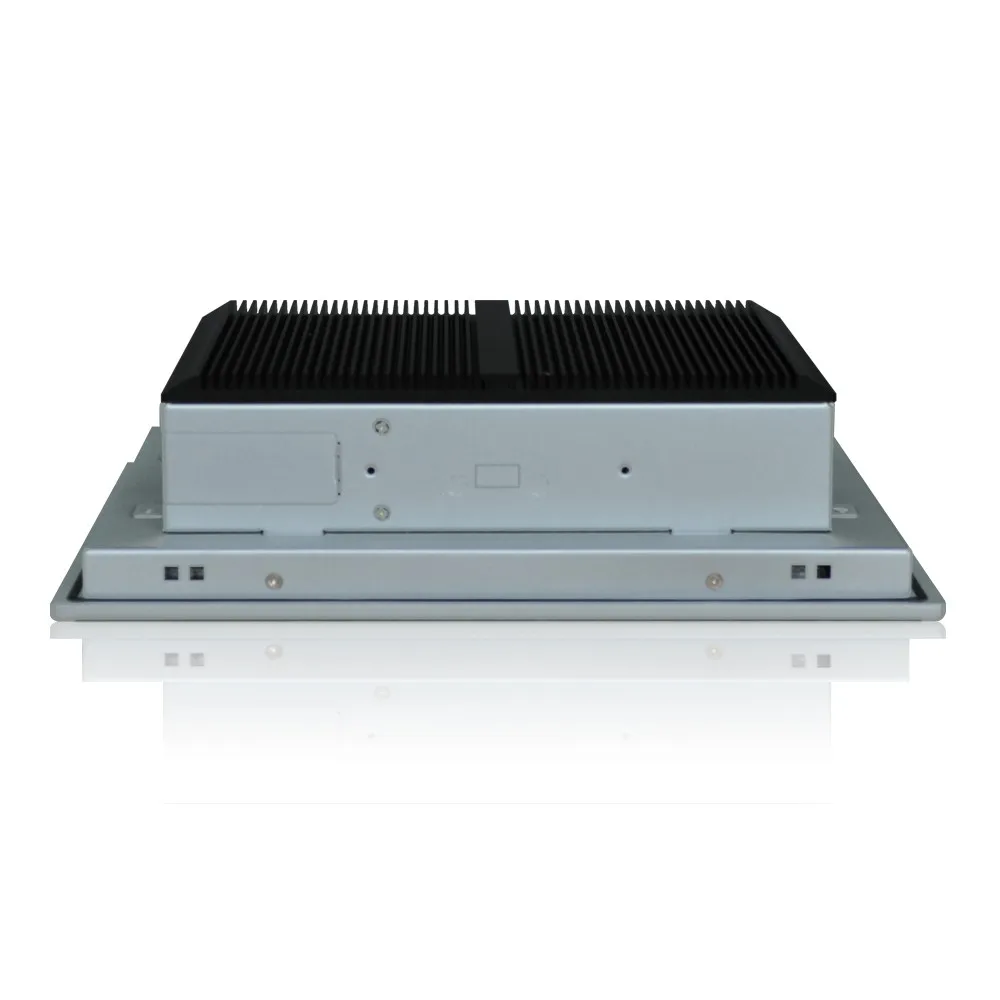

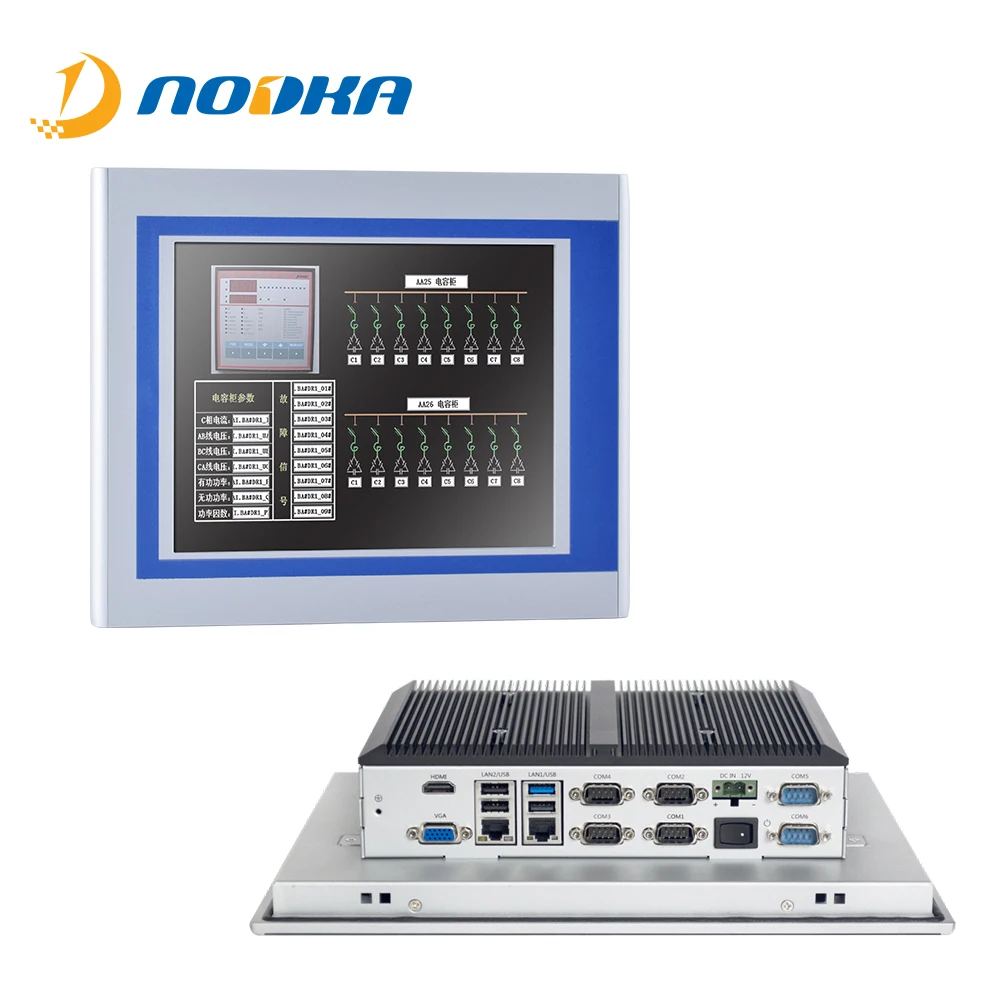

X86 single board mini industrial touch screen panel pc computer 10.4 inch
- Category: >>>
- Supplier: Shanghai NODKA Automation Technology Co. Ltd.
Share on (60824579507):
Product Overview
Description
Poster
Product Description
System | ||||||
CPU | Bay Trial J1900/E3845 | |||||
Frequency | Quad core 2.0GHz/Quad core 1.9GHz | |||||
L2 Cache | 2MB | |||||
Chipset | Bay Trail SOC | |||||
Memory | 1 x 204 - pin SODIMM DDR3L - 1333MHz support up to 8GB | |||||
Storage Medium | 1 x 2.5"SATA bay + 1x mSATA | |||||
LAN | 2 x Realteck RTL8111F 1000Mbps RJ - 45 with surge protection , lightning protection design and 15KV ESD protection | |||||
Audio | Realtek ACL662 Audio controller,built - in mono speaker(optional) | |||||

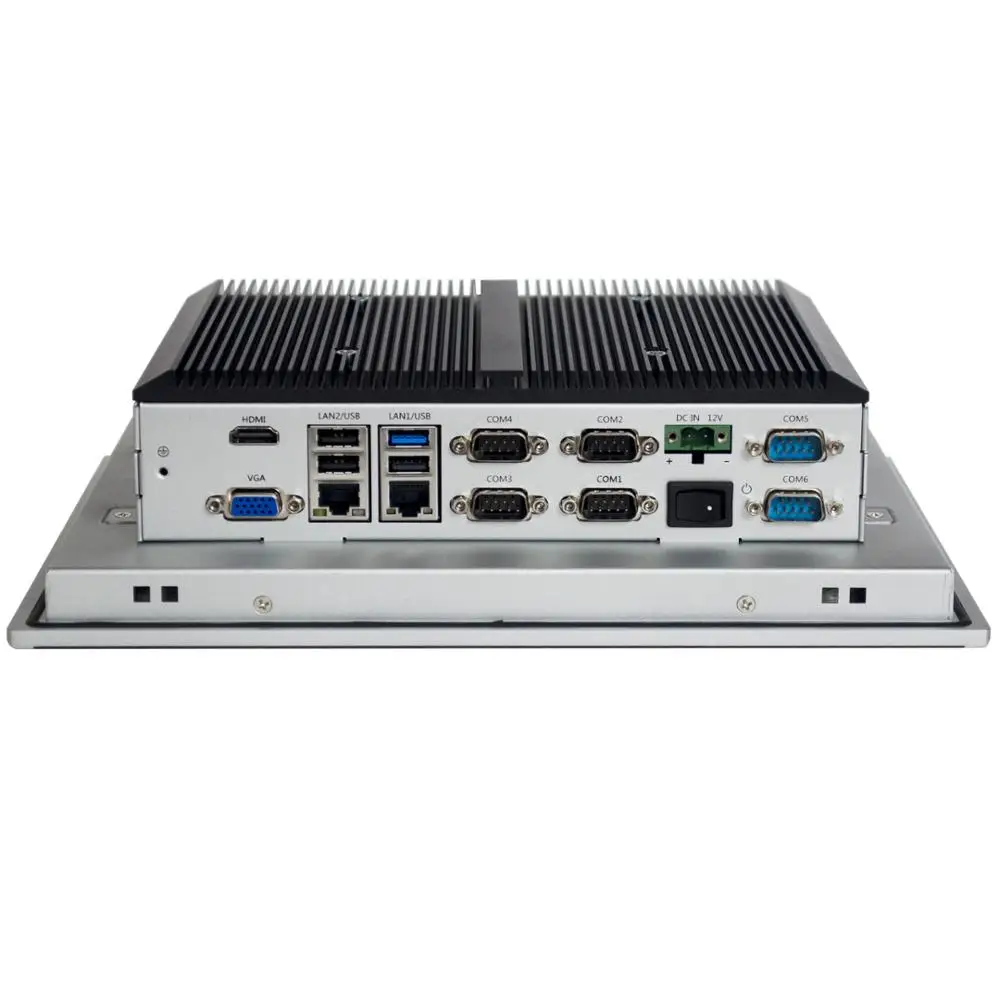

USB | 1 x USB3.0 / 2.0 / 1.1 , 3 x USB2.0 / 1.1 | |||||

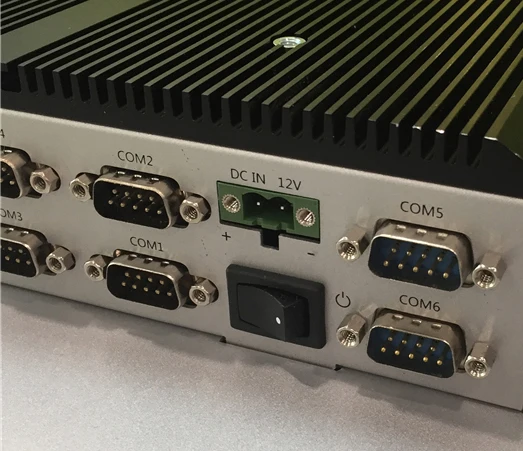

COM | 1 x RS - 232 / 485 (COM1) , 5 x RS - 232 (Optional 2 x RS48 , RS485 support automatic flow control) | |||||
Texpansion slot | 1 x Mini - PCle slot , extensible 3G , WIFI wireless card | |||||
Institutional | ||||||
Dimensions(WxHxD) | 300.5mm ×234.5mm×78mm (11.83"×9.23"×3.07") | |||||
Drill Hole Size(WxH) | 282mm×222mm (11.10"×8.74") | |||||
NW | 3.16kg (6.97lb) | |||||
Input voltage | DC12V , support reverse polarity protection , +9~+30V (Option) | |||||
Maximum Power Dissipation | 33.6Watt | |||||
Environmental | ||||||
Work Temperature | -10~45C(14°F~140°F)(Wide temperature SSD) / 0~45°C(32~113°F)(General temperature HDD/SSD) | |||||
Storage Temperature | -30~80°C(-22~176°F) | |||||
Relative humidity | 5~95%(Non condensation) | |||||
Shake | SSD applied:1.5 Grms,IEC 60068-2-64,random,5~500 Hz,1hr/axis | |||||
Shock | SSD applied:10 G,IEC60068-2-64,Half-sine wave,11ms duration | |||||
EMC | CE/FCC ClassA | |||||

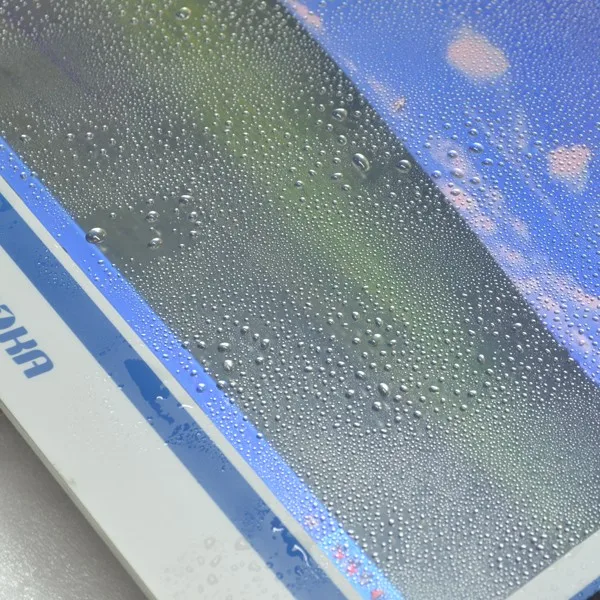

Water-proof | Front panel IP65 | |||||
LCD | Touch screen | |||||
LCD Size | 10.4" SVGA TFT | Type | Resistive touch screen | |||
Resolution | 800×600 | Resolution | 4096×4096 | |||
Colors | 16.7MB | Transmittance | >75% | |||
Active Area(WxH) | 211.2mm×158.4mm (8.31"×6.24") | Controller interface | USB | |||
Backlight | LED | Response Time | <5ms | |||
MTBF | 30000hrs | Surface Hardness | Mohs'Number 3H | |||
Pixel Pitch(HxV) | 0.264×0.264 | Click life | 250g/35,000,000times | |||
Luminance | 250cd/m2 | Draw life | 250g/5,000,000 times | |||
Contrast Ratio | 500:1 | |||||
Viewing Angle | (L)70/(R)70/(T)50/(B)60 | |||||
