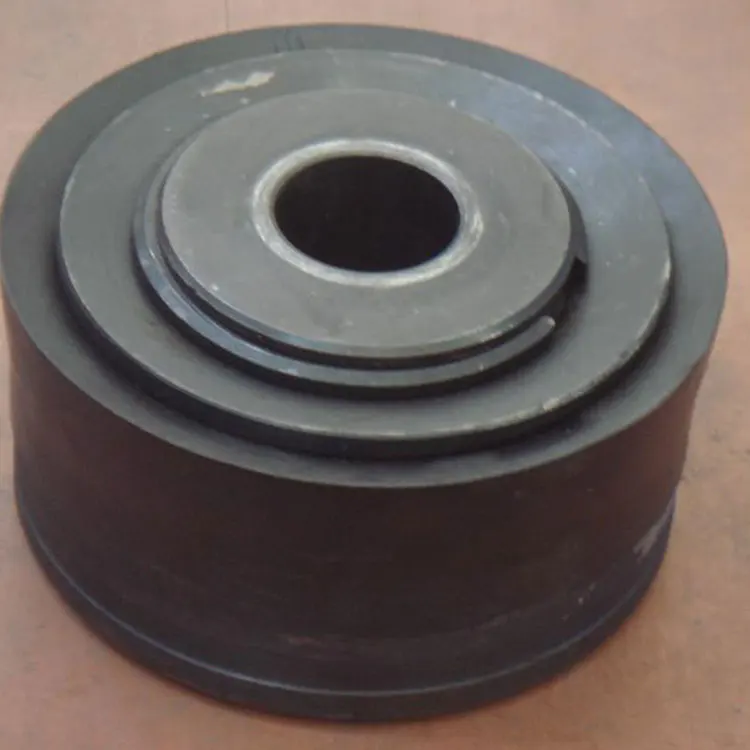

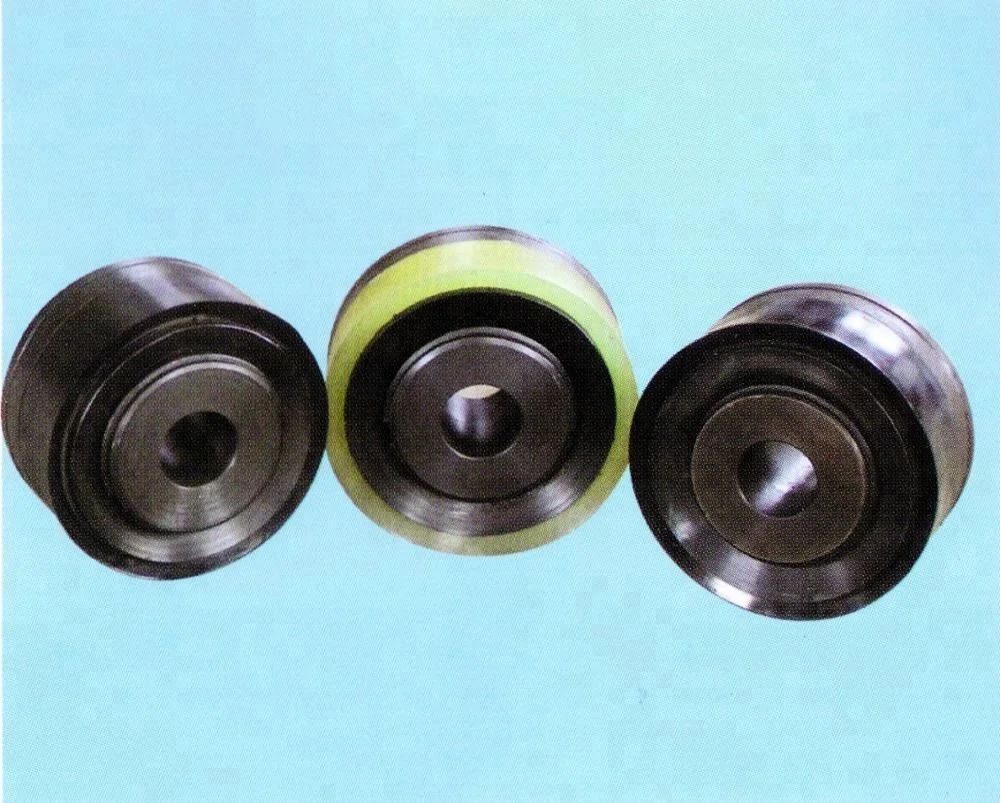

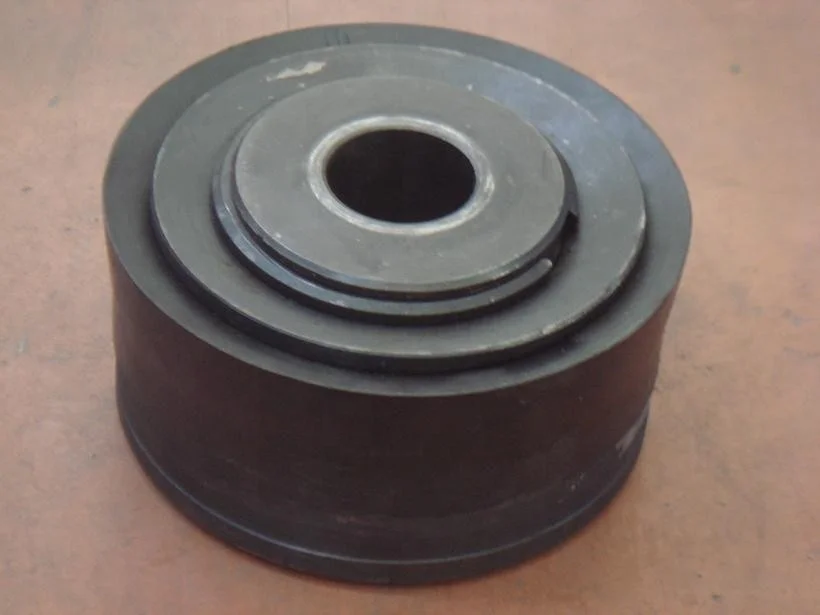

Oilfield Equipment Oil Drilling Hydraulic F1300 F1600 Triplex Mud Pump Parts Piston
Product Description
MUD PUMP TECHNICAL PARAMETERS:
|
Item |
F500 |
F800 |
F1000 |
F1300 |
F1600 |
|
Power Rating HP(kw) |
500 (373) |
800 (597) |
1000 (746) |
1300 (969) |
1600 (1193) |
|
Stroke RatingSPM |
165 |
150 |
140 |
120 |
120 |
|
Stroke Length(in /mm) |
7.5” /190.5 |
9”/228.6 |
10”/254 |
12”/305 |
12”/305 |
|
Gear Ratio |
4.286 |
4.185 |
4.207 |
4.206 |
4.206 |
|
Inlet Dia. (in/mm) |
8”/203 |
10”/254 |
12”/305 |
12”/305 |
12”/305 |
|
Outlet Dia. (in) |
4” Flange 5000psi |
5-1/8” Flange 5000psi |
5-1/8” Flange 5000psi |
5-1/8” Flange 5000psi |
5-1/8” Flange 5000psi |
|
Valve |
API5# |
API6# |
API6# |
API7# |
API7# |
|
Max. Liner (in/mm) |
6-3/4”/170 |
6-3/4”/170 |
6-3/4”/170 |
7”/180 |
7”/180 |
|
Overall Dimension L*W*H(mm) |
3658*2709 *2231 |
3963*3025 *2410 |
4267*3167 *2580 |
4617*3260 *2600 |
4615*3276 *2688 |
|
Approx. Weight (kg) |
9770 |
14500 |
18790 |
24572 |
24791 |
Product Description
Power system, drawworks, mast, traveling system and driving devices of truck mounted drilling rig are mounted on a self-propelled chassis for high efficient mobilization. The Company has developed truck-mounted drilling rigs with drilling depth of 1500m, 2000m, 3000m and 4000m, and static hook load ranging from 1350kN to 2250kN. The truck- mounted drilling rigs feature heavy working load, reliable performance, good cross-country capability, easy mobilization and low cost, which are suitable for the drilling operation of medium depth and shallow oil well on land, desert and plateau
Company Information
Company Introduction
SHANDONG BEYOND PETROLEUM MACHINERY CO.,LTD. is established on request of customer and aimed to supply best product and service for the customer. It focuses on to supply best solutions for the overseas oilfield customer on equipment & spares maintenance and supply.
BEYOND products cover but not limited to: China-make oil drilling rigs, workover rigs, wellhead and downhole tools, drilling tools, OCTG and other related equipment and parts. Meanwhile, BEYOND can offer technical services, personnel training and maintenance guide towards China-made drilling rigs.
BEYOND believes that it will become your best cooperative partner in China.
