6 TV 3*2 video wall controller HD video wall processor

                     6 TV 3*2 video wall controller

 The TV video wall controller function is to split one input video image into several equal video blocks and zoom out these video blocks to full screen picture, then output each image via HDMI port, connect it’s HDMI output to your HDMI display panel, you can get the video wall display. It is built with software and all functions can be set in OSD menu, no need professional technology. You can get your video wall display.

Features:
Input signal resolution is up to 1920x1080@60HZ
Support VGA, HDMI, AV and USB disk input .USB input can play video, picture and
music.
Support any of output picture 180 degree rotation

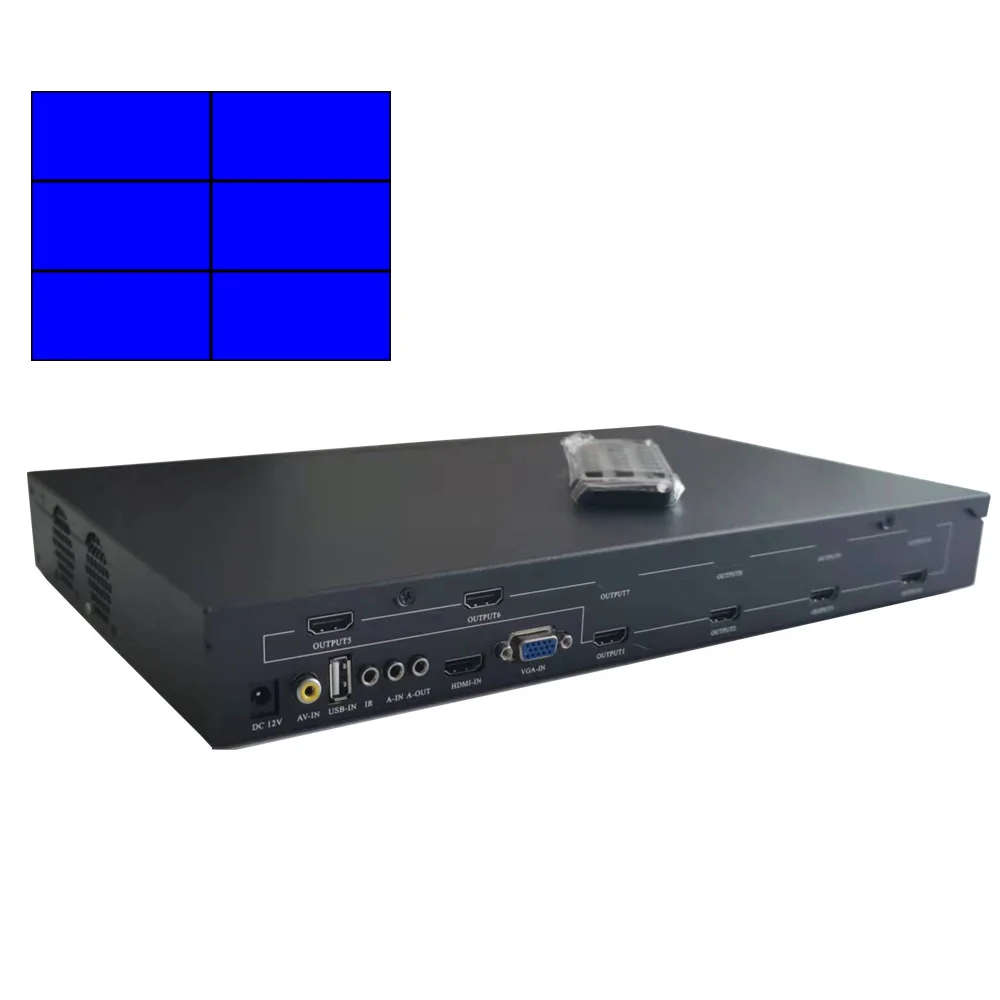

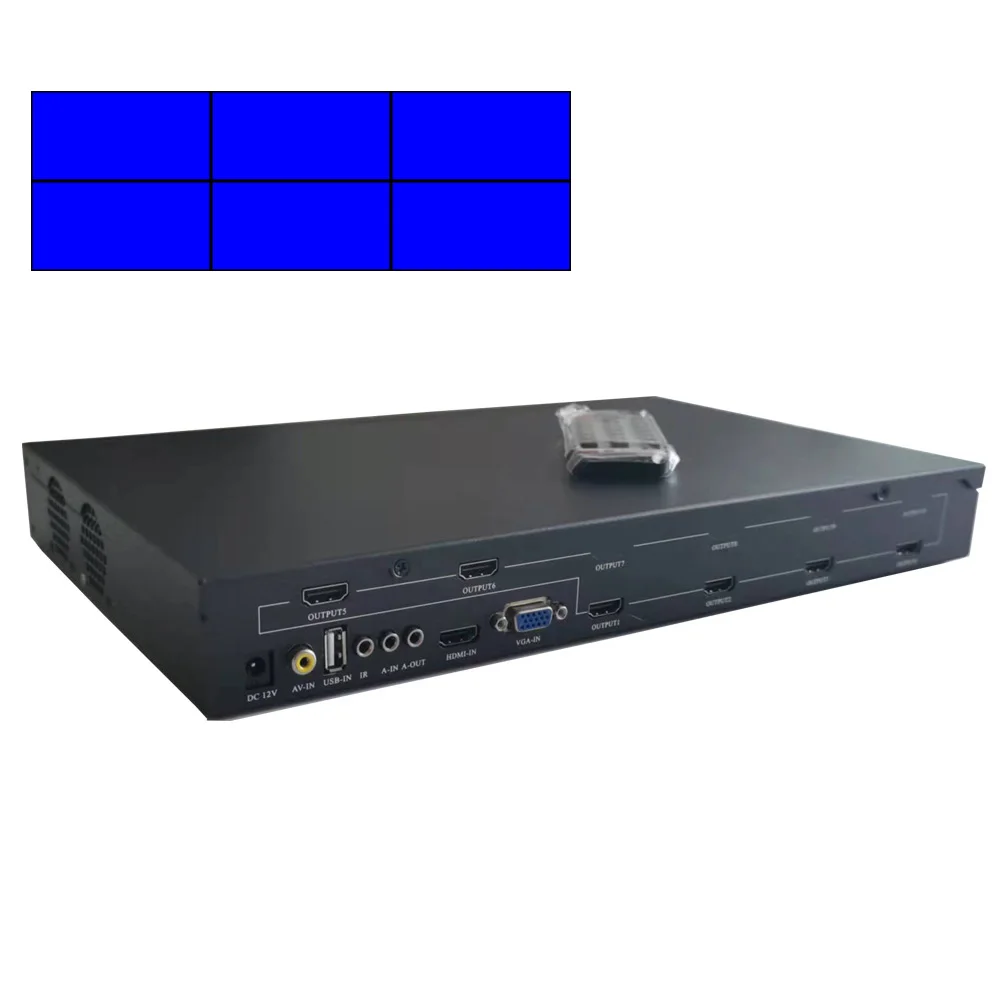

Many splits configuration available for user, such as 2x2,1x4, 2x3,3x2,3x3,4x4 etc.
Output signal resolution is up to 1080P@60Hz,and 1024x768 or 1366x768 is
selectable. HDMI or DVI output format is also selectable.
Support 3D video splice on display
Four dimension case: 1U-4,1U-10,2U-16
Support edge mask function
