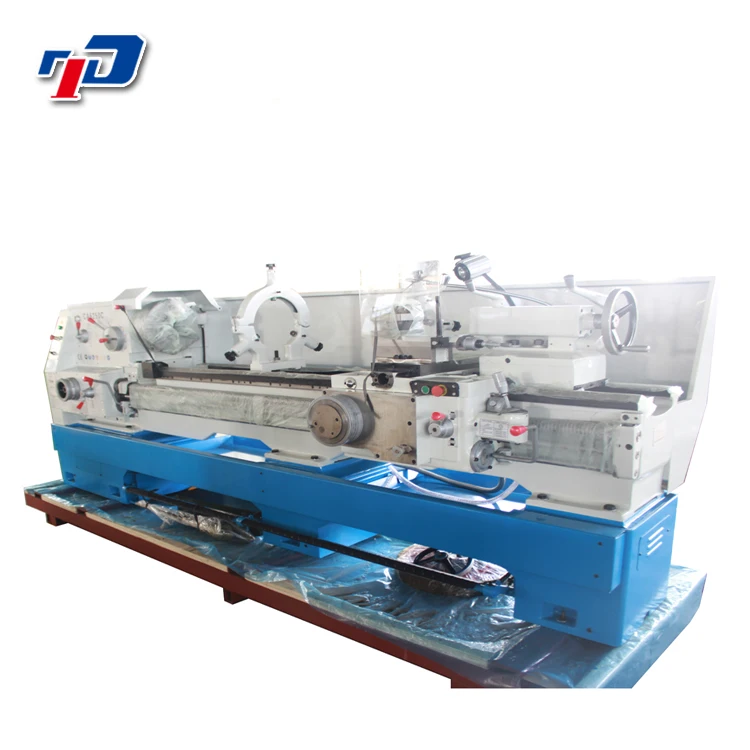

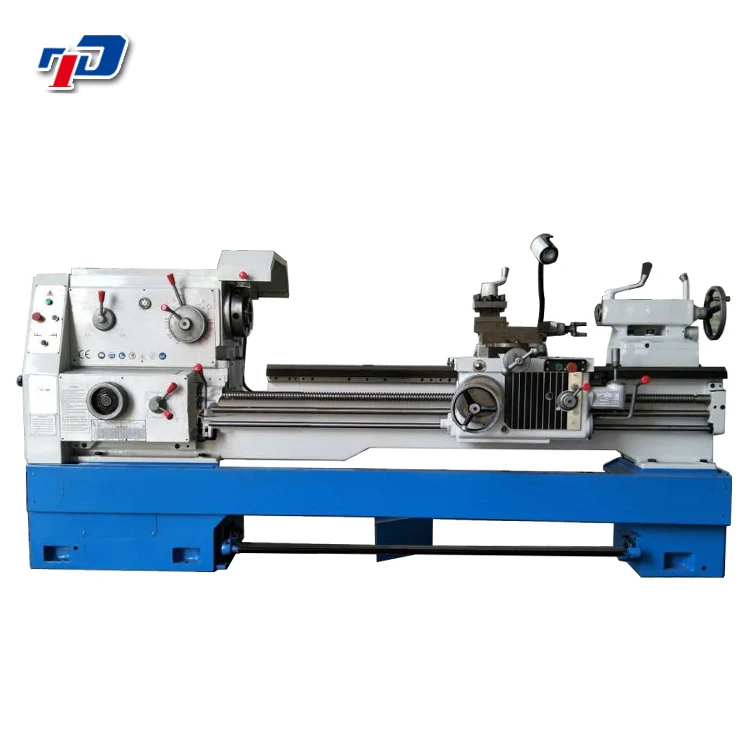

Manual lathe machine CA6150/CA6250 high precision lathe machine price lathe machine price
- Category: >>>
- Supplier: Zaozhuang City Tengdong Machine Tool Co. Ltd.
Share on (60824718012):
Product Overview
Description
Product Description
The main performance characteristics:
1 Machine tool bed box, headstock and tailstock, pallet etc. the binding surface between the manual scraping machine, after
rigorous testing, the precision and stability of the effective guarantee machine.
2 The machine adopts high strength cast iron, copper and chromium added special materials, bed width 400mm, bed rail quenching
depth 4mm, effectively improve the wear resistance and stability of machine tool.
3 Machine tool bed box lubricated system by the use of the lubrication of the pump for lubrication, for the hot weather, to ensure
the cleanliness of the bed box and heat dissipation characteristics, effectively extend the bearing and gear life.
4Machine tool spindle using Wafangdian bearing, spindle hole diameter 52mm, the precision grinding machine tool gear, effectively
improve the hardness, reduce machine noise.
5 Machine tool uses the domestic brand screw, wire mother uses the high quality bronze alloy to guarantee the wear resistance and
the accuracy retention.
6 Machine tool with four position high strength tool, shank size: 25x25mm.
rigorous testing, the precision and stability of the effective guarantee machine.
2 The machine adopts high strength cast iron, copper and chromium added special materials, bed width 400mm, bed rail quenching
depth 4mm, effectively improve the wear resistance and stability of machine tool.
3 Machine tool bed box lubricated system by the use of the lubrication of the pump for lubrication, for the hot weather, to ensure
the cleanliness of the bed box and heat dissipation characteristics, effectively extend the bearing and gear life.
4Machine tool spindle using Wafangdian bearing, spindle hole diameter 52mm, the precision grinding machine tool gear, effectively
improve the hardness, reduce machine noise.
5 Machine tool uses the domestic brand screw, wire mother uses the high quality bronze alloy to guarantee the wear resistance and
the accuracy retention.
6 Machine tool with four position high strength tool, shank size: 25x25mm.
Application:
1 CA series of ordinary horizontal lathe is suitable for turning inside and outside cylindrical surface, conical surface and other
rotating surface, turning various metric and inch, modulus and pitch thread, and can carry out the work of drilling and pulling
oil groove, is a very versatile horizontal lathe, widely used in all kinds of shaft and disc parts of the batch processing.
2 This series of lathe bed width in general lathe, rail width 400mm has a high stiffness,guide rail surface is quenched by medium
frequency, and is durable.
3 The machine operation is flexible and concentrated, the apron with fast moving mechanism. Using single handle vivid of the
operation, pleasant and good..
4 Machine tool structure rigidity and transmission rigidity are higher than the general lathe, the power utilization ratio is
high, is suitable for the strong cutting.
5 Machine tool factory in strict accordance with the test procedures for testing, and make a strong cutting test, to ensure that
the machine has a good accuracy and reliability.
rotating surface, turning various metric and inch, modulus and pitch thread, and can carry out the work of drilling and pulling
oil groove, is a very versatile horizontal lathe, widely used in all kinds of shaft and disc parts of the batch processing.
2 This series of lathe bed width in general lathe, rail width 400mm has a high stiffness,guide rail surface is quenched by medium
frequency, and is durable.
3 The machine operation is flexible and concentrated, the apron with fast moving mechanism. Using single handle vivid of the
operation, pleasant and good..
4 Machine tool structure rigidity and transmission rigidity are higher than the general lathe, the power utilization ratio is
high, is suitable for the strong cutting.
5 Machine tool factory in strict accordance with the test procedures for testing, and make a strong cutting test, to ensure that
the machine has a good accuracy and reliability.
Specification
Specifications | CA6150 CA6150B CA6150C | CA6250 CA6250B CA6250C | |||
Max. Swing over bed | 500mm | ||||
Max. Swing over carriage | 300mm | ||||
Max. swing in gap | -- | 720mm | |||
Effective gap length | -- | 210mm | |||
Max. length of work piece | 750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm | ||||
Width of bed | 400mm | ||||
Section of turning tool | 25x25mm | ||||
Spindle | Spindle speeds | 10-1400rpm/16-1400rpm(24steps) | |||
Hole through spindle | 52mm.(80mm). [105mm] | ||||
Spindle taper | NO.6(MT6)(90 1:20)[113 1:20] | ||||
Feed | Number of feeds | 64 kinds(for each) | |||
Range of metric threads(kinds) | (1-96mm)44 kinds | ||||
Range of inch threads(kinds) | (2-24tpi)21kinds | ||||
Range of module threads(kinds) | 0.25-48 (Moduie39kinds) | ||||
Range of pitch threads(kinds) | 1-96DP(37kinds) | ||||
Tailstock | Max. tail stock spindle travel | 150mm | |||
Tail stock spindle diameter | 75mm | ||||
Taper of tail stock spindle center hole | NO.5(MT5) | ||||
Main motor | 7.5KW(10HP) | ||||
Packing dimensions (L*W*Hmm) | Overall dimensions for750mm | 2550x1140x1750 | |||
Overall dimensions for1000mm | 2700x1140x1750 | ||||
Overall dimensions for1500mm | 3200x1140x1750 | ||||
Overall dimensions for2000mm | 3700x1140x1750 | ||||
Overall dimensions for2200mm | 4030x1140x1750 | ||||
Overall dimensions for3000mm | 4850x1140x1750 | ||||
Overall dimensions for4000mm | 5800x1140x1750 | ||||
Weight (kg) | Length | G.W N.W. | |||
Weight for 750mm | 2100 1990 | ||||
Weight for 1000mm | 2190 2070 | ||||
Weight for 1500mm | 2350 2220 | ||||
Weight for 2000mm | 2720 2570 | ||||
Weight for 2200mm | 2800 2600 | ||||
Weight for 3000mm | 3300 3200 | ||||
Weight for 4000mm | 3500 3400 | ||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Tengdong Machine Tool Co., Ltd. is a set of lathes, milling machines, drilling machines, planers, presses and other machine tool
equipment consisting mainly of modern production group production enterprises.
Company under the three production bases, an import and export foreign trade companies
equipment consisting mainly of modern production group production enterprises.
Company under the three production bases, an import and export foreign trade companies
