double drum asphalt road surface new road roller price

Product Overview

Description

Road Roller

For the different road rolling requirements, we have three different types of road roller: RR-DD800, RR-600, RR-D600

1. RR-DD800

Product Description:

RR-DD800 road roller machine is mainly used for foundation ditch, road, sports venues built compaction. It also can be used to compact the asphalt surface.



Specifications:

Walking Speed	0-12km/h
Grade ability	30-40%
Drive Type	Hydraulic Transmission
Vibration Control	Hydraulic Vibration
Static Linear Load	125/115N/cm
Nominal Amplitude	0.5mm
Exciting Force	2X30KN
Water Tank	200L
Hydraulic Oil Tank	48L
Engine Type	Perkins 403D-15
Steel Drum Diameter	700mm
Steel Drum Width	1200mm
Power	32.7HP
Working Weight	2900kg
Starting Mode	Manual and Electric



Features:

1. It can be used for small area for its Small operating radius

2. Electric start

3. Famous brand NSK bearing

4. Rust resistance surface

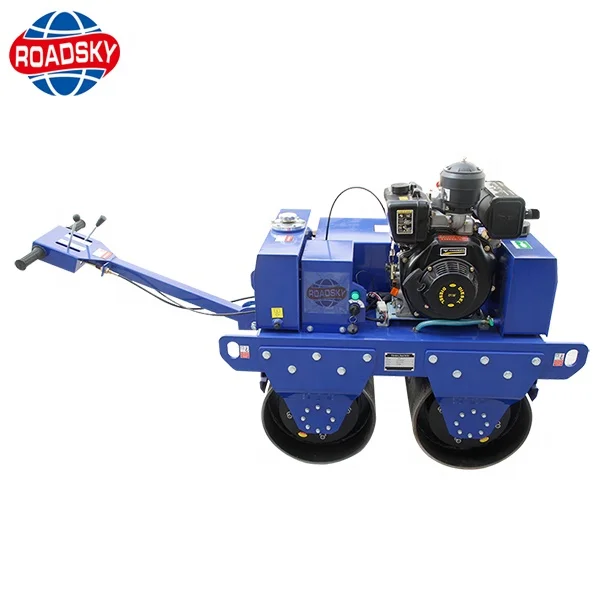

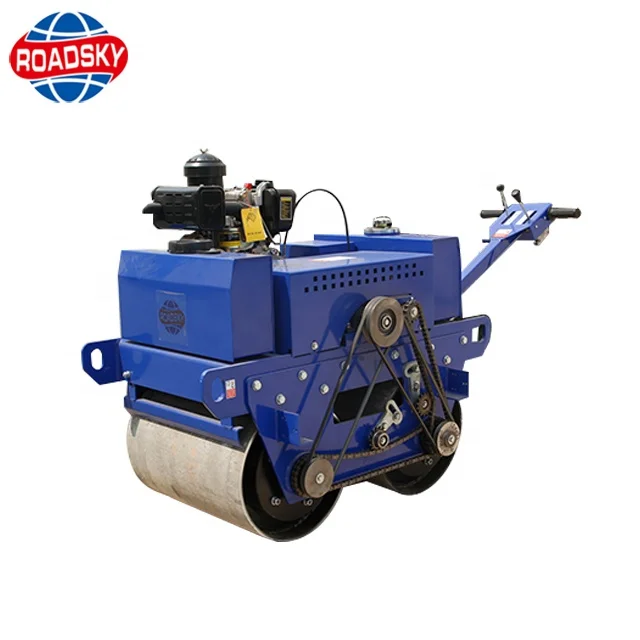

2. RR-D600

Product Description:

RR-D600 is a compact double drum soil compactor with small machines features and reliable performance. Mainly used on foundation ditch, road, sports venues built compaction, can also be used to compact asphalt surface.



Specifications:

Walking Speed	0-3km/h
Grade ability	30%
Driving Type	Hydraulic station
Vibration Control	Automatic Clutch
Static Linear Load	53N/cm
Nominal Amplitude	0.5mm
Exciting Force	20KN
Vibration Frequency	70HZ
Water Tank	20L
Hydraulic Oil Tank	21L
Engine Type	CF178F
Steel Drum Diameter	425mm
Steel Drum Width	600mm
Power	6HP
N.W	550kg
Starting Mode	Manual and Electric



Features:

1. Adopts Fully Hydraulic Transmission: Hydraulic Steering and Hydraulic Turning, Mechanical Vibration;

2. Can adopts water-cooled/air-cooled diesel engine or gasoline engine, good heat dissipation.

3. 20KN Exciting force, good compaction. soil compactor vibratory roller.

4. The equipped with large capacity water tank, reduce the return water trouble, so that equipment can be continuous growth of working time.

5. Full closed hydraulic control system, ensure the walking and compaction degree of accuracy, the maintenance is more convenient, convenient use, safety.

6. The side of a vehicle body design of a compact smooth walls, in the corners and edges of operation is very easy and convenient.

7. Operate radius small, can work in small area, suitable for groove backfill.

8. Use famous diesel engine, water-cooled diesel, high nd quality assurance, superior performance, easy to start.

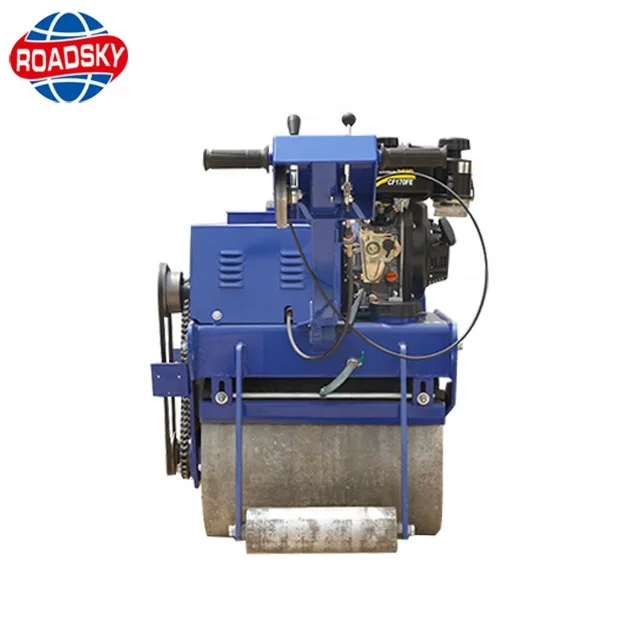

3. RR-600

Product Description:

RR-600 road roller is small-size vibratory roller, applied to mend and maintain various roads, expressway shoulder, roadside walk, parking area, sports ground and garden lawn.

They are especially suitable for compaction of narrow areas as pipeline channel and drainage trench etc.





Specifications:

Walking Speed	0-3km/h
Grade ability	30%
Driving Type	Hydraulic station
Vibration Control	Automatic Clutch
Static Linear Load	40N/cm
Nominal Amplitude	0.6mm
Exciting Force	15KN
Vibration Frequency	70HZ
Water Tank	17L
Hydraulic Oil Tank	19L
Engine Type	CF170F
Steel Drum Diameter	425mm
Steel Drum Width	600mm
Power	5HP
N.W	325kg
Starting Mode	Manual and Electric



Features:

1. Fully hydraulic drive system consists of hydraulic pump and motors,provides infinitely variable speed for travel and vibration;

2. Dead man control and reversing protection for maximum operator safely;

3. Mechanical parking brake;

4. Self-cleaning scrapers prevent the buildup of dirt;

5. Electronic clutch;



Relate item

Cold feed



1 All-weather repair material: Cold feed is suitable for a wide range of ambient temperatures and can be applied between -30 ° C and 50 ° C, whether it is rainy, rain or snow or sunny. (You can produce various standards according to the customer's local climate)



2 Simple construction: no need to stick to the oil when using the cold feed to repair the pavement. The material can be used as needed, no heavy construction machinery is required, and impact compaction, manual compaction or automobile tire crushing can be used according to different repairing conditions of the road surface. Moreover, the area supplemented with cold feed does not need to be closed to traffic, and can be immediately opened to traffic, greatly alleviating the traffic pressure caused by road repairing construction.



3 Good repair quality: Cold feed has strong anti-aging and bonding properties. After repairing the pits, it is not easy to cause any problems such as falling off and cracking, and no need to repeat repair.





Shipping

For a small quantity of orders or sample order, we will generally choose to transport by air (DHL, TNT, etc)

Large orders we generally use the ocean shipping.

The shipping time is as follows:

Type of shipping	Area	Shipping time
By express	All around the world	1-7 days
By air	All around the world	7-14 days
By sea	North America	20-30 days
	South America	40-50 days
	Africa	40-50 days
	Europe	20-30 days
	Oceania	20-30 days

Warranty

Considered the differences in the using environment, our products generally warranty 5-10 years.

Before delivery, we will provide third party inspection(CE, ISO, etc.).
