  • NEW Omron PLC INPUT Module CJ1W DA08C CJ1WDA08C One year warranty
NEW Omron PLC INPUT Module CJ1W DA08C CJ1WDA08C One year warranty
NEW Omron PLC INPUT Module CJ1W-DA08C CJ1WDA08C One year warranty

NEW Omron PLC INPUT Module CJ1W DA08C CJ1WDA08C One year warranty

Share on (60824784178):


Price:

Quantity:


Product Overview

Description


NEW Omron PLC INPUT Module CJ1W-DA08C CJ1WDA08C One year warranty





Feature

From basic Analogue I/O to advanced temperature control

CJ1 offers a wide choice of analogue input units, fit for any application, from low-speed, multi-channel temperature measurement to high-speed, high-accuracy data acquisition. Analogue outputs can be used for accurate control or external indication.

Advanced units with built-in scaling, filtering and alarm functions reduce the need for complex PLC programming. High-accuracy process I/O units support an extensive range of sensors, for fast and accurate data acquisition. Temperature Control units relieve the PLC CPU of PID calculations and alarm monitoring. These functions are handled autonomously by the unit, offering control performance and autotuning functions similar to stand-alone temperature controllers.

Specification



Ordering information



Points

Type

Ranges

Resolution

Accuracy

1
1. Accuracy for Voltage and Current Inputs/Outputs as percentage of full scale and typical value at 25°C ambient temperature (Consult the operation manual for details)
Accuracy for Temperature Inputs/Outputs as percentage of process value and typical value at 25°C ambient temperature (Consult the operation manual for details)



Conversion time

Width

Remarks

Connection type

Order code

4

Universal analog input

0 to 5 V

1 to 5 V

0 to 10 V

0 to 20 mA

4 to 20 mA

K, J, T, L, R, S, B

Pt100, Pt1000, JPt100

V / I: 1/12,000

T/C: 0.1°C

RTD: 0.1°C

V: 0.3%

I: 0.3%

T/C: 0.3%

RTD: 0.3%

250 ms/4 point

31 mm

Universal inputs, with zero/span adjustment, configurable alarms, scaling, sensor error detection

M3

CJ1W-AD04U

Screwless

CJ1W-AD04U(SL)

4

Analog input

0 to 5 V,
0 to 10 V,
-10 to 10 V,
1 to 5 V,
4 to 20 mA

1/8,000

V: 0.2%
I: 0.4%

250 µs/point

31 mm

Offset/gain adjustment, peak hold,
moving average, alarms

M3

CJ1W-AD041-V1

Screwless

CJ1W-AD041-V1 (SL)

4

High-speed
analog input

1 to 5 V,
0 to 10 V,
-5 to 5 V,
-10 to 10 V,
4 to 20 mA

1/40,000

V: 0.2%
I: 0.4%

35 µs/4 points

31 mm

Direct conversion (CJ2H special instruction)

M3

CJ1W-AD042

8

Analog input

1 to 5 V,

0 to 5 V,
0 to 10 V,
-10 to 10 V,
4 to 20 mA

1/8,000

V: 0.2%
I: 0.4%

250 µs/point

31 mm

Offset/gain adjustment, peak hold,
moving average, alarms

M3

CJ1W-AD081-V1

Screwless

CJ1W-AD081-V1 (SL)

2

Analog output

0 to 5 V,
0 to 10 V,
-10 to 10 V,
1 to 5 V,
4 to 20 mA

1/4,000

V: 0.3%
I: 0.5%

1 ms/point

31 mm

Offset/gain adjustment, output hold

M3

CJ1W-DA021

Screwless

CJ1W-DA021 (SL)

4

Analog output

1 to 5 V,

0 to 5 V,
0 to 10 V,
-10 to 10 V,
4 to 20 mA

1/4,000

V: 0.3%
I: 0.5%

1 ms/point

31 mm

Offset/gain adjustment, output hold

M3

CJ1W-DA041

Screwless

CJ1W-DA041 (SL)

4

High-speed

analog output

1 to 5 V,
0 to 10 V,
-10 to 10 V

1/40,000

0.3%

35 µs/4 points

31 mm

Direct conversion (CJ2H special instruction)

M3

CJ1W-DA042V

8

Voltage output

0 to 5 V,
0 to 10 V,
-10 to 10 V,
1 to 5 V

1/8,000

0.3%

250 µs/point

31 mm

Offset/gain adjustment, output hold

M3

CJ1W-DA08V

Screwless

CJ1W-DA08V (SL)

8

Current output

4 to 20 mA

1/8,000

0.3%

250 µs/point

31 mm

Offset/gain adjustment, output hold

M3

CJ1W-DA08C

Screwless

CJ1W-DA08C (SL)

4 + 2

Analog in + output

1 to 5 V,
0 to 5 V,
0 to 10 V,
-10 to 10 V,
4 to 20 mA

1/8,000

in: 0.2%
out: 0.3%

1 ms/point

31 mm

Offset/gain adjustment, scaling, peak hold, moving average, alarms, output hold

M3

CJ1W-MAD42

Screwless

CJ1W-MAD42 (SL)

4

Universal analog input

DC voltage,
DC current,
Thermocouple, Pt100/Pt1000,
potentiometer

1/256,000

0.05%

60 ms/4 points

31 mm

All inputs individually isolated, configurable alarms, maintenance functions,
user-defined scaling, zero/span adjustment

M3

CJ1W-PH41U

2

Process input

4 to 20 mA
0 to 20 mA
0 to 10 V,
-10 to 10 V,
0 to 5 V,
-5 to 5 V,
1 to 5 V,
0 to 1.25 V,
1.25 to 1.25 V

1/64,000

0.05%

5 ms/point

31 mm

Configurable alarms, maintenance
functions, user-defined scaling, zero/span adjustment, square root, totaliser

M3

CJ1W-PDC15

2

Thermocouple
input

B, E, J, K, L, N, R, S, T, U, WRe5-26, PLII,
-100 to 100 mV

1/64,000

0.05%

5 ms/point

31 mm

Configurable alarms, maintenance functions

M3

CJ1W-PTS15

4

Thermocouple
Input

B, J, K, L,
R, S, T

0.1°C

0.3%

62.5 ms/point

31 mm

4 configurable alarm outputs

M3

CJ1W-PTS51

4

Resistance thermometer input

Pt100, JPt100

0.1°C

0.3%

62.5 ms/point

31 mm

4 configurable alarm outputs

M3

CJ1W-PTS52

6

Thermocouple
input

K-type
(-200 to
1,300°C)
J-Type
(-100 to 850°C)

0.1°C

0.5%

40 ms/point

31 mm

Basic I/O unit, setup by DIP switches,
adjustable filtering 10/50/60 Hz

M3

CJ1W-TS561

Screwless

CJ1W-TS561 (SL)

6

Resistance thermometer input

Pt100
(-200 to 650°C)
Pt1000
(-200 to 650°C)

0.1°C

0.5%

40 ms/point

31 mm

Basic I/O unit, setup by DIP switches,
adjustable filtering 10/50/60 Hz

M3

CJ1W-TS562

Screwless

CJ1W-TS562 (SL)

4

Temperature control loops, Thermocouple

B, J, K, L,
R, S, T

0.1°C

0.3%

500 ms total

31 mm

4 control outputs: PNP open
collector, 100 mA max.

M3

CJ1W-TC002

2

Temperature control loops, Thermocouple

B, J, K, L,
R, S, T

0.1°C

0.3%

500 ms total

31 mm

2 control outputs: PNP open
collector, 100 mA max., 2 current transformer inputs for heater burnout detection.

M3

CJ1W-TC004

4

Temperature control loops, RTD

Pt100, JPt100

0.1°C

0.3%

500 ms total

31 mm

4 control outputs: PNP open
collector, 100 mA max.

M3

CJ1W-TC102

2

Temperature control loops, RTD

Pt100, JPt100

0.1°C

0.3%

500 ms total

31 mm

2 control outputs: PNP open
collector, 100 mA max., 2 current transformer inputs for heater burnout detection.

M3

CJ1W-TC104

1

Load Cell Interface unit

10 VDC or 2.5 VDC, max. four 350Ω load cells.

24 bit, 0.1μV/count

Linearity error: <0.02% FS

0.33 ms

31 mm

Self-contained unit designed for fast weight and force measurement.

Low-pass filter adjustable 3 Hz - 1 kHz. Made by Unipulse Co.

M3

CJ1W-F130

1

Weighing unit

10 VDC, max. four 350Ω load cells

24 bit, 0.3µV/count

Linearity error: <0.01% FS

2 ms

31 mm

Self-contained unit designed for feed weighing, discharge weighing, hopper scales, packing scales, bag filling, etc. Made by Unipulse Co.

M3

CJ1W-F159

Note: All Analog I/O units are designated as Special I/O units, except TS561/TS562, which are Basic I/O units (cannot be used with CP1H).

Accessories

Description

Connection type

Order code

Replacement 18-point screwless terminal blocks for I/O units, pack of 5 pcs.

Screwless

CJ-WM01-18P-5

Replacement 18-point screw terminal blocks for I/O units, pack of 5 pcs.

M3

CJ-OD507-18P-5

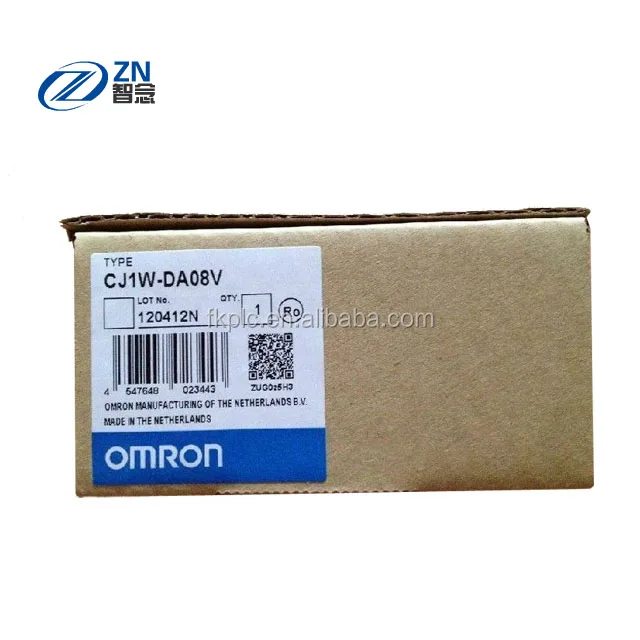

 cj1w-da08v p1
