Simple and Cheap Foil Winding Machine Transformer Equipment
Introduction
Simple and Cheap Foil Winding Machine Transformer Equipment JJ-BRJ450 is a core-clamped type foil winding machine, adopts double mechanical chucks, and clamps the core through adjusting screw rod. This transformer machine winding foil adpots mechanical synchronous using gear, and can count winding turns with the counting range from 0 to 9999.9.
Main components:
1. Main frame
2. Foil decoiler
3. Pressing roller unit
4. Winding unit
5. Insulation decoiler unit
6. Correction unit
7. Pneumatic unit
8. Electrical Control System
Technical Parameters
Typical standard specifications of JJ-BRJ450 are shown below, however these can be easily modified as requested.
Max. Axial Length:
450mm
Foil Material OD.:
1000mm
Foil Material ID.:
400/500mm
Conductor Decoiler Length:
450mm
Conductor Decoiler Shaft:
Dia. adjustable range 4000-5200mm
Max Coil Weight:
800KG
RectifyingDeviation Mode:
Photoelectric sensing and automatic rectifying deviation
Insulation Material OD.:
≤400mm
Insulation Material ID.:
76mm
Insulation Material Width:
500mm
Insulation Decoiler Shaft:
Expandable (pneumatic open/close action)
Damping Force:
≤100N.M
Speed Regulation:
Variable frequency and stepless
Clamping Mode:
Double chucks
Electrical Control Cabinet:
1
Counting Turn Range:
0-9999.9

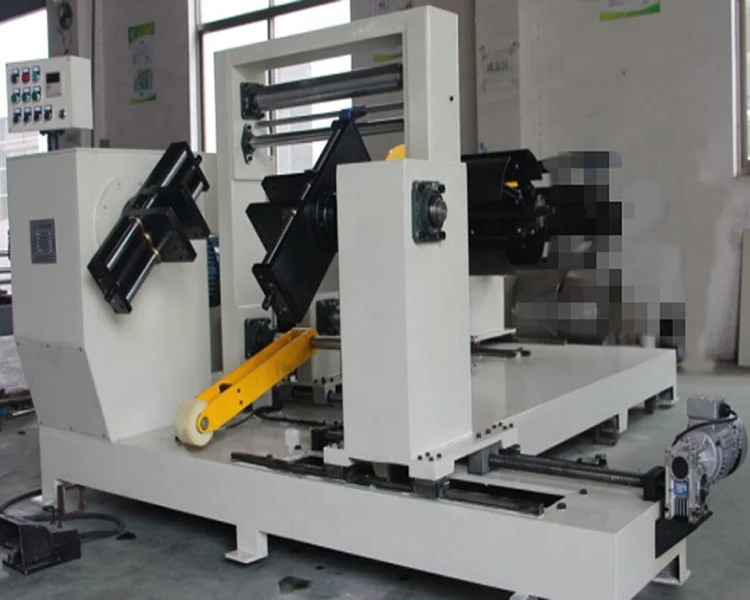

Figure 1:Simple and Cheap Foil Winding Machine Transformer Equipment JJ-BRJ450-2's full view
