1. This series of machine have the functions of washing and dewatering, automatic and manual switch back and forth. Arbitrary choice of the wash cycle, the number of cleanings, dehydration time, etc. For a wide range of fabrics. The device uses a variable frequency drive, speed adjustment smooth, flexible, low noise; equipment used back drainage structure to solve the problem of clean laundry;

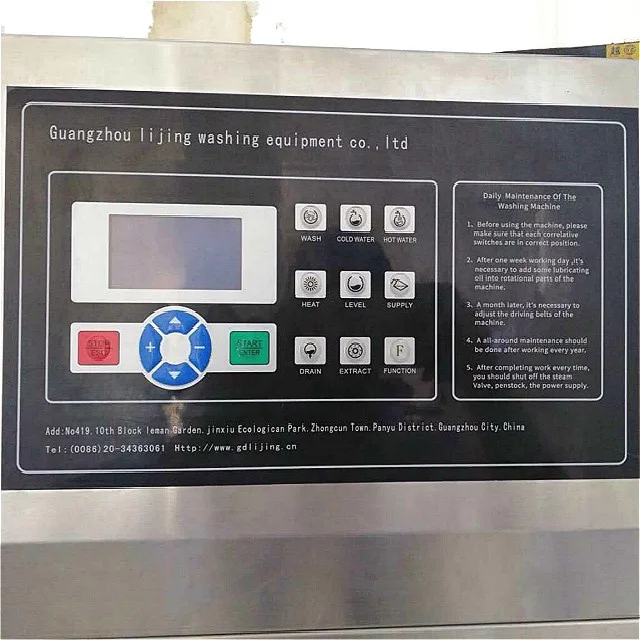

2. Large screen computer version control, strong function, flexible and professional. 40 sets of program memory. Manual controller, when the computer controller failure, you can switch the emergency operating system, manual operation, complete the washing.
3. Inner drum is made of high quality stainless steel welded strength, punching sided, double-sided polishing and reduce fabric wear.
4. Mechanical equipment used under suspension spring shock structure, low noise, wash and high speed extract excessive smooth, no need the base.
5. Floating Viton sealing, completely isolated from the water, and the PH of the material penetration and protect bearings, improve life.
6. Large diameter, stainless steel deep-style doors fitted clothes, effectively prevent the clamp pull linen, while reducing the labor intensity of the operation; narrow popular in Europe and America, the big door, to ensure reliable sealing of the door.
7. Flushable five positions soap injection system, dual drainage options to configure, save energy, protect the environment, add the washed material is simple and convenient;
8. In vitro using the automatic refueling device, ergonomically mechanics, reduce maintenance labor intensity, can delay life;
Application:
Hotels, restaurants, laundry, hospital, school, enterprise and public institution and so on.
Product specification
Model
XGQ-15
XGQ-25
XGQ-35
XGQ-50
XGQ-100
XGQ-120
Washing Capacity(kg)
15
25
35
50
100
120
Drum size (mm)
Φ700×450
Φ800×470
Φ920×500
Φ1070x610
Φ1200x875
Φ1300x875
Roller Speed(r/min)
45
45
36
36
34
34
Motor Power
(kw)
2.2
2.2
4
5.5
7.5
11
Steam pressure(Mpa)
0.3-0.6
0.3-0.6
0.3-0.6
0.3-0.6
0.3-0.6
0.3-0.6
Steam consumption (kg/h)
18
25
33
35
60
70
Air pressure(Mpa)
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
Dimension
(mm)
1050x970x1500
1200x1080x1700
1200x1180x1750
1430X1520X2100
1680X2080X1175
1770X2080X2080
Weight
(kg)
400
625
2100
2650
3600
4000

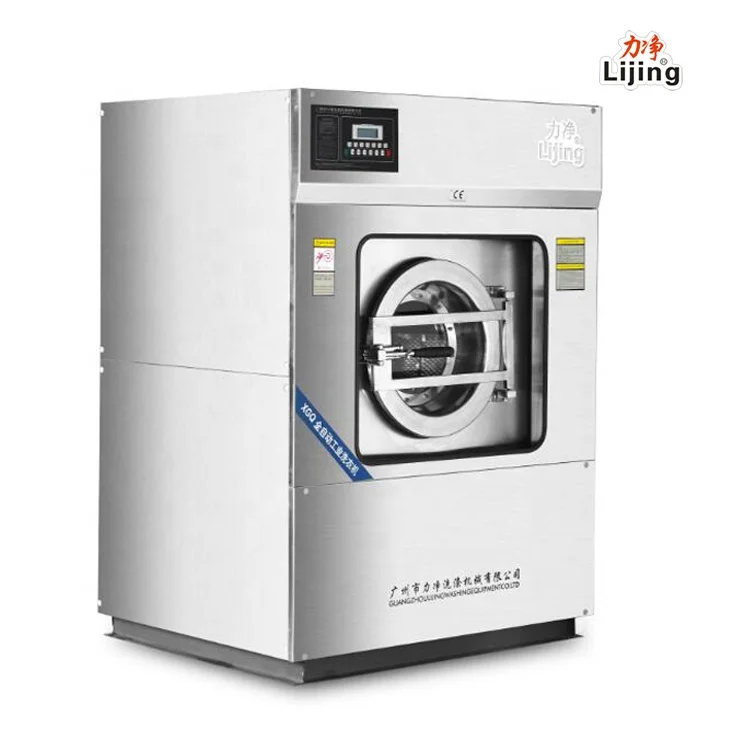

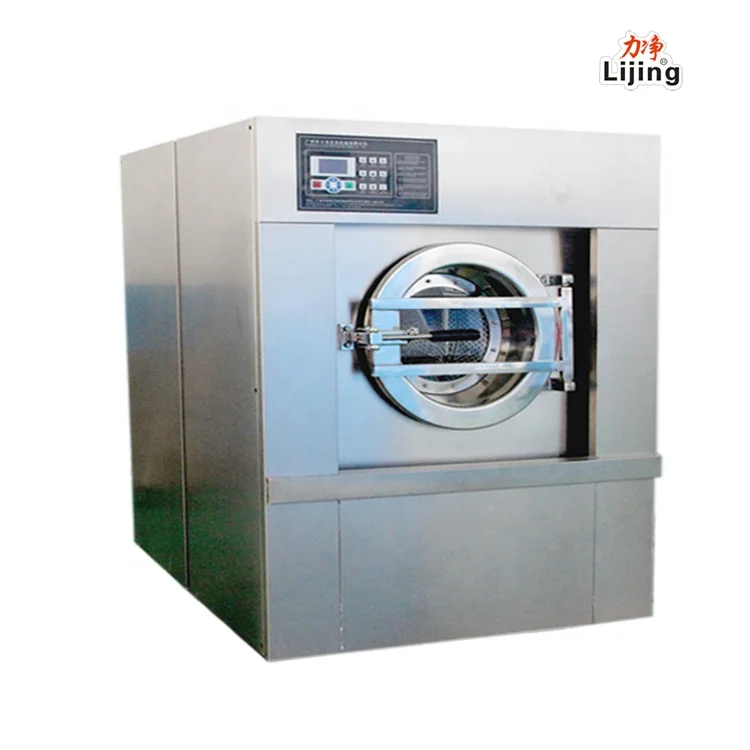

Product Picture:

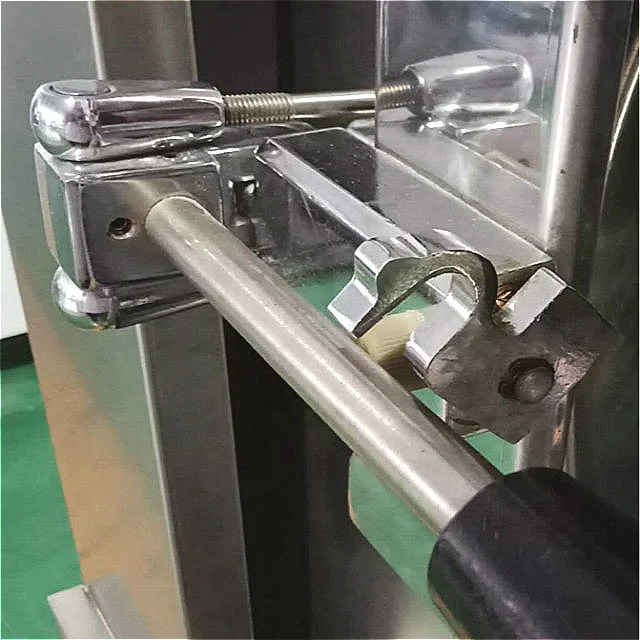

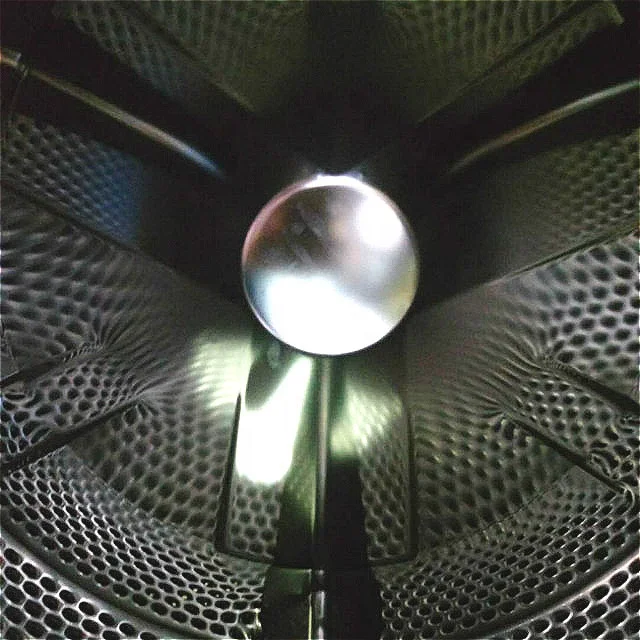

Details:
Packaging & Shipping
Packing and Delivery:
Factory photo
Our Certification:
Customer Picture
Why choose us
1. We are a leading professional manufacturer.
2. We have more than 20 years experience exporting all over the world.
3. Approvered by CE and ISO9001 system.
4. Rapid response of after-sales service.
5. Some machines have the spare parts, spare parts for free.
Company Information
Company address Address: No.13, Feie Industrial Zone, Zhongcun Town, Panyu District, Guangzhou, China
